Description

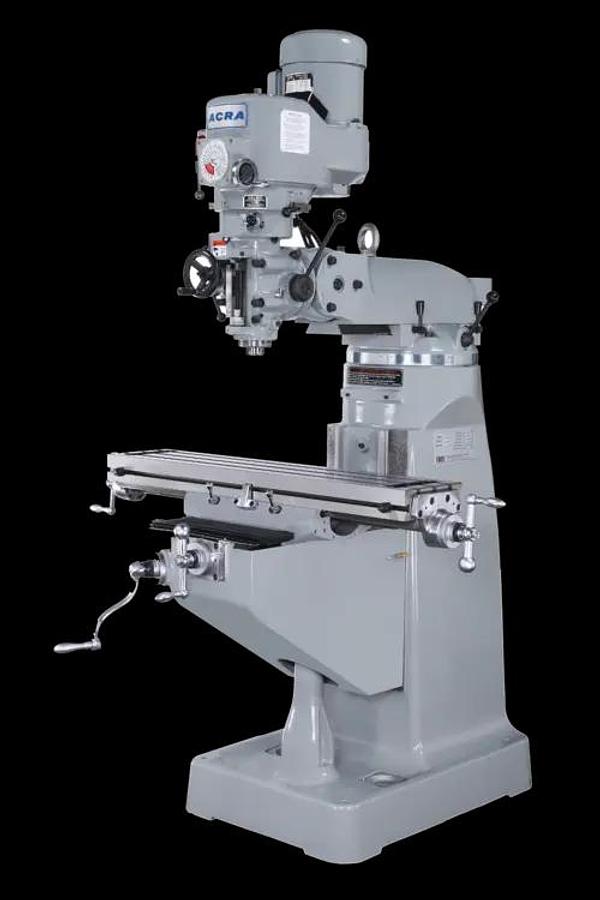

ACRA Model LCTM-1 EVS 10" x 54" Variable Speed Vertical Knee Mill
Over the years, Acra Milling Machines have become known for their reliability. We offer Vertical and Horizontal type Milling machines, Knee and Bed type Milling machines, as well as combination Milling machines that combine Vertical and Horizontal functions. We have Step pulley, Variable speed, or AC Inverter Drives for our Mills.
Acra also offers installation and repair services and warranty for our parts and accessories. Please see our Warranty and Services for additional information.
EQUIPPED WITH
Milled Oil Grooves
Hard Chrome Ways
Hand Scraped Saddle
Meechanite Casting
ABEC-7 Spindle Bearings
One Shot Lube System
DETAILED SPECIFICATION
Longitudinal Travel 35"
Cross Travel 12"
Vertical Knee Travel 15.3"
Spindle Quill Travel 5"
Spindle Nose R-8
Spindle Speeds 60 - 4,500 RPM
Spindle To Table 2-1/8" - 18"
Spindle Quill Feeds 0.0015" - 0.003" -0.006"
Ram Travel 12"
Equipped With:
AC Inverter Drive Yasakawa
Digital Readout No
Table Feed No
Power Draw Bar No
Speed Selector Variable Speed
Horsepower 3 H.P.
Voltage 220/440V ~ 3 Phase
Dimensions (W x D x H) 78" x 71" x 86"
Weight 2,700 Lbs.
ACRA PRECISION MILLING MACHINE ACCESSORIES
ACRA Mill Head 2 H.P. 16 Speed Step Pulley (2 Speed) (R8 or #30NST) $3,500.00
OPTIONAL ACCESSORIES: PRICE
Accu-rite CNC MILLPWR G2 2 axis $33,750.00
Accu-rite CNC MILLPWR G2 3 axis $39,250.00
Specifications
| Manufacturer | ACRA |
| Model | LCTM1 |
| Year | 2023 |
| Condition | New |
| Status | For Sale |
| Country | United States |
| Table-W | 10"; 254 mm |
| Table-L | 54"; 1,371.6 mm |
| Travel-Long | 35"; 889 mm |
| Travel-Cross | 16.3"; 414.02 mm |
| Power | 3 hp; 2.2 kW |
| RPM | 4,500 RPM; 4,500 RPM |
| Taper | R-8; R-8 |
| Dimensions | 70" x 75" x 88"; 70" x 75" x 88" |
| Weight | 2,700 lbs; 2,700 lbs |
| 6" Vise (China) W/Swivel | $250.00 |
| 6" Vise (Taiwan) W/Swivel | $600/800 |
| R-8 Collet Set 12 PC (China) -AM2/AM5 | $100.00 |
| R-8 Collet Set (Taiwan) - AM2/AM5 | $125.00 |
| Clamping Kit 53 PC (China) | $100.00 |
| Clamping Kit 53 PC (Taiwan) | $125.00 |
| 6" Rotary Table H/V | $450.00 |
| 8" Rotary Table H/V | $600.00 |
| 10" Rotary Table H/V | $750.00 |
| 12" Rotary Table H/V | $900.00 |
| 4" Riser Block – LCM-50 | $700.00 |
| 6" Riser Block – LCM-50 | $750.00 |
| 4” Riser Block LCTM 1,2,3 | $750.00 |
| 6” Riser Block LCTM 1,2,3 | $850.00 |
| 4" Riser Block – AM2, AM5 | $700.00 |
| 6" Riser Block – AM2, AM5 | $750.00 |
| 8" Riser Block – AM2, AM5 | $850.00 |
| Maxi-Torque Power Draw Bar R-8 / #30, 40 Taper (USA) | $750.00 |
| Right Angle Milling Attachment R-8 / #30 Taper | $1,100.00 |
| Right Angle Milling Attachment #40 Taper | $1,450.00 |
| Right Angle Head R8 | $750.00 |
| Right Angle Head R30 | $750.00 |
| Right Angle Head #40 | $900.00 |
| Coolant System / Chip Tray | $850.00 |
| Safety Handle | $90.00 |
| Quick Change Tool Set (17PC) - AM2 | $350.00 |
| Quick Change Tool Set (17PC) - AM5 | $400.00 |
| Auto Lube Exchange | $300.00 |
| Auto Lube | $400.00 |
| ACRA LC Series Variable speed (R8 or #30NST) | $5,000.00 |
| ACRA Mill Head 3 H.P. Variable Speed (R8 or #30NST) | $4,500.00 |
| ACRA Mill Head 3 H.P. AC Inverter Drive (R8 or #NST30) | $5,500.00 |
| NST #30 Spindle Instead of R-8 Spindle (LCM/LCTM1) | $250.00 |
| Baldor Motor | $750.00 |
| Acu-Rite 2-Axis 203 | $2,400.00 |
| Acu-Rite 2-Axis 303 | $2,900.00 |
| Newall 2-Axis D.R.O. DP700 | $2,000.00 |
| Newall 2-Axis D.R.O. NMS300 | $1,200.00 |
| Sony 2-Axis D.R.O. MILLMAN | $P.O.R. |
| Mitutoyo 2-Axis D.R.O KA-200 | $P.O.R. |
| Installation For 2-Axis D.R.O | $250.00 |
| Acu-Rite 3-Axis 203 | $3,200.00 |
| Acu-Rite 3-Axis 303 | $3,600.00 |
| Newall 3-Axis D.R.O. DP700 | $2,700.00 |
| Newall 3-Axis D.R.O. NMS300 | $1,600.00 |
| Sony 3-Axis D.R.O. MILLMAN | $P.O.R. |
| Mitutoyo 3-Axis D.R.O KA-200 | $P.O.R. |
| Installation For 3-Axis D.R.O | $300.00 |
| Power Feed X Axis Align | $450.00 |
| Power Feed Y Axis Align | $550.00 |
| Power Feed Z Axis Align | $550.00 |
| Power Feed X Axis 140 Servo (USA) | $P.O.R. |
| Power Feed Y Axis 140 Servo (USA) | $P.O.R. |
| Power Feed X Axis 150 Servo (USA) | $P.O.R. |
| Power Feed Y Axis 150 Servo (USA) | $P.O.R. |
| Power Feed Z Axis (140 Only) Servo (USA) | $P.O.R. |
| Power Feed Installation X Axis | $50.00 |
| Power Feed Installation Y Axis | $100.00 |
| Power Feed Installation Z Axis | $100.00 |
