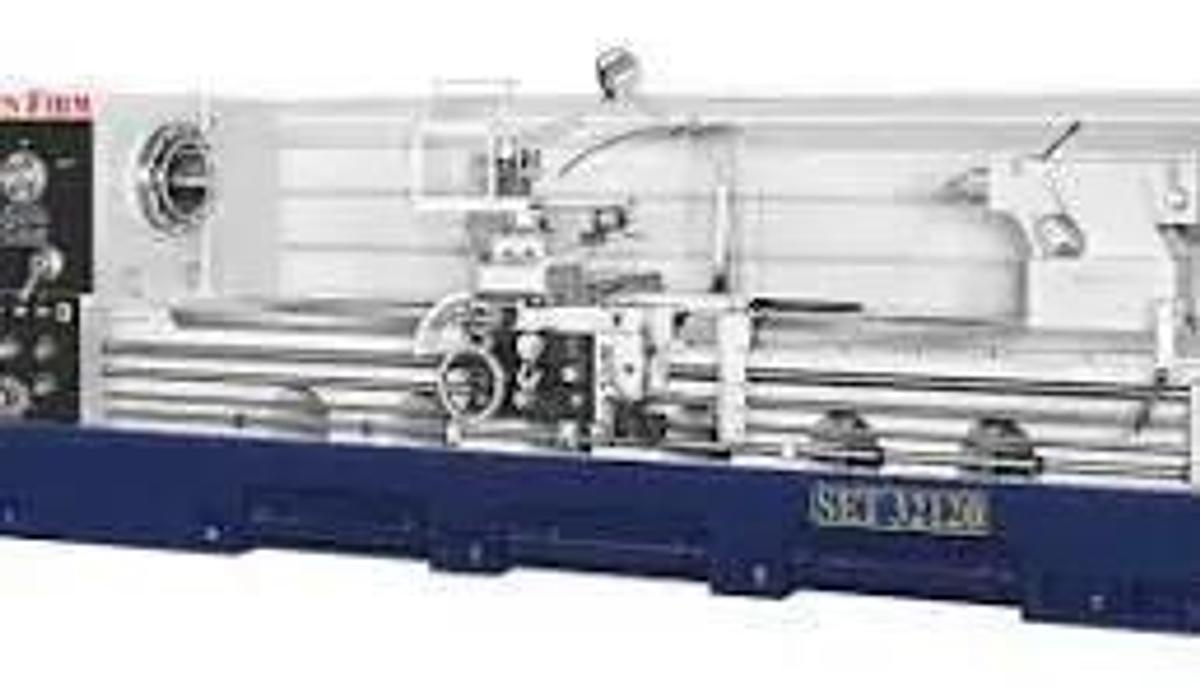

ACRA 3200 SET Precision Engine Lathe Swing 32 5/8" x 120" between centers, 6" spindle bore, 25 HP Motor
$80,850
Description
ACRA 3200 SET Precision Engine Lathe Swing 32 5/8" x 120" between centers, 6" spindle bore, 25 HP Motor
FEATURES:

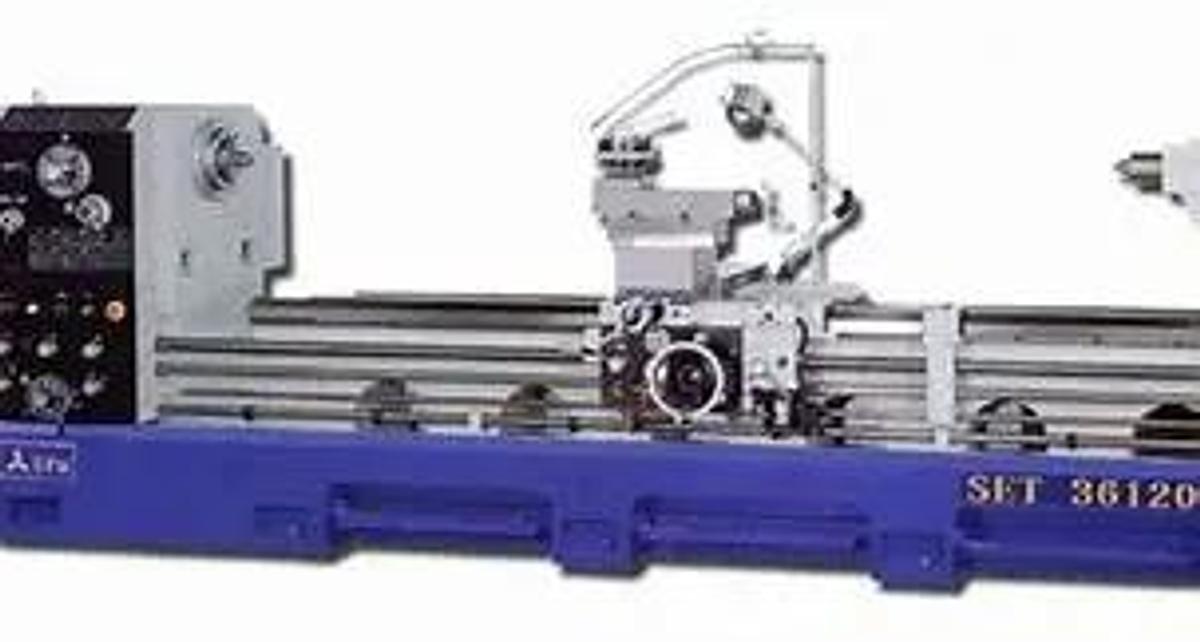

Series: 2800SET 3200SET 3600SET
Swing Over Bed: 28-3/4 " 32-5/8" 36-5/8"
Swing Over Cross Slide: 19-5/8" 23-5/8" 27-1/2"
Swing in Gap: 39-3/8" 43-1/4" 47-1/4"
Spindle Bore 6"
Spindle Nose: A2-11
Spindle RPM: 15-1000 (12 Speeds)
Made in Taiwan Main Motor: 25 HP x 4 P
Voltage: 230/460V AC/3PH
STANDARD EQUIPMENT:
Full Length Splash Guard
Full Length Rear Splach Guard
20" 3-Jaw Chuck
2-Way Rapid Travel
4 Way Tool Holder\2- 12" Steady Rests
Halogen Light
Coolant System
FEATURES:
Spindle Bore 6"
Taper of Center M.T. No. 5
Carriage Cross Slide Travel 16.5"
Compound Rest Travel 10"
Tailstock Quill Diameter 3.75"
Quill Travel 9"
Taper of Quill Center M.T. No. 5
Bed Width 18.11"
Length of Bed 120"
Weight 14,500 LBS
Specifications
| Manufacturer | ACRA |
| Model | SET 32120 |
| Year | 2024 |
| Condition | New |
| Status | For Sale |
| Country | United States |
| Swing | 32.625"; 828.67 mm |
| Centers | 120"; 3,048 mm |
| Spindle Bore | 6"; 152.4 mm |
| Power | 25 hp; 18.6 kW |
| RPM | 1,000 RPM; 1,000 RPM |
| Swing Over Cross Slide | 19-5/8" 23-5/8" 27-1/2" |
| Dimensions | 157.4"L x 63"W x 74.8"H; 157.4"L x 63"W x 74.8"H |
| Weight | 14,700 lbs; 14,700 lbs |
| Steady Rest (20”) | $3,550.00 |
| Steady Rest (24”) SET36 Only | $4,500.00 |
| Face Plate | $1,150.00 |
| Taper Attachment | $4,000.00 |
| Installation Taper Attachment | $750.00 |
| Change 6” to 9” A2-15 Nose | $20,000.00 |
| Newall Digital Read-Out-60" DP700 | $3,250.00 |
| Newall Digital Read-Out-60" NMS300 | $1,600.00 |
| Newall Digital Read-Out-80" DP700 | $3,950.00 |
| Newall Digital Read-Out-80" NMS300 | $1,800.00 |
| Newall Digital Read-Out-120" DP700 | $5,200.00 |
| Newall Digital Read-Out-120" NMS300 | $2,300.00 |
| Newall Digital Read-Out-160” DP700 | $6,50.00 |
| Newall Digital Read-Out-200” DP700 | $8,100.00 |
| Newall Digital Read-Out-240” DP700 | $8.600.00 |
| Acu-Rite Digital Read-Out-60"/80"/120" 203/303 | $P.O.R. |
| Fagor or Mitutoyo Digital Read-Out | $P.O.R. |
| Series | 2800SET 3200SET 3600SET |
| Swing Over Bed | 28-3/4 " 32-5/8" 36-5/8" |
| Swing in Gap | 39-3/8" 43-1/4" 47-1/4" |
| Spindle Nose | A2-11 |
| Spindle RPM | 15-1000 (12 Speeds) |
| Made in Taiwan Main Motor | 20 HP x 4 P |
| Voltage | 230/460V AC/3PH |
