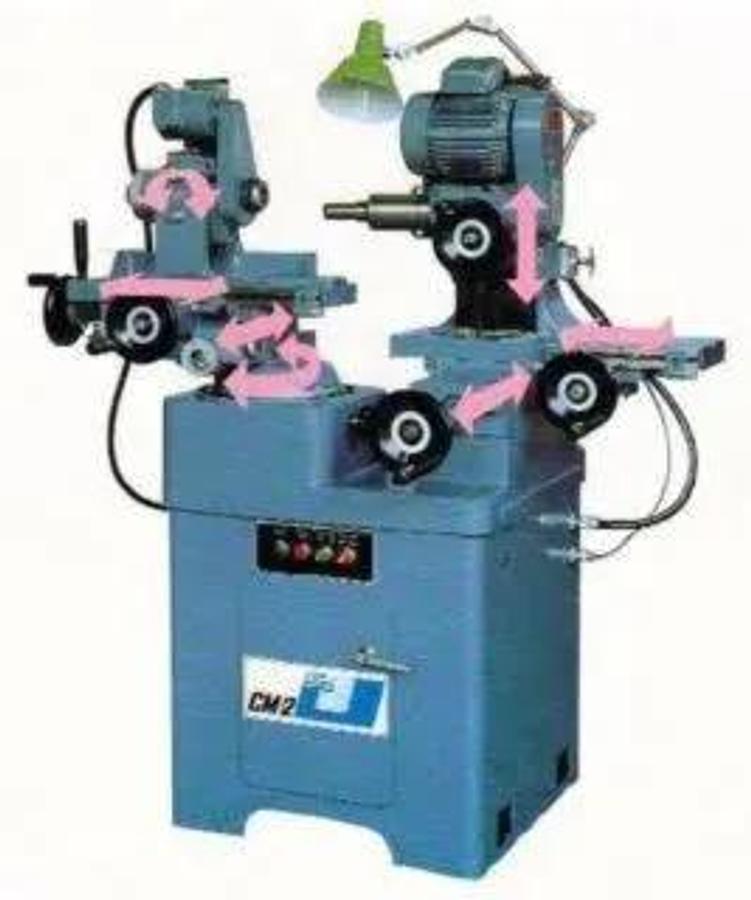

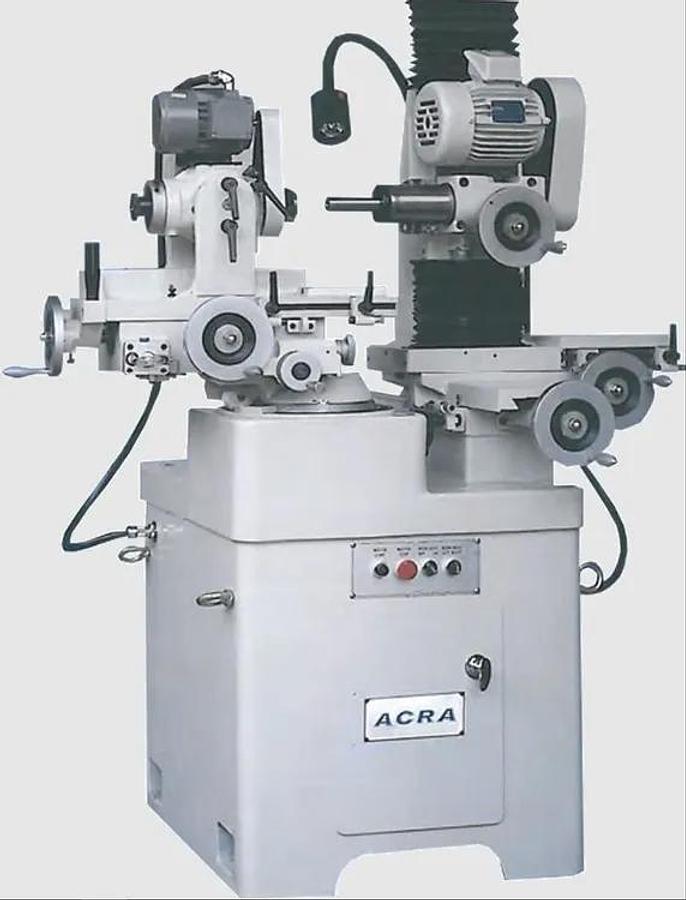

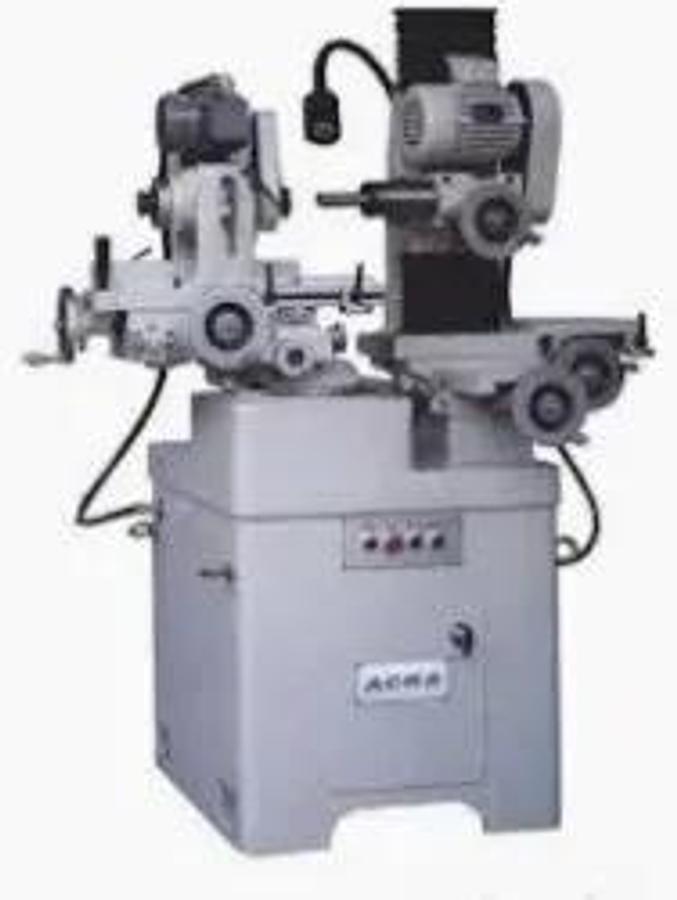

2024 ACRA (Taiwan) Model MN2 Tool & Cutter Grinder with Ball Screw, Copy of Cincy Monaset grinder

2024 ACRA (Taiwan) Model MN2 Tool & Cutter Grinder with Ball Screw, Copy of Cincy Monaset grinder • CAPABILITY FOR MULTIPLE GRINDING OPERATIONS AT SINGLE CHUCKING OF WORK PIECE SAVES SETUP TIME, ASSURES EXCELLENT CONCENTRICALLY. • VERSATILITY FOR GENERATING STRAIGHT OR TAPERED, RIGHT OR LEFT HAND, INFINITELY VARIABLE LEADS FROM A SIMPLE BUILT-IN LEAD MECHANISM. • TURNTABLES MOUNTING OF ENTIRE WORK HEAD SLIDE ASSEMBLY, ADJUSTABLE THROUGH 235 PLUS DEGREES IN THE HORIZONTAL PLANE HAS PROVED TO BE A REAL ASSET WHEN GRINDING RADIUS. • ADJUSTABLE IS WORK HEAD ON SEPARATED SLIDE WITH DUAL HAND WHEEL CONTROL HAS PROVED TO BE A BOOST FOR SETUPS. STANDARDEQUIPMENT: STANDARD EQUIPMENT: • WHEEL HEAD TOOL REST ASSEMBLY WITH EXTENSION BAR • GRINDING WHEEL GUARDS WITH EXTENSION BAR • FRONT STOCK SUPPORT • STRAIGHT CYLINDRICAL COLLETS: (PLEASE SELECT “A” OR “B”) (A) METRIC SIZES: 3,5 ,6,8,10,12,16,20,25 & 32 M/M. (B) INCH SIZES: 1/8, 3/16, 1/4 , 5/16, 3/8, 7/16, 1/2, 5/8, 3/4, 7/8, 1,1-1/8 & 1-1/4″ ALSO INCLUDING SET OF 3 TAPER COLLETS: NO. 2,3,4 MORSE TAPER • SET OF (5) GRINDING WHEEL FLANGES. (4) STANDARD AND (1) EXTENSION FLANGE • DIAMOND HOLDER BRACKET • WRENCH FOR WORK HEAD • TOOTH REST CENTERING GAUGE • ADJUSTABLE TAILSTOCK SUPPORT UNIT • SPANNER FOR GRINDING WHEEL • LEVELING BLOCKS • STANDARD ARBOR • SCREWDRIVER • SET OF WRENCH’S • DOUBLE-END SPANNER • SET OF (4) INDEX PLATES FOR SPINDLE LEAD MECHANISM 0,8,10 & 12 DIVISIONS • TOOLBOX • OIL CAN Cast Iron Base Designed to Grind Complex Tools Table & Work Head Controls Motorized OPTIONALACCESSORIES: PRICE Index plate for spiral lead indexing unit-24T… $550.00 Frequency converter for grinding-wheel-spindle to 1/2 HP (Freq inverter included) $750.00 Frequency converter for grinding-wheel-spindle to 1HP (Freq inverter included)……$950.00 Frequency converter for grinding-wheel-spindle to 2 HP (Freq inverter included)…$1,000.00 CAPACITY: WORK HEAD: SWING OVER MAIN SLIDE:… 12” COLLET WORK DIAMETER (MIN~MAX):… 0.12 ~ 1.25” LEAD GENERATED BY SPIRAL LEAD MECHANISM:… 1.81” WHEEL HEAD: GRINDING WHEEL DIAMETER:… 4” RANGE: MAIN SLIDE TRAVEL:… 5.75” OFFSET SLIDE TRAVEL TOTAL:… 5.25” FRONT OF CENTER:… 3” REAR OF CENTER:… 2.25” WORK HEAD ANGULAR ADJUSTMENT: HORIZONTAL PLANE:… 235” VERTICAL PLANE (ABOVE/BELOW CENTER):… 40” WHEEL HEAD: LONGITUDINAL SLIDE TRAVEL:… 6” VERTICAL SLIDE TRAVEL TOTAL:… 9.5” ABOVE CENTER:… 4.5” BELOW CENTER:… 5” CROSS SLIDE TRAVEL TOTAL:… 7.5” FRONT OF CENTER:… 3” REAR OF CENTER:… 4.5” SPINDLE SPEEDS: WORK HEAD (1 SPEED):… 436 RPM WHEEL HEAD (3 SPEEDS):… 4,000, 5,729, 8000 RPM MOTORS: WORK HEAD:… AC, INCLUDES REVERSE ¼ HP WHEEL HEAD:… AC, ½ HP VOLTAGE:… 230/460V AC/ 3 PH WEIGHT:… 1525 LBS DIMENSIONS:… 46 X 42 X 72"
