Description

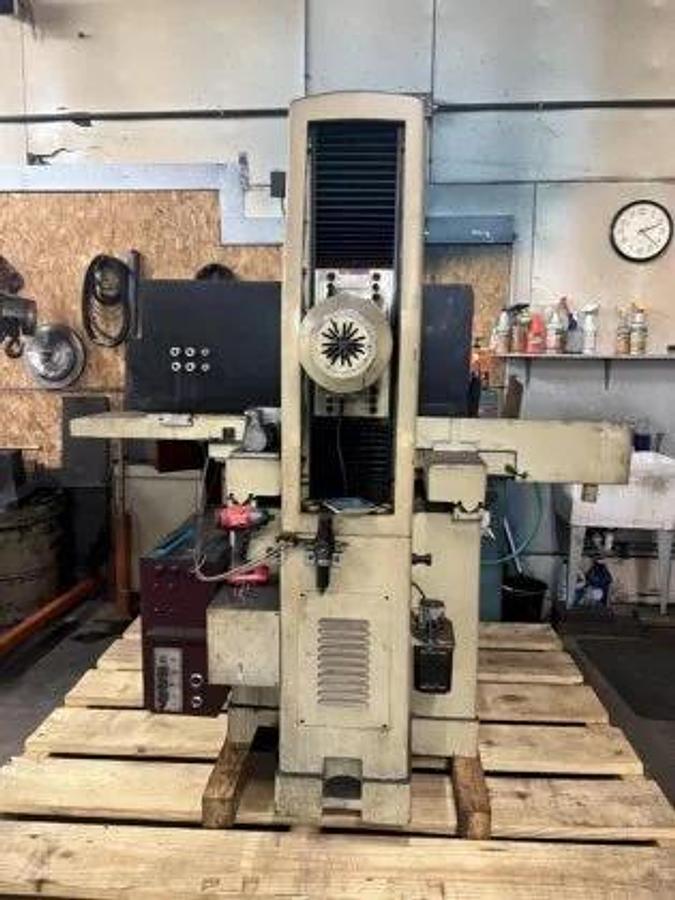

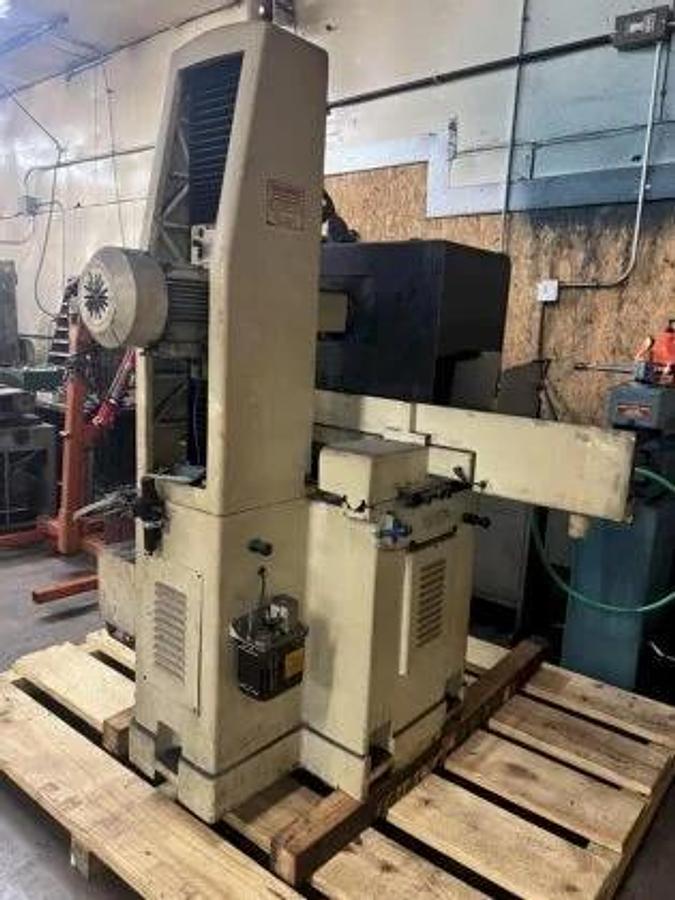

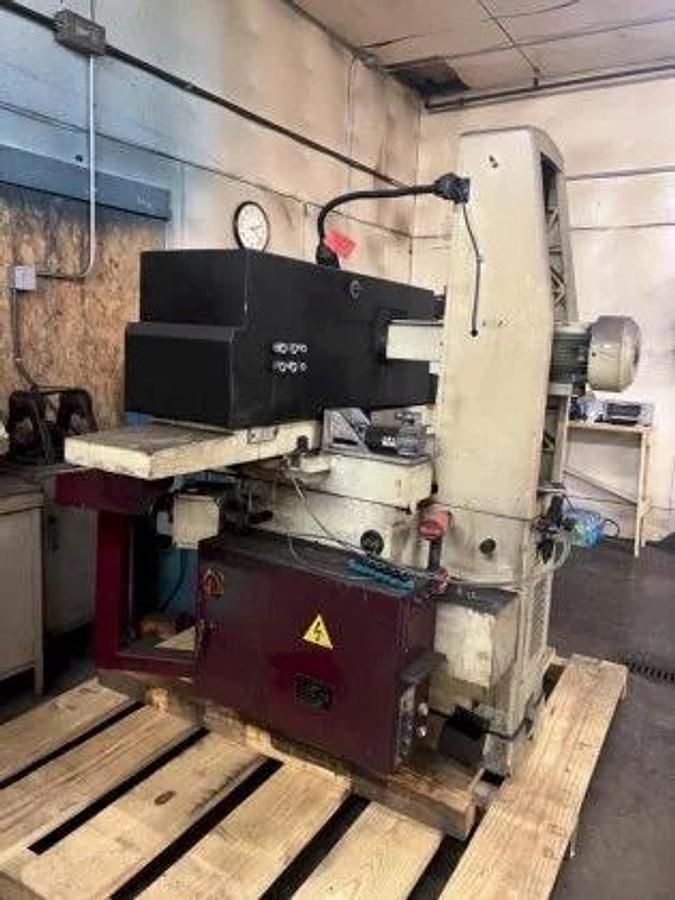

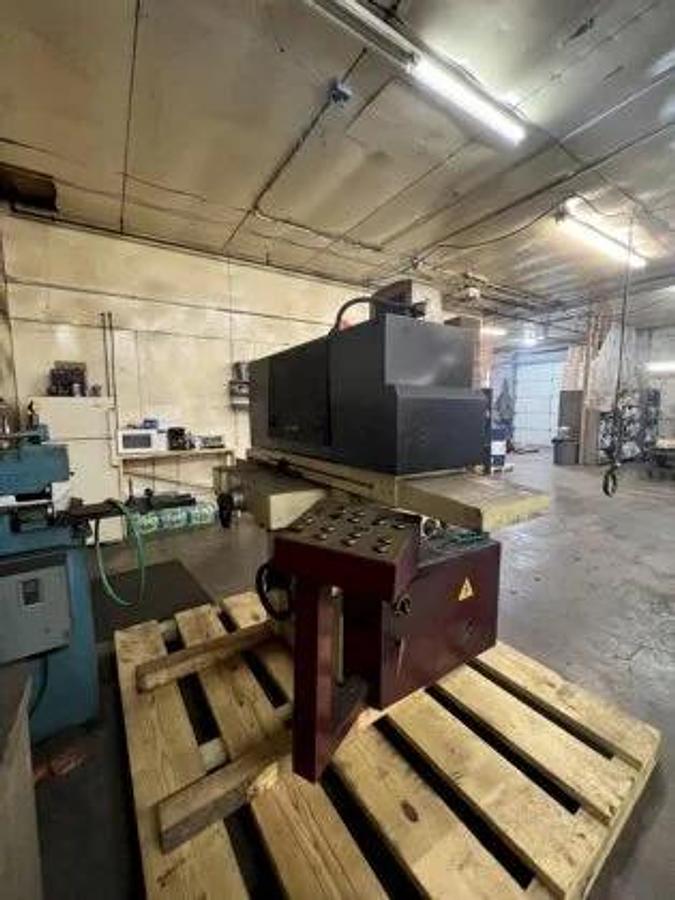

10" X 20" KENT #KGS-1020AHD-1 HORIZONTAL SURFACE GRINDER
10”x20” working capacity
3-axis automatic movement with incremental downfeed and electronic auto-crossfeed
Precision hand scrapped turcite table and saddle ways for smooth and long lasting performance
High column design with 19.6” spindle center to table for extra clearance under the wheel
Centralized automatic one-shot lubrication system provides lubrication to all points
Hand down feed: 001" PER GRADUATION; .1" PER REVOLUTION
Hand cross feed: 001" PER GRADUATION; .2" PER REVOLUTION
Specifications
| Manufacturer | KENT |

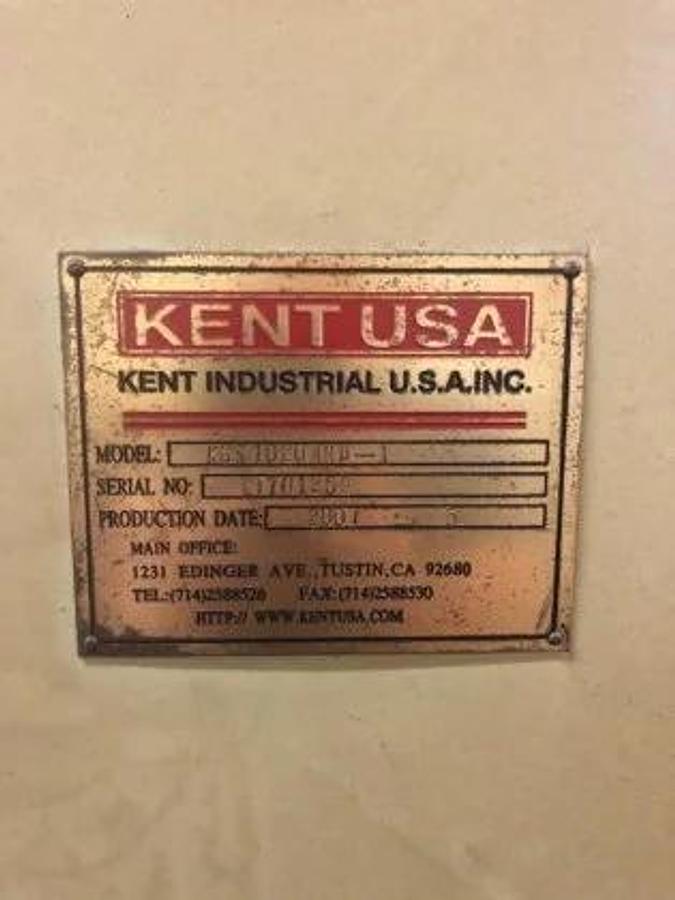

| Model | KGS-1020AHD-1 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 21955 |
| Status | For Sale |
| Country | United States |
| Table-W | 10"; 254 mm |
| Table-L | 20"; 508 mm |
| Spindle (Horz/Vert) | Horz; Horz |
| Power | 1.5 hp; 1.1 kW |
| Grinding Wheel Width | 0.5"; 12.7 mm |
| Grinding Wheel Dia. | 8"; 203.2 mm |
| Dimensions | 94" x 71" x 70"H; 94" x 71" x 70"H |
| Weight | 3,590; 3,590 |
| Capacity | 10" x 20" |
| Longitudinal travel | 20" |
| Cross feed travel | 10" |
| Spindle to table | 19" MAXIMUM |
| Spindle Speed | 3,500 RPM |
| Table speed | 16 TO 80 FPM, VARIABLE |
| Grinding wheel | 8" x 1/2" x 1-1/4" |
| Spindle motor | 1.5 HP |
| Coolant system | Yes |
