Description

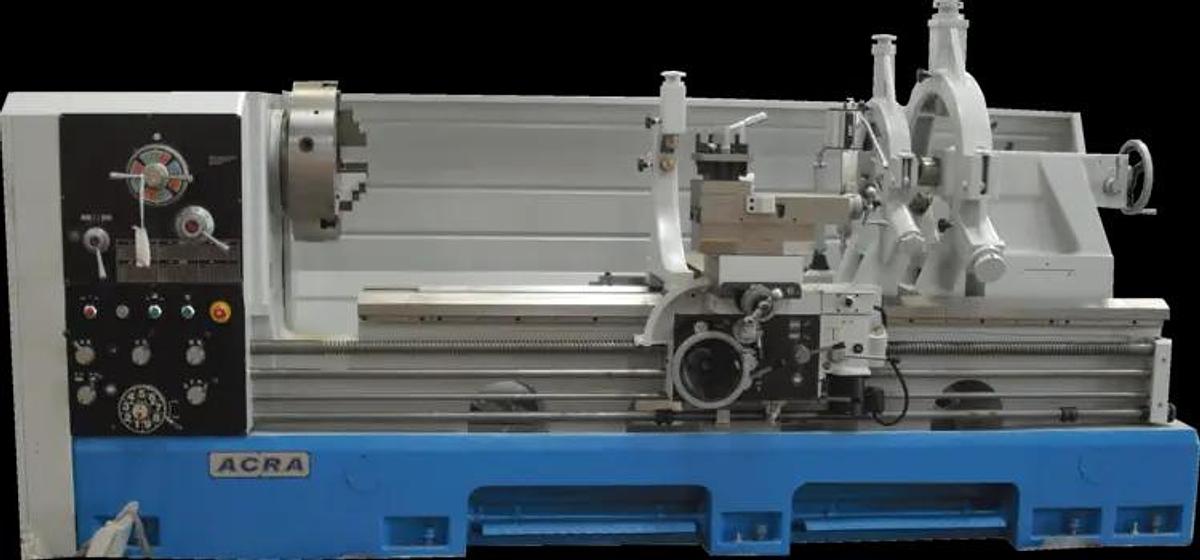

ACRA/SUN FIRM SET Engine Lathe Model SET-32240 w/ 6" Bore32" Swing 240" CC
STANDARD EQUIPMENT
20" 3 Jaw Chuck
Full Length Rear Splash Guard
Coolant System
2 - 12" Steady/Follow Rest
2 Way Rapid Traverse
Halogen Light
4 Way Tool Holder
Center Sleeve & 2 Centers (#5 M.T.)
FULL STANDARD EQUIPMENT
Full Length Rear Splash Guard
Coolant System
Full Length Splash Guard
Halogen Light
2-Way Rapid Traverse
2-12" Steady/Follow Rest
20" 3-Jaw Chuck
Capacity
Swing Over Bed 32.675"
Swing Over Cross Slide 23.625"
Swing in Gap 43.250"
Width of Gap 8.875"
Distance Between Centers 240"

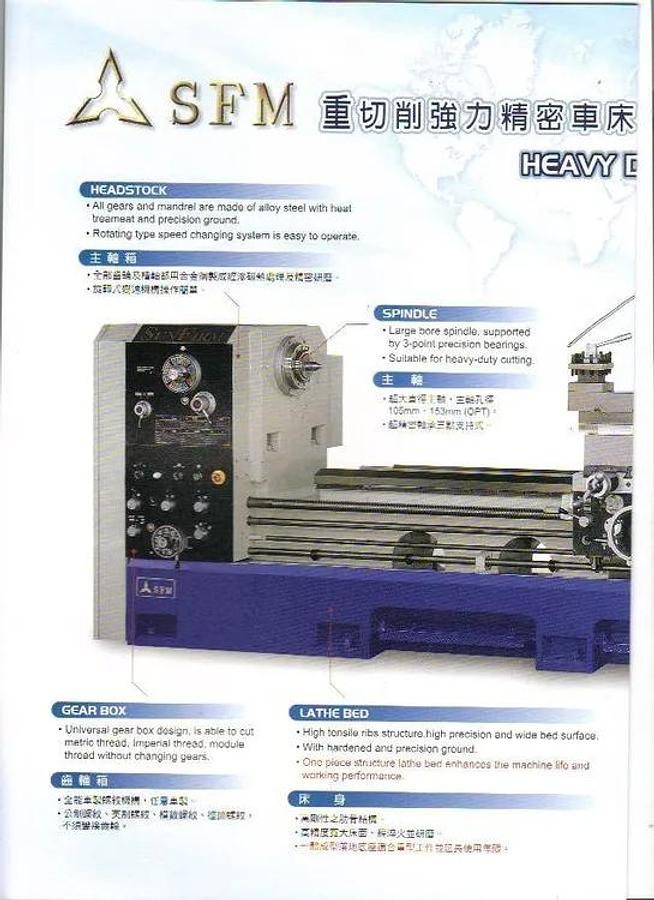

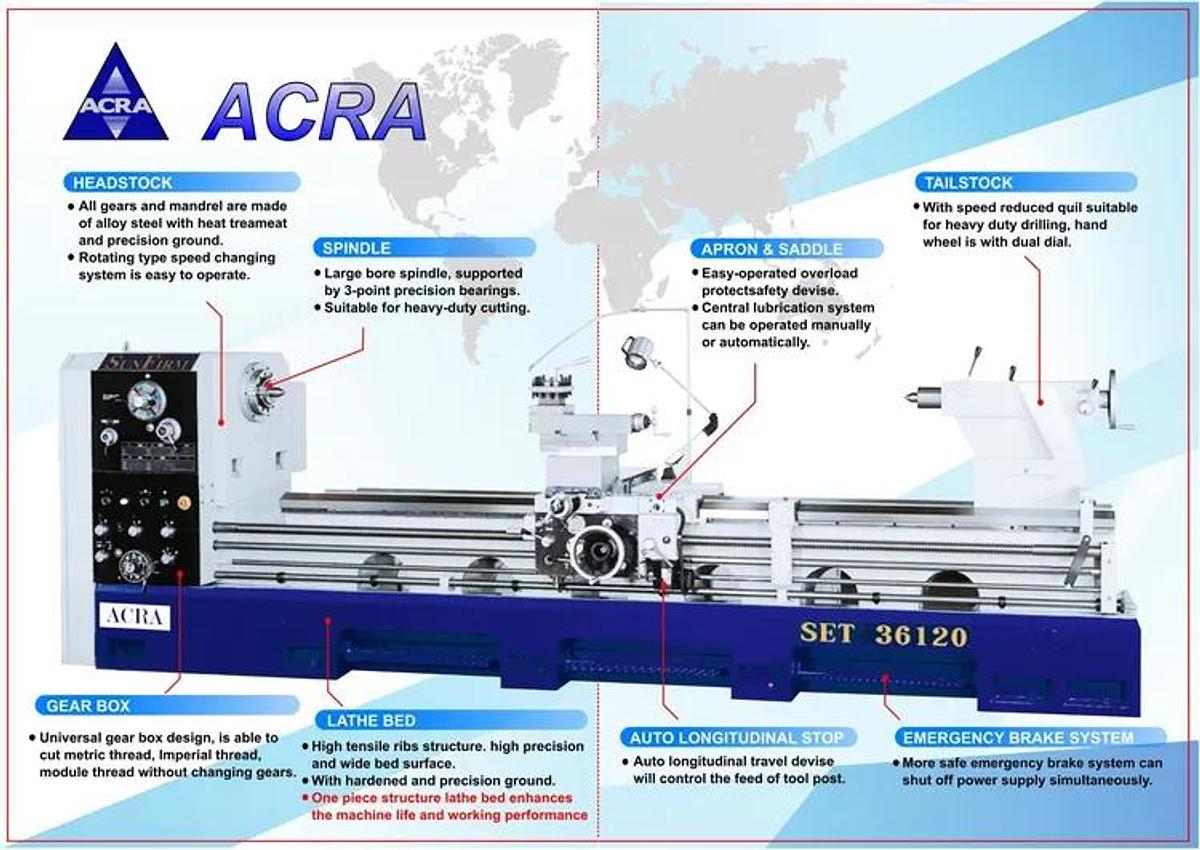

Headstock
Spindle Bore 6.02”
Spindle Nose A2-11 D1-11 OPT)
Taper of Center M.T. No. 5
Range of Spindle Speeds 15-1,000 RPM
Number of Spindle Speeds 12 Changes
Feeds & Threads Cutting
Longitudinal Feeds 0.002-0.028 in/rev
Cross Feeds 0.00098-0.014 in/rev
Inch Threads 1-1/2 T.P.I., (D.P. 4-56)
Metric Threads 0.0031-.55 in /Thread, (M.P.0.5-7)
Leadscrew 1-3/4 x 2 T.P.I.
Carriage
Cross Slide Travel 16-1/2"
Compound Rest Travel 10"

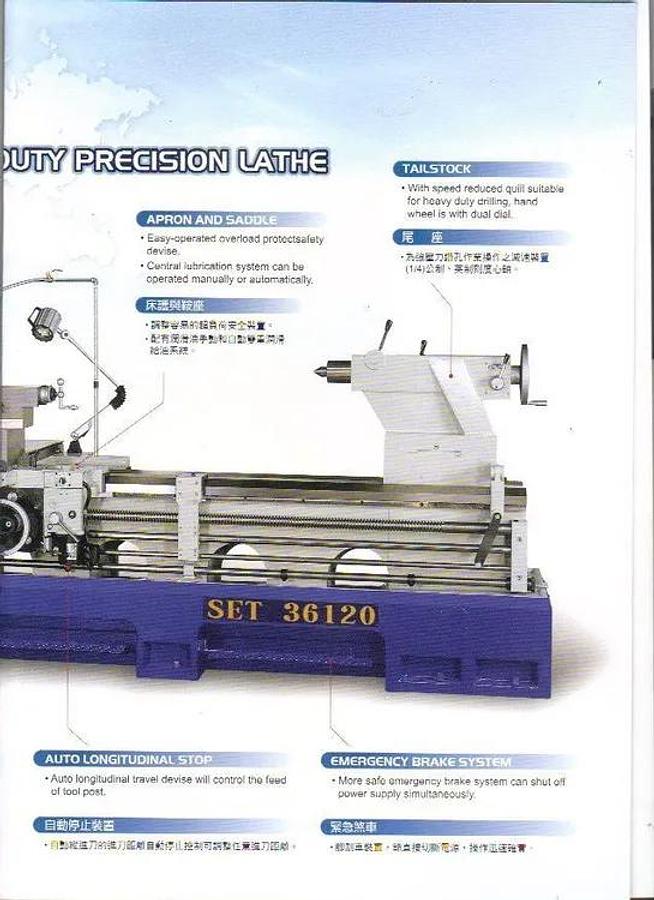

Tailstock
Quill Diameter 3-3/4"
Quill Travel 9"
Taper of Quill M.T. No.5
Bed
One-piece machine bed which is most suitable for heavy duty machining
Width of Bed 18-1/8"
Length of Bed 258"
Main Motor 25HP x 4P
Weight (Approx) 20,000 lbs.
Packing Size (Lx W x H) 157.5” x 63” x 74.8”

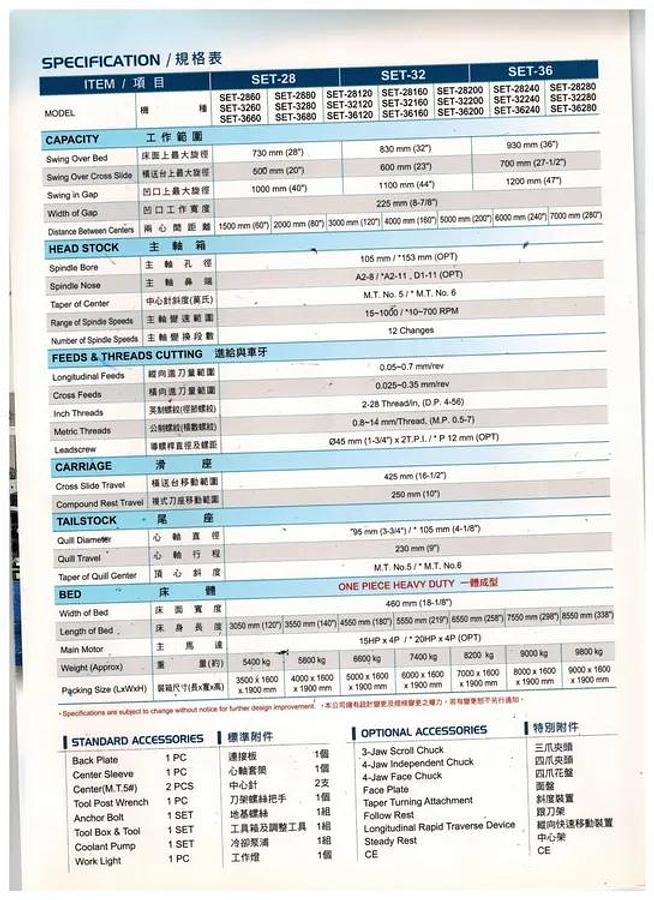

Specifications
| Manufacturer | ACRA |
| Model | SET 32240 |
| Year | 2023 |
| Condition | New |
| Stock Number | 21837 |
| Status | For Sale |
| Country | United States |
| Swing | 32.625"; 828.67 mm |
| Centers | 240"; 6,096 mm |
| Spindle Bore | 6.125"; 155.57 mm |
| Power | 25 hp; 18.6 kW |
| RPM | 1,000 RPM; 1,000 RPM |
| Swing Over Cross Slide | 23.625"; 600.07 mm |
| Dimensions | 314.9” x 63” x 74.8”; 314.9” x 63” x 74.8” |
| Weight | 20,100 LBS; 20,100 LBS |
| Steady Rest (20”) | $3,500.00 |
| Steady Rest (24”) SET 32”,36” | $4,500.00 |
| Face Plate | $1,150.00 |
| Taper Attachment | $4,000.00 |
| Installation Taper Attachment | $750.00 |
| Change 6” to 9” A2-15 Nose | $20,000.00 |
| Newall Digital Read-Out-60" DP 700 | $3,250.00 |
| Newall Digital Read-Out-60" NMS300 | $1,600.00 |
| Newall Digital Read-Out-80" DP700 | $3,950.00 |
| Newall Digital Read-Out-80" NMS300 | $1,800.00 |
| Newall Digital Read-Out-120" DP700 | $5,200.00 |
| Newall Digital Read-Out-120" NMS300 | $2,300.00 |
| Newall Digital Read-Out-160” DP700 | $6,500.00 |
| Newall Digital Read-Out-200” DP700 | $8,100.00 |
| Newall Digital Read-Out-240” DP700 | $8,600.00 |
| Acu-Rite Digital Read-Out-60"/80"/120" 203/303 | $P.O.R. |
| Fagor or Mitutoyo Digital Read-Out | $P.O.R. |
| Import Quick Change Tool Post | $1,600.00 |
| Aloris Tool Post Set (DA) 5 pc | $P.O.R |
| VOLTAGE | 230/440V/3PH |
