Description

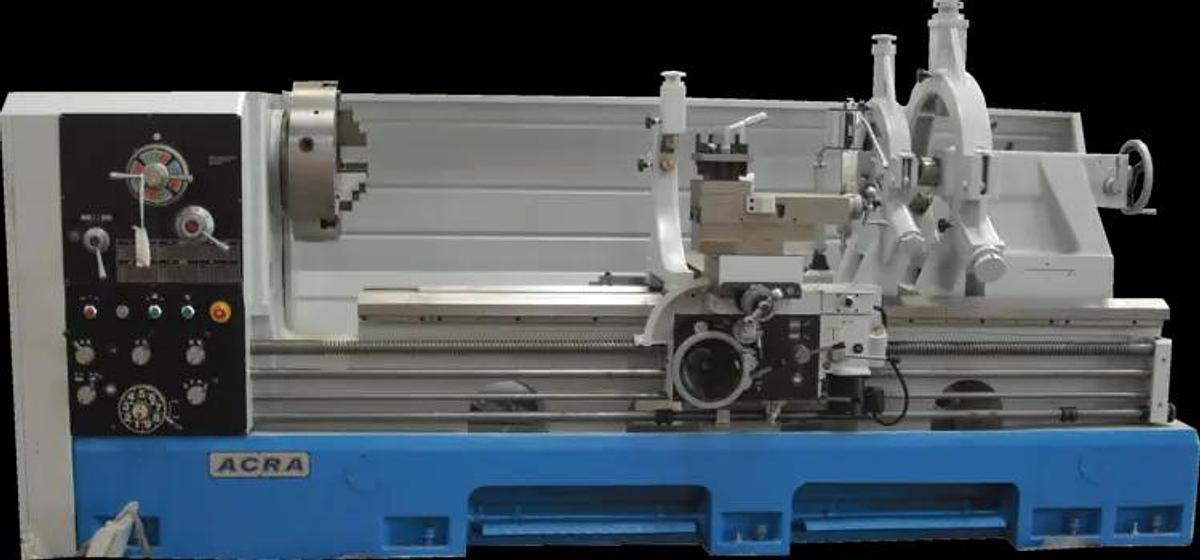

ACRA/SUN FIRM SET Engine Lathe Model SET-3280 with 6" Bore
FULL STANDARD EQUIPMENT
20" 3 Jaw Chuck
Full Length Rear Splash Guard
Coolant System
Full Length
Steady/Follow Rest
20" 3-Jaw Chuck
Halogen Light
2 Way Rapid Traverse
4 Way Tool Holder
STANDARD EQUIPMENT:
Full Length Splash Guard
Full Length Rear Splach Guard
20" 3-Jaw Chuck
2-Way Rapid Travel
4 Way Tool Holder\2- 12" Steady Rests
Halogen Light
Coolant System
Capacity
Swing Over Bed 32.675"
Swing Over Cross Slide 23.625"
Swing in Gap 43.250"
Width of Gap 8.875"
Distance Between Centers 80"

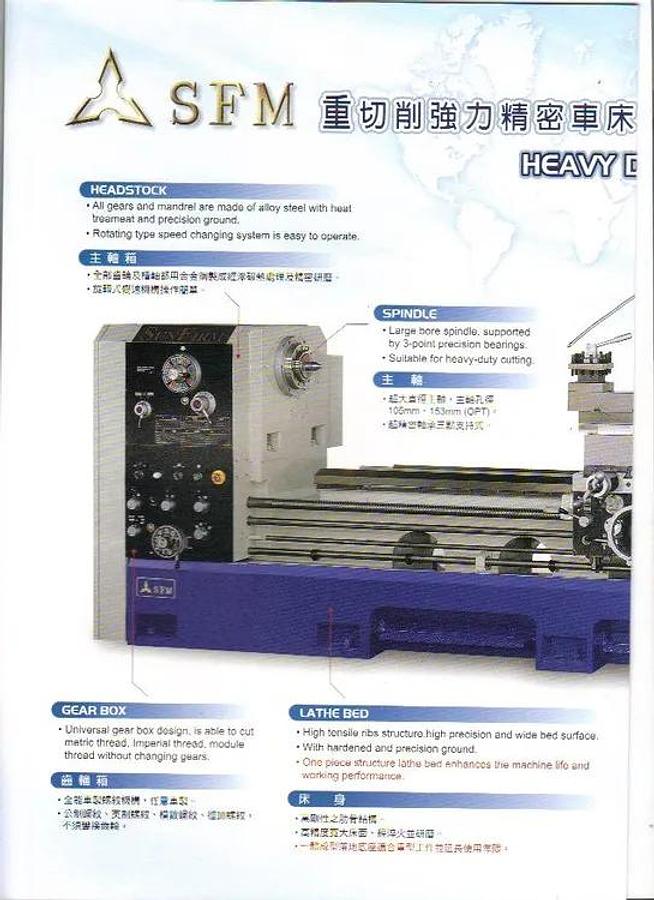

Headstock
Spindle Bore 6.02”
Spindle Nose A2-11
Taper of Center M.T. No. 5
Range of Spindle Speeds 15-1,000 RPM
Number of Spindle Speeds 12
Changes Feeds
Threads Cutting
Longitudinal Feeds 0.002-0.028 in/rev
Cross Feeds 0.00098-0.014 in/rev
Inch Threads 1-1/2 T.P.I., (D.P. 4-56)
Metric Threads 0.0031-.55 in /Thread,
(M.P.0.5-7)
Leadscrew 1-3/4 x 2 T.P.I.
Carriage
Cross Slide Travel 16-1/2"
Compound Rest Travel 10"
Tailstock
Quill Diameter 3-3/4"
Quill Travel 9"
Taper of Quill M.T. No.5
Bed One-piece machine bed which is most suitable for heavy duty machining
Width of Bed 18-1/8"
Length of Bed 140"
Main Motor 25HP x 4P
Weight (Approx) 13,000 lbs.
Packing Size (Lx W x H) 157.5” x 63” x 74.8”

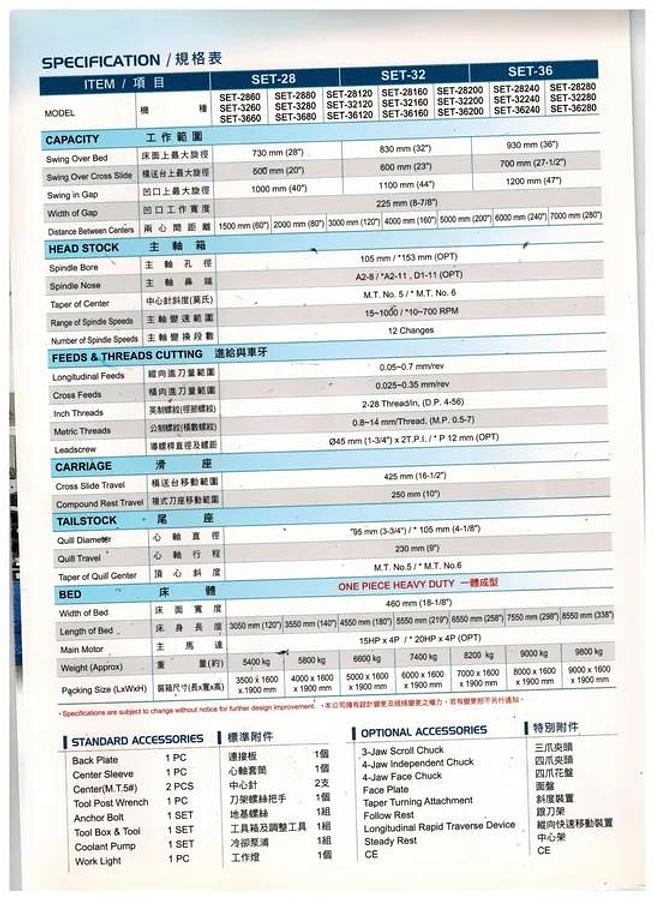

Specifications
| Manufacturer | ACRA |
| Model | SET 3280 |
| Year | 2023 |
| Condition | New |
| Status | For Sale |
| Country | United States |
| Swing | 32.625"; 828.67 mm |
| Centers | 80"; 2,032 mm |
| Spindle Bore | 6"; 152.4 mm |
| Power | 25 hp; 18.6 kW |
| RPM | 1,000 RPM; 1,000 RPM |
| Swing Over Cross Slide | 23.625"; 600.07 mm |
| Dimensions | 157.5” x 63” x 74.8”; 157.5” x 63” x 74.8” |
| Weight | 13,000 LBS; 13,000 LBS |
| Steady Rest (20”) | $3,550.00 |
| Steady Rest (24”) SET36 Only | $4,500.00 |
| Face Plate | $1,150.00 |
| Taper Attachment | $4,000.00 |
| Installation Taper Attachment | $750.00 |
| Change 6” to 9” A2-15 Nose | $20,000.00 |
| Newall Digital Read-Out-60" DP700 | $3,250.00 |
| Newall Digital Read-Out-60" NMS300 | $1,600.00 |
| Newall Digital Read-Out-80" DP700 | $3,950.00 |
| Newall Digital Read-Out-80" NMS300 | $1,800.00 |
| Newall Digital Read-Out-120" DP700 | $5,200.00 |
| Newall Digital Read-Out-120" NMS300 | $2,300.00 |
| Newall Digital Read-Out-160” DP700 | $6,50.00 |
| Newall Digital Read-Out-200” DP700 | $8,100.00 |
| Newall Digital Read-Out-240” DP700 | $8.600.00 |
| Acu-Rite Digital Read-Out-60"/80"/120" 203/303 | $P.O.R. |
| Fagor or Mitutoyo Digital Read-Out | $P.O.R. |
| VOLTAGE | 230/440V/3PH |
