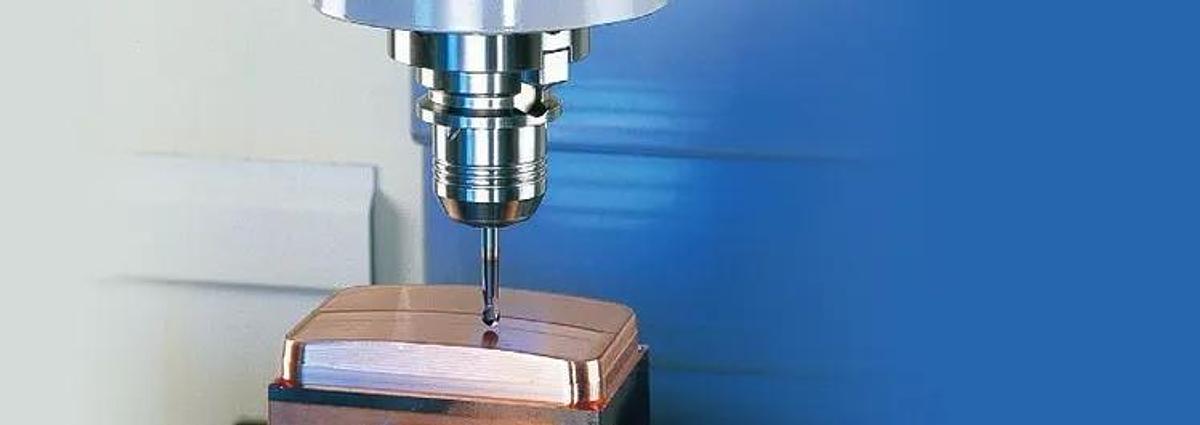

AWEA High Speed Bridge Mill with 22,000 RPM Spindle, Machine is unused. 41% discount

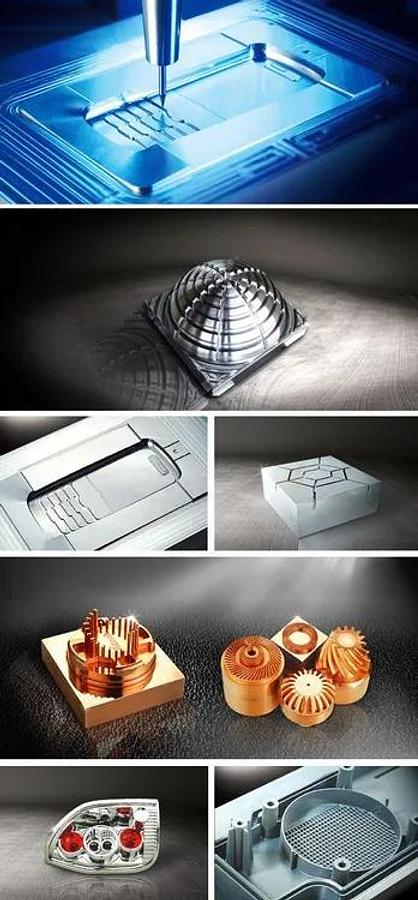

AWEA High Speed Bridge Mill with 22,000 RPM Spindle, Machine is unused. 41% discount. The brand new high speed series, with AWEA core strengths, possess superb bridge type structure. The series are equipped with advanced FANUC controller and the software of AWEA Optimal Parameter System. F-16 series are particularly suitable for high-end precision molding industry and other precision parts manufacturing in a wide range of industries. The trustworthy series have excellent features including high speed, accuracy and durability. AWEA superb products are capable of working as pioneers to explore business for customers. Through sustainable operation over the past two decades, Awea has established a comprehensive management system integrated with research, designing, manufacturing, assembling, testing, monitoring, sales and services. Globally, Awea is an extensively certified company passing ISO 9001, ISO 14001 and CE and so on. Domestically, Awea is not only a highly awarded company but also one of few machine tool companies listed on the Taiwan Stock Exchange. Through sustainable operation over the past two decades, Awea has established a comprehensive management system integrated with research, designing, manufacturing, assembling, testing, monitoring, sales and services. Globally, Awea is an extensively certified company passing ISO 9001, ISO 14001 and CE and so on. Domestically, Awea is not only a highly awarded company but also one of few machine tool companies listed on the Taiwan Stock Exchange. Direct Drive Spindle - F-16 Spindle Speed Spindle Motor Spindle Torque Spindle Taper Lubrication Spindle Cooling ( S2 / 30 min. ) (S1) 12,000 rpm 18.5 / 24.8 kW 102.2 Nm BT40 Grease The same temptemperature as indoor ± 1°C CAPACITY F-87 F-16 X-axis travel 800 mm 1,000 mm Y-axis travel 700 mm 600 mm Z-axis travel 420 mm 500 mm Dist. from spindle nose to table top 150 ~ 570 mm 125 ~ 625 mm WORKING TABLE Table size ( X x Y ) 850 x 700 mm 1,160 x 600 mm Table load capacity 800 kg 1,000 kg T-slot ( W x D x No. ) 18 mm x 125 mm x 5 18 mm x 115 mm x 5 SPINDLE Spindle Taper HSK-A63 BT40 Spindle speed Built-in 20,000 rpm Direct Drive 12,000 rpm Spindle motor S6 60%：22 S2 30 min.：18.5 ( 24.8 ) Spindle lubrication Oil-Air Grease Spindle cooling system The same temperature as indoor ± 0.1°C The same temperature as indoor ± 0.1°C FEED RATE Rapid feed rate 30 m/min. Cutting feed rate 24 m/min. 20 m/min. TOOL MAGAZINE Tool Magazin Capacity Umbrella Type 20T Max. tool length 220 mm 300 mm Max. tool weight 7 kg 15.4 lbs Max. tool diameter Ø 35 mm Ø 80 mm Accuracy Positioning accuracy ( VDI 3441 ) 0.008 mm 0.01 mm Repeatability ( VDI 3441 ) 0.004 mm 0.005 mm GENERAL Pneumatic requirement 6 kg / cm² 7 kg / cm² Power equipment 40 KVA 55 KVA Cooling liquid 305 L 400 L Machine weight 7,000 kg 11,000 kg
