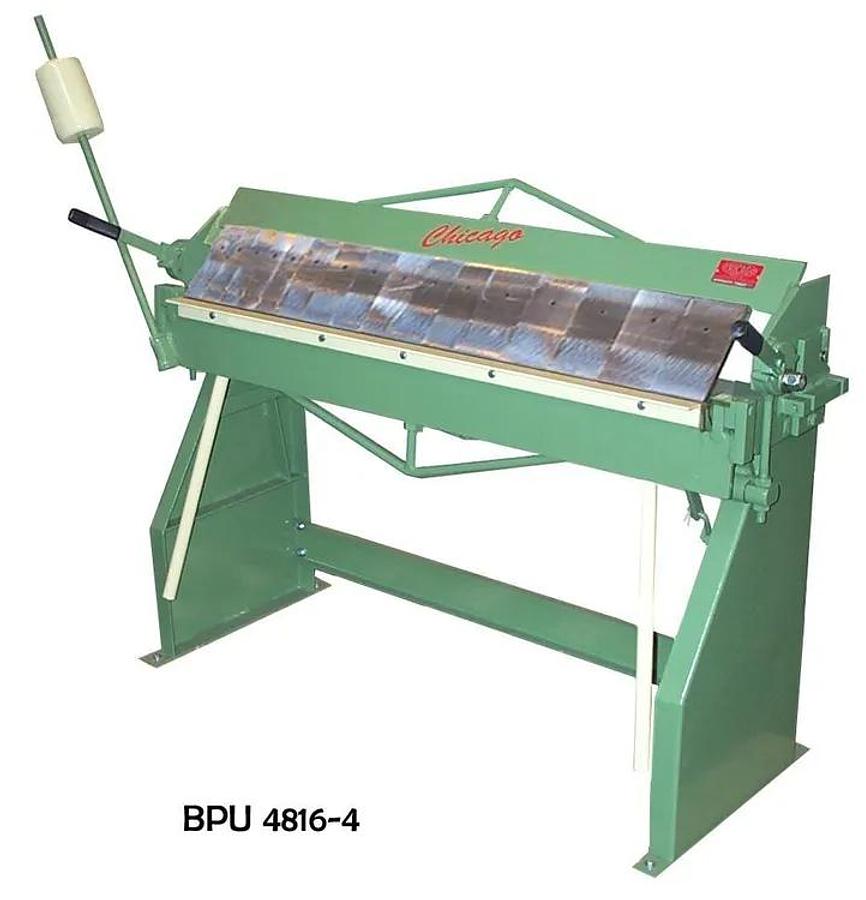

CHICAGO Dreis & Krump Model BPU 4816-4 Box & Pan Portable Hand Bending Brake, 48" x 16 gauge
$2,350
Description
CHICAGO Dreis & Krump Model BPU 4816-4 Box & Pan Portable Hand Bending Brake, 48" x 16 gauge
Standard equipment includes a complete set of box & pan fingers, fully
adjustable top leaf, angle bar, bolt on leg extensions and stop gauge.
The minimum flange on capacity material is 1”.
16 Gauge Capacity
Standard Straight Brake
Box & Pan Style with 4" Box Depth
Counterweight
Angle Bar
Stop Gauge
Specifications
| Manufacturer | CHICAGO DREIS & KRUMP |
| Model | BPU-4816-4 |
| Year | 2025 |
| Condition | New |
| Stock Number | 22077 |
| Status | For Sale |
| Capacity | 48"; 1,219.2 mm |
| Capacity (ga) | 16 gauge; 16 gauge |
| Overall Length | 48.5"; 1.2 m |
| Dimensions | 62" x 21" x 30"; 62" x 21" x 30" |
| Weight | 540 lbs; 540 lbs |
| Bending length. . . . . . . . . . . . . . . . . | 48” |
| Capacity (mild steel). . . . . . . . . . . . . . | 16 Ga. ** |
| Beam adjustment. . . . . . . . . . . . . . . . | 1/2” |
| Minimum reverse bend . . . . . . . . . . . . | 3/8” |
| Number and width of fingers . . . . . . . . | 5 – 2” |
| Gauge Lift of beam | 1-3/4” |
| Depth of box | 4” |
| Depth of box | 6 – 3” |
| Depth of box | 5 – 4” |
| Shipping weight | 540 lbs |
