2024 CHICAGO Dreis & Krump Model HBPU 810-6 10 gauge capacity; 96" bend length.

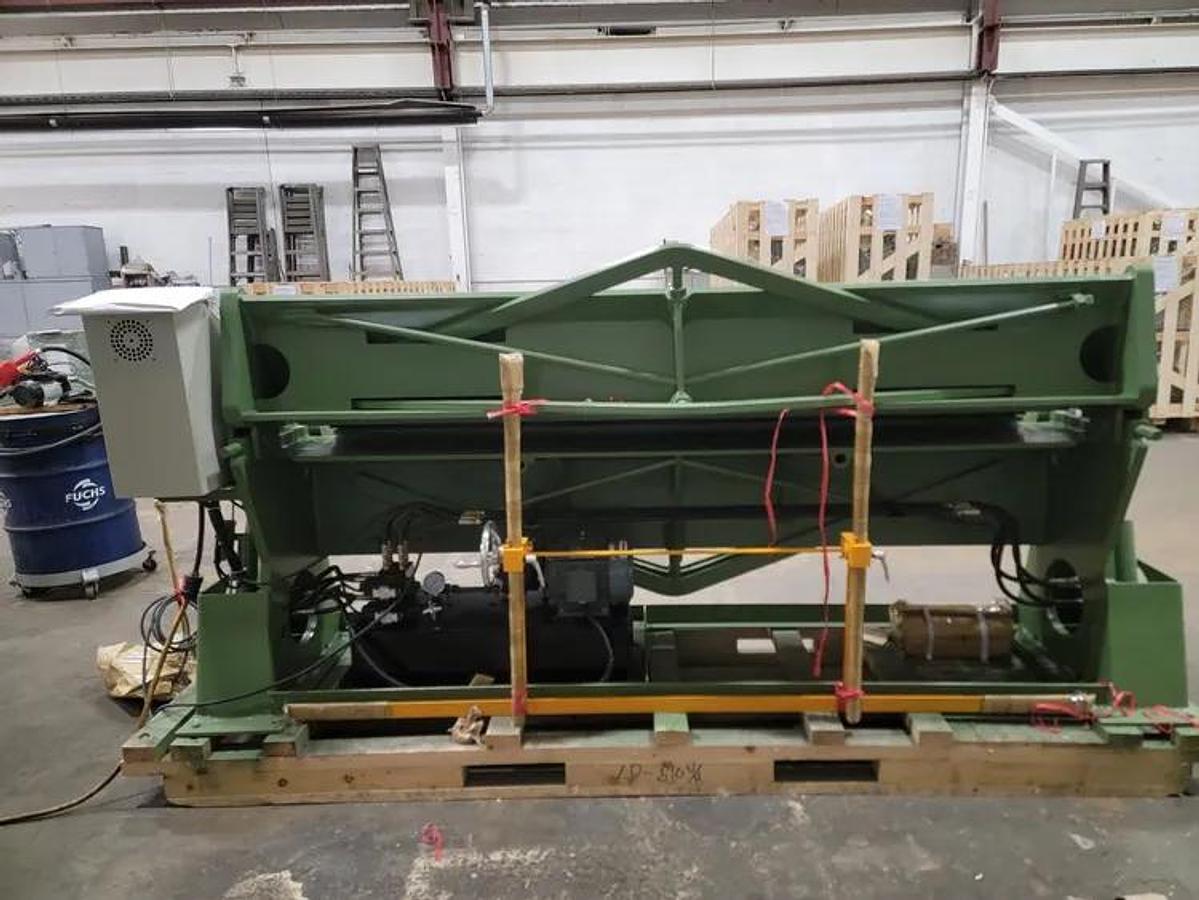

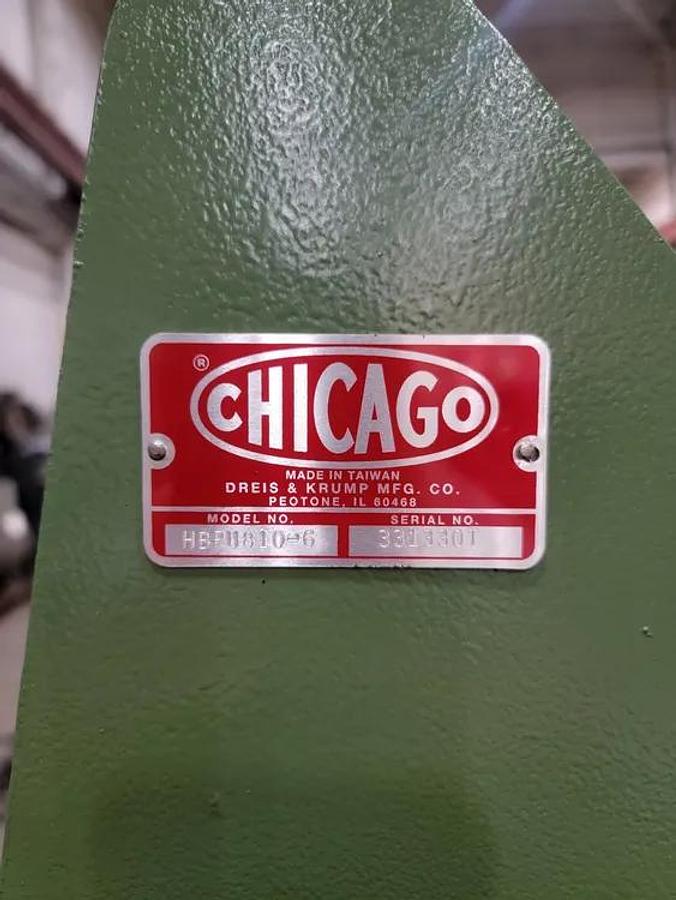

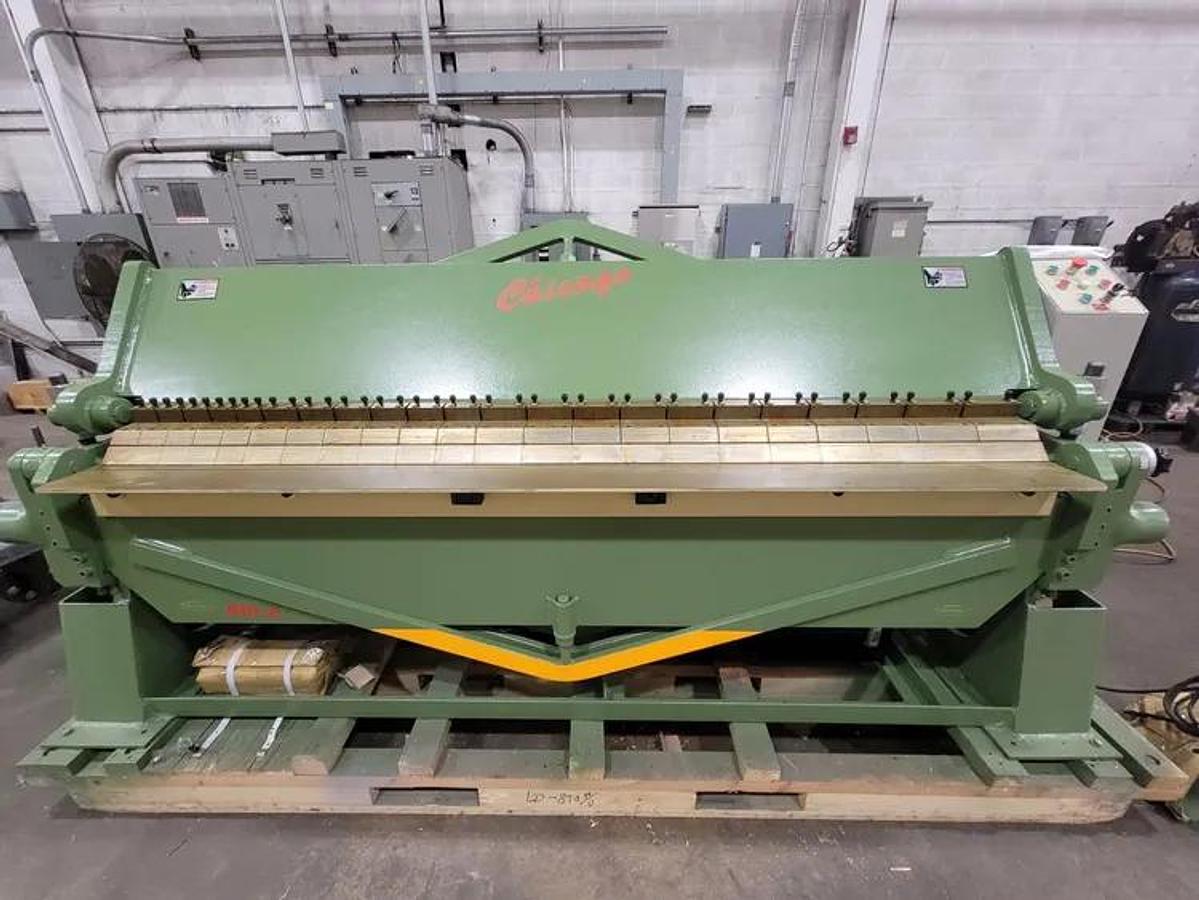

2024 CHICAGO Dreis & Krump Model HBPU 810-6 10 gauge capacity; 96" bend length. One (1) Dreis & Krump “CHICAGO” Model HBPU 810-6 Hydraulic Powered Box & Pan Bending Brake as described in Bulletin HHB2-96 F.O.B. Factory, Peotone, Illinois Origin: Made in Taiwan STANDARD EQUIPMENT Removable Nose Bars Angle Bar Bolted Bottom Bar 1” Insert Bar Compact Hydraulic Power Unit Oil Level Sight Gauge Control Panel Features: On/Off Key Selector Switch Motor Start Pushbutton Bending Leaf Up/Down Pushbuttons Emergency Stop P/B Clamp/Unclamp Pushbuttons Automatic Cycle P/B ELECTRIC FOOT SWITCH – Clamps & Unclamps Top Leaf. Allows operator mobility when loading and unloading material. BEND ANGLE DIAL ADJUSTMENT – Adjustable cam and scale that reads in degrees, actuates an electric limit switch for bend angle control and repeatability of bends. MATERIAL THICKNESS DIAL ADJUSTMENT – Reference scale for speedier set up when adjusting clamping pressure. BACK GAUGE – 25 ½” travel, rack & pinion type gauge with hand wheel adjustment on right side of machine. Inch/Cm. Scale. INCH CONTROL – Bending leaf up/down pushbuttons allow complete operator control of the bending leaf motion. AUTOMATIC CYCLE – Actuating the “Automatic Pushbutton” clamps the top leaf, raises the bending leaf to the preset bend angle dial adjustment setting, lowers the bending leaf, unclamps the top leaf. ELECTRICAL EQUIPMENT One 5 H.P. general purpose motor with direct mount hydraulic pump for operation on 220/440 volts, 3 PH, 60HZ with 110 volt control circuit (please specify voltage). Number and width of fingers : With nose bar 5 – 3” 6 – 4” 9 – 5” 2 – 6” The bending capacity of the brake is achieved when using the angle bar in the high position and forming a 1” minimum flange on capacity material.
