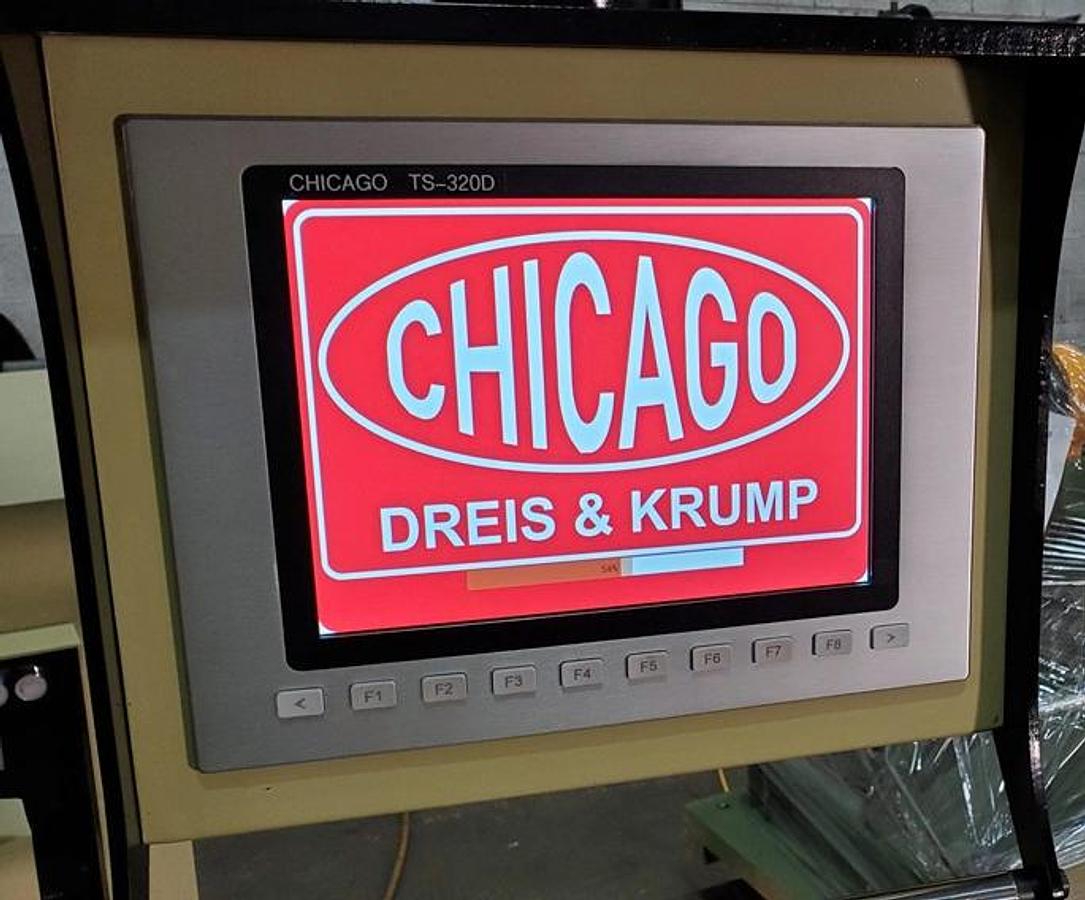

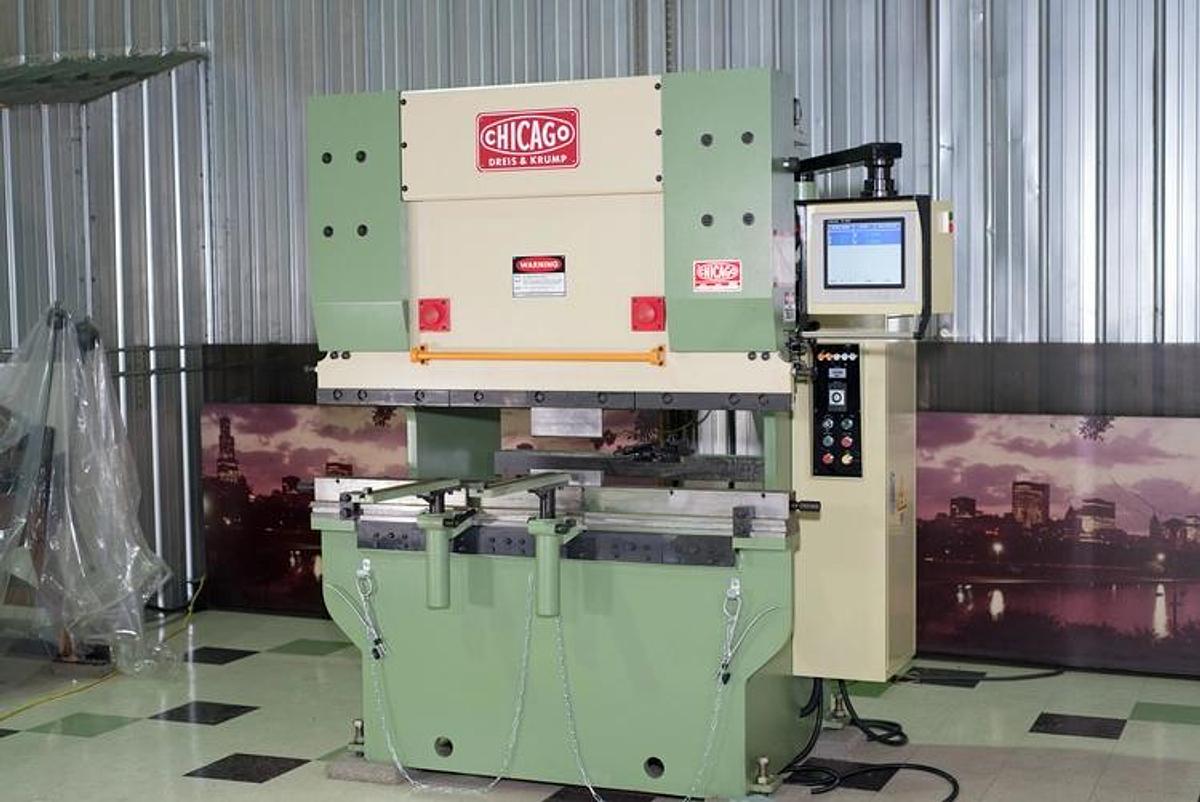

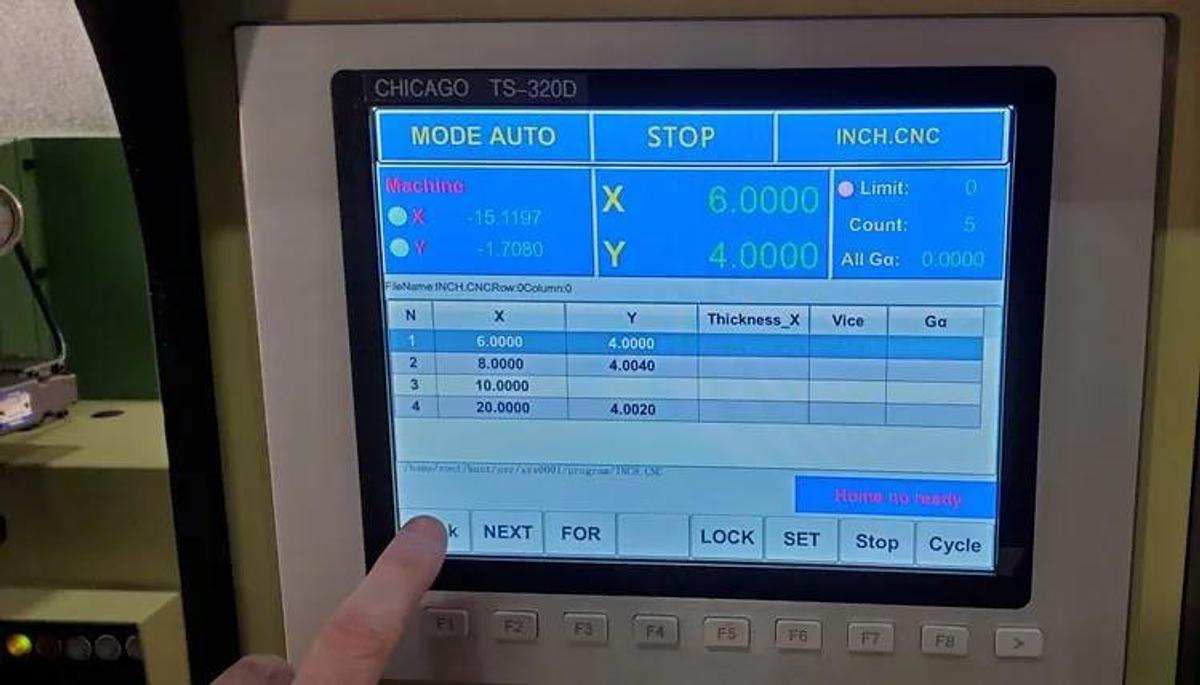

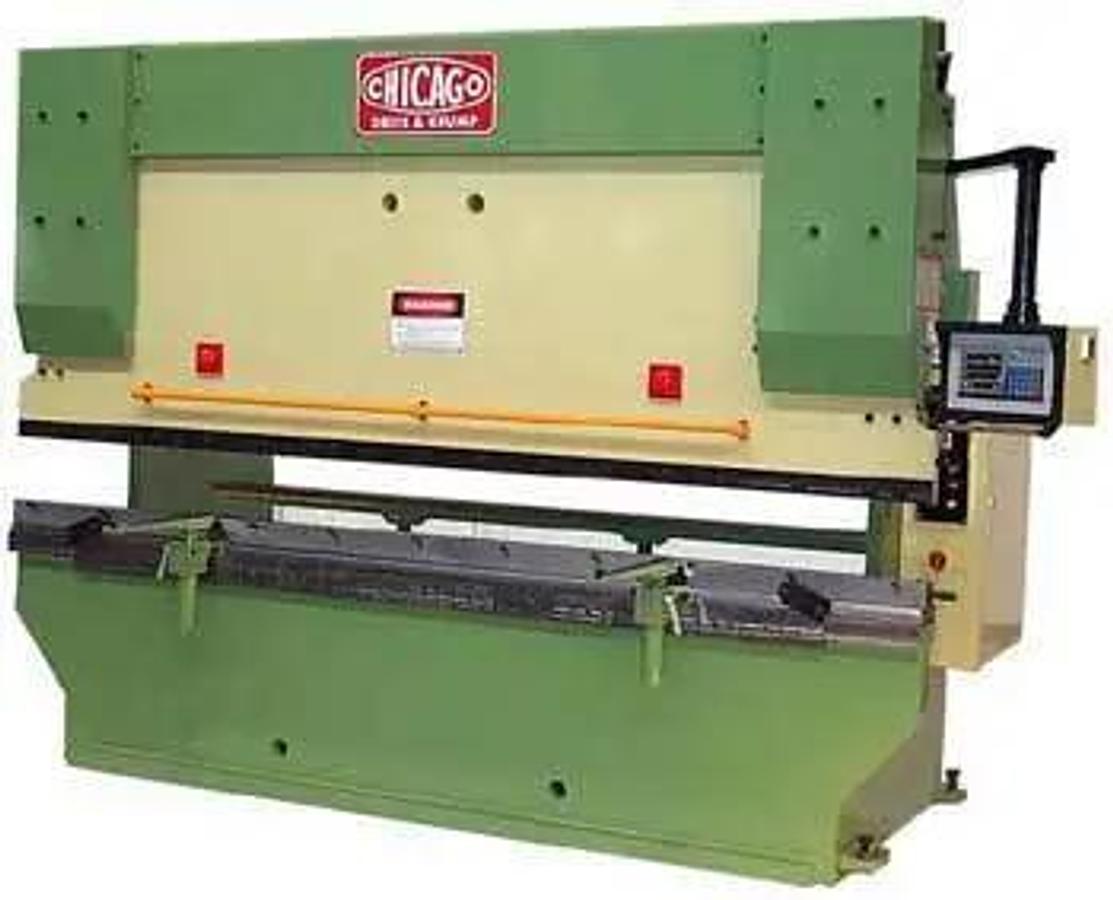

CHICAGO DREIS & KRUMP Model HPB 4015 Hydraulic Press Brake w/10" Touch Screen

CHICAGO DREIS & KRUMP Model HPB 4015 Hydraulic Press Brake w/10" Touch Screen For simplicity, efficiency, economy, in hydraulic bending. Dreis & Krump offers a Hydraulic Press Brake that does the job at a price you can afford. At Chicago Dreis & Krump we strive to provide prompt and accurate sales of machines, parts and service to fill our customers metal forming needs and to carry on our 125 plus year tradition of “Building ‘em like they had to last forever”. STANDARD EQUIPMENT All steel welded construction – deep section bed and ram are made of solid one piece rolled steel plate sized for lateral rigidity and minimum deflection under full load. Self contained hydraulic unit mounted overhead and between side housings, including pump and unitized hydraulic manifold. Suction line oil filtering system. Tonnage indicator with adjustable load control. Die holder. Alloy steel hardened and ground piston rods to reduce packing wear. Mechanical leveling – Torsion bar keeps bed and ram parallel at any point in the stroke. Sectional ram clamping bars. Operator hand rail. Adjustable deflection compensator built into bed top. Full length dove tail slot in bed top (front & rear). Adjustable - slow down switch/top of stroke switch. Bottom of stroke dwell (adjustable). Electronic stroke counter. Dual axis numeric controls. NC back gauge, ball screw driven with vertical height adjustment and adjustable finger extensions. Depth control adjustment nut in each cylinder, independent operation to insure accurate air forming. NUMERIC CONTROL Program: Ram depth, back gauge crossbar position, back gauge retract, retract delay, parts counter. Quick set-up for single form jobs. Programmable operation for multi-angle/variable flange sequence forming jobs. 10-Inch Touch Screen Control with Inch/Millimeter readout. 99 Programmable jobs. ELECTRICAL EQUIPMENT 3 H.P. general purpose, open type ball bearing motor for operation on 220/440 volts (please specify), 3 phase, 60 HZ. Magnetic, non-reversing, across the line starter with overload protection. Low voltage operating controls. Capacity in tons . . . . . . . . . . . . . . . . . .40 Bending capacity (mild steel) . . . 4’ x 10 Ga. Overall bed and ram length. . . . . 5’ Distance between housings. . . . . 3’ 9” Depth of throat . . . . . . . . . . 12” Stroke. . . . . . . . . . . . . . . 6” Open height (Bed to Ram). . . . . . 12” Advance speed (IPM) . . . . . . . . 240 Pressing speed (IPM) . . . . . . . 24 Return speed (IPM) . . . . . . . . 140 Back gauge range . . . . . . . . . 24” Main motor – H.P. . . . . . . . . . 3 Weight (approximate) . . . . . . . 6,000 lbs
