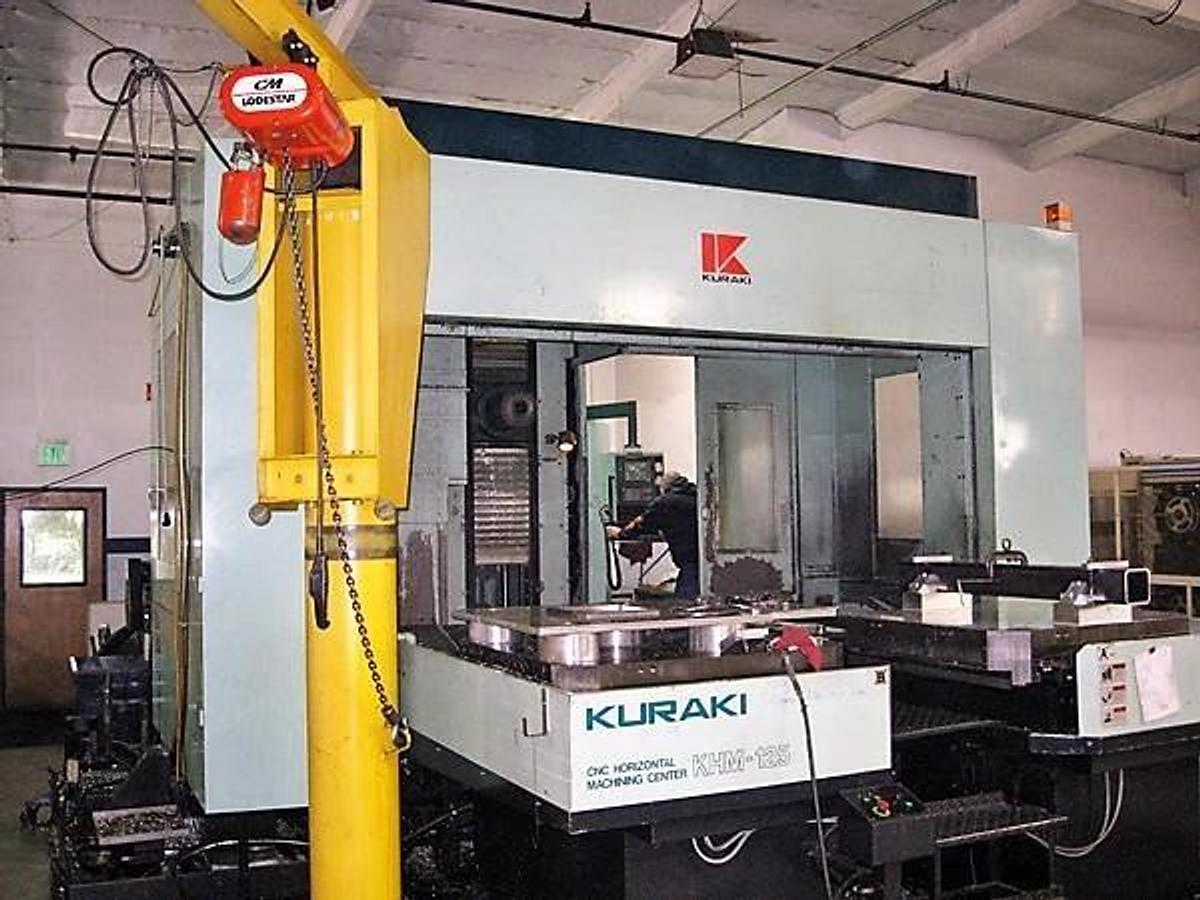

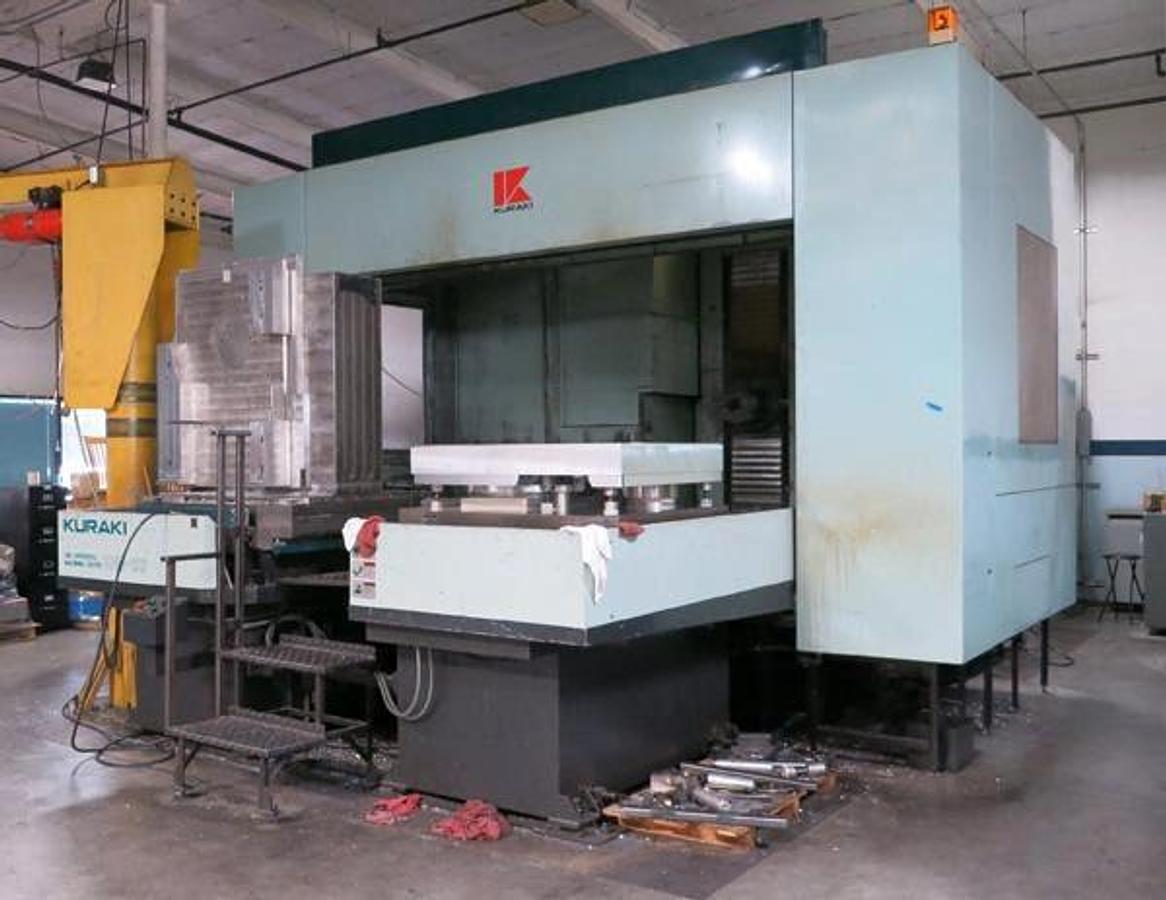

1998 KURAKI Model KHM 125 Horizontal Machining Center w/ 50" x 50" pallets

Description

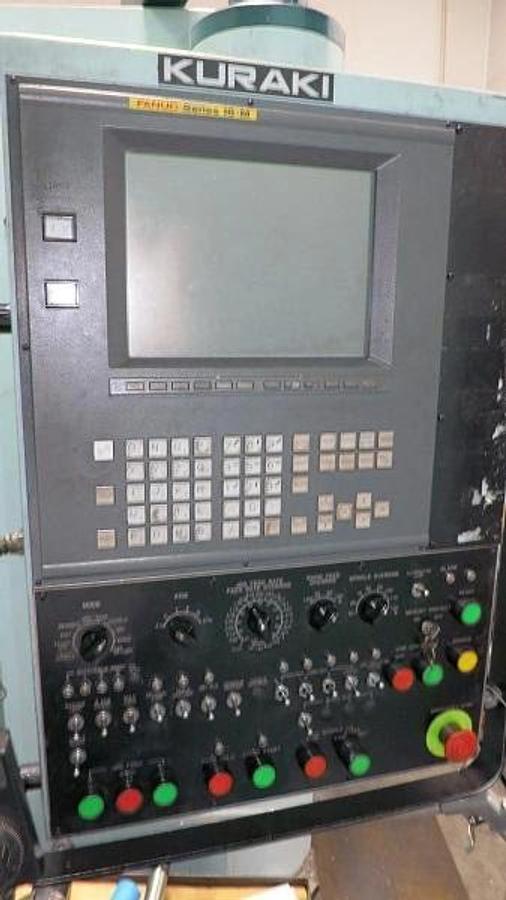

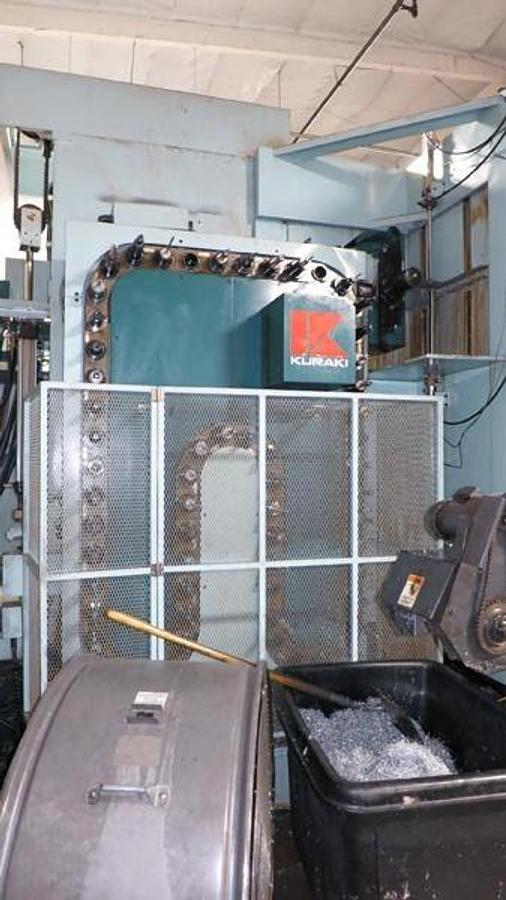

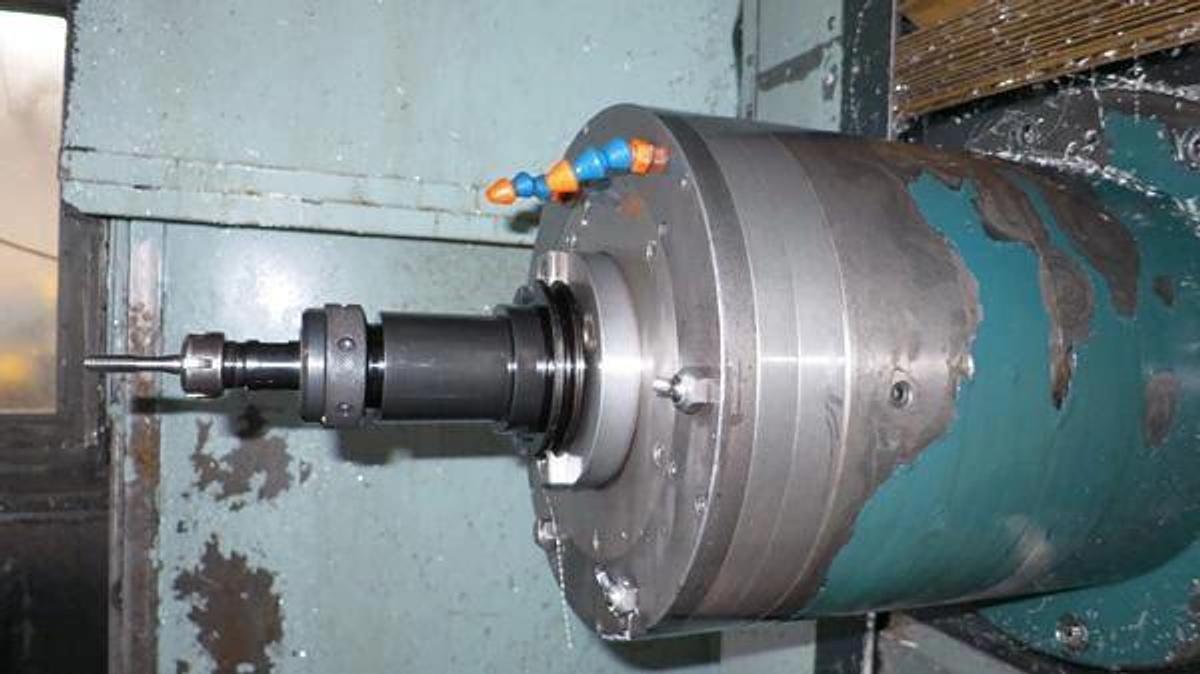

1998 KURAKI Model KHM 125 Horizontal Machining Center w/ 50" x 50" pallets From Nagaoka to the world, we will continue to provide the highest quality and ever-developing. We study diligently. We work tirelessly and sincerely. We contribute to the global "Manufacturing" with our engineer's love and passion for "Craftsmanship". "Technology for the World" Our deep technical study and love for our products has been and will continue to be second to none. And the achievements of all of the KURAKI users has built the history of KURAKI since established. In "globalization" where the world is becoming closer and more competitive, we take pride and responsibility in supporting engineering and heavy-duty cutting around the world, and we will continue to take on challenges with courage. EQUIPPED WITH: Fanuc 16M CNC Control, Storage, RS-232 Port, (2) 49.21" x 49.21" Pallets with 360 deg. Pallet Rotation, Heavy Duty 8000 RPM Cat-50 Spindle, Rigid Tapping, 60 Station Automatic Tool Changer, Chip Conveyor and Coolant System.

Specifications

ManufacturerKURAKI
ModelKHM-125
Year1998
ConditionUsed
Stock Number21917
StatusFor Sale
X78.7"; 1,999 mm
Y49.2"; 1,249.7 mm
Z39.3"; 998.22 mm
Power40 hp; 29.8 kW
RPM8,000 RPM; 8,000 RPM
# ATC60; 60
TaperCAT-50; CAT-50
Pallet-W49"; 1,244.6 mm
Pallet-L49"; 1,244.6 mm
# Axis4; 4
ControlCNC (FANUC 16M); CNC (FANUC 16M)
Dimensions226" x 354" x 168"H; 226" x 354" x 168"H
Weight55,000 lbs.; 55,000 lbs.
Longitudinal Travel (X-Axis)78.74"
Vertical Travel (Y-Axis)49.21"
Spindle Travel (Z-Axis)39.37"
Pallet Dimensions49.2" x 49.2"
Maximum Pallet Load6600 LBS
Number of Pallets2
Number of Index Positions360 deg.
Feed Rate, All Axes314 IPM
Rapid Traverse, All Axes787 IPM
Spindle Horsepower40 HP
Spindle Speed Range50 - 8000 RPM
Spindle TaperCat-50
Number of Tool Stations60
Electrics460/3/60
Approximate Machine Dimensions226" x 354"
Approximate Machine Height168"
Approximate Machine Weight55,900 LBS
