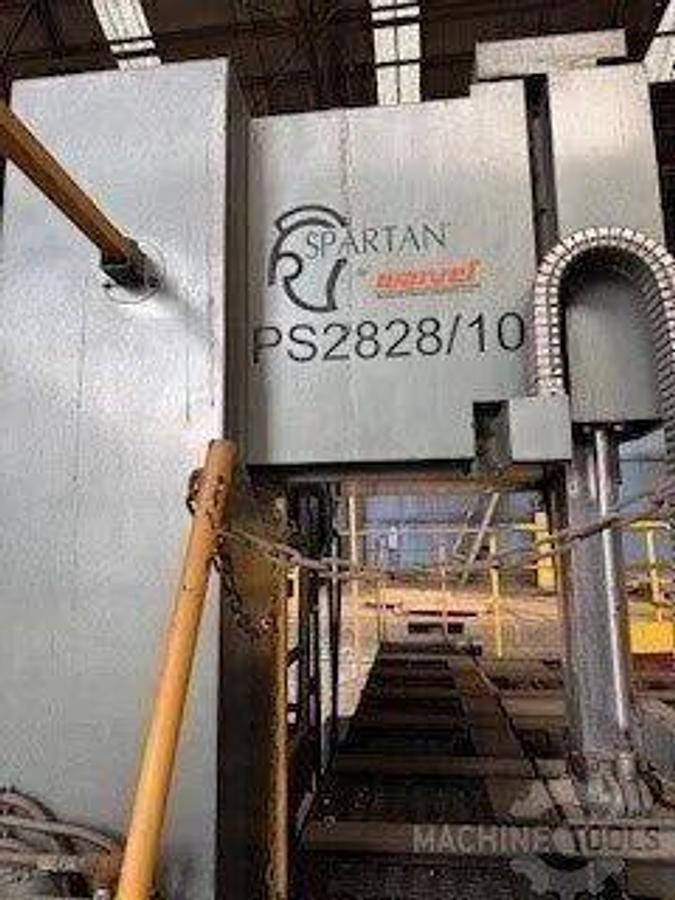

MARVEL/SPARTAN PS2828/10 Plate Saw, Cutting Height 27.5"; Cutting Width 118"

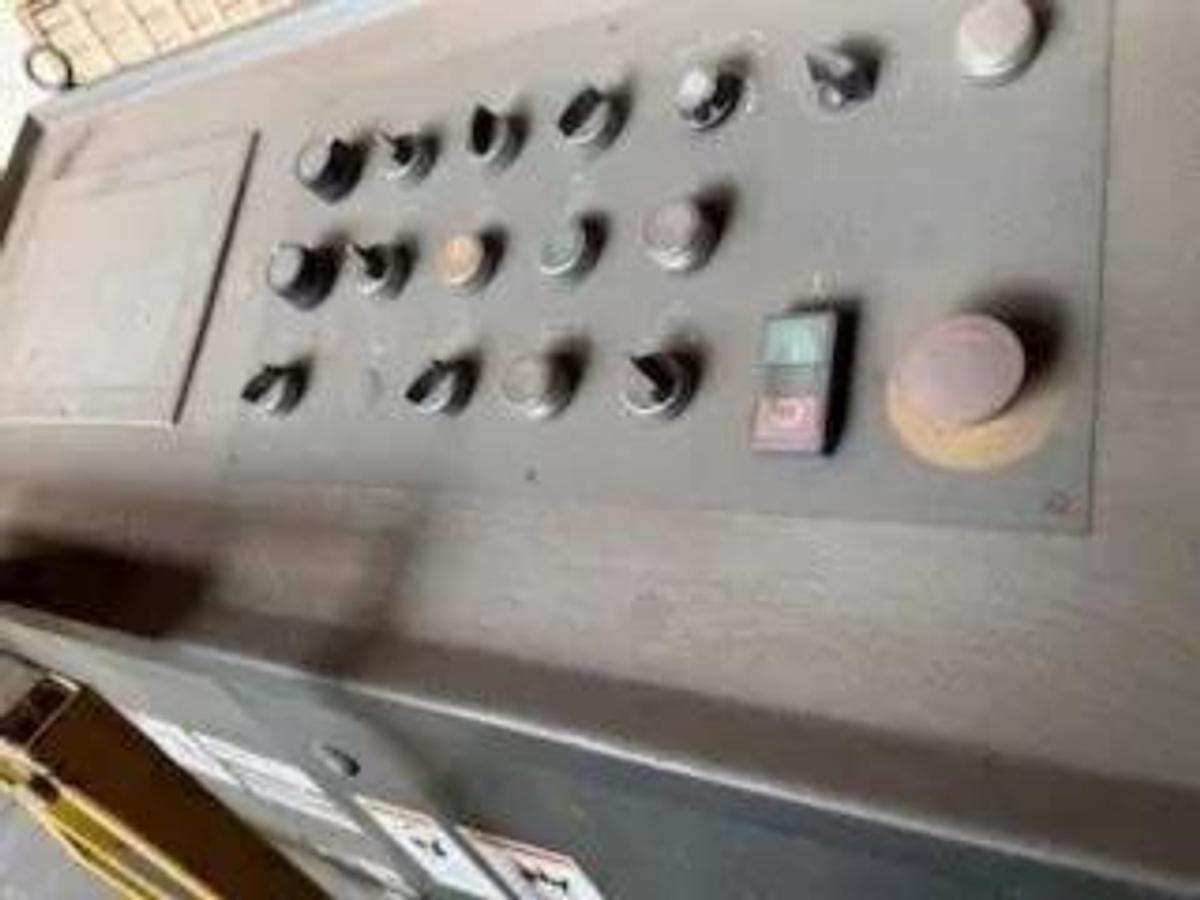

MARVEL/SPARTAN PS2828/10 Plate Saw, Cutting Height 27.5"; Cutting Width 118" Amada Marvel, Inc. was founded in Chicago, Illinois and has been designing and manufacturing the highest quality metal cutting saws since 1904. The company was started by two families, the Armstrongs and the Blums, and was originally incorporated as Armstrong-Blum Mfg. EQUIPPED WITH --- MOVEMENT VIA HYDRAULIC CYLINDER ON GROUND SQUARE WAYS HYDRAULICALLY CLAMPED CARBIDE BLADE GUIDES WITH HYDRAULIC CONTROLLED UPPER BLADE GUIDE ARM SPACE SAVING MOVEABLE SAW HEAD SAW HEAD TRAVELS ON GROUND SQUARE WAYS BUILT IN POSITIONING SCALES ON INNER TABLE HYDRAULICALLY POSITIONED GUIDE ARM HYDRAULIC BLADE TENSION HYDRAULIC MOVEMENT OF SAW HEAD RAPID APPROACH AND RETURN OF SAW HEAD MOTION DETECTOR FOR BLADE BREAKAGE OR STALLING HYDRAULIC BLADE FEED WITH COMPENSATION VALVE WORK LIGHT HYDRAULICALLY CLAMPED TUNGSTEN CARBIDE BLADE GUIDES POWERED CHIP BRUSH INDEPENDENT CONTROL PANEL INVERTER CONTROLLED BLADE SPEEDS FLUSHING HOSE PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION OR CHANGE CUTTING DEPTH ----------------------------- 27.5" CUTTING HEIGHT ---------------------------- 27.5" CUT-WIDTH --------------------------------- 118.1" BLADE SIZE -------------------------------- 2" X .063" X 22' 3.75" SPEED ------------------------------------- 50-250 FPM ( 15-75 M/MIN. ) FEED RATE --------------------------------- .080 - 20"/MIN ( 2-500 MM/MIN ) BLADE DRIVE MOTOR ------------------------- 7.5 HP ( 5.5 KW ) HYDRAULIC PUMP MOTOR ---------------------- 2 HP ( 1.5 KW ) COOLANT PUMP MOTOR ------------------------ 1 HP ( 0.7 KW )
