Description

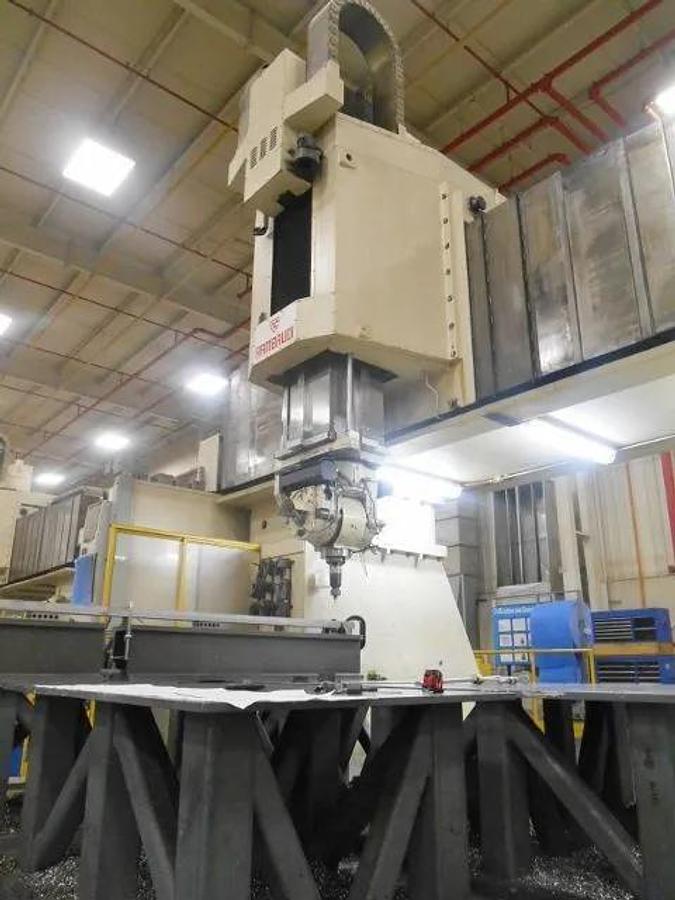

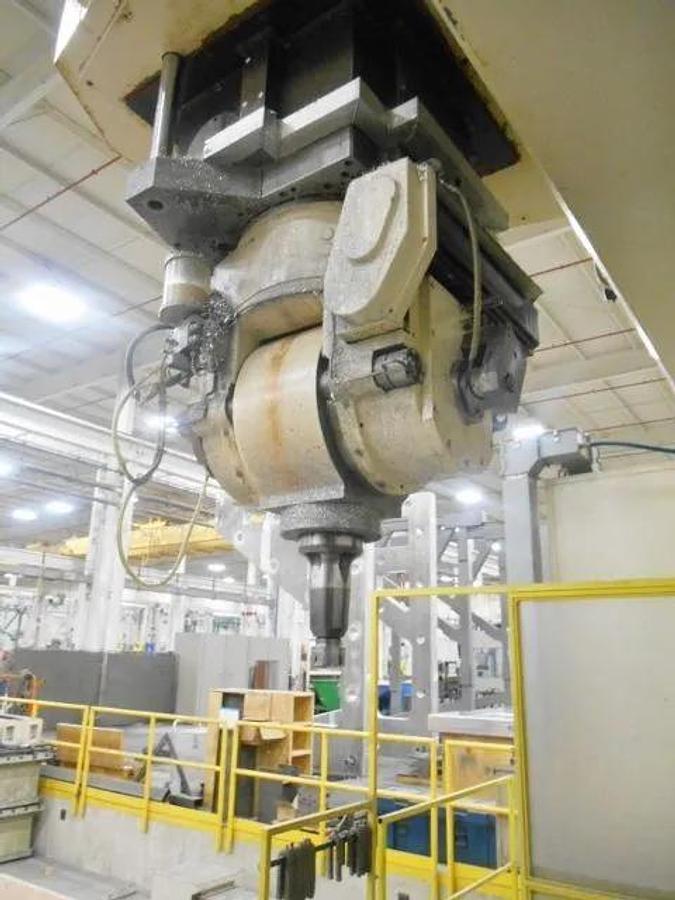

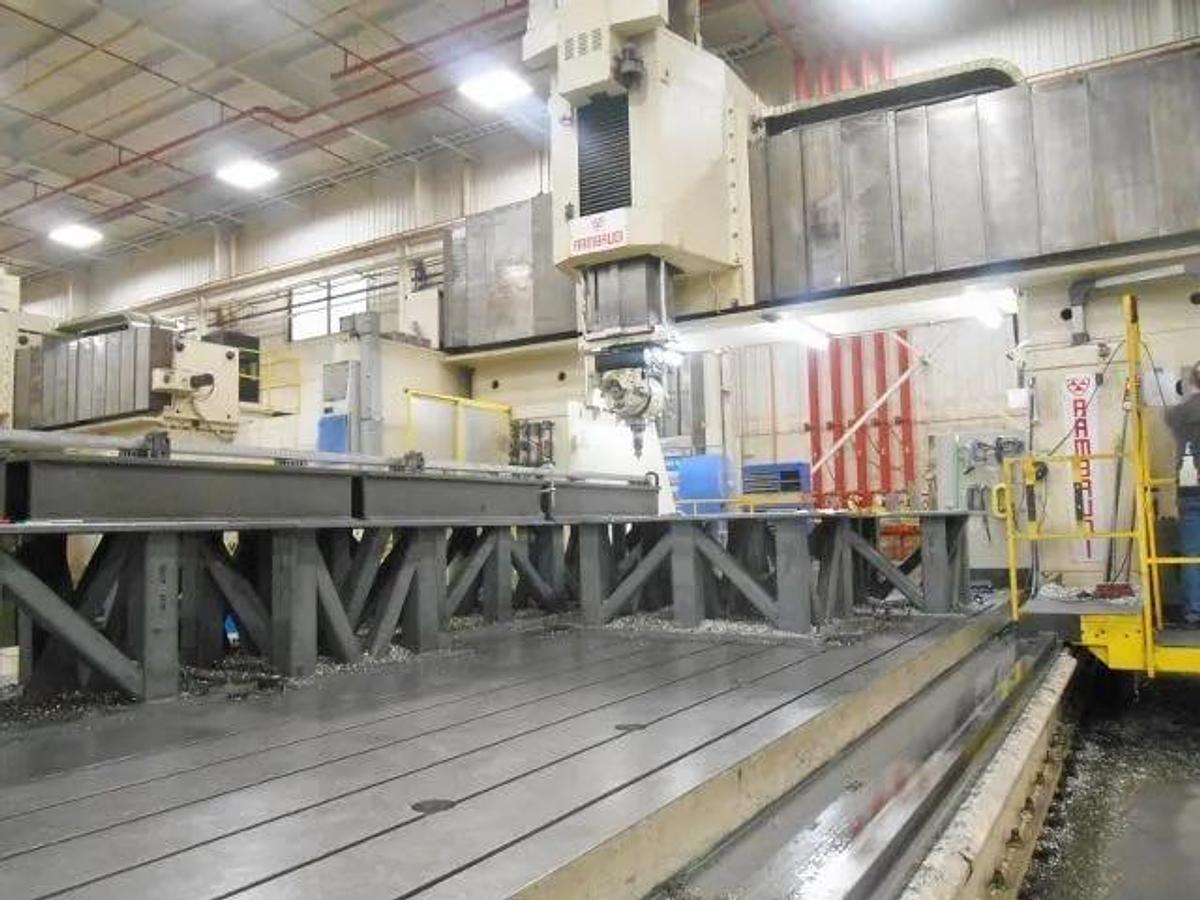

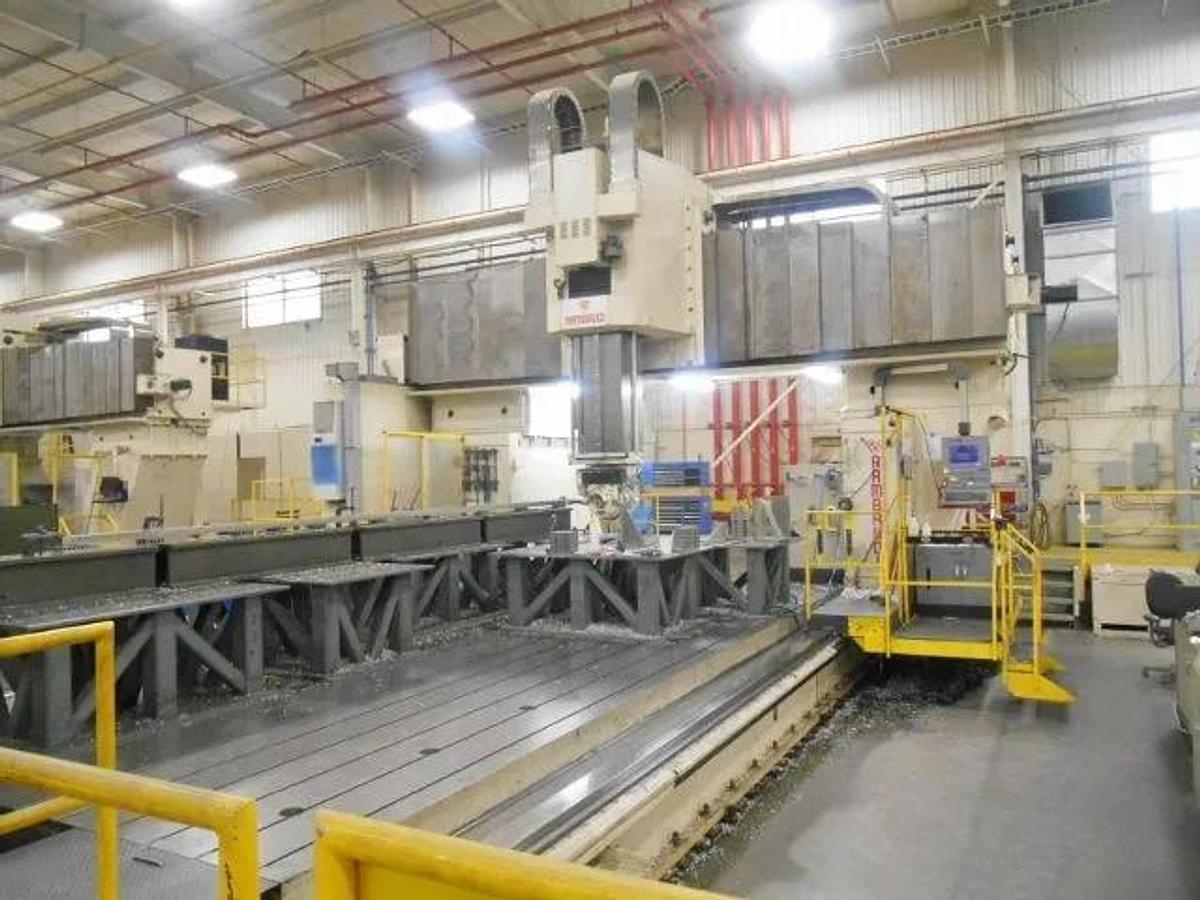

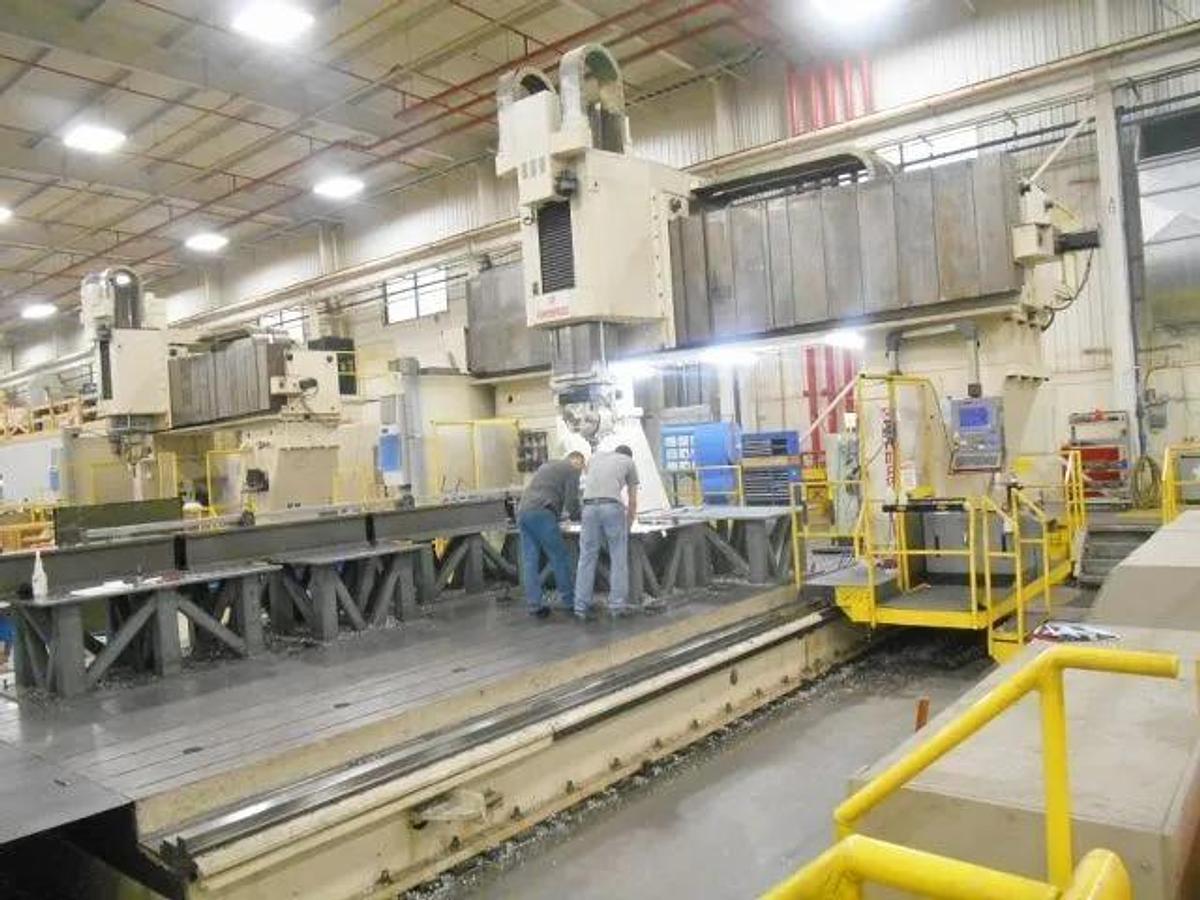

RAMBAUDI 5 AXIS Heavy Double Column CNC Gantry Bridge Mill with Articulating Head
Rambaudi has significantly contributed to machine tool history with its high-quality milling and machining centers. This company has specialized in the manufacture of high-speed machines and machines with high cutting performance since 1945.
Rambaudi is now one of the world's largest suppliers of machine tools and customer-oriented solutions for mold and die making. Rambaudi has been part of FFG Europe & Americas since 2010.
Maximum height from table to gauge face when fully retracted: 80” (6.67 ft) ( 2.03 m )
Power locks

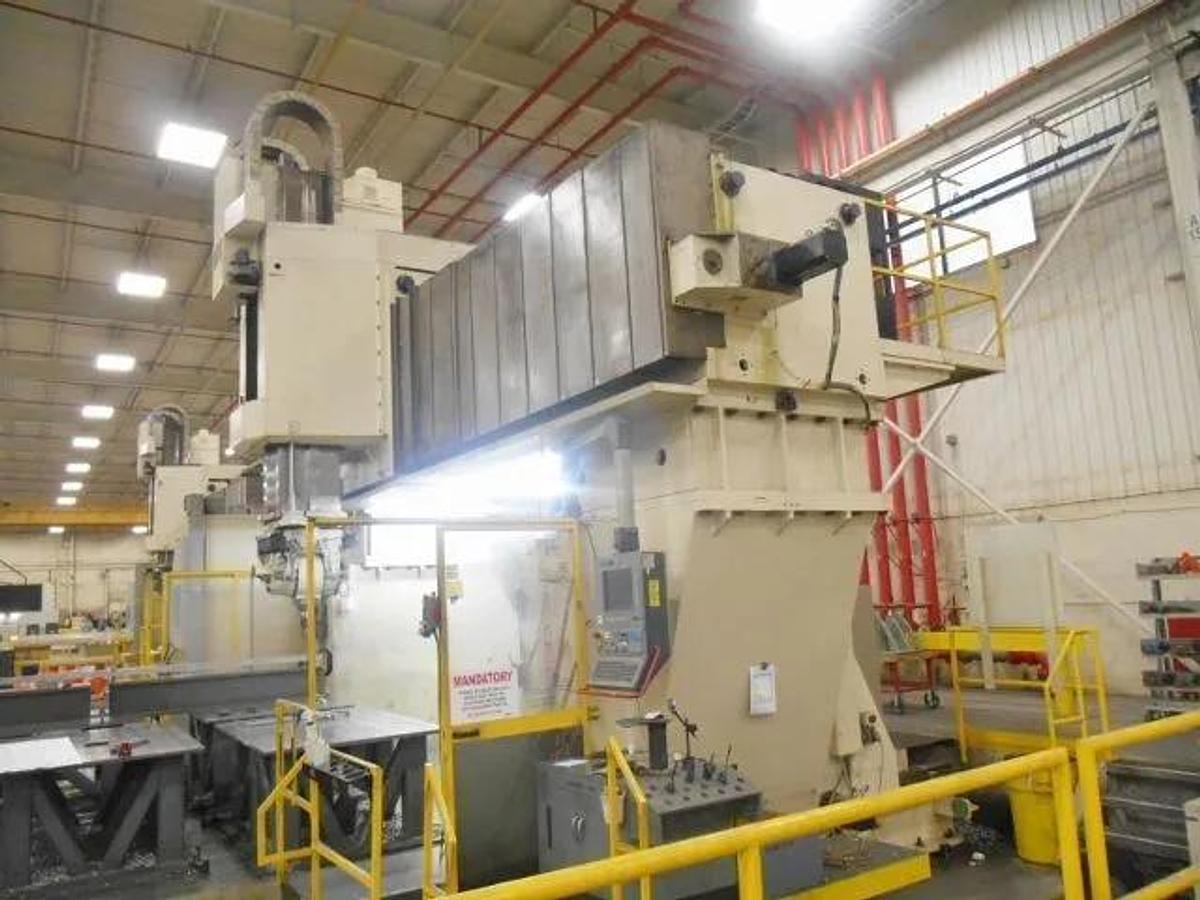

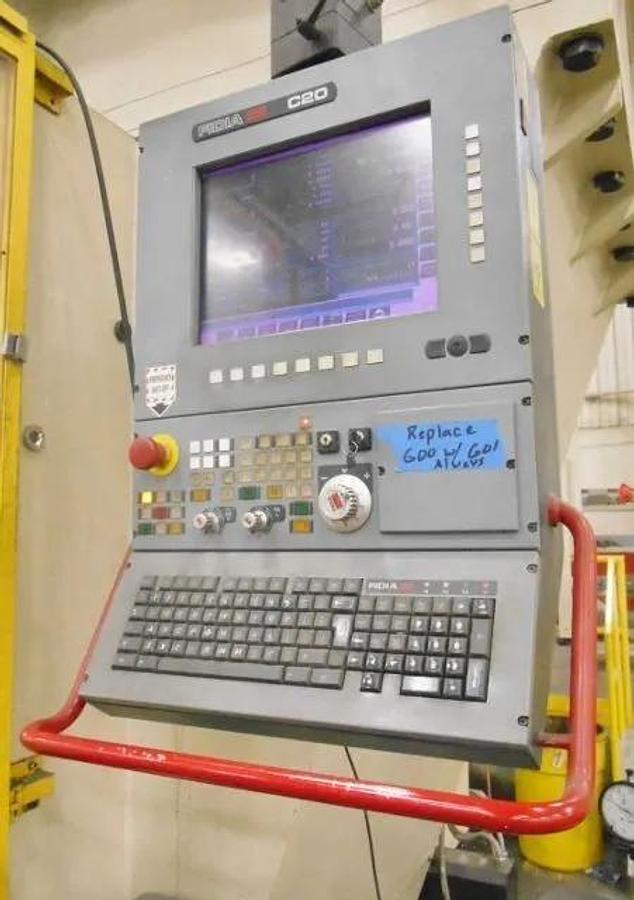

Fidia C-20 CNC Controller
Specifications
| Manufacturer | RAMBAUDI |
| Model | VAR-107 5-AXIS BRIDGE |
| Condition | Used |
| Stock Number | 22235 |
| Status | For Sale |
| Height Under Rail | 107"; 2,717.8 mm |
| Distance Between Housings | 175"; 4,445 mm |
| Motor | 60 hp; 44.7 kW |
| RPM | 3,000 RPM; 3,000 RPM |

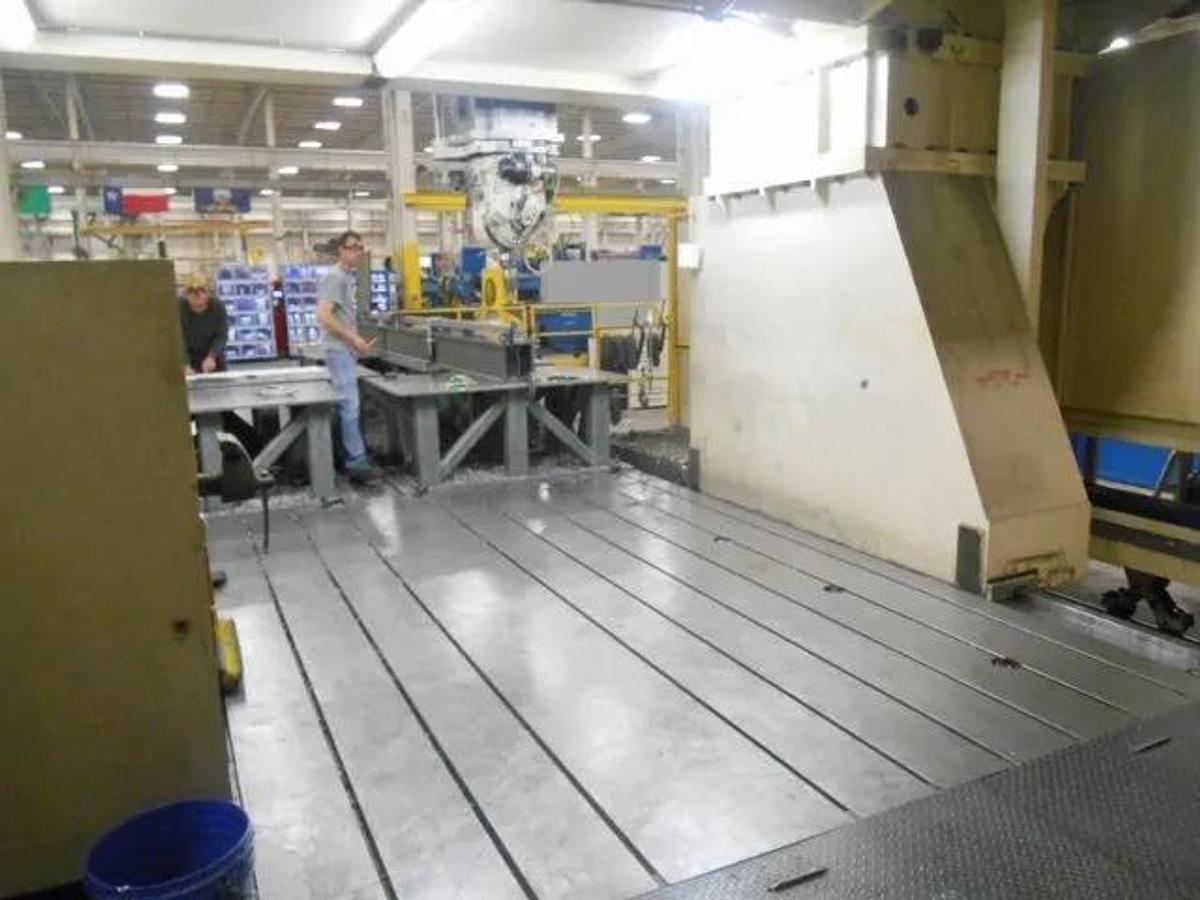

| Stationary table size | 480” x 156” (40’ ft x 13’ ft) (12.19 m x 3.96 m) |
| X axis travel | 328” (27.3 ft) ( 8.32 meters) |
| Y axis travel | 178” (14.83 ft) ( 4.53 m) |
| Z axis travel | 56” (4.67 ft) ( 1.4 m) |
| Spindle taper | Cat 50 with power took lock |
| A axis rotation | + 105 degrees |
| C axis rotation | + 180 degrees |
| Main power to milling head | 60 HP |
| Distance between columns | 175” (14.58 ft) (4.44 m ) |
| Milling feeds | 0 – 400 IPM |
| Rapid traverse | 400 IPM |
| Spindle speeds | up to 4,000 RPM (subject to verification) |
