TOS VARNDORF Table Type 5.3" HBM Model WHN 13P 137.8" X-axis, 78.7" Y-axis, 49.2" Z-Axis, Rebuilt

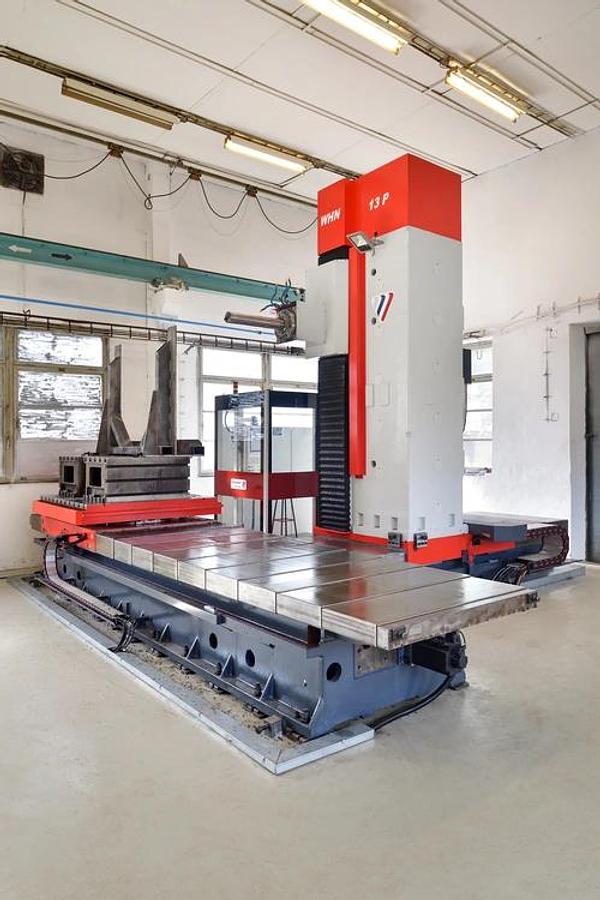

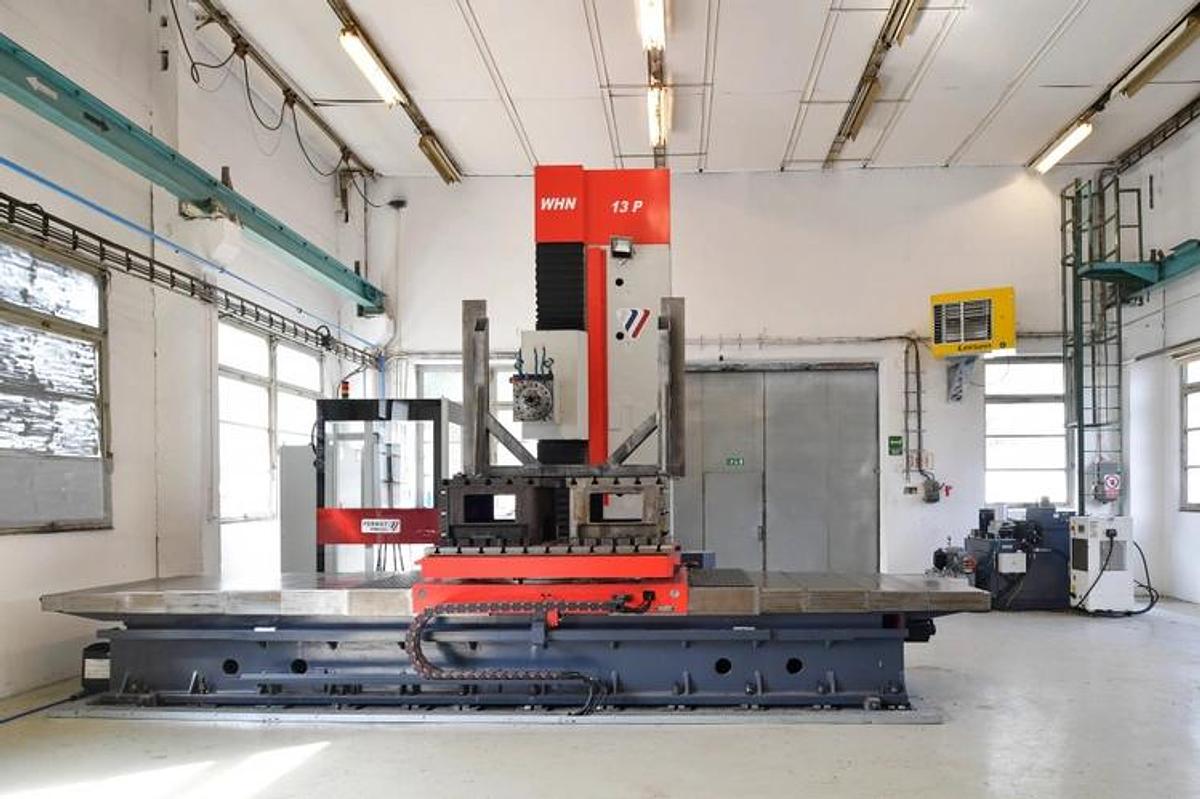

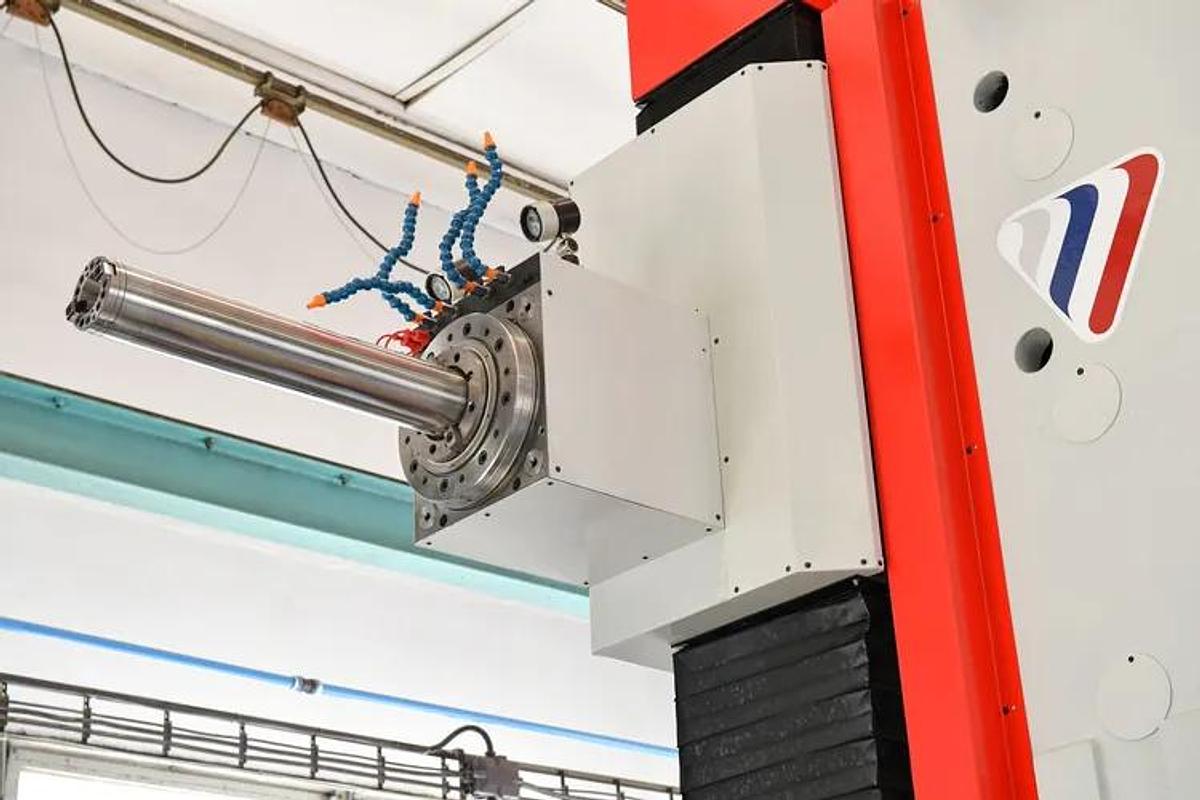

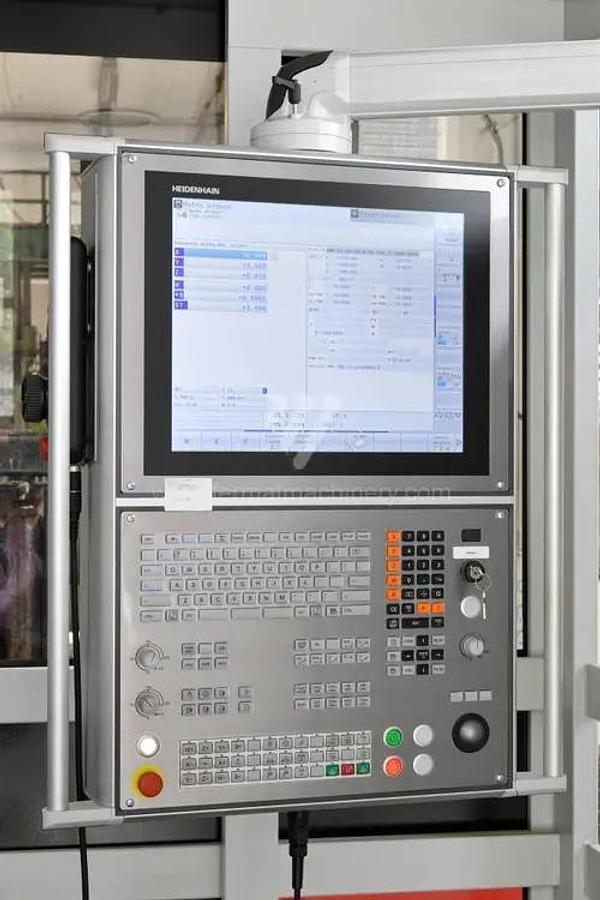

TOS VARNDORF Table Type 5.3" HBM Model WHN 13P 137.8" X-axis, 78.7" Y-axis, 49.2" Z-Axis, Rebuilt Entirely remanufactured CNC table-type WHN 13P HBM. Equipped with linear scales for X, Y, Z-Axis, operator cabin with integrated CNC panel The machine is complete overhauled and modernized. The machine has a modern headstock 3000 rev./minute and a new X bed, slides and table – headstock, X bed, slides and table are made by Fermat. After the overhaul the machine will be controlled in all X,Y,Z,B axes continuously and will comply with all requirements of CNC controlled machine with the possibility of circular interpolation, screw interpolation, spatial interpolation – curve in a space and linear interpolation in 4 axes. Geometric protocol, warranty, CE confirmation, operating instructions and all necessary documents. The exact content of the overhaul will be precisely specified in the sales contract. Model WHN 13P Table Travel - X-Axis in 137.8" | 3,500mm Headstock Travel - Y-Axis 78.7" | 2,000mm Column Travel - Z-Axis 49.2" | 1,250mm Spindle Travel - W-Axis 31.5" | 800mm Spindle Diameter 5.1" | 130mm Cooling Thru Spindle Yes Pressure of Cooling 290 PSI Control System Fanuc 0i Spindle Speed 3,000 RPM Main Motor 50 HP Build In Power Rotary Table 70.9" x 63" | 1,800mm x 1,600mm Max. Table Load 26,455 LBSA | 12 TONS Rebuilt 2023
