Description

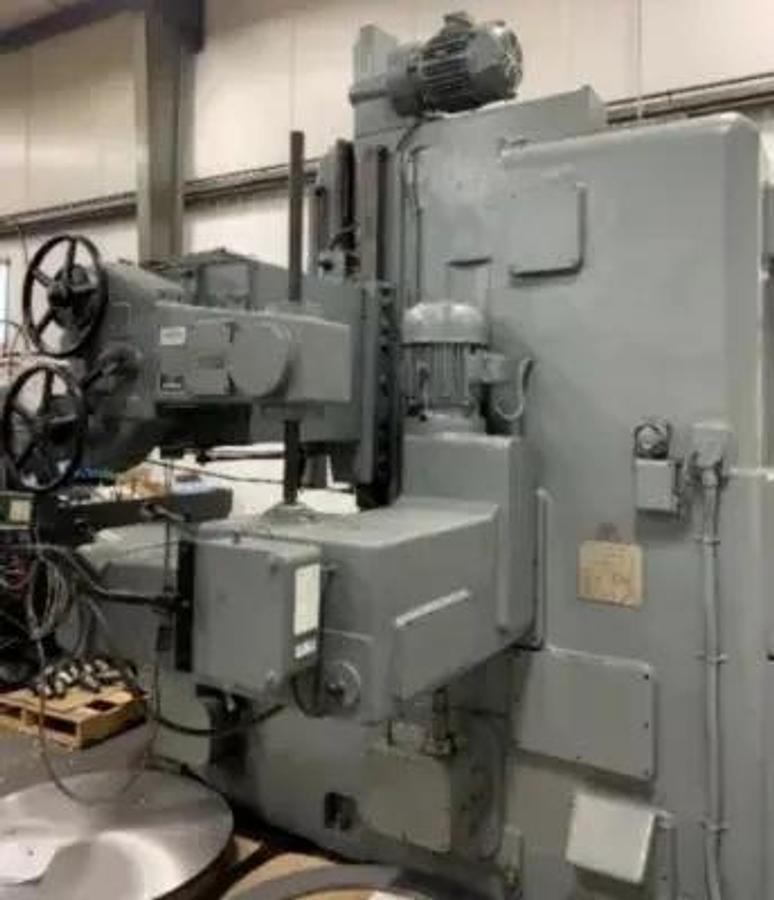

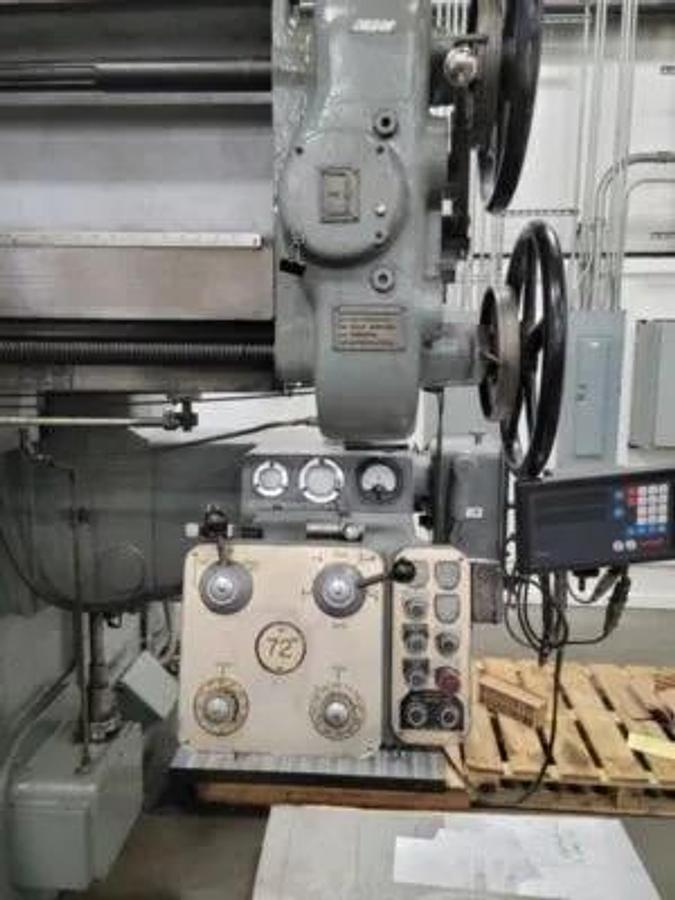

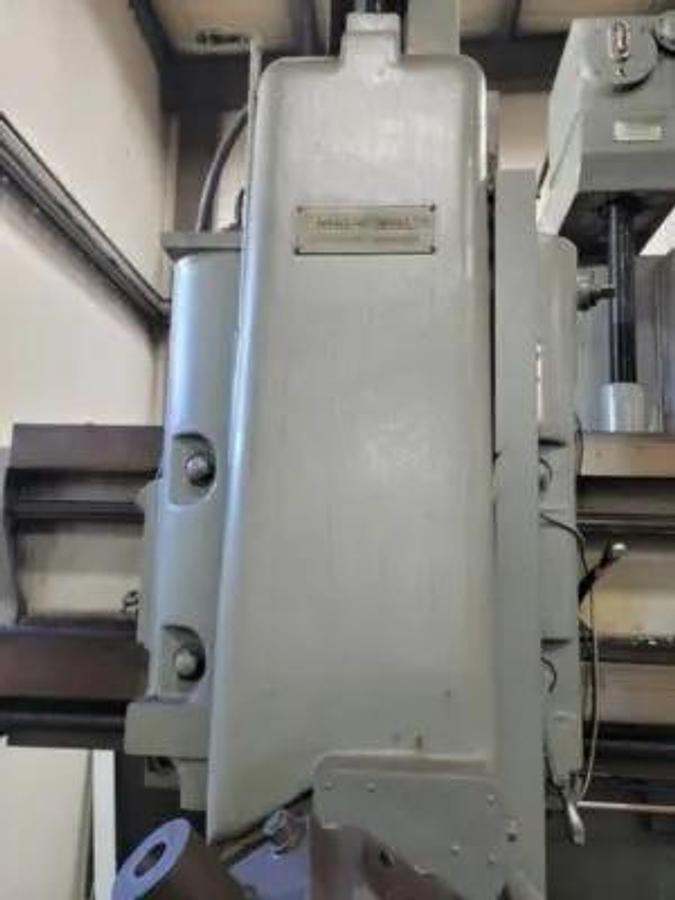

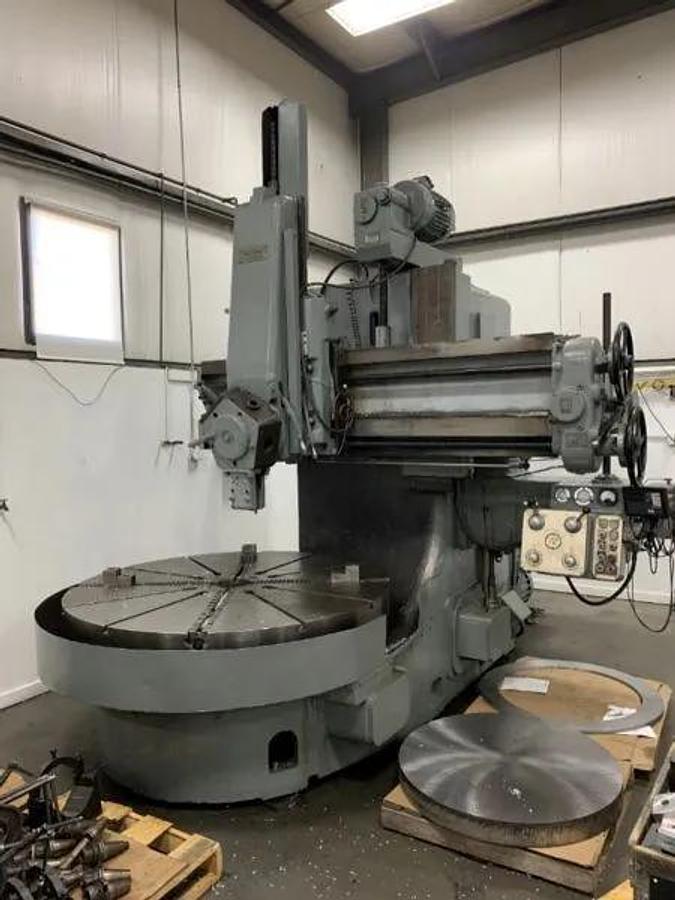

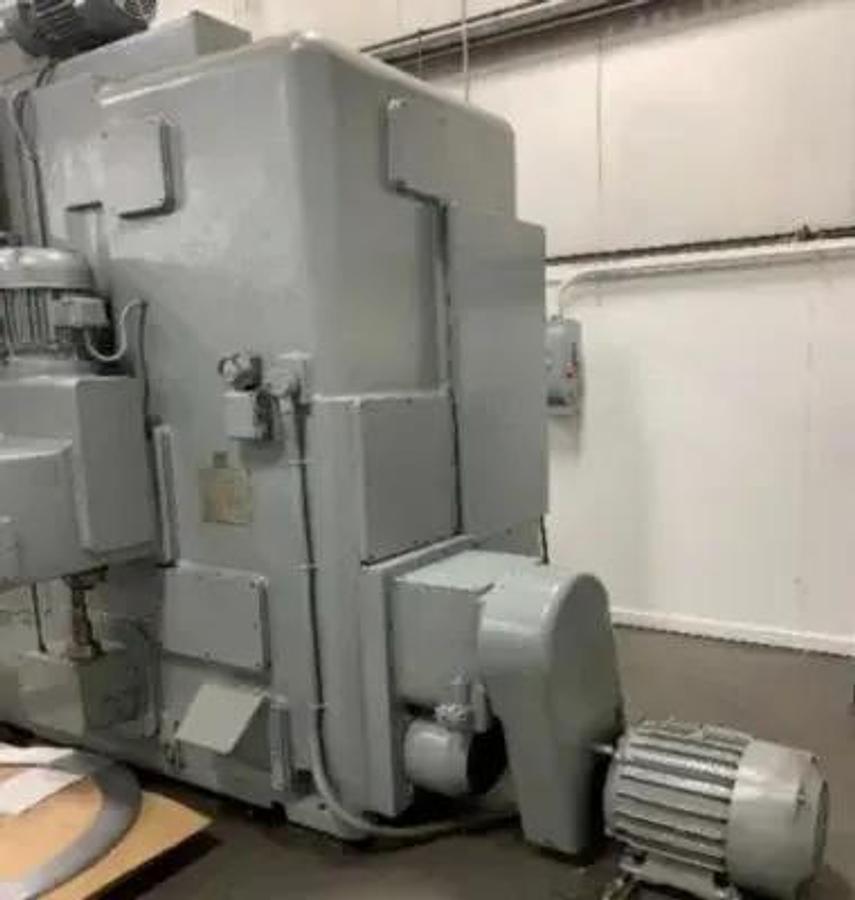

WEBSTER & BENNETT MODEL 72 Vertical Boring Mill Equipped With: 72″ 4-Jaw Chuck 5 Station Power turret 40 HP Main Motor Hardened Ground Cross Feed Screws Digital Readout Max Swing 84" Max Height Under Rail 48" Swivel Range of Turret Head Distance of Turret Travel Approximate Overall Height Shipping Dimensions: 120" x 156" x 145" (40000 LBS)
Specifications
| Manufacturer | WEBSTER & BENNETT |
| Model | 72 VB |
| Condition | Used |
| Stock Number | 22205 |
| Status | For Sale |
| Country | United States |
| Table Dia | 72"; 1,828.8 mm |
| Swing | 84"; 2,133.6 mm |
| Work Ht-U/R | 48"; 1,219.2 mm |
| Power | 30 kW; 40.2 hp |
| RPM | 83 RPM; 83 RPM |
| Dimensions | 180” F-B x 128” L-R |
| Weight | 36,000 lbs Approx. |
| Max Turning Diameter | 79″ |
| Min Height Under Cross Rail | 24” |
| Vertical Travel of Cross Rail | 28” |
| Maximum Height Under Turret Face | 59” |
| Vertical Travel of Turret Slide | 38” |
| Diameter of Turret Holes | 3” |
| Left or Right of Center | 35 Degrees |
| Centerline of Chuck Outward | 51 ½” |
| Max. turret Travel | 26″ |
| Max. Cross Travel of Turret | 49″ |
| Table Load Capacity | lbs |
| Table Speeds | 3.8 – 83 RPM |
| Range of Feeds | .008 to .375 |
| (Turret Up – Rail Up) | 160” |
