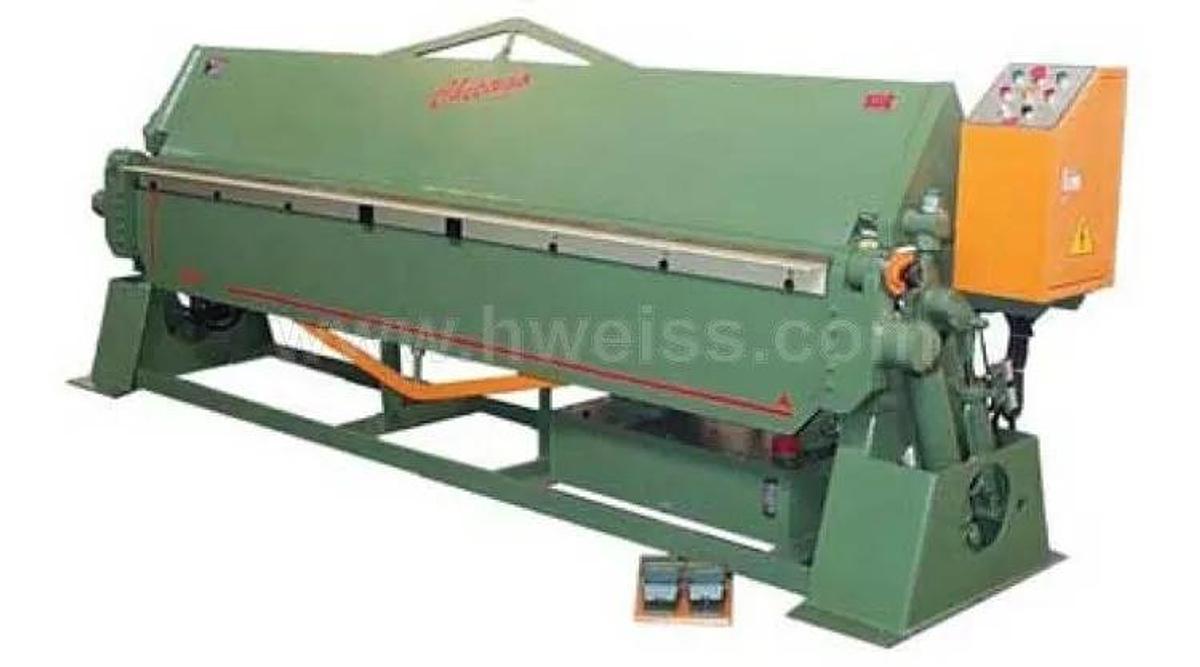

2023 CHICAGO Dreis & Krump Model HSB 1014 Powered Leaf Brake

2023 CHICAGO Dreis & Krump Model HSB 1014 Powered Leaf Brake The bending capacity of the brake is achieved when using the angle bar in the high position and forming a 1” minimum flange on capacity material. Use of the ½” insert bar with the angle bar in the low position reduces the capacity of the brake four gauges. Use of the optional ¼” insert bar with the angle bar in the low position reduces the capacity of the brake seven gauges. MACHINE PRICE (hydraulic oil not included) . . . .… . . . . . $26,875.00 Optional Power Back Gauge (OEM installed at factory) . . . . $5,700.00 Optional: Power Back Gauge with digital readout - electric push button operation. Inch Control - Bending leaf up/down pushbuttons allow complete operator control of the bending leaf motion. Automatic Cycle - Actuating the "Automatic Pushbutton" clamps the top leaf, raises the bending leaf to the preset bend angle dial adjustment setting, lowers the bending leaf, unclamps the top leaf. STANDARD EQUIPMENT Removable Nose Bar: Angle Bar Bolted Bottom Bar: ½” Insert Bar Compact Hydraulic Power Unit Oil Level Sight Gauge Control Panel Features: On/Off Key Selector Switch Motor Start Pushbutton Bending Leaf Up/Down Pushbuttons Emergency Stop P/B Clamp/Unclamp Pushbuttons Automatic Cycle P/B ELECTRIC FOOT SWITCH – Clamps & Unclamps Top Leaf. Allows operator mobility when loading and unloading material. BEND ANGLE DIAL ADJUSTMENT – Adjustable cam and scale that reads in degrees, actuates an electric limit switch for bend angle control and repeatability of bends. MATERIAL THICKNESS DIAL ADJUSTMENT – Reference scale for speedier set up when adjusting clamping pressure. BACK GAUGE – 25 ½” travel, rack & pinion type gauge with hand wheel adjustment on right side of machine. Inch/Cm. Scale. INCH CONTROL – Bending leaf up/down pushbuttons allow complete operator control of the bending leaf motion. AUTOMATIC CYCLE – Actuating the “Automatic Pushbutton” clamps the top leaf, raises the bending leaf to the preset bend angle dial adjustment setting, lowers the bending leaf, unclamps the top leaf. ELECTRICAL EQUIPMENT - One 3 H.P. general purpose motor with direct mount hydraulic pump for operation on 220/440 volts, 3 PH, 60HZ with 110 volt control circuit (please specify voltage). One (1) Dreis & Krump “CHICAGO” Model HSB 1014 Hydraulic Powered Standard Bending Brake as described in Bulletin HHB8-95 and as follows:
