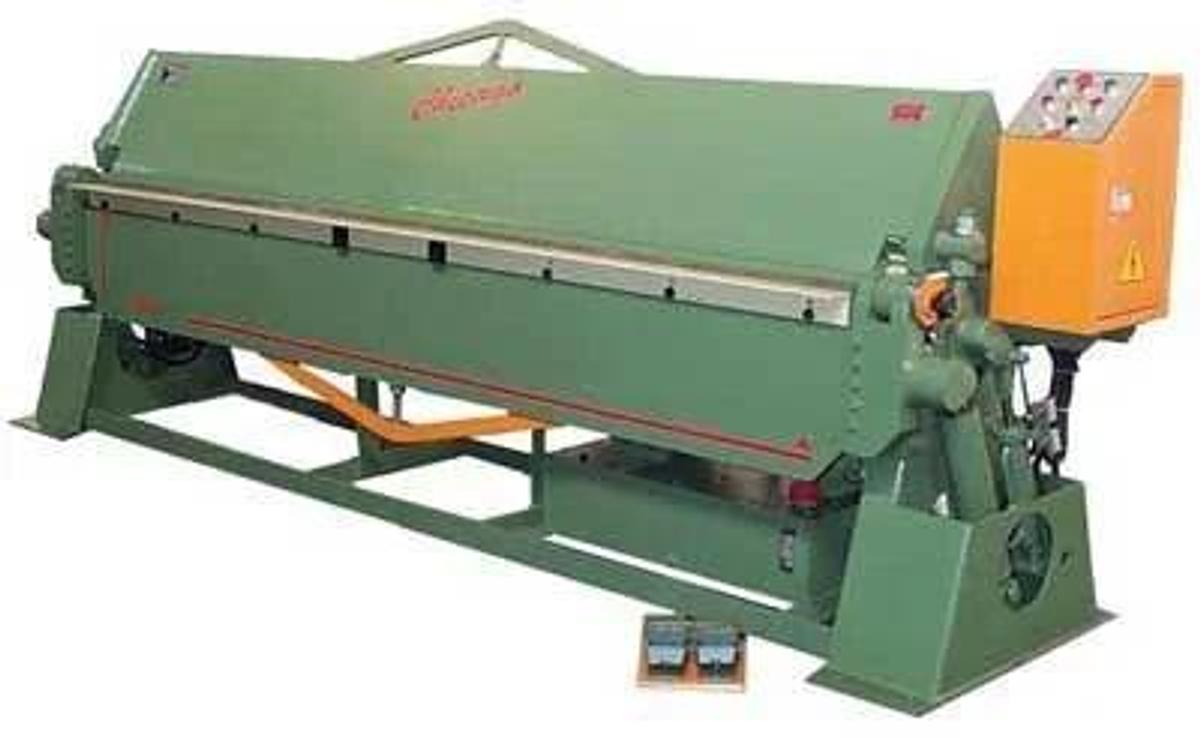

Dreis & Krump “CHICAGO” Model HBPU 1012-6 Hydraulic Powered Box & Pan Bending Brake

Dreis & Krump “CHICAGO” Model HBPU 1012-6 Hydraulic Powered Box & Pan Bending Brake Chicago Dreis & Krump began servicing the metalworking industry in 1899. Many things have changed since 1899, but Dreis & Krump has never wavered from supplying quality machines to the metalworking industry. Whether you need a heavy duty plate shear for that really big job, or a sheet metal shear for medium duty work – Dreis & Krump has got you covered. Now you can get your choice of the best hydraulic shears on the market, hydraulically driven for quiet, dependable operation and increased productivity, at a price you can easily afford. Chicago Dreis & Krump offers machines such as: * sheet metal hand brakes * sheet metal box & pan finger brakes * hydraulic press brakes * hydraulic shears * hydraulic powered leaf brakes * electric powered leaf brakes * slip rolls and plate rolling machines. * The parts department has been known to provide user assistance for machines exceeding 60 years of age. we hope that you ask yourself, who will be around when you need help? Blackout Equipment LLC is Chicago-based and ready to help you with any Chicago Dreis & Krump sheet metal working machinery. STANDARD EQUIPMENT Removable Nose Bars Angle Bar Bolted Bottom Bar 1” Insert Bar Compact Hydraulic Power Unit Oil Level Sight Gauge Control Panel Features: On/Off Key Selector Switch Motor Start Pushbutton Bending Leaf Up/Down Pushbuttons Emergency Stop P/B Clamp/Unclamp Pushbuttons Automatic Cycle P/B ELECTRIC FOOT SWITCH – Clamps & Unclamps Top Leaf. Allows operator mobility when loading and unloading material. BEND ANGLE DIAL ADJUSTMENT – Adjustable cam and scale that reads in degrees, actuates an electric limit switch for bend angle control and repeatability of bends. MATERIAL THICKNESS DIAL ADJUSTMENT – Reference scale for speedier set up when adjusting clamping pressure. BACK GAUGE – 25 ½” travel, rack & pinion type gauge with hand wheel adjustment on right side of machine. Inch/Cm. Scale. INCH CONTROL – Bending leaf up/down pushbuttons allow complete operator control of the bending leaf motion. AUTOMATIC CYCLE – Actuating the “Automatic Pushbutton” clamps the top leaf, raises the bending leaf to the preset bend angle dial adjustment setting, lowers the bending leaf, unclamps the top leaf. ELECTRICAL EQUIPMENT- One 5 H.P. general purpose motor with direct mount hydraulic pump for operation on 220/440 volts, 3 PH, 60HZ with 110 volt control circuit (please specify voltage). Optional Power Back Gauge (OEM installed at factory) . . . $5,700.00 F.O.B. Factory, Peotone, Illinois Number and width of fingers With nose bar 6 – 3” 10 – 4” 10 – 5” 2 – 6” The bending capacity of the brake is achieved when using the angle bar in the high position and forming a 1” minimum flange on capacity material.
