Description

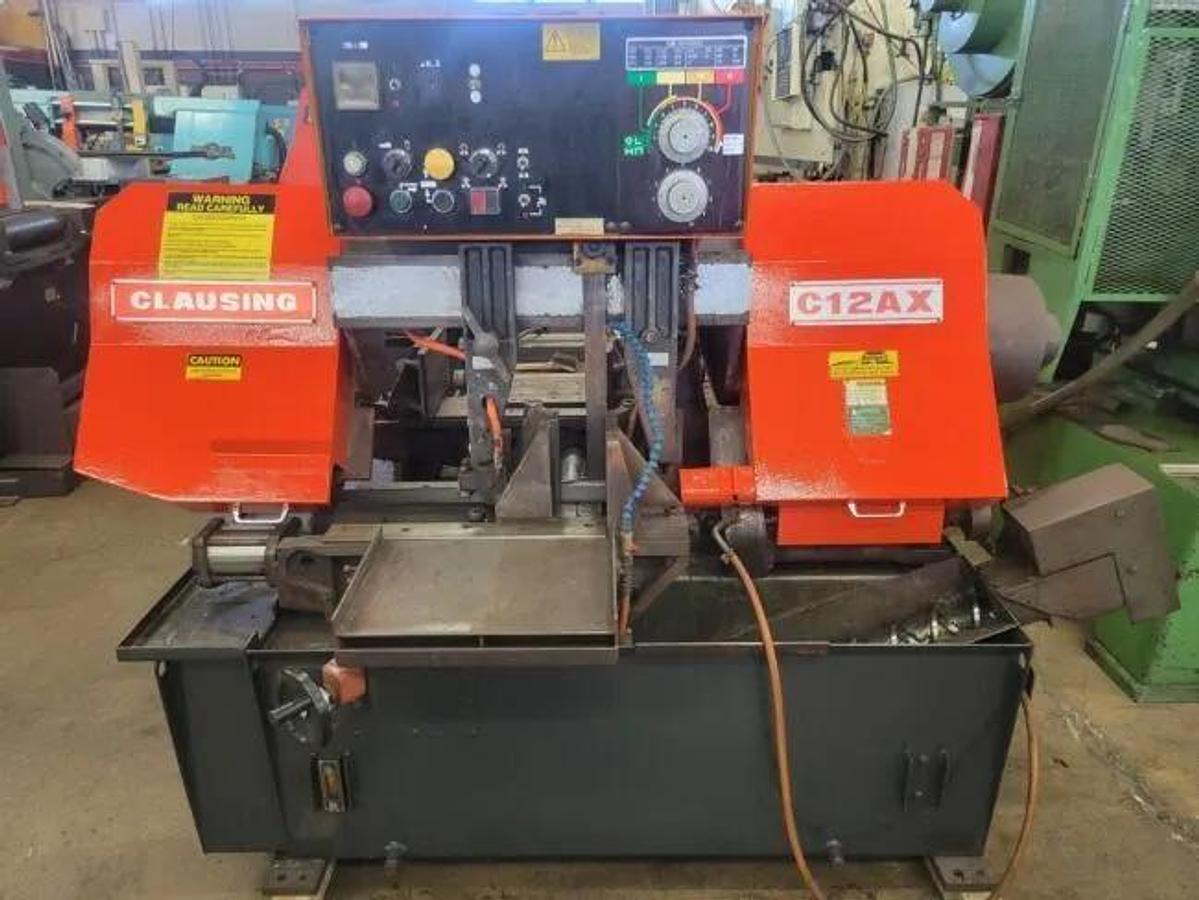

CLAUSING/Cosen Model C12AX Horizontal Bandsaw Capacity 12" x 14" 11.8" Rounds
Fully automatic
12' x 14" saw
Cuts 11.8" Rounds
1-1/4" Blade, 2 more new blades, Coolant system, hydraulic blade tension, Spilt front vise for burr free cuts, chip conveyor, variable speed drive, Chip brush and wash down nose, parts counter and multiple feed counter
Automatic bandsaw
Coolant recirculating
Cutting capacity: 90° round: 11.8"
Specifications
| Manufacturer | CLAUSING |
| Model | C12AX |
| Year | 1998 |
| Condition | New |
| Stock Number | 21987 |
| Status | For Sale |
| Country | United States |
| Rect-Cap (H) | 11.8"; 299.72 mm |
| Rect-Cap (W) | 12.6"; 320.04 mm |
| Rounds-Cap | 11.8"; 299.72 mm |
| Power | 5 hp; 3.7 kW |
| Type (Auto, Manual, Semi) | Auto; Auto |
| Blade Width | 1.25"; 31.75 mm |
| Blade Thickness | 0.042"; 1.0668 mm |
| Blade Length | 144"; 3,657.6 mm |
| Dimensions | 7' X 7' X 5' high; 7' X 7' X 5' high |
| Weight | 2,500 lbs; 2,500 lbs |
| Drive motor | 5 HP |
| Hydraulic motor | 1 HP |
| Bandwheel diameter | 16" |
| Blade speed | 95 to 335 FPM |
| Blade size | 1.25" x 12" x .042" |
| Coolant capacity | 10 gallons |
| 90° rectangle | 11.8" x 12.6" |
| Bundle cutting width | 6.5" to 10" |
| Bundle cutting height | 2" to 8" |
| Maximum feed length / index | 15.75" |
