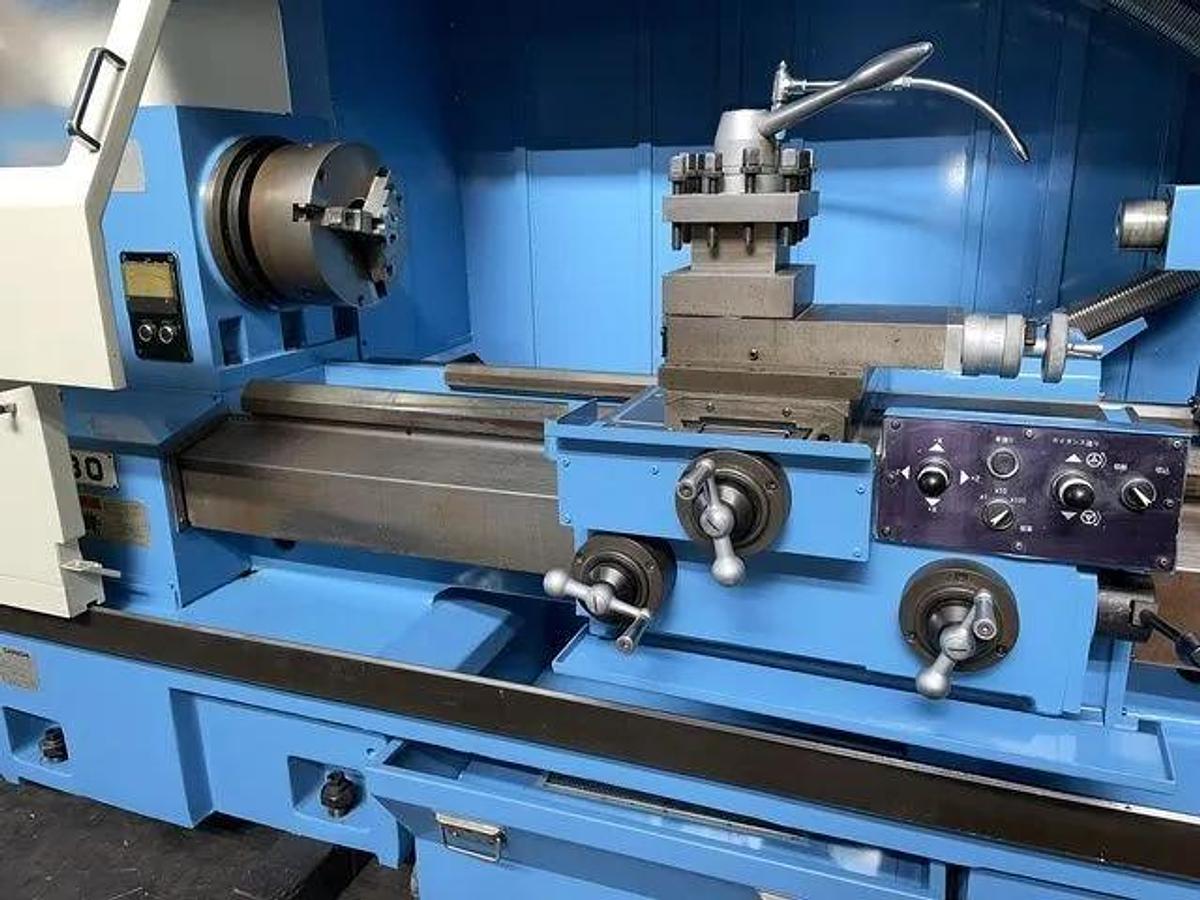

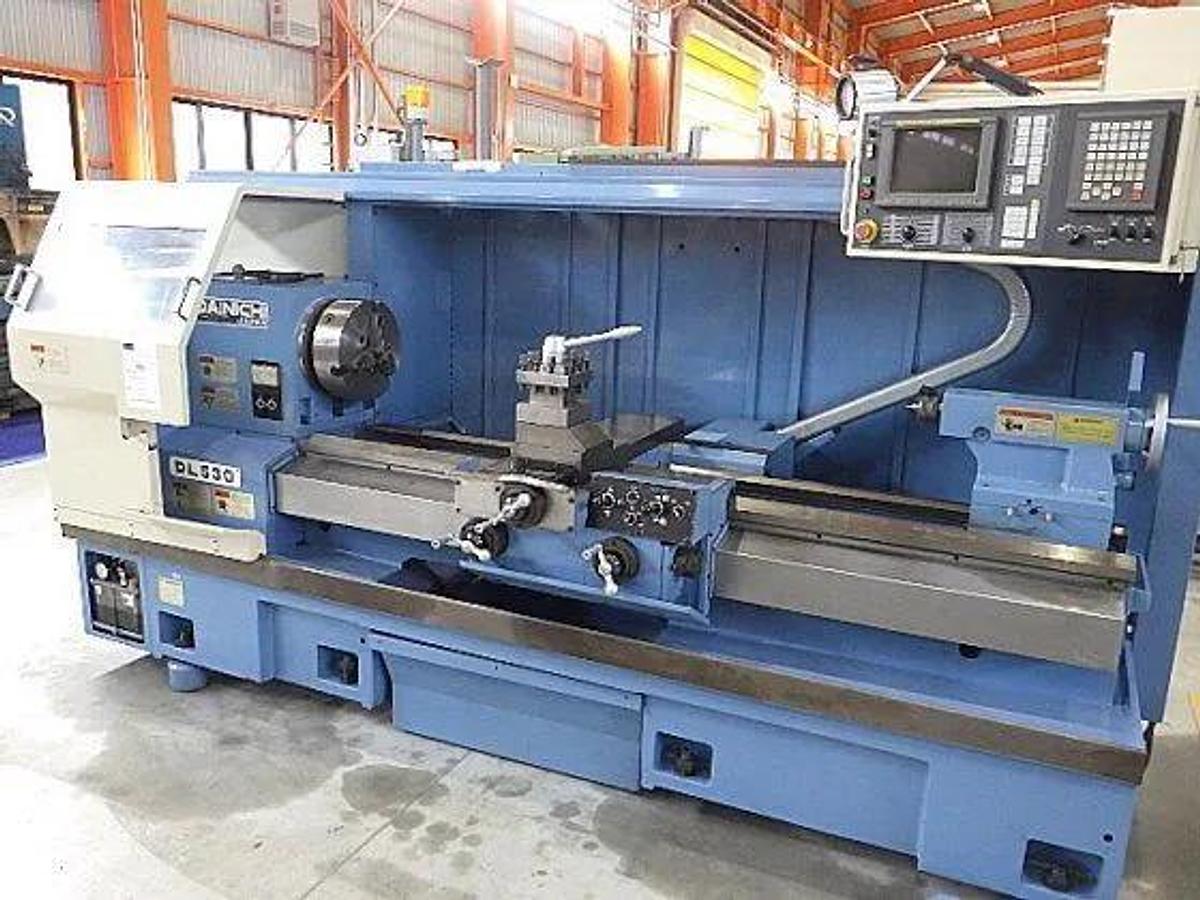

2025 DAINICHI MODEL DL530X150, FANUC 32-iB PLus Toolroom & Manual Hybrid Lathe, In Stock!

$149,000
or
Call 1+847-571-0523
Get Financing

Description

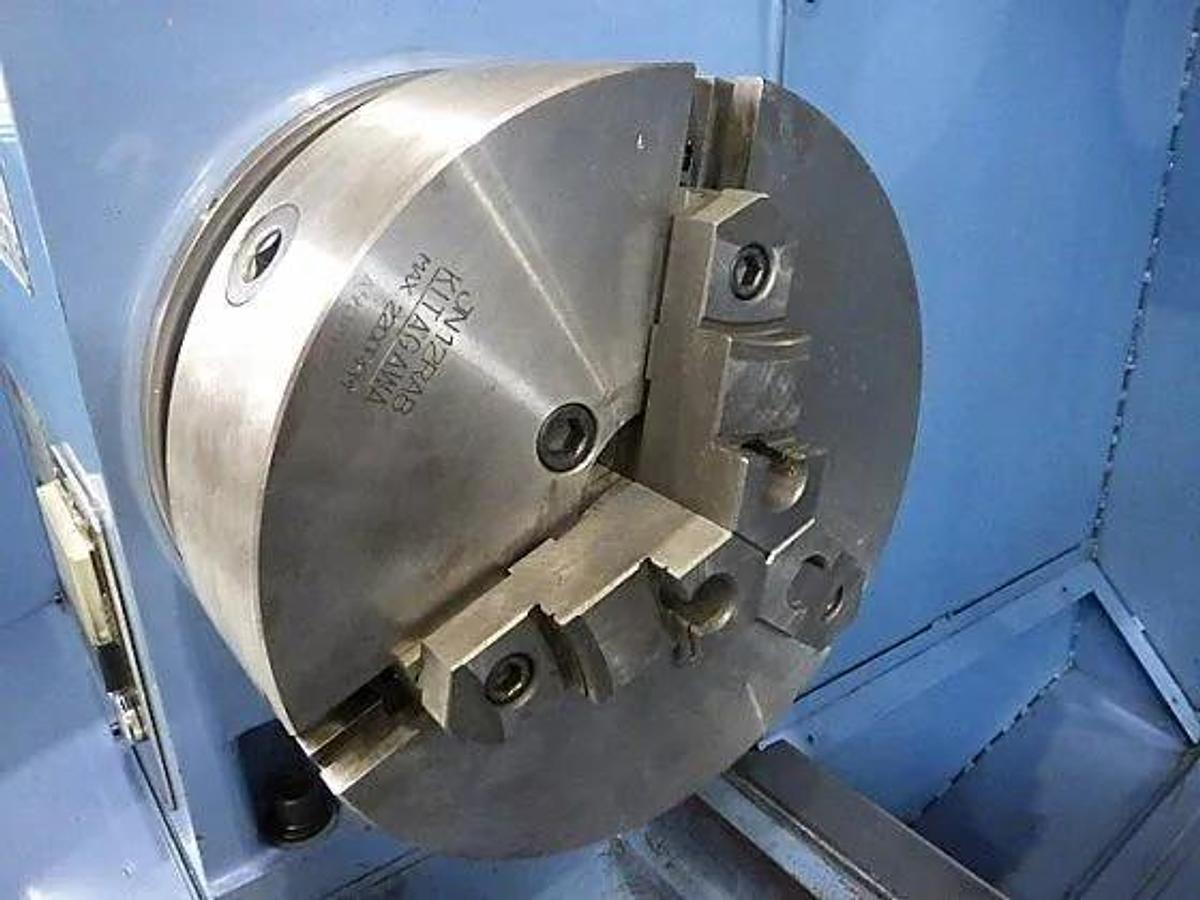

2025 DAINICHI MODEL DL530X150, FANUC 32-iB PLus Toolroom & Manual Hybrid Lathe, In Stock Options Included: 10" 3-jaw scroll chuck Steady rest dia.0.8-5.9" or 5.9-9.8" Follow rest dia. 0.8-5.9" NC program download & Edit RC 232C 160m of Memory Oscillation function
Show All

Specifications

ManufacturerDAINICHI
ModelDL530X1500
Year2025
ConditionNew
Stock Number22232
StatusFor Sale
Swing20.87"; 530.1 mm
Machining Length59.06"; 1,500.1 mm
# Axis2; 2
Chuck Size12"; 304.8 mm
Bar Capacity3"; 76.2 mm
Power12 hp; 8.9 kW
Max RPM1,700 RPM; 1,700 RPM
Turning Dia20.8"; 528.32 mm

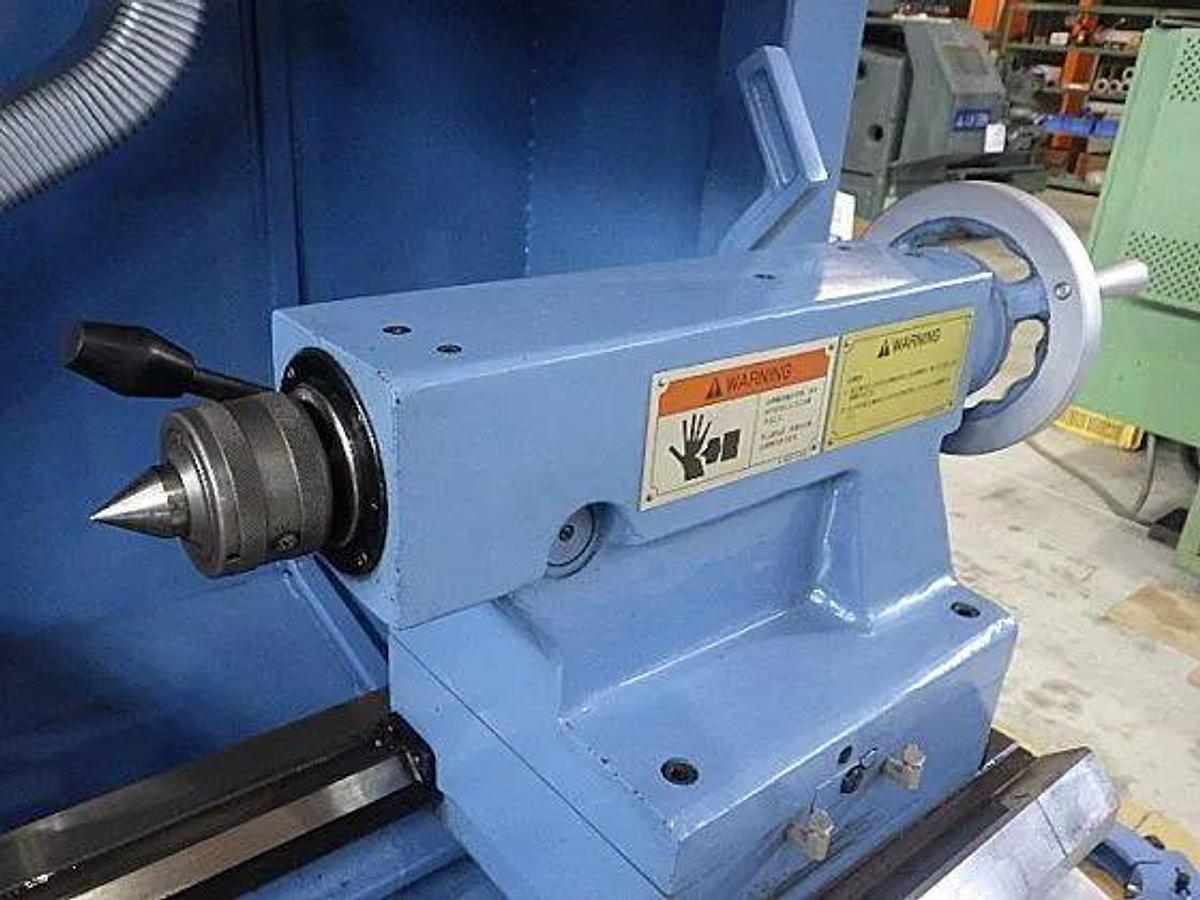

TailstockYes; Yes
Live ToolingNo; No
Sub SpindleNo; No
ControlCNC (FANUC 32i- B Plus); CNC (FANUC 32i- B Plus)
Weight6,820 lbs; 6,820 lbs
