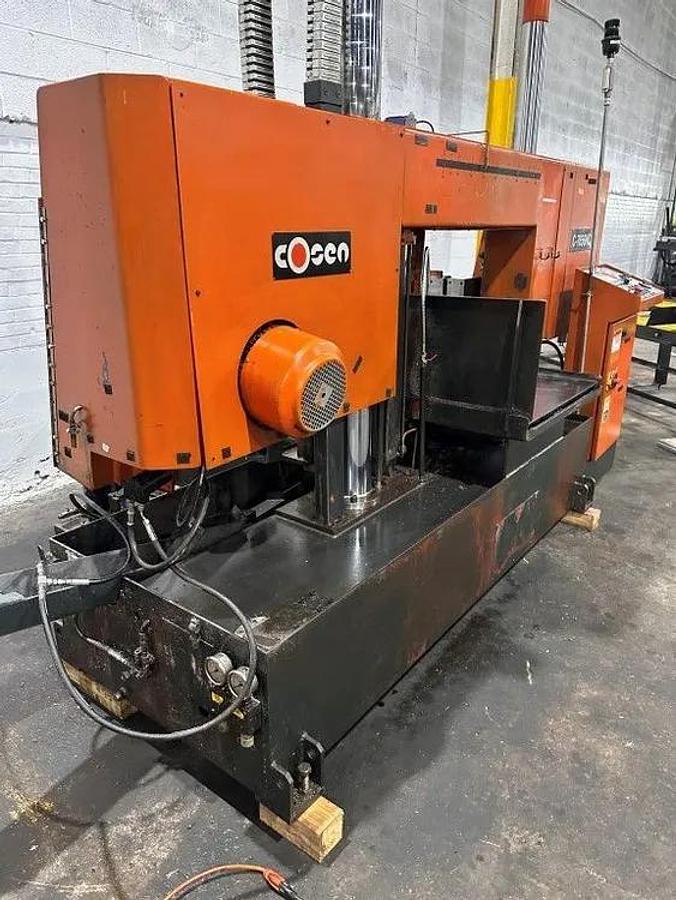

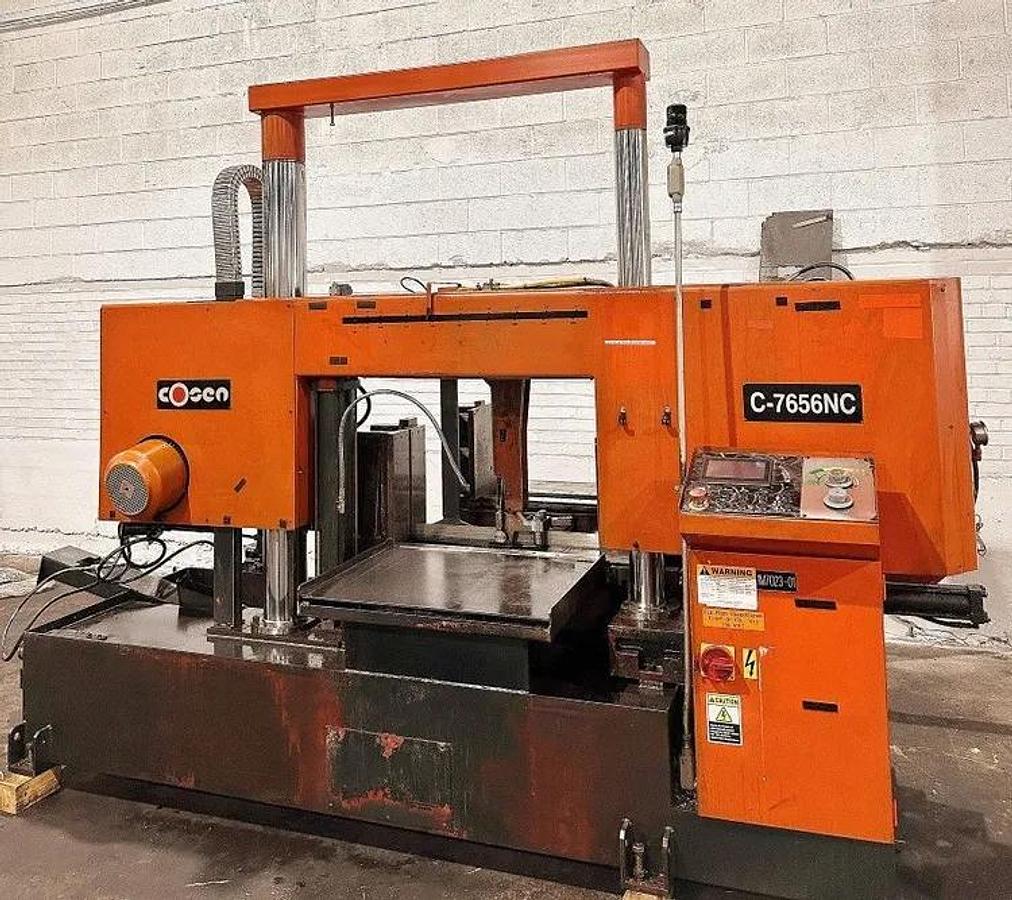

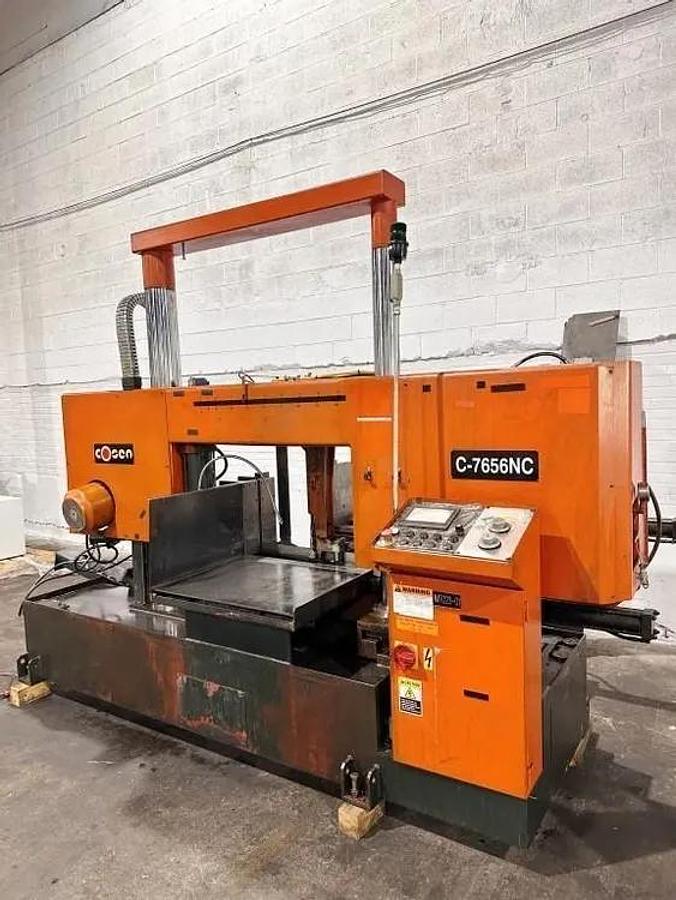

2007 COSEN MDL C-7656 NC Bandsaw, Twin Post Fully Automatic, 22" x 30" Capacity, 22" Rounds,

Description

2007 COSEN MDL C-7656 NC Bandsaw, Twin Post Fully Automatic, 22" x 30" Capacity, 22" Rounds, COSEN: History Founded in 1976 in, Cosen is one of the world's leading band saw manufacturers with a broad product line and a global sales network including Cosen North America and Cosen Europe. Cosen's North American office and warehouse is located in Charlotte, NC. From there, the company provides an extensive selection of service replacement parts and local machine technicians. Our warehouse inventory contains over 100 new machines in stock and ready to ship at all times.Cosen offers 140 models including vertical, horizontal, miter-cutting, NC & CNC automatic and customized band saws. Capacity ranges from 7 to 126 inches; cutting materials from steel to titanium, chromium and silicon. The diverse cutting abilities of Cosen machines serve numerous industries such as construction, automobile, transportation, wind power generation, etc. EQUIPPED WITH: Twin Post with Cross Link on Top of Columns. CNC Controls on Independent Control Panel. Inverter Blade Drive System (Infinitely Variable Blade Speed). Hydraulic Blade Tensioning. Split Vise. Programmable Shuttle Vise. 10' Roller Infeed Conveyor. Chip Auger. Coolant System. Specs

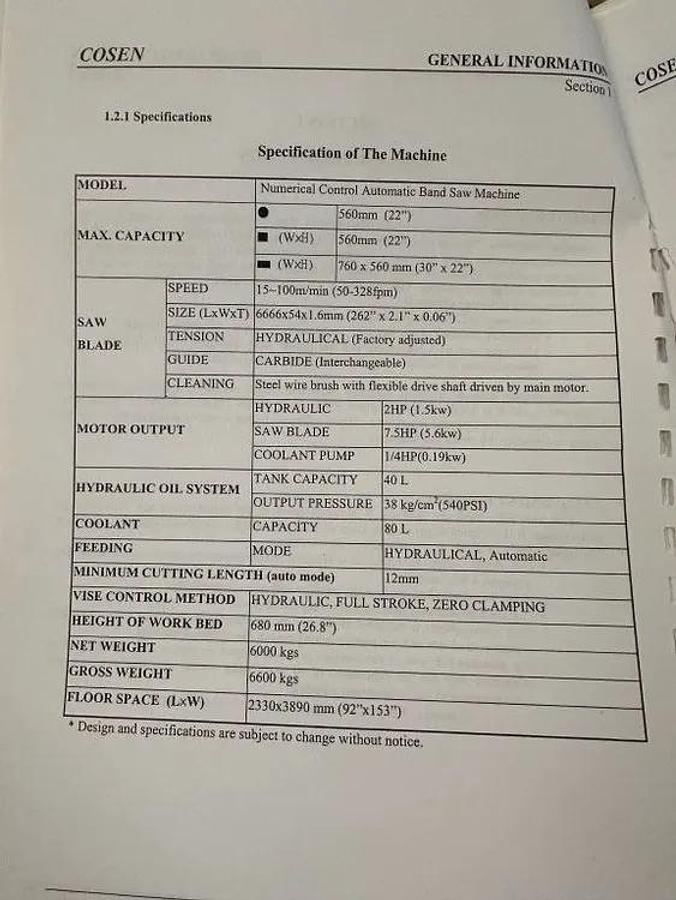

Specifications

ManufacturerCOSEN
ModelC-7656 NC
Year2007
ConditionNew
Stock Number22175
StatusFor Sale
Rect-Cap (H)22"; 558.8 mm
Rect-Cap (W)30"; 762 mm
Rounds-Cap22"; 558.8 mm
Square-Cap22"; 558.8 mm
Power10 hp; 7.5 kW
Type (Auto, Manual, Semi)Auto; Auto
Blade Width2.1"; 53.34 mm
Blade Thickness0.06"; 1.524 mm
Blade Length262"; 6,654.8 mm
Dimensions92" x 153"; 92" x 153"
Weight13,500 lbs.; 13,500 lbs.
Capacity (Round)22”
Capacity (Square)22”
Capacity (Rectangular)22” x 30”
Blade Size2.1” x 262” x 0.06”
Minimum Cutting Length12mm (.47)
Blade Speed50 to 328 FPM
Work Bed Height26.8”
Blade Motor10 HP 480V/3/60
Approximate Floor Space92” x 153”
Approximate Weight6,000 kg 13,500 lbs.
