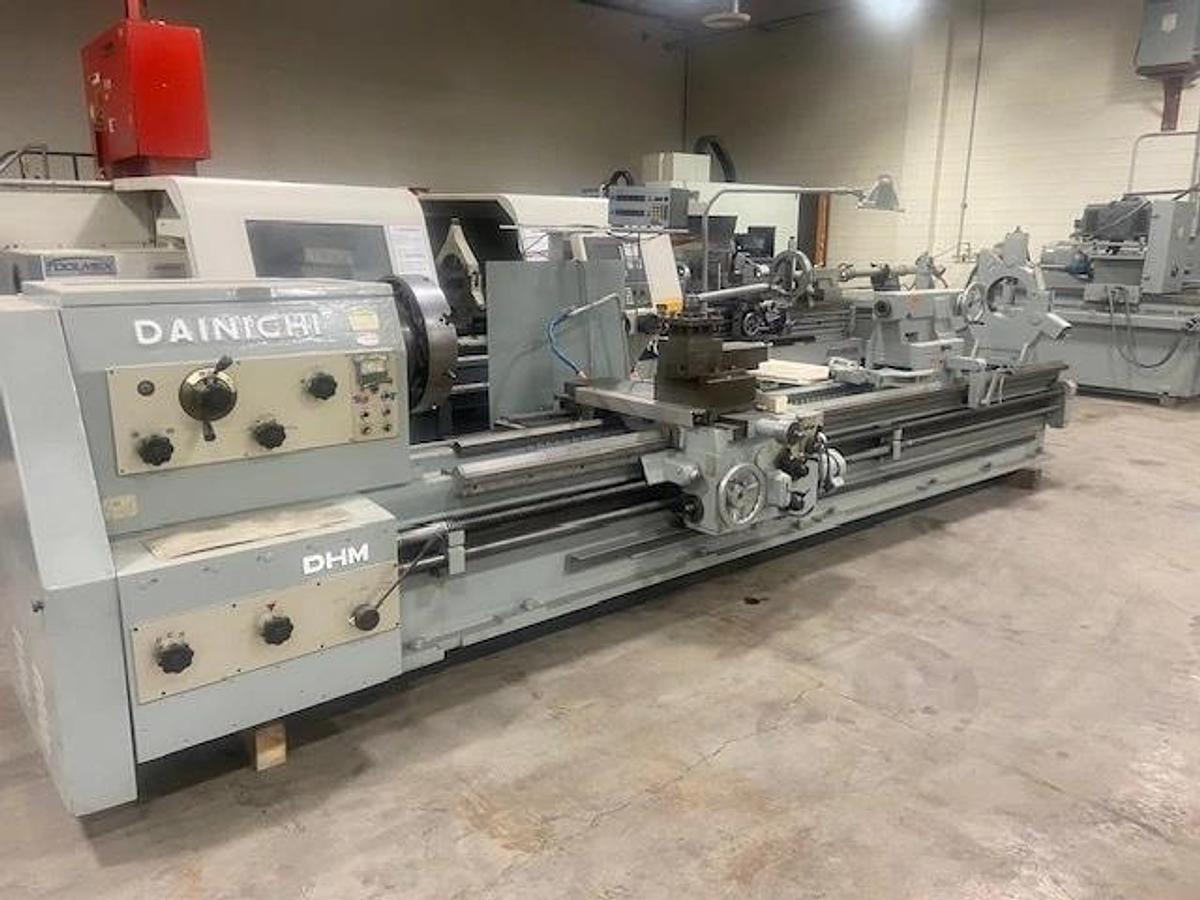

DAINICHI MODEL DHM 90-400 HEAVY DUTY LATHE 35.4” X 157” Capacity

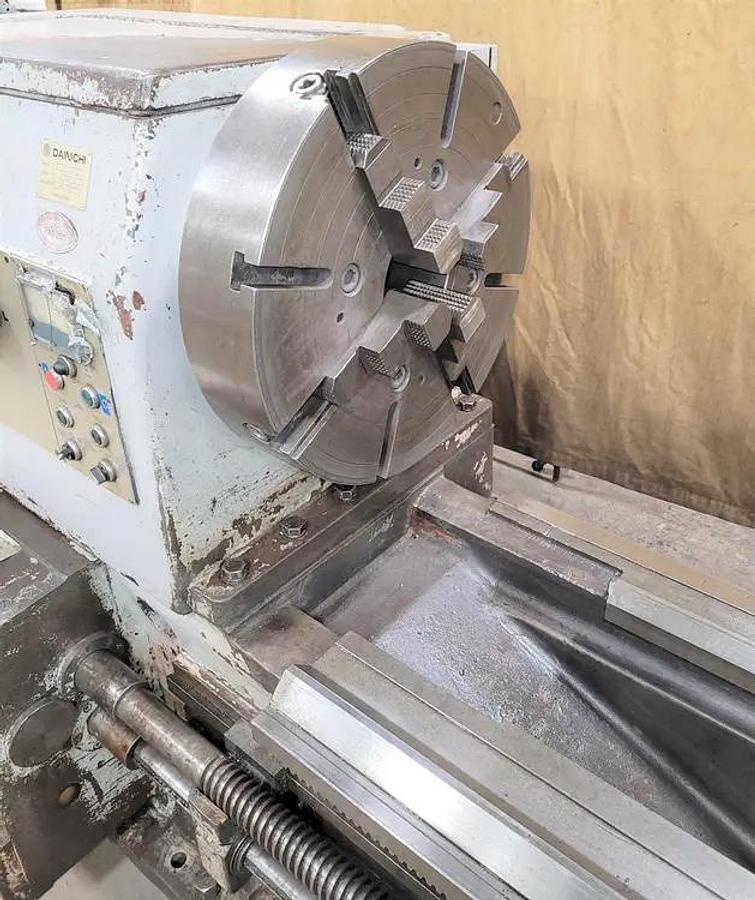

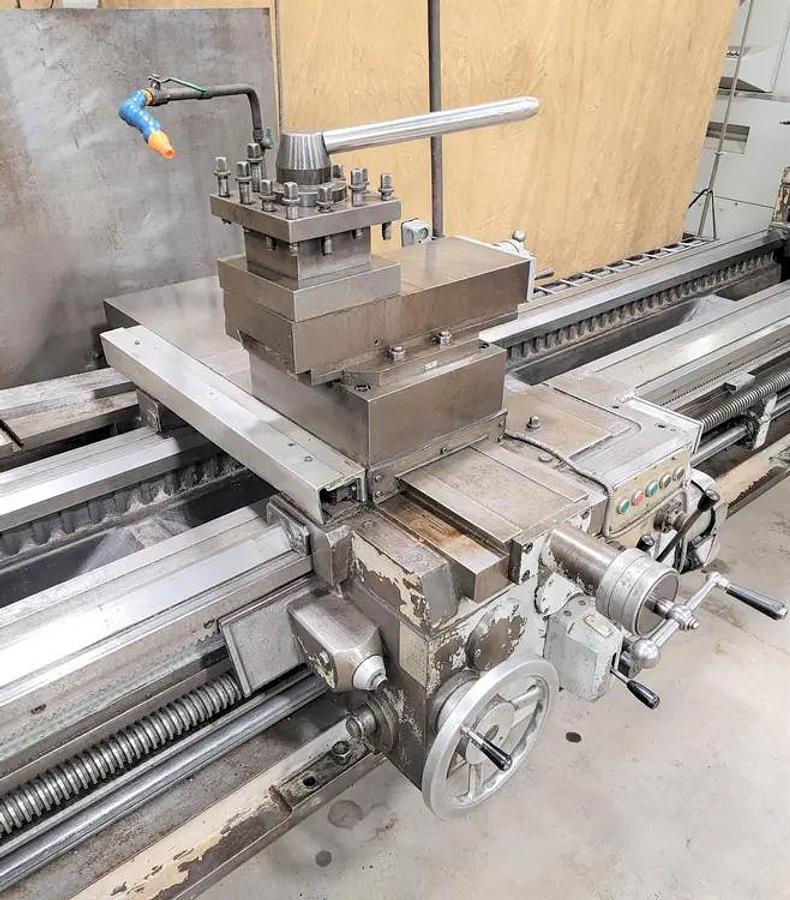

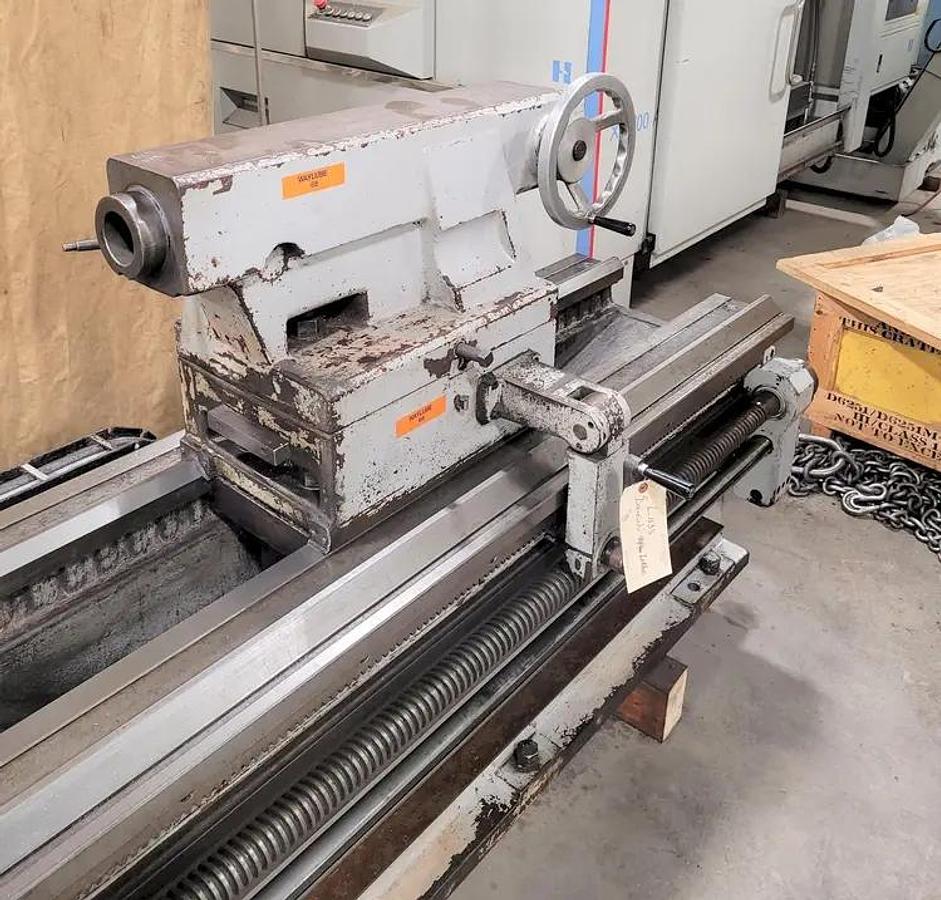

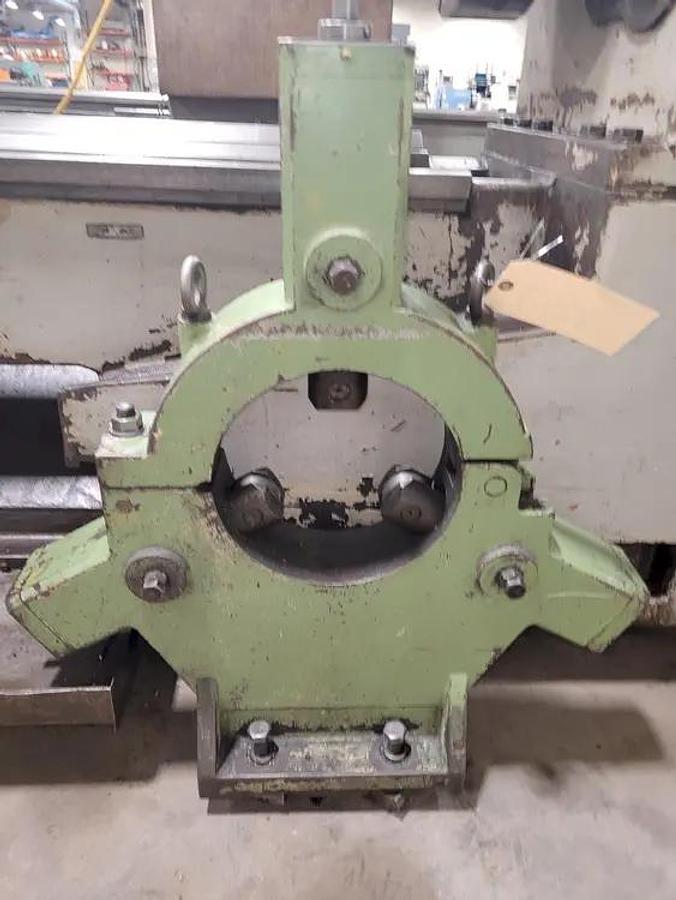

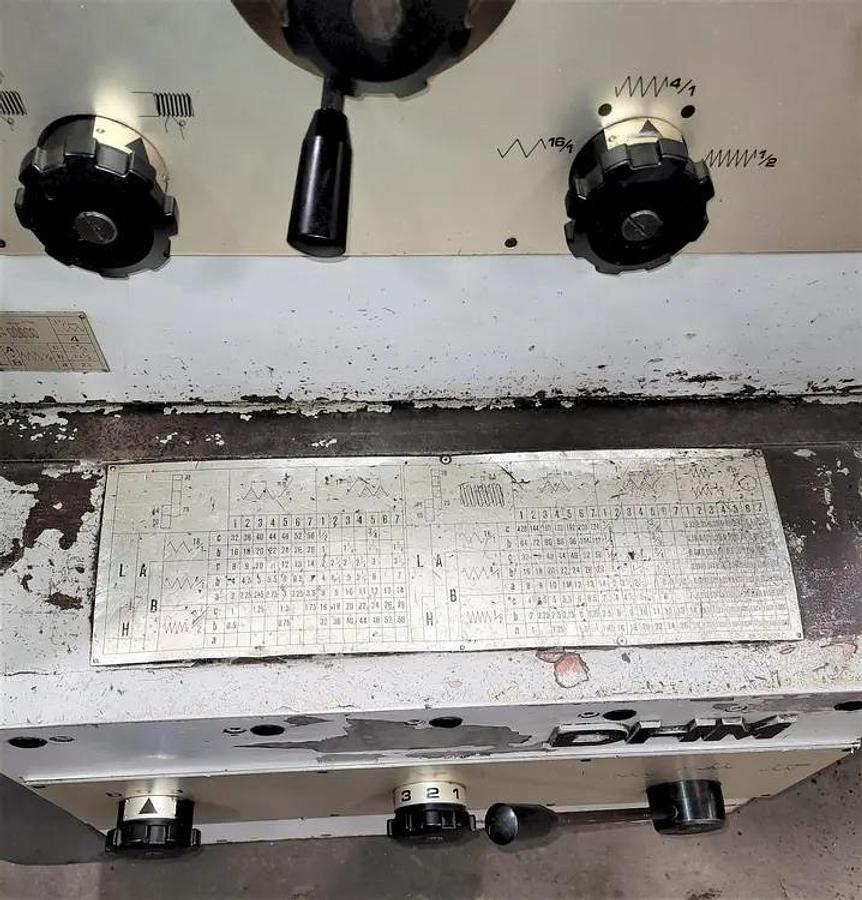

DAINICHI MODEL DHM 90-400 HEAVY DUTY LATHE 35.4” X 157” Capacity Dainichi Kinzoku Co., Ltd.'s combination of old world craftsmanship and new world technology has resulted in the development of the industry's most rigid and powerful lathes. Featuring high-torque motors and one-piece frames, as well as expanded work areas and large spindle bores, Dainichi lathes are designed to turn larger parts than any other machines in their class. Dainichi Kinzoku Co., Ltd., since being founded by Shozo Koyama as the Koyama Store in 1931, has grown to become one of the leading manufacturers of lathes - small-, medium- and super large-sized. With the developments of our universal machine tool and DL-6 lathe in 1937 and 1952 respectively, we were among the first to introduce the basis for modern day lathes. Since then, we have invested in a number of R&D and manufacturing facilities, and continue to set the precedent for tomorrow's lathes. EQUIPPED WITH: In/mm Threading. 4-Way Carriage Rapid Transverse/ 4-Way Tool Post. Remote Control Spindle on Apron. Heavy Duty Tailstock. Central Lubrication. 18” 4-Jaw, 4” Thru Hole Chuck. Taper Attachment. Sony 2-Axis DRO. (2) Steady Rests. Work Light. Coolant Pump Swing Over Bed 900mm / 35.4” Swing Over Carriage 580mm / 22.8” Swing Over Gap 1,100mm / 43.3” Distance Between Centers 4,000mm / 157.5” Length of Bed 6,000mm / 236” Machine Weight 19,000 lbs. Spindle Speed 7 – 1,250 rpm Spindle Nose ASA-A1-11 Dia. Hole Through Spindle 104mm / 4-3/16” Feed: Longitudinal 0.062 – 56 mm/rev. / 0.0024 – 2.2”/ rev. Feed: Cross 0.031 – 28 mm/rev. / 0.0012 – 1.1”/ rev. Thread: Metric 56 Changes / 1 – 224 mm pitch Thread: Inch 36 Changes / 28 – 1/8 Threads/25.4 Max. Weight Between Centers 2,000 kg / 4,400 lbs. Travel of Upper Slide 250 mm / 9.5” Travel of Cross Slide 480mm / 18-7/8” Travel of Spindle 200mm / 7-7/8”” Diameter of Tailstock Spindle 100mm / 3-15/16” Main Motor 11kW / 15 HP EQUIPPED WITH: In/mm Threading. 4-Way Carriage Rapid Transverse/ 4-Way Tool Post. Remote Control Spindle on Apron. Heavy Duty Tailstock. Central Lubrication. 18” 4-Jaw, 4” Thru Hole Chuck. Taper Attachment. Sony 2-Axis DRO. (2) Steady Rests. Work Light. Coolant Pump.
