DAINICHI Precision CNC Lathe Model DL 65/75

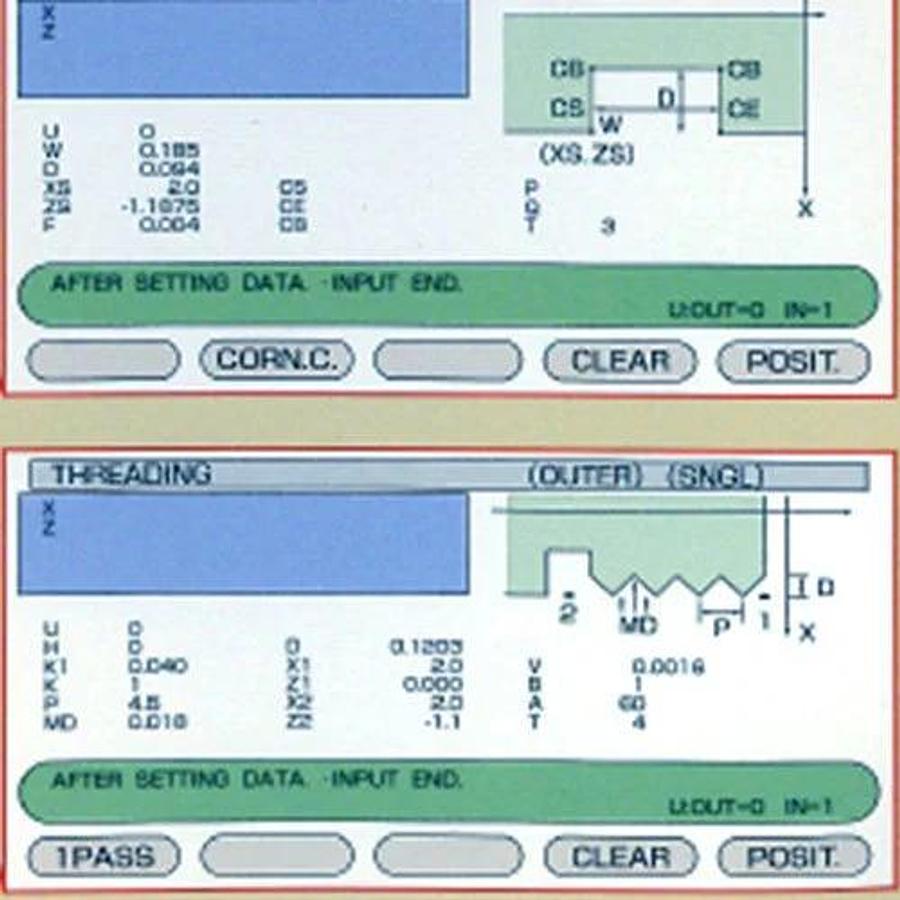

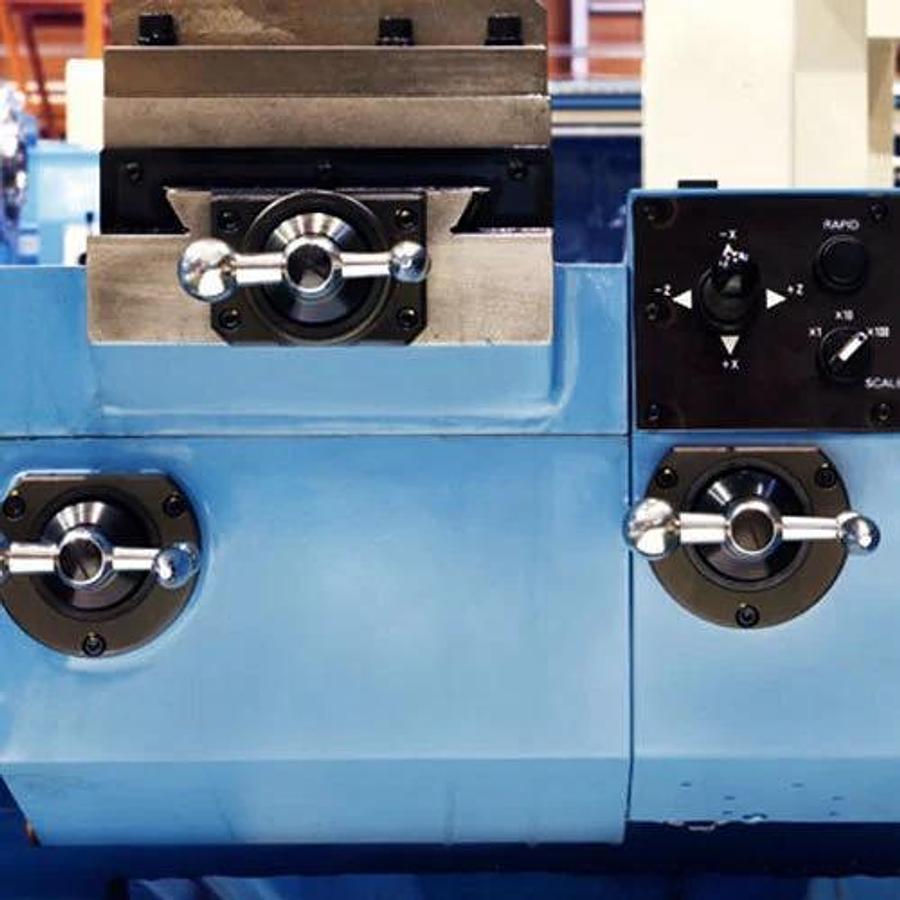

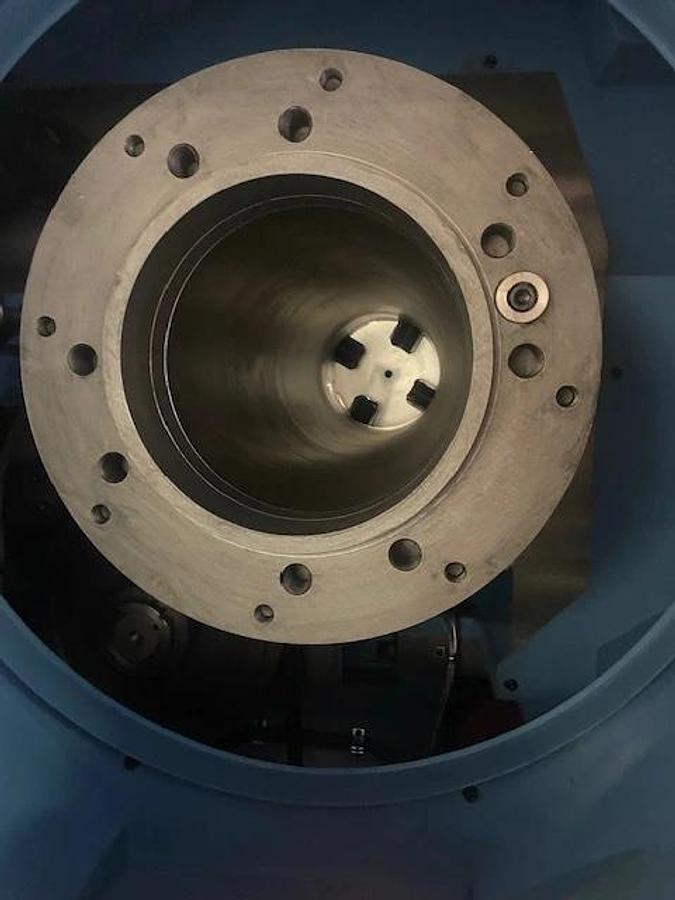

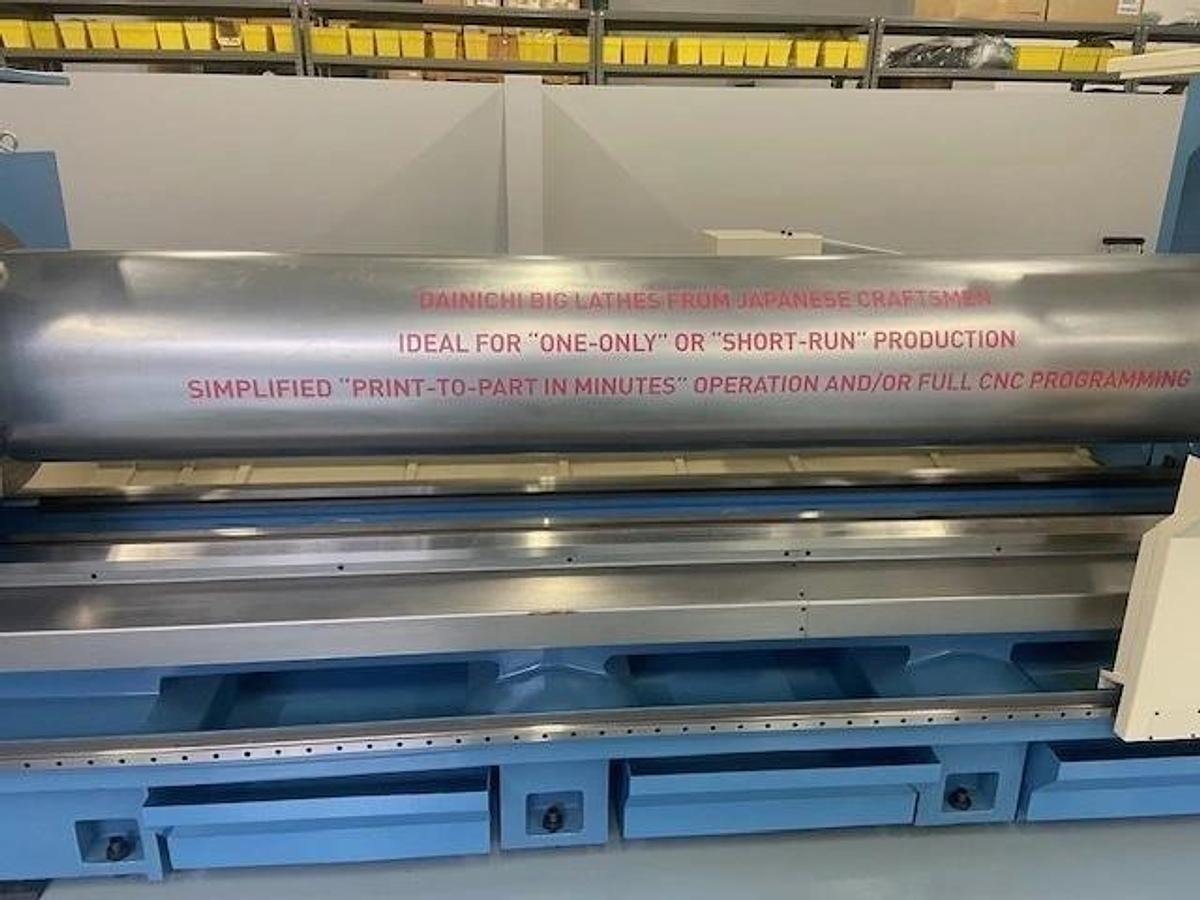

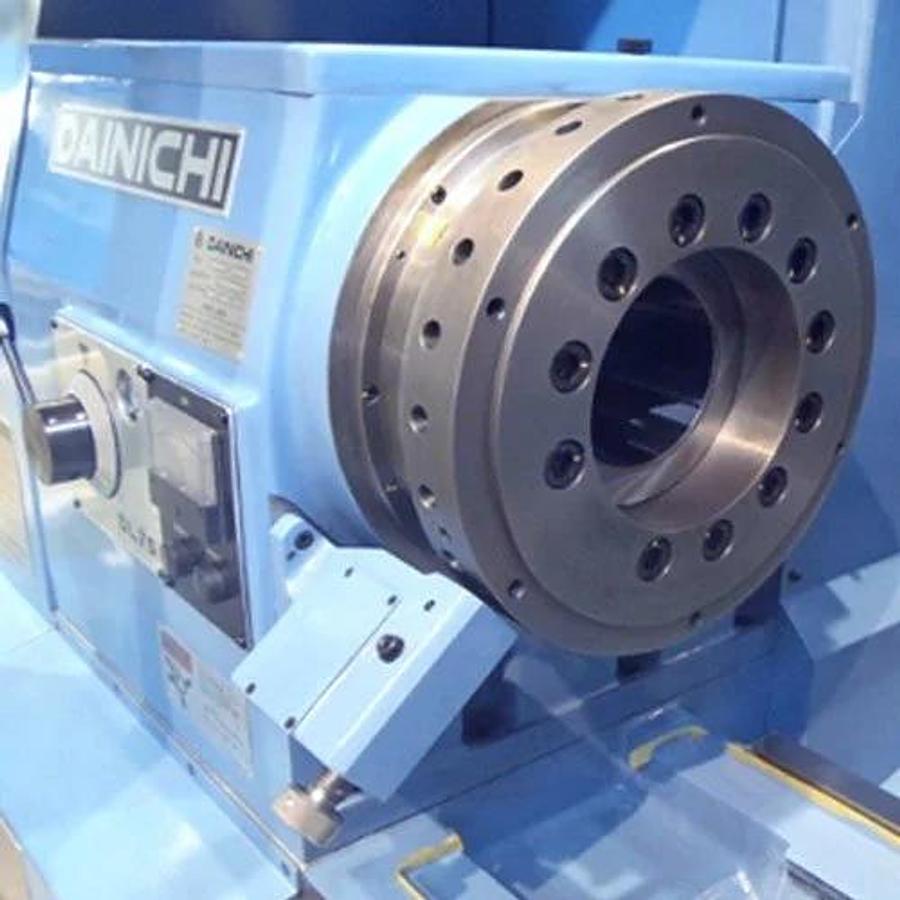

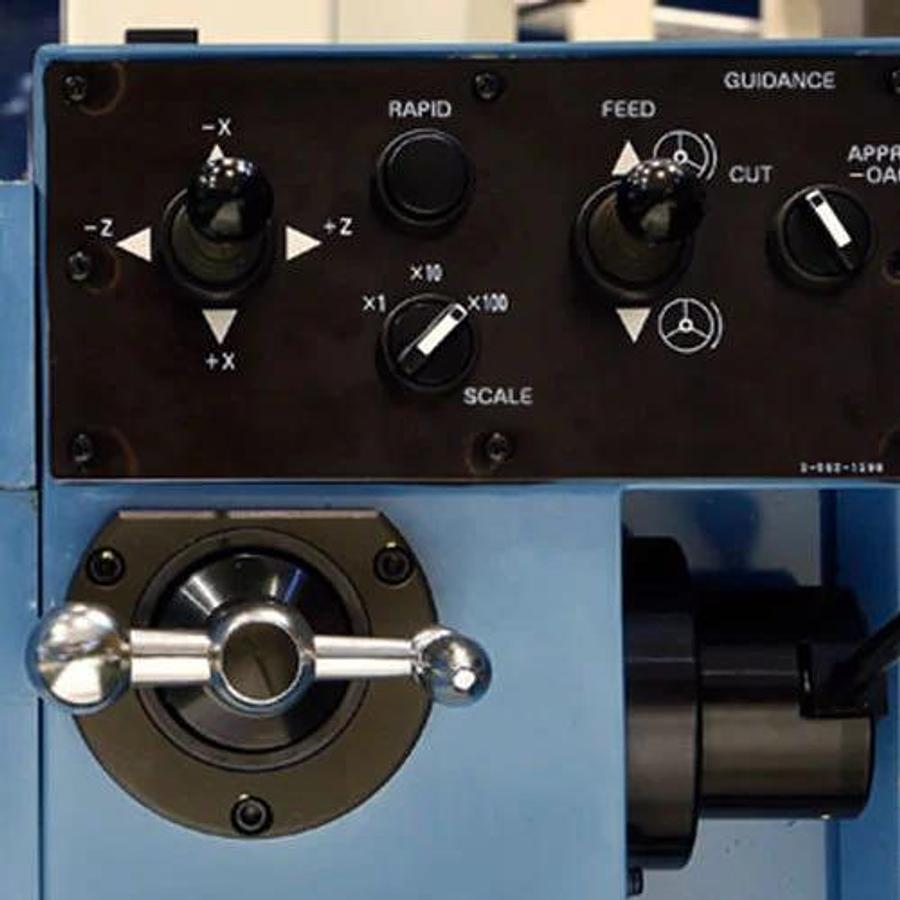

DAINICHI Precision CNC Lathe Model DL 65/75 Dainichi (Osaka, Japan) has specialized in designing and manufacturing robust, heavy-duty lathes for over 80 years. Dainichi CNC Lathes are well known for their weight and part size capacities. The ultra-rigid, one-piece bed is engineered and constructed to prevent vibration and deformation during heavy machining. Double walled and ribbed monocast bed construction ensures heavy-duty and high precision turning for a long life. Low-speed with high torque turning can be performed with the heavy-duty headstock featuring 2-step gear change. Hand controls are conveniently located in the same position as in conventional lathes, so operators can use handles overlooking the tool nose. Tailstock body features a 1500 kgs load capacity with an MT No. 5 center. Easy operation using a variety of menus. Chuck size Swing over bed 25.59"-29.53" Swing over carriage 14.96"-18.90" Center distance 39.37"-157.48" Loading cap. Bet. Center (kg) 1500 (3300 lbs) Main motor Inverter VAC 10/15 HP Option VACc 15/20 HP Spindle speed 2 Group 3-1120 rpm Spindle bore 3.35" Front bearing diameter 5.51" Tailstock taper MT No. 5 Rapid feed speed X=59 Z=118 Type of turret H4 Machine weight (kg) 3400 (7480 lbs) - 5600 (12320 lbs)
