Description

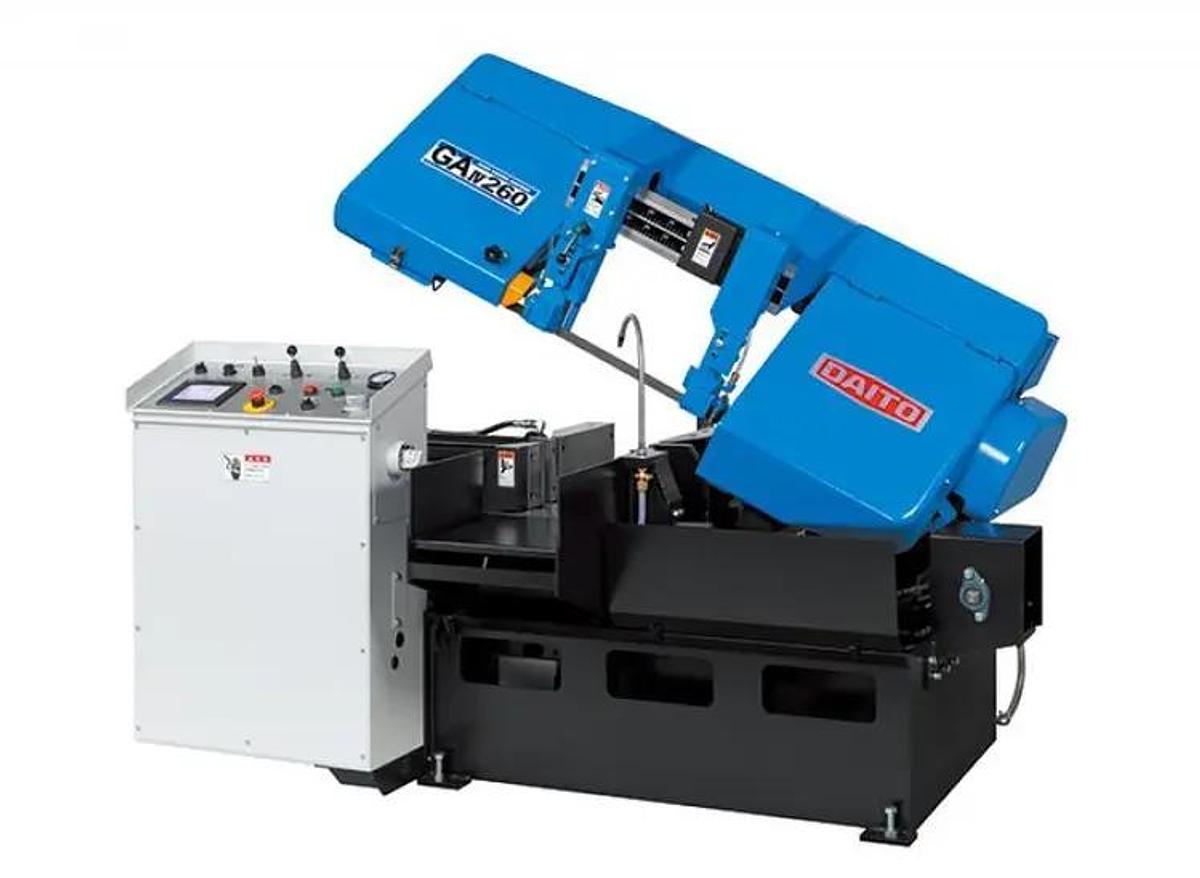

DAITO Model GAIV260W Horizontal Band Saw
HISTORY
1959 The company founded in Amagasaki, Japan. Metal band sawing machine developed.
1967 Main factory constructed in Osaka, Japan.
1971 Band sawing machine for structural steel developed.
1975 Drilling machine for structural steel developed.
1981 NC band sawing machine developed.
1982 New main factory constructed in Amagasaki, Japan.
1983 Drilling & sawing line system for structural steel developed.
1987 The structural NC drilling machine developed.
1991 COSMO factory constructed in Amagasaki, Japan.
1995 DAITO USA INC. established in Chicago, USA.
1996 NC drilling-sawing machine for structural steel developed.
1997 Scaling machine for structural steel developed.
1999 The structural CNC band sawing machine developed.
2001 Carbide drilling machine for structural steel developed.
2003 NC band sawing machine for hard-to-cut alloys developed.
2004 Daito Automatic Structural Steel Processing Line “DASP” developed.
2007 Coping robot for structural steel developed.
2010 The structural combined machine (drilling/band sawing) developed.
2011 Square column beveling machine developed.
2015 Short square column beveling machine developed.
2018 Drilling coping machine developed.
6'.6" Roller Table
Vise Pressure Regulator
Two- Band Saw Blades
One- Toolbox & Tools
Operation & Parts Manual
One Year Warranty
OPTIONS:
Extra 6' Roller Table $2,400
Vertical Vise $2,900
Daito Installation & Training $1,000
FOB Elk Grove Village, IL 60007
Material Capacity:
Blade:
Feeding Stroke:
Motor:
Dimensions:
Specifications
| Manufacturer | DAITO |
| Model | GA260W |
| Year | 2024 |
| Condition | New |
| Stock Number | 21511 |
| Status | For Sale |
| Rect-Cap (H) | 7.125"; 180.97 mm |
| Rect-Cap (W) | 11.75"; 298.45 mm |
| Rounds-Cap | 10.25"; 260.35 mm |
| Square-Cap | 10.25"; 260.35 mm |
| Power | 208V |
| Type (Auto, Manual, Semi) | Auto; Auto |
| Blade Width | 1.25"; 31.75 mm |
| Blade Thickness | 0.042"; 1.0668 mm |
| Blade Length | 138"; 3,505.2 mm |
| Dimensions | 77.25"W x 73.125"D x 44.875"H; 77.25"W x 73.125"D x 44.875"H |
| Weight | 3,500 lbs |
| Round | 10.25" |
| Rectangle | 11.75" x 7.125" |
| Square | 10.25" x 10.25" |
| Max. Load | 5,500 lbs |
| Thickness | 0.042" |
| Width | 77.25" |
| Length | 138" |
| Saw Wheel Diameter | 17" |
| Blade Speed | 33-300 ft/min |
| Single | 16" |
| Multiple | Auto Repeat |
| Non indexable Remnant | 3.75" |
| Blade | 5HP |
| Hydraulic | 1HP |
| Coolant | 1/12 HP |
| Chip Conveyor | 1/50 HP |
| Hydraulic Reservoir | 6 gallons |
| Coolant Reservoir | 24 gallons |
| Depth | 73.125" |
| Height | 44.875" |
| Bed Height | 23.875" |
