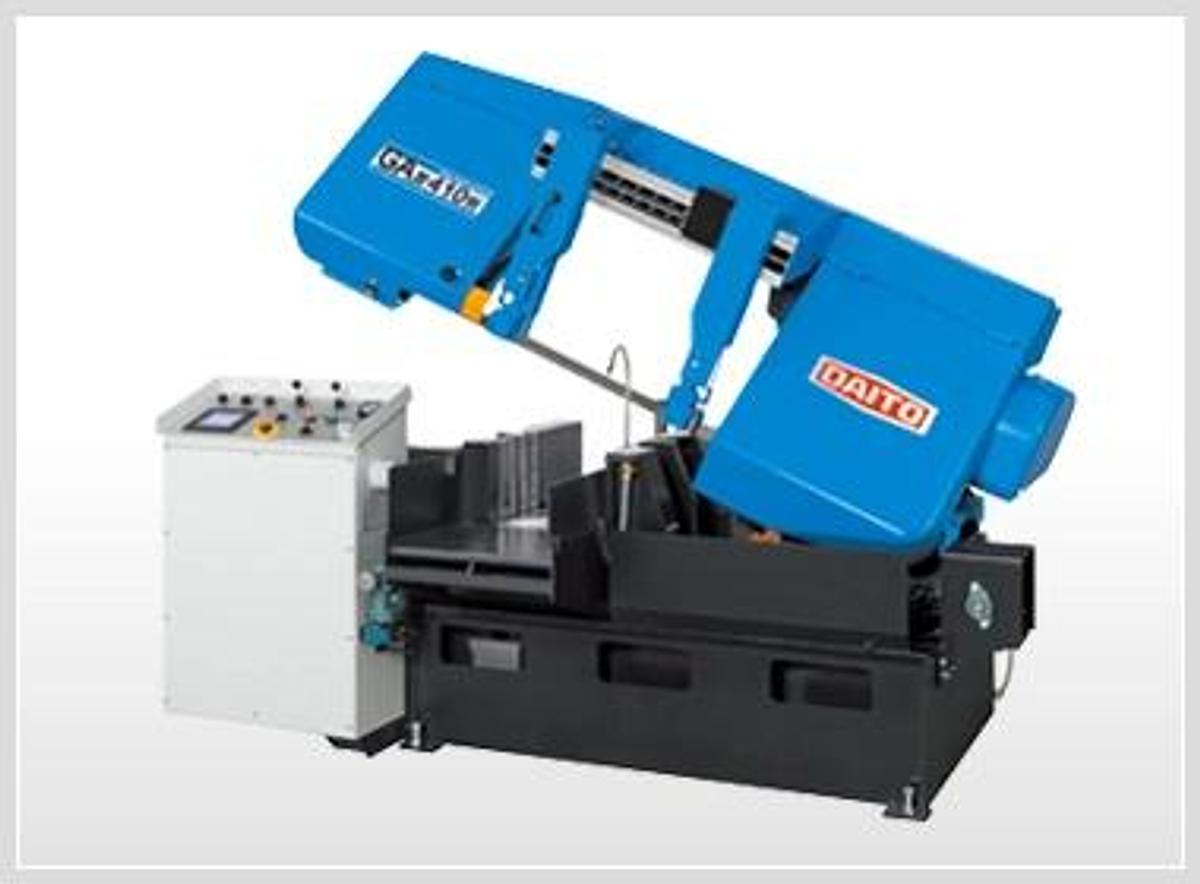

DAITO Band Saw Model GA IV410W 16.25" Round and Square Capacity

$69,000

Description

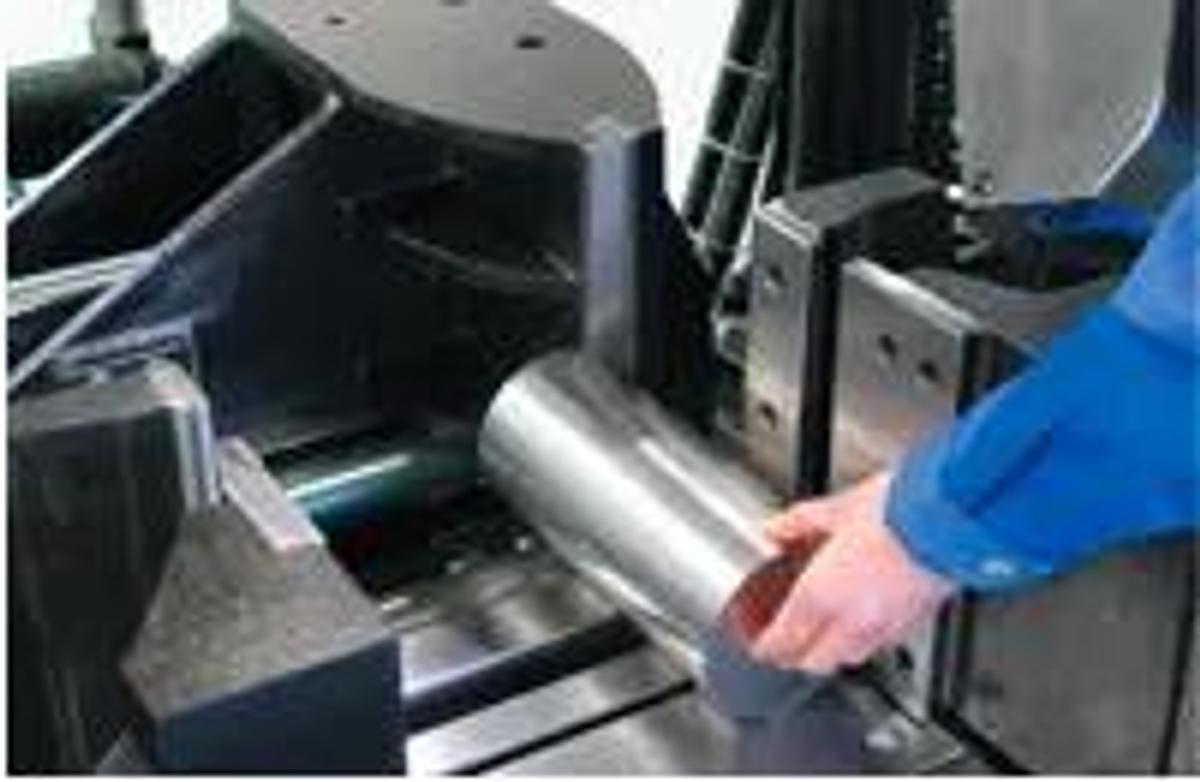

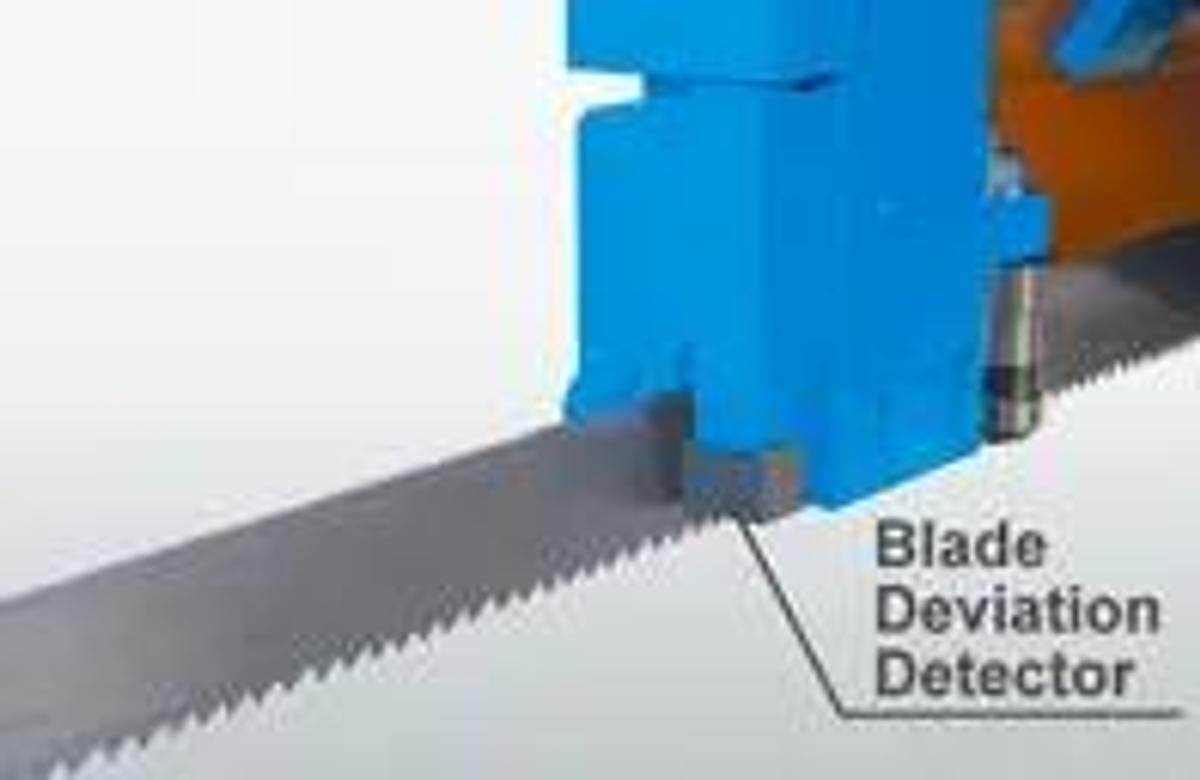

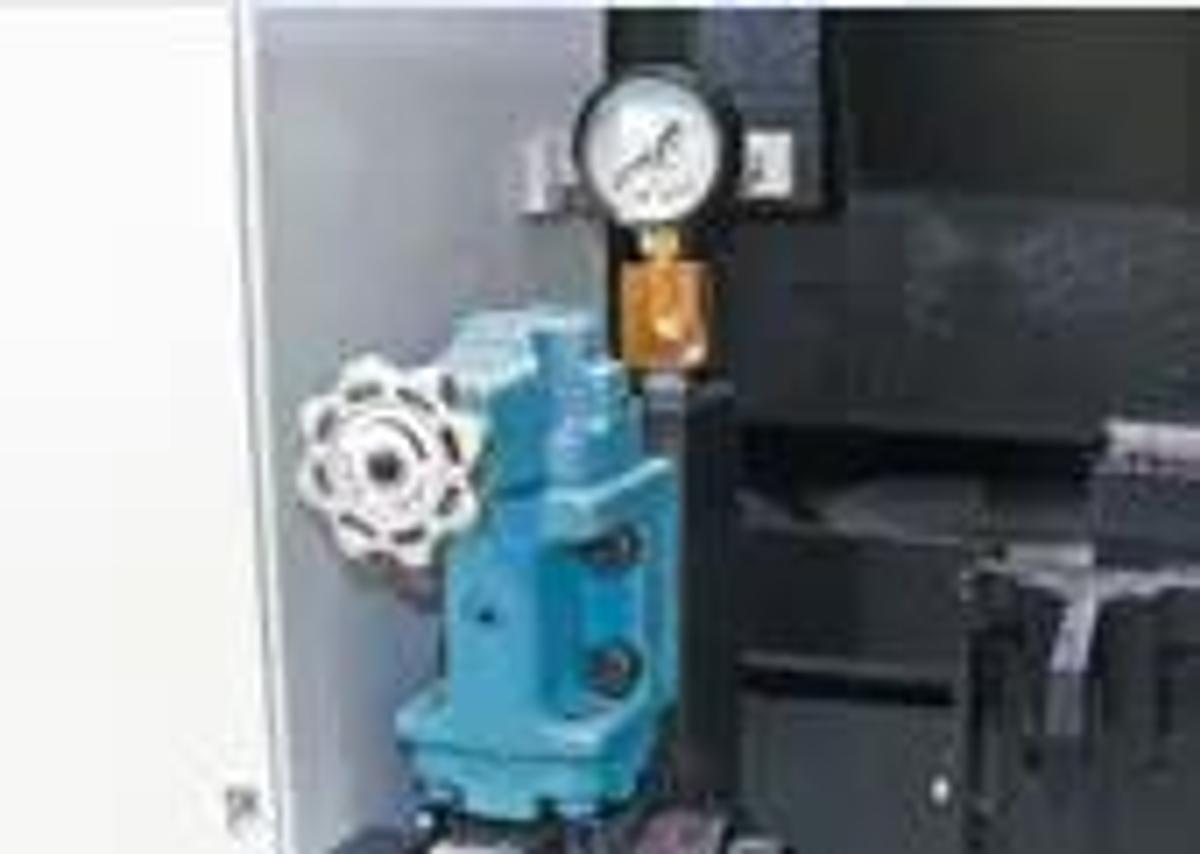

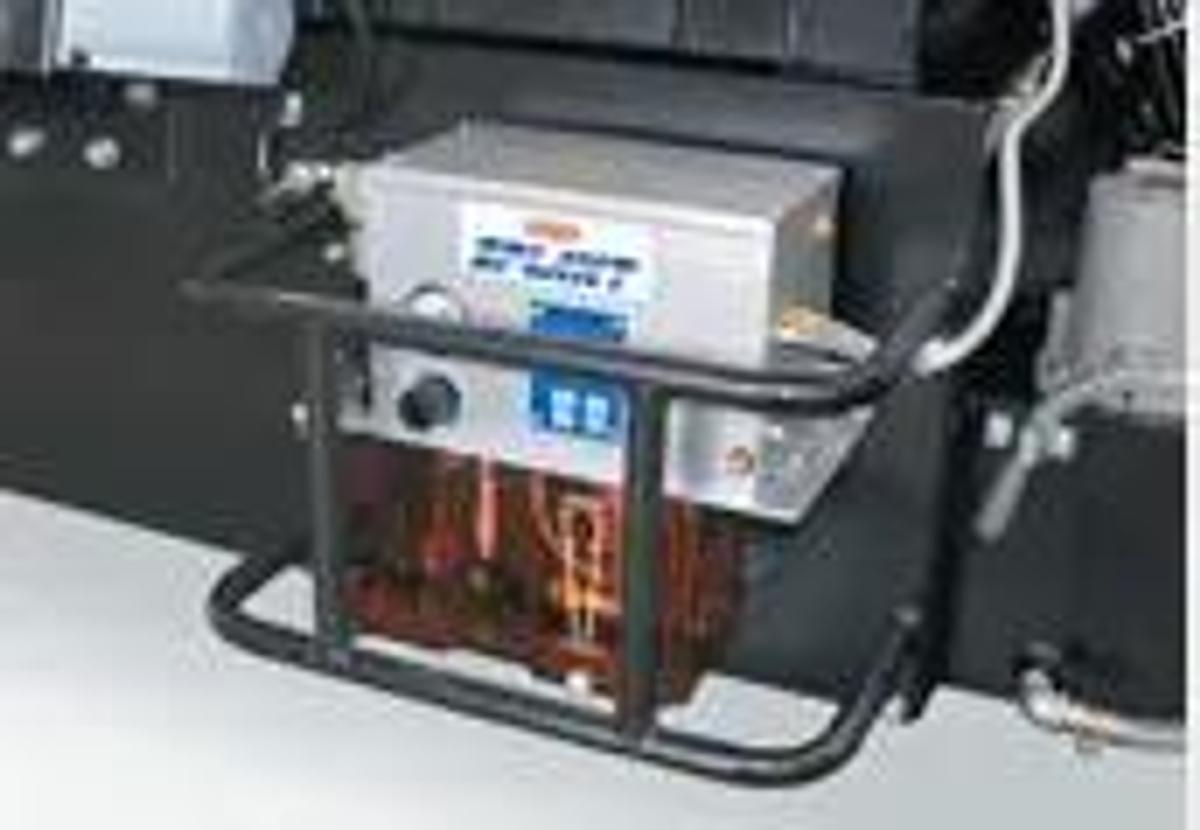

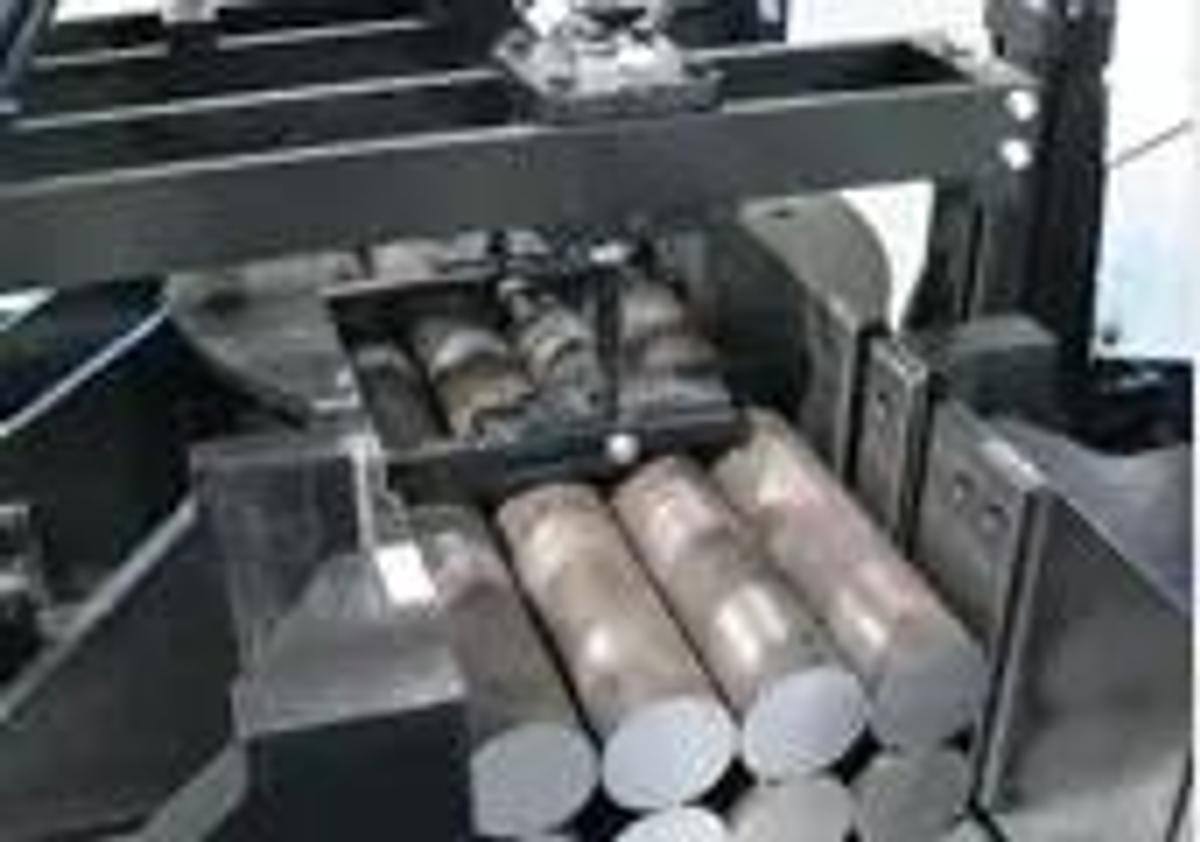

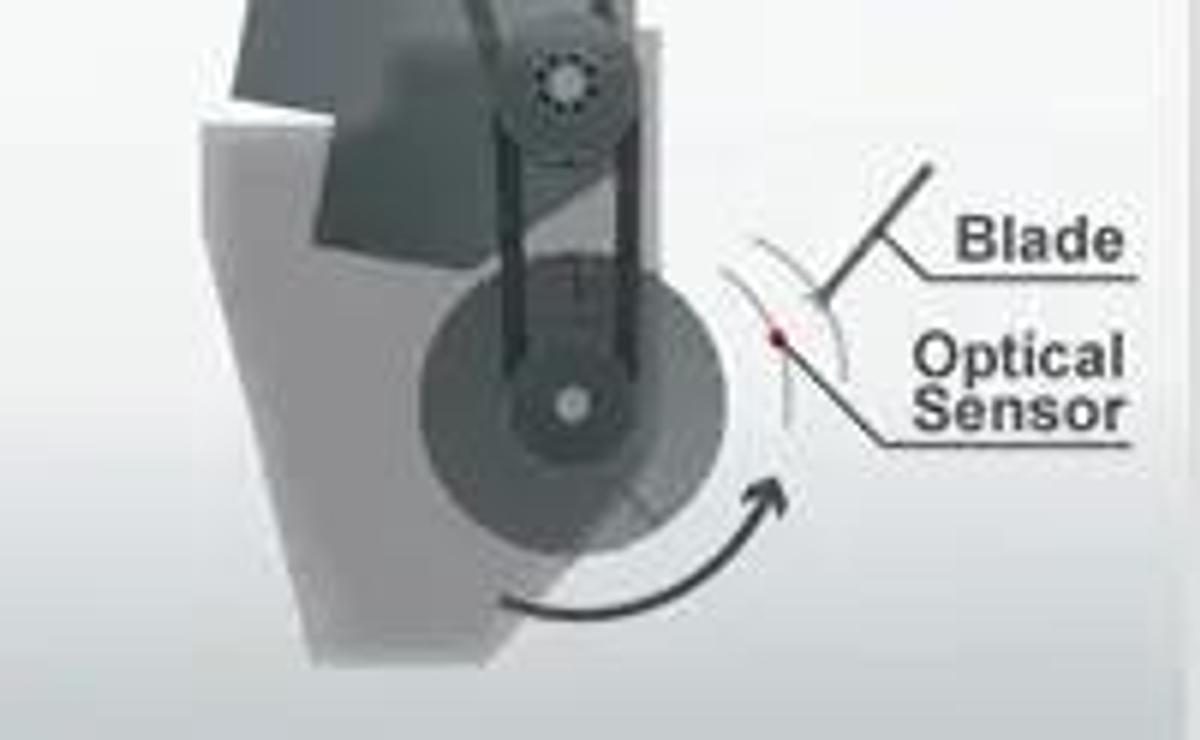

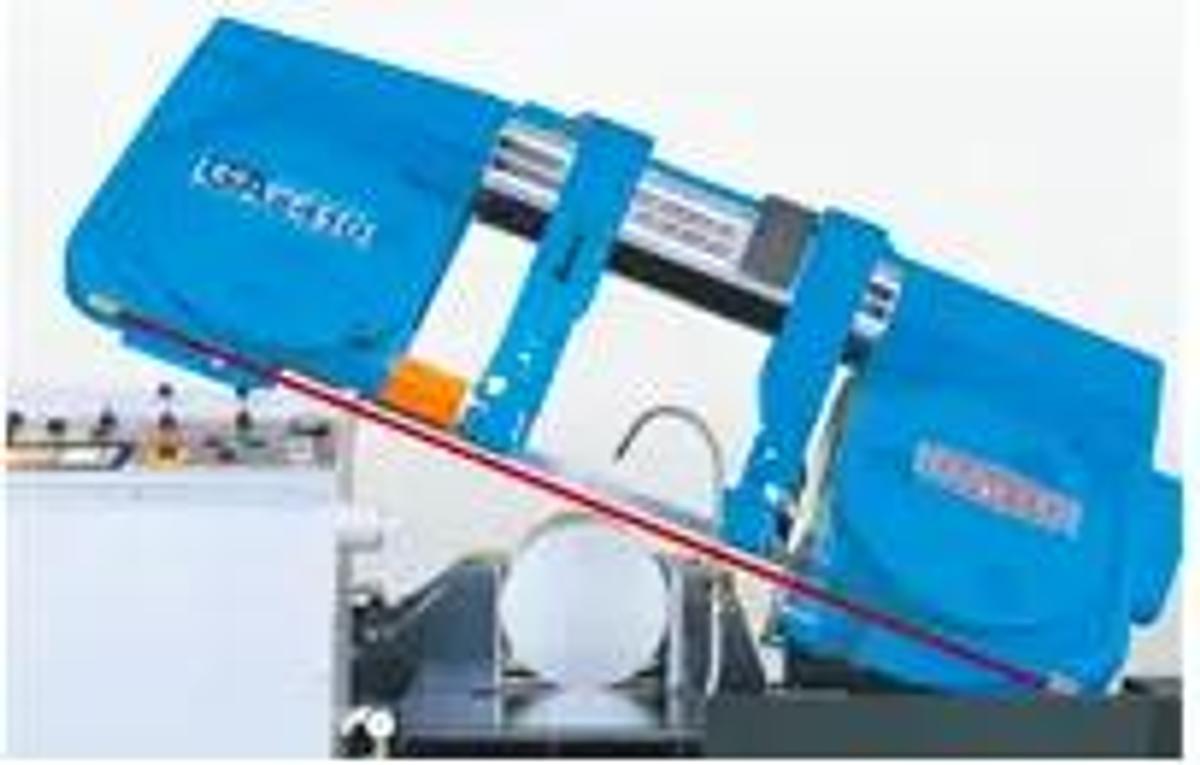

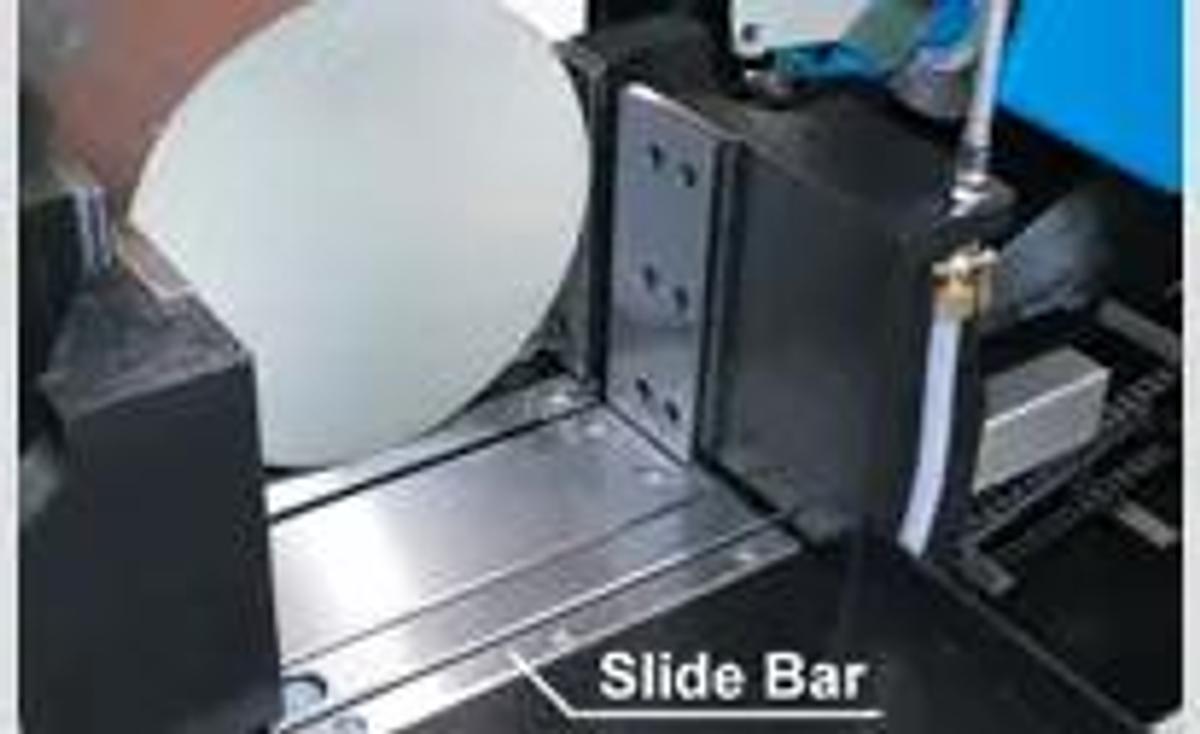

Explore the DAITO GAIV 410W Horizontal Band Saw. A 2023 model, still brand new with a power of 7.5 hp. Features include a round capacity of 16.25", square of 15.875", and a blade length of 15'. The machine is equipped with an auto brush adjuster, blade deviation detector, material top detector and numerous other features for your optimal cutting experience. User-friendly operation panel with a joystick and a touchscreen for ease of use. This quality tool is the perfect addition to your workshop. BAR FRONT DETECTOR AUTO BRUSH ADJUSTER MATERIAL TOP DETECTOR BLADE DEVIATION DETECTOR SPLIT MAIN VISE AMPLIFYING VALVE FOR CONTROLLING FEEDRATE RAKER TYPE JAM RESISTANTSCRAP CONVEYOR INFINITELY VARIABLE DOWN FEED PRESSURE USER FRIENDLY OPERATION PANEL WITH JOYSTICK AND TOUCH SCREEN SHIFTING INDEX SADDLE FOR BENT MATERIAL COMPENSATION CARBIDE BACK-UP ROLLER BACK GAUGE FUNCTION FOR CUTTING SHORTER MATERIAL OPTIONS: VISE PRESSURE REGULAT FOR MATERIAL THIN WALL ADJUSTMENT Included ROLLER TABLE 6.6' Included VERTICAL CLAMPS FOR BUNDLE CUTTING $5,500.00 MIST APPLICATION FOR CLEANER CUTTING ENVIRONMENT DAITO INSTALLATION & TRAINING $1,000.00 Max. capacity(W×H) Round 410mm 16.25" Square 400×400mm 15.875" x 15.875 Rectangle 410×360mm 16.25" x 14.17" Bundle 300×220mm 11.81" x 8.66" Specifications

Specifications

ManufacturerDAITO
ModelGAIV 410W
Year2023
ConditionNew
Stock Number21733
StatusFor Sale
CountryUnited States
Rect-Cap (H)16.25"; 412.75 mm
Rect-Cap (W)16.25"; 412.75 mm
Rounds-Cap16.25"; 412.75 mm
Square-Cap15.875"; 403.22 mm
Power7.5 hp; 5.6 kW
Type (Auto, Manual, Semi)Semi; Semi
Blade Width1.5"; 38.1 mm
Blade Thickness0.05"; 1.27 mm
Blade Length15'; 4,572 mm
Dimensions95.5”W x 69” x 50.25”H
Weight4,800 lbs
Max. cutting cap. 90 deg, round16.25”
Max. cutting cap. 90 deg, square15.875.25 x 16.25
Blade dimensions15’ x 1-1/2” x .050”
Blade guidesCarbide & roller bearing
Guide arm (manual / powered)Manual
Blade speeds33- 400 FPM
Number of speedsInfinite
Blade motor7.5 H.P.
Blade drive typeMotor to pulley
Blade tension typeHydraulic
Coolant typeFlood
Coolant tank capacity48 Gallons
Maximum feed length16”
Number of multi indexes3
Maximum weight load4,800 Lbs.
Vise typeHydraulic
Roller bed76”
Voltage208
Currently Wired208 Volt 3 phase
