Description

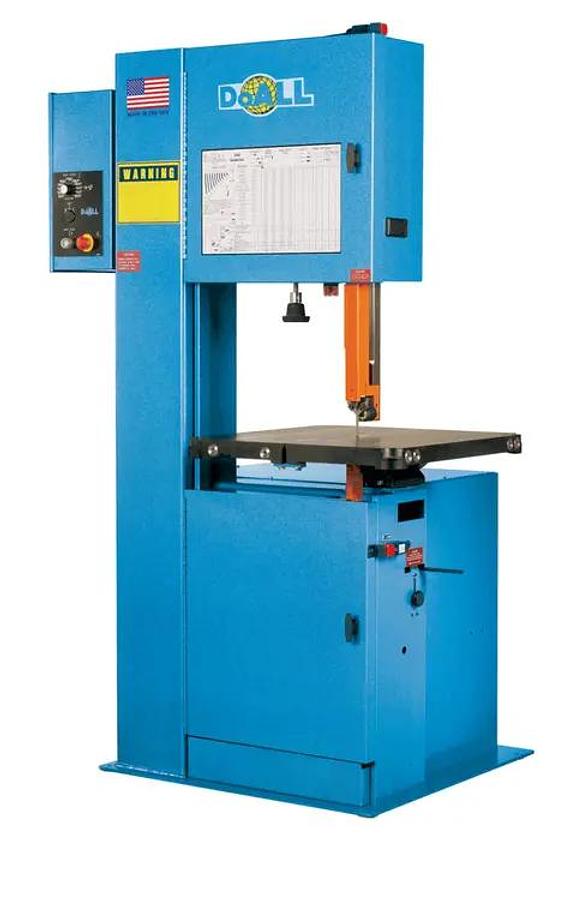

DOALL Vertical Bandsaw Model 2013-V3 with 3 HP Motor
The DoALL 2013-V3 Vertical Contour Band Saw features variable frequency AC inverter drive controls that start the motion of the band wheels slowly to reduce mechanical shock and increase drive train life, plus a dynamic braking function that rapidly stops motion when power is shut off.
Standard Features:
Wrench for saw guides
Dual range transmission
Variable frequency AC drive
Band speed indicator
Band door interlocks
Band tension indicator
Job selector
One set of high-speed, insert-type guides blocks for bands 1/16″ – 1/2″
Wrench for table trunnion
Transmission oil
Instruction and parts manual
Band Speed:
Low range 30-320 fpm
High range 550 – 5,500 FPM
Material Pass Height 39"
Specifications
| Manufacturer | DOALL |
| Model | 2013-V3 |
| Year | 2022 |
| Condition | New |
| Stock Number | 21678 |
| Status | For Sale |
| Country | United States |
| Throat Cap | 20"; 508 mm |
| Work Height | 13"; 330.2 mm |
| Power | 3 hp; 2.2 kW |
| Blade Width | 1"; 25.4 mm |
| Blade Length | 154"; 3,911.6 mm |
| FPM | 550-5500; 550-5500 |
| Dimensions | 44″ x 56″ x 80″ H |
| Weight | approx. 1,250 lbs. |
| Flood Coolant | No |
| Mist Lubricator | OPT. |
| Throat | 20″ |
| Max. Work Height | 13″ |
| AC Motor Drive | 3 HP |
| Band Width Capacity | 1/16″ – 1″ |
| Band Length | 154″ |
| Table | 26″ x 26″ |
| Table Capacity | 500 lbs. |
| Upper Wheel Adjustment | 3″ |
