Description

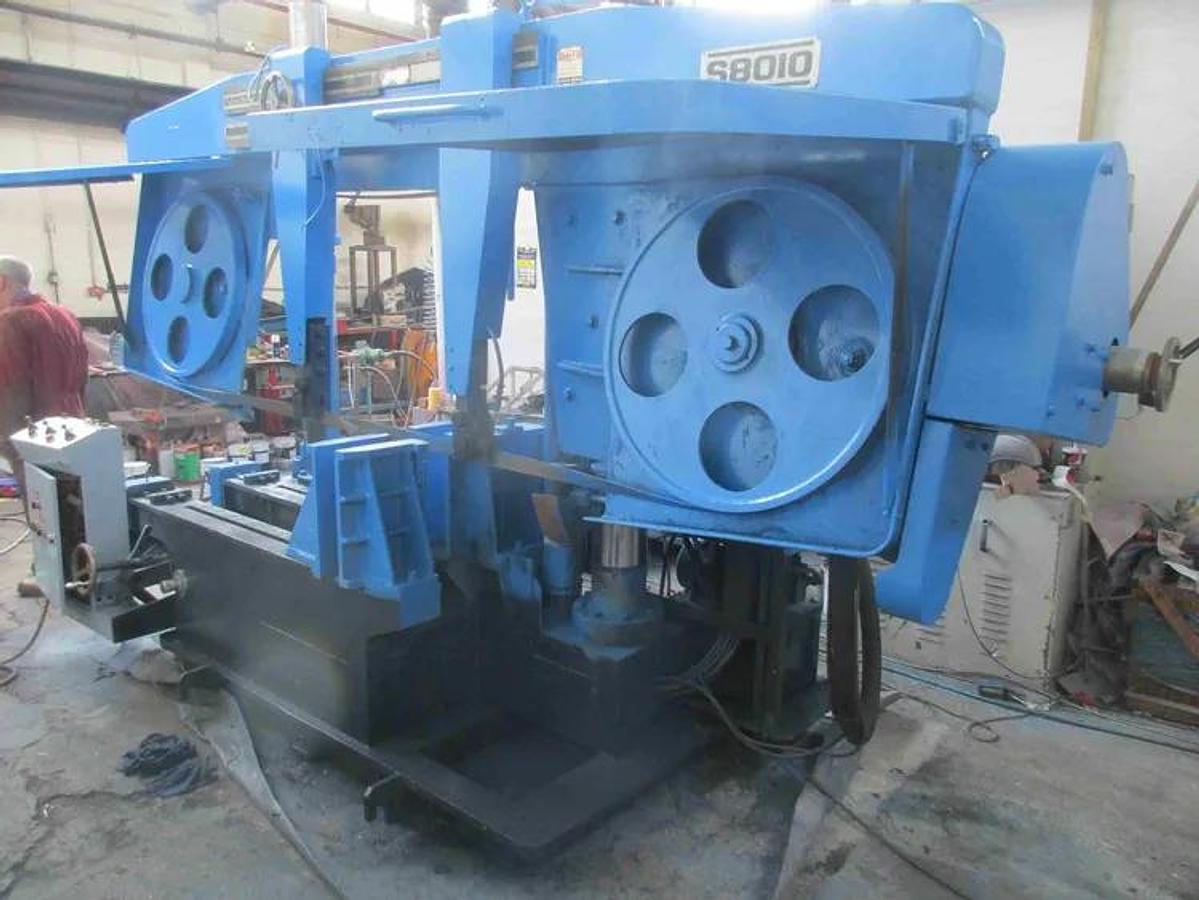

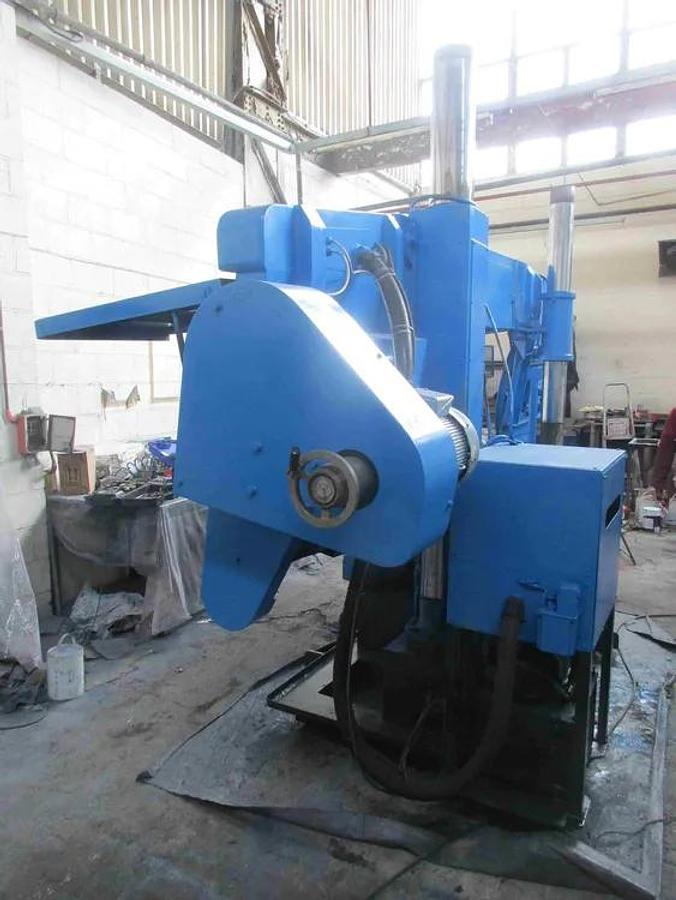

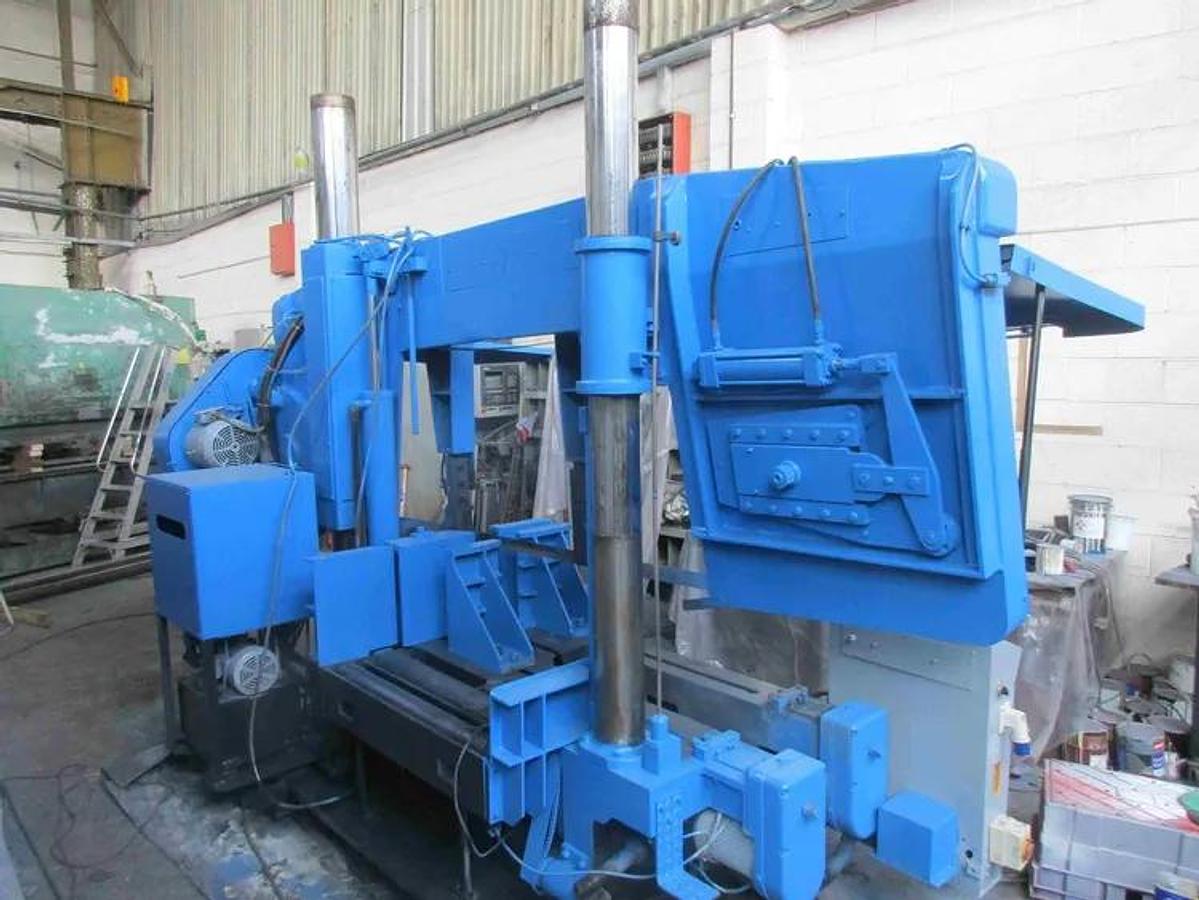

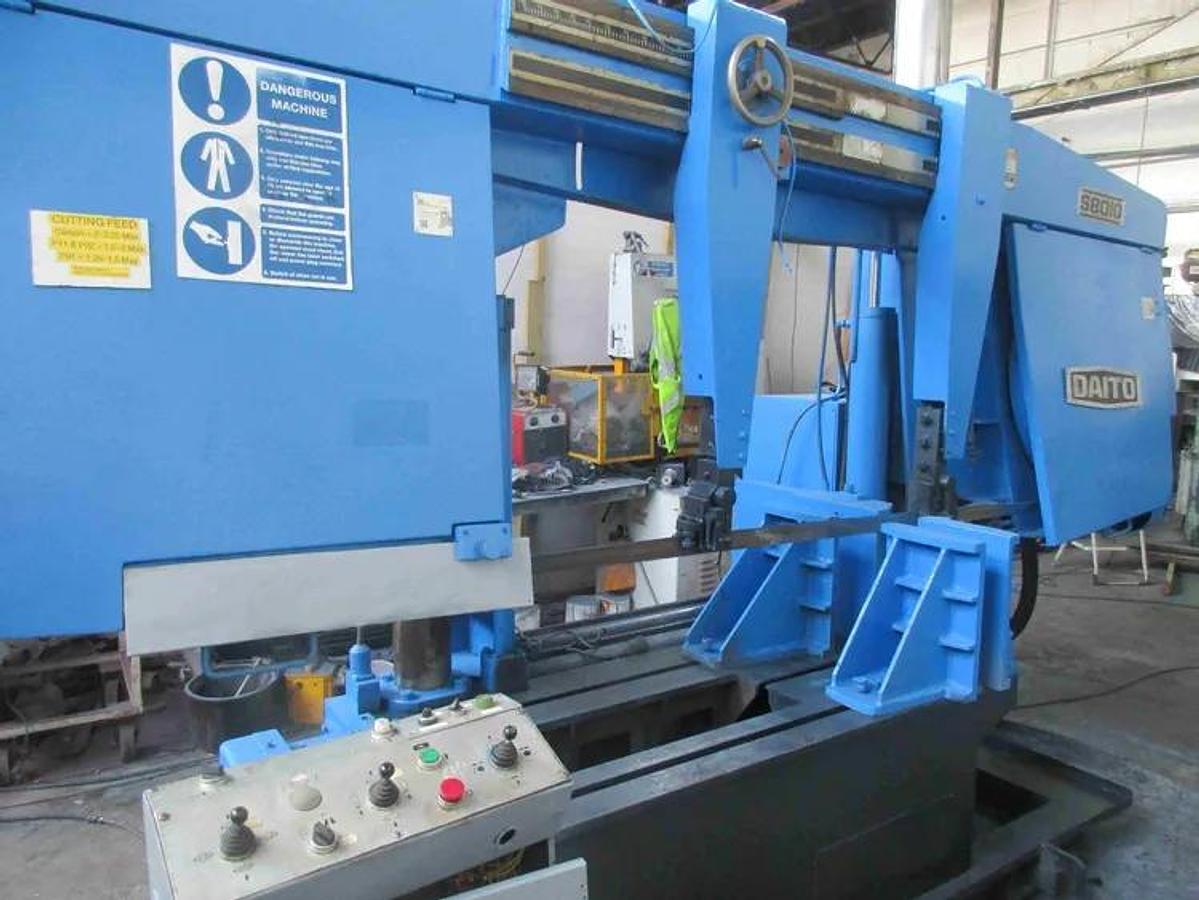

DAITO Horizontal Bandsaw Model S8010 Round Capacity 31"
Used Large Daito S8010 Horizontal fully automatic hydraulic industrial engineering bandsaw for sale with powered feed roller.
Over 6,000 units sold worldwide.
DAITO is the world's largest builder of bandsaw machines and CNC drilling
machines for structural steel fabricators.
DAITO products are made in Japan, the world's single largest structural steel
market.
DAITO is recognized worldwide for its innovative engineering, uncompromising
commitment to quality and dedication to customer service.
Heavy duty bandsaw

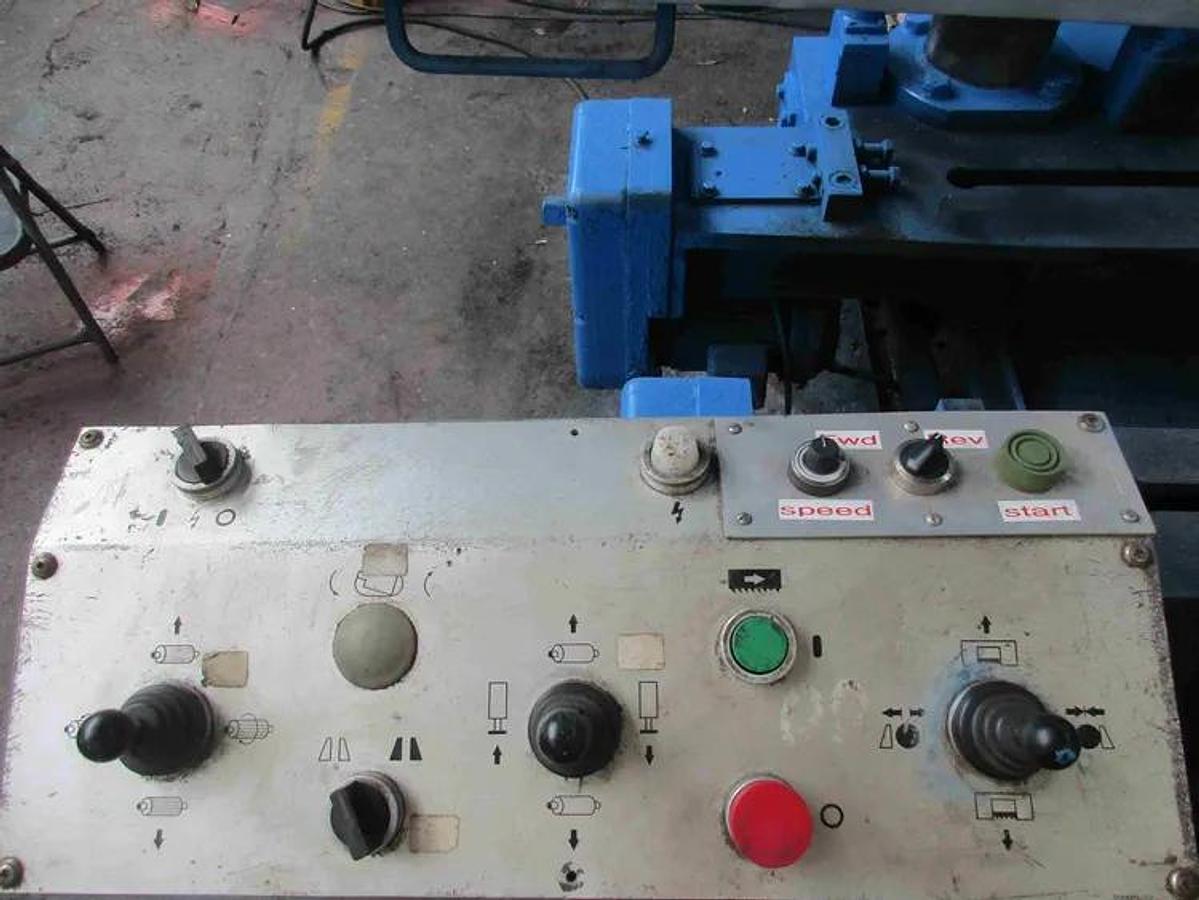

Automatic, Semi-automatic or manual mode
Solid construction and heavy duty parts
Latest technology
High quality engineered parts
High cutting performance
Cutting precision repeatability
Long working life of the blade (material dependant)
Simple use of the bandsaw machine
Simple loading and unloading

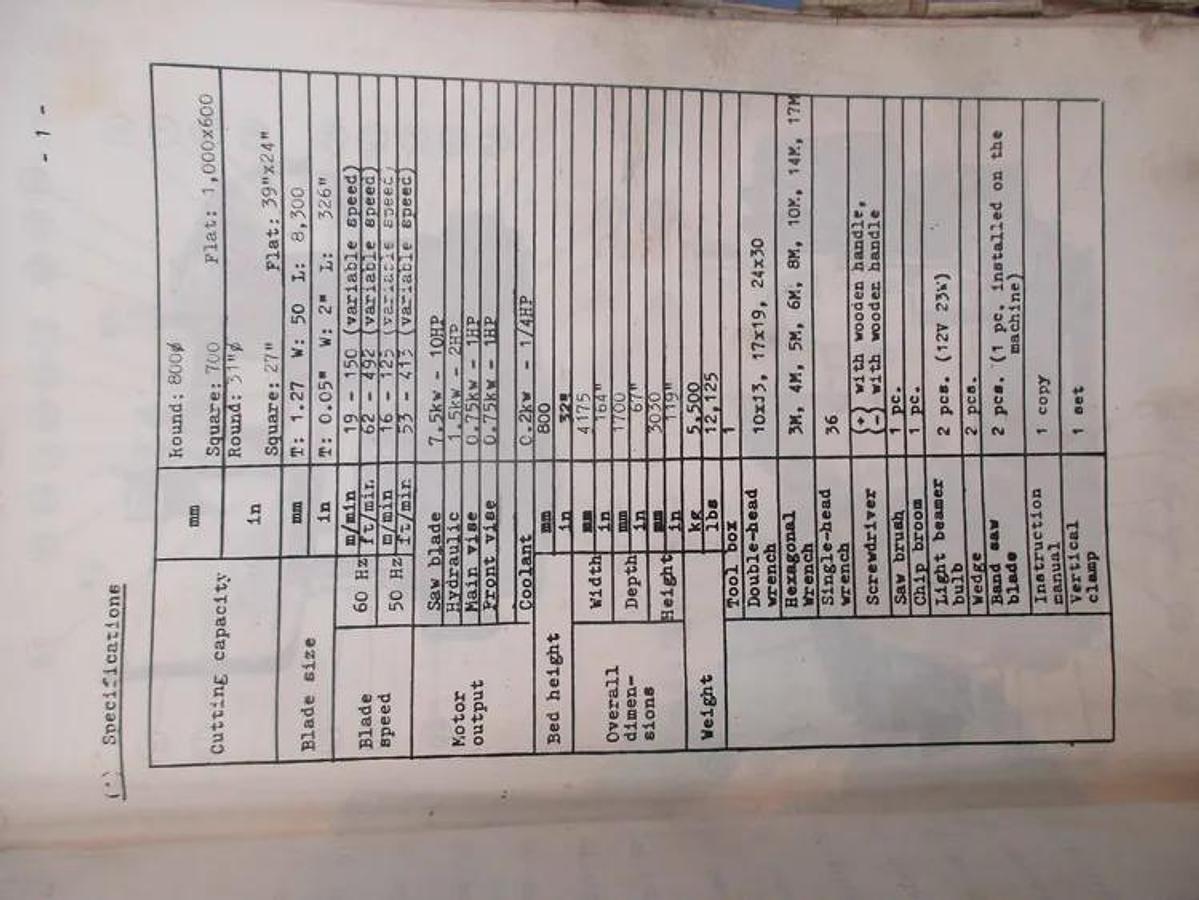

Specification
Cutting Capacity: Round: 800mm / 31”
Blade Size: T: 1.27mm / 0.05” W: 50mm / 2” L: 8300mm / 326”
Blade Size: 60Hz m/min: 19 – 150 ft/min: 62 – 492(variable speed)
50Hz m/min: 16 – 125 ft/min: 53 – 413 (variable speed)
Motor Output: Saw Blade: 7.5kw – 10HP
Overall Dimensions: Width: 4175mm / 164”
Weight: 5500KG: 12125 lbs
Specifications
| Manufacturer | DAITO |
| Model | S8010 |
| Condition | Used |
| Stock Number | 22116 |
| Status | For Sale |
| Rect-Cap (H) | 31"; 787.4 mm |
| Rect-Cap (W) | 39"; 990.6 mm |
| Dimensions | 164”W x 67”D x 119”H; 164”W x 67”D x 119”H |
| Weight | 12,125 lbs.; 12,125 lbs. |
| Tool Box | 1 |
| Double Head Wrench | 10 x 13, 17 x 19, 24 x 30 |
| Hexagonal Wrench | 3m, 4m, 5m, 6m, 8m, 10m, 14m, 17m |
| Single Head Wrench | 36 |
| Screwdriver | (+) with wooden handle (-) |
| Saw Brush | 1pc |
| Chip Broom | 1pc |
| Light Beamer bulb | 2pcs. (12v 23W) |
| Wedge | 2pcs. |
| Band Saw Blade | 2pcs. (1pc.installed on the machine) |

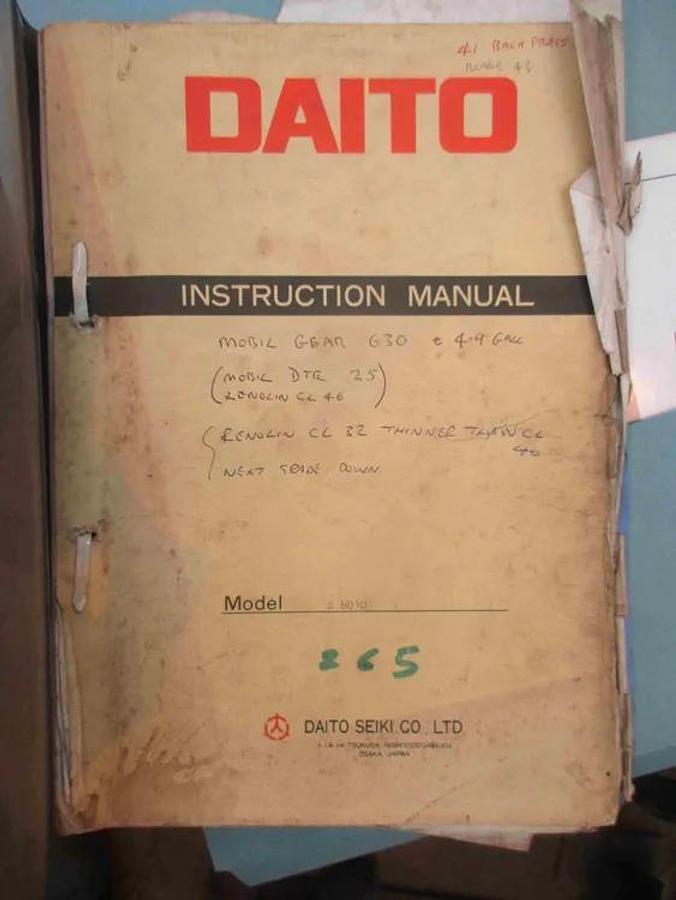

| Instruction Manual | 1 copy |

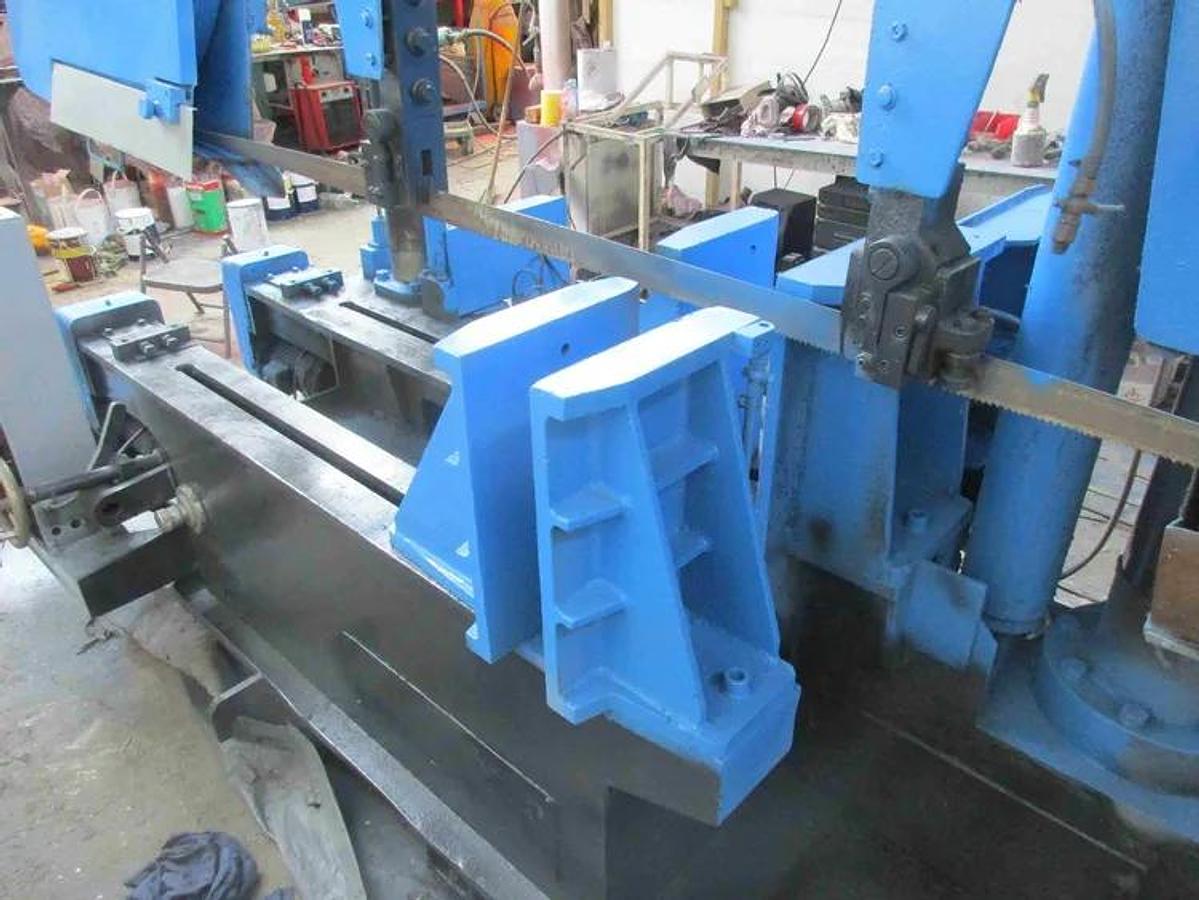

| Vertical Clamp | 1 set |
| Square | 700mm / 27” |
| Rectangle | 1000x600mm / 39” x 24” |
| Hydraulic | 1.5kw – 2HP |
| Main Vise | 0.75kw – 1HP |
| Front Vise | 0.75kw – 1HP |
| Coolant | 0.2kw – 1/4HP |
| Bed Height | 800mm / 32” |
| Depth | 1700mm / 67” |
| Height | 3030mm / 119” |
