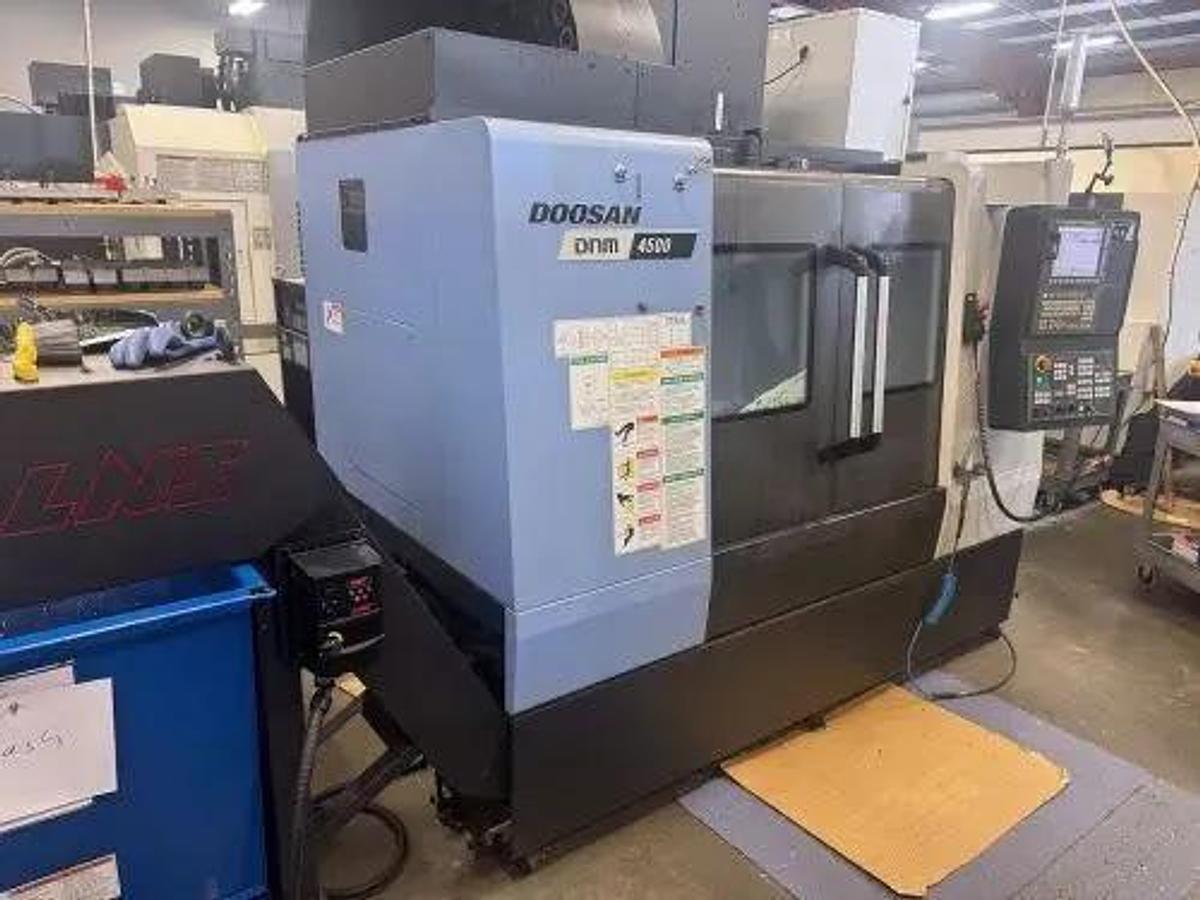

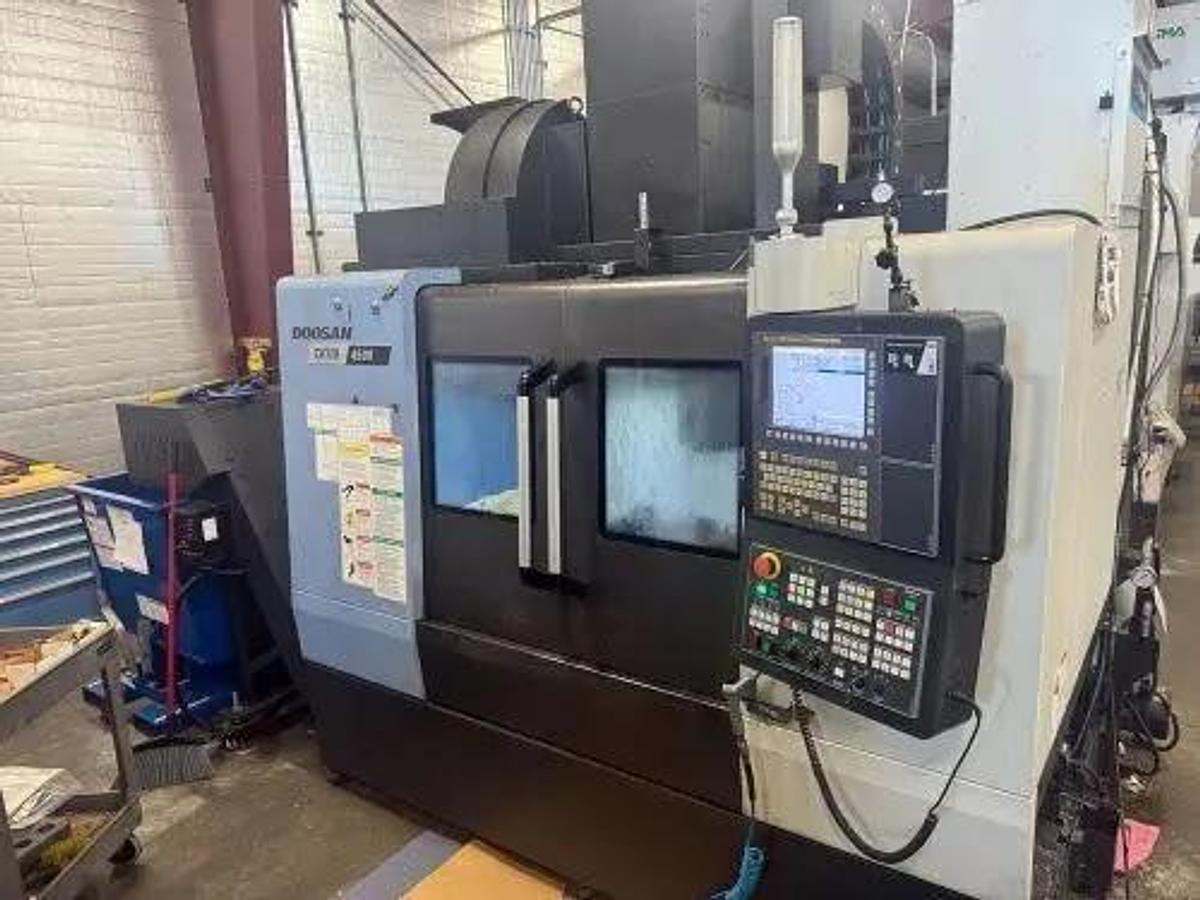

2019 DOOSAN DNM 4500 Vertical Machining Center

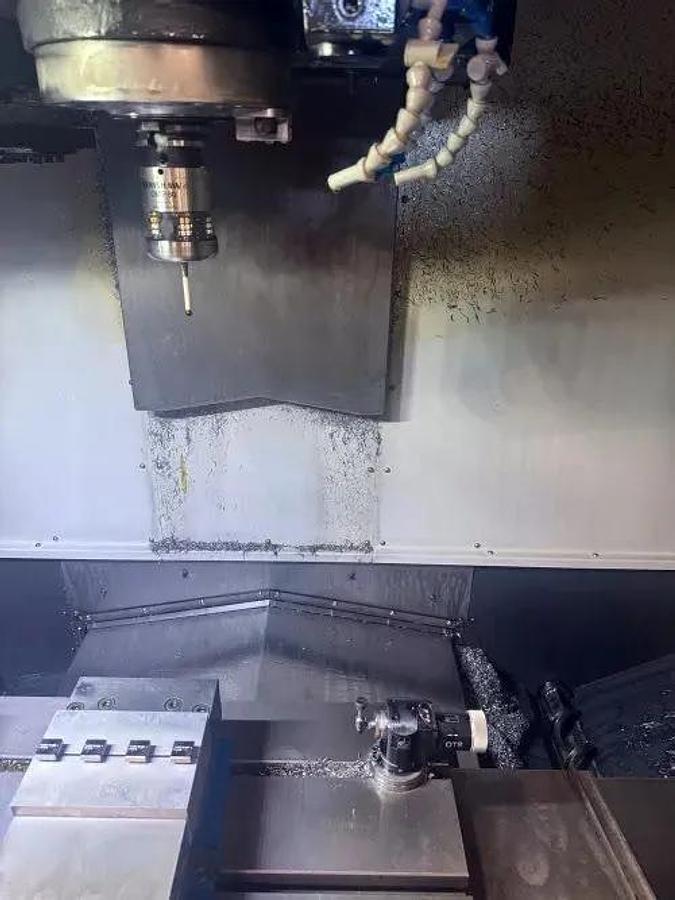

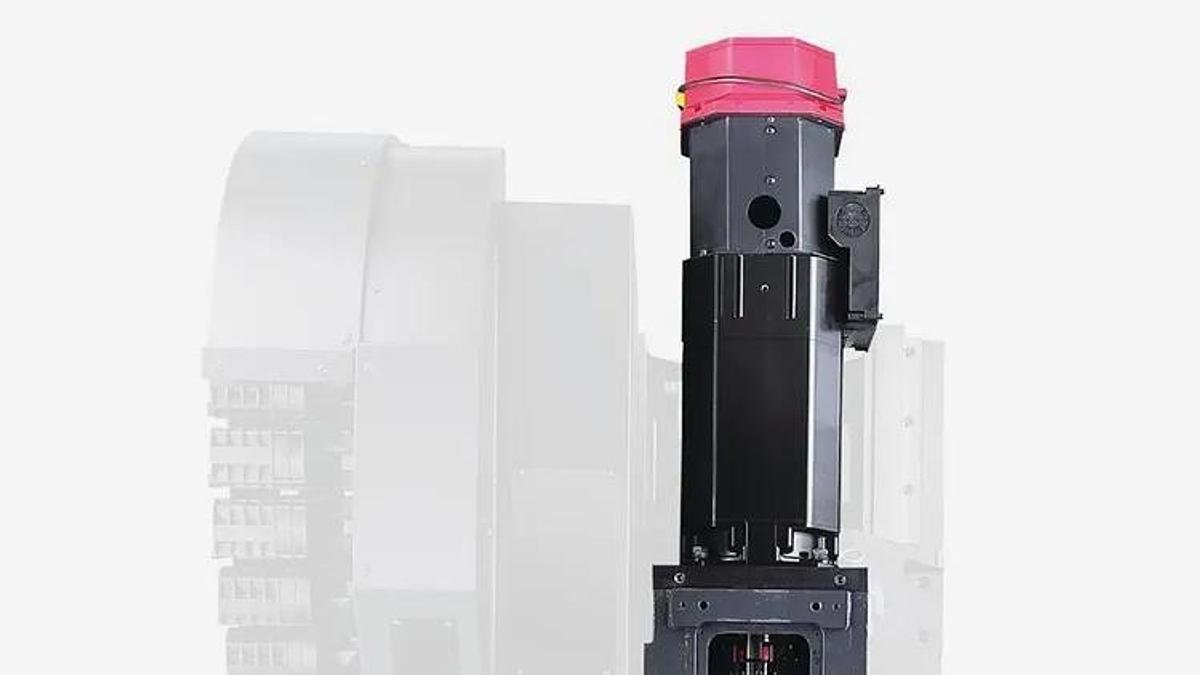

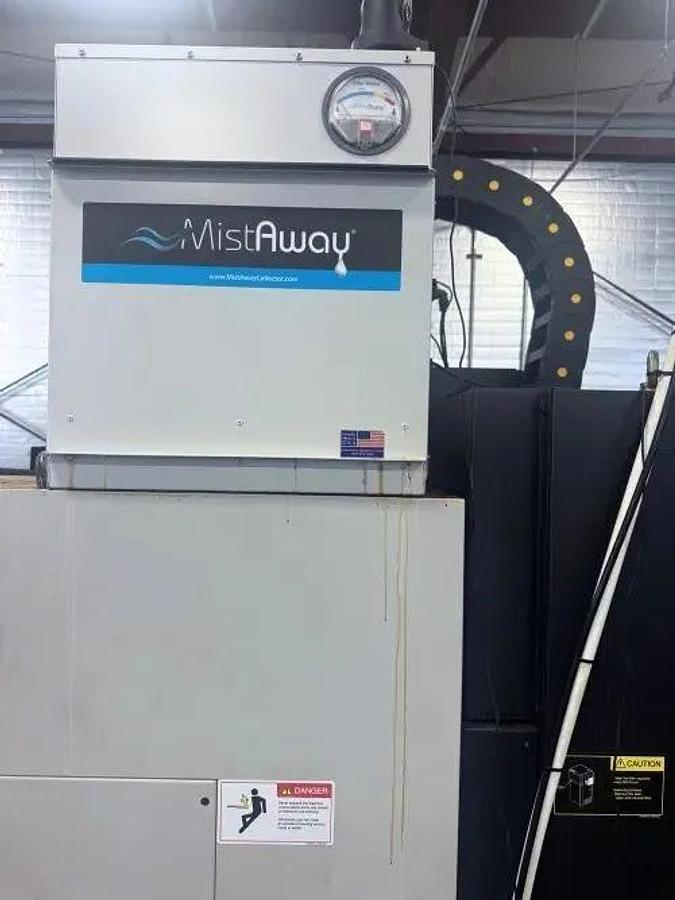

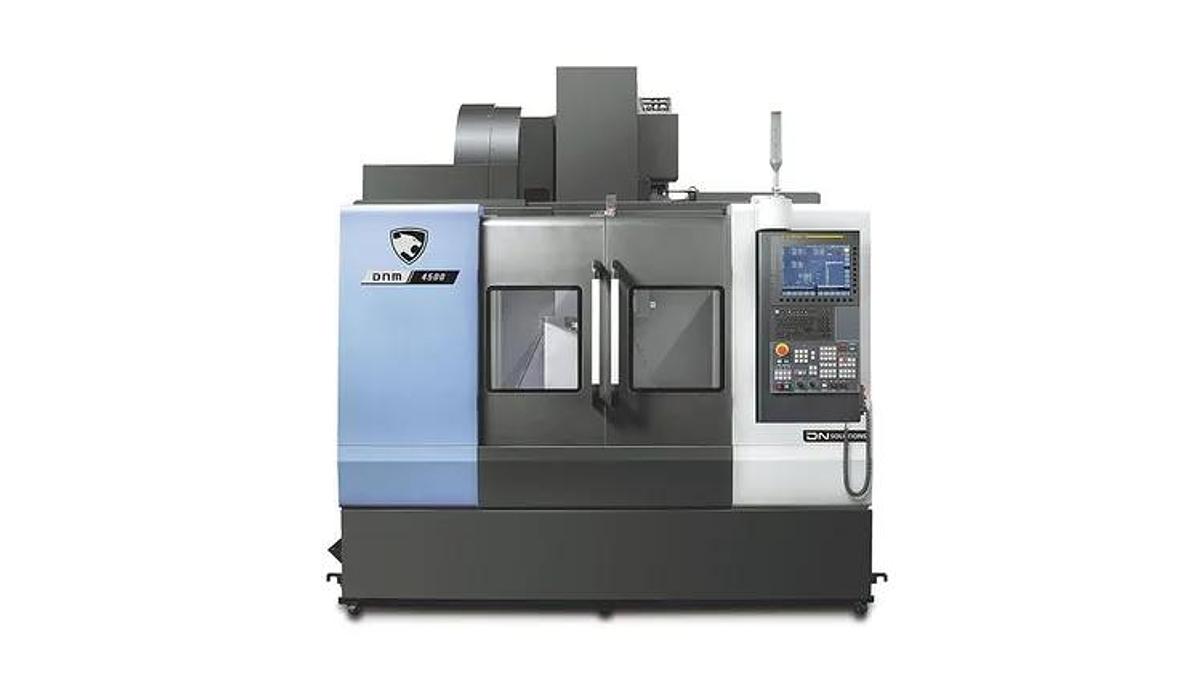

2019 DOOSAN DNM 4500 Vertical Machining Center High Productivity Vertical Machining Centers With a global installed base in excess of 30000 machines, the DNM series is a popular and proven mainstay in DN SOLUTIONS’s product line. With a range of different models, sizes and capacities - there is definitely a DNM machine that meets your needs. Direct-coupled spindle for higher productivity Improves the machines’ performance and their environmental-friendliness, compared to belt driven types. Higher productivity is achieved by reducing the tool change time and improving all axes feed rates plus acceleration/deceleration times. Options/Equipped With: 30 ATC THRU SPINDLE COOLANT - 230 PSI RENISHAW PROBE TOOL SETTER LNS MH250 FILTRATION CONVEYOR MISTAWAY MIST COLLECTOR Specifications X AXIS TRAVEL 31.49" Y AXIS TRAVEL 17.71" Z AXIS TRAVEL 20.1" TABLE LOADING AREA 39.37" x 17.72" ALLOWABLE TABLE LOAD 1,320 lbs TABLE T-SLOT SPACING X WIDTH (3) 125mm x 18H8 (3) - (4.92" x .71") SPINDLE NOSE TO TABLE TOP 15.9" to 26" MAX WORKPIECE ON TABLE 1,320 LBS BIG PLUS SPINDLE SYSTEM CAT 40 Big Plus SPINDLE SPEED 8,000 rpm AC SPINDLE MOTOR (S3 25%) 15 / 20 hp SPINDLE TORQUE (S3 15%) 211 ft-lbs SPINDLE ACCELERATION \ DECELERATION TIME 0 - 8k (3.53 sec) \ 8k - 0 (2.52 sec)
