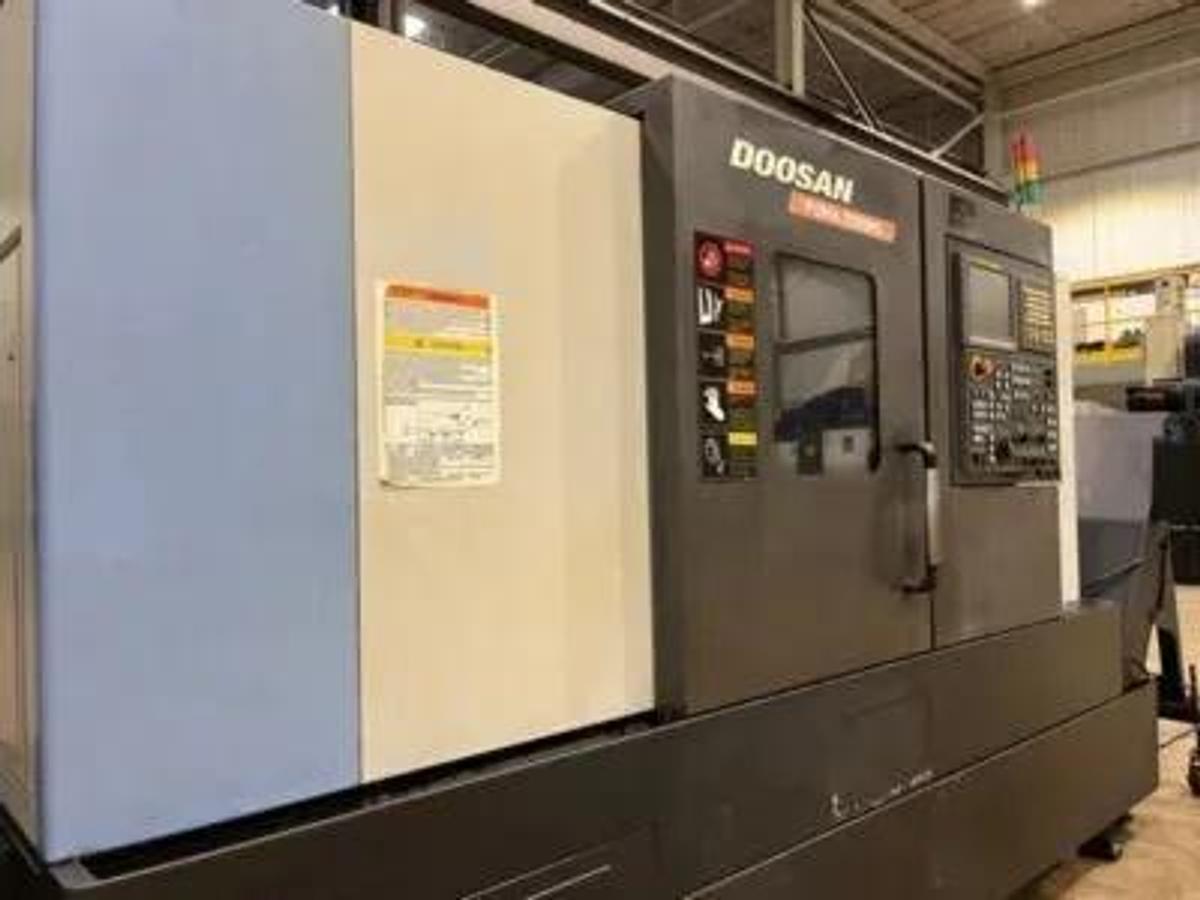

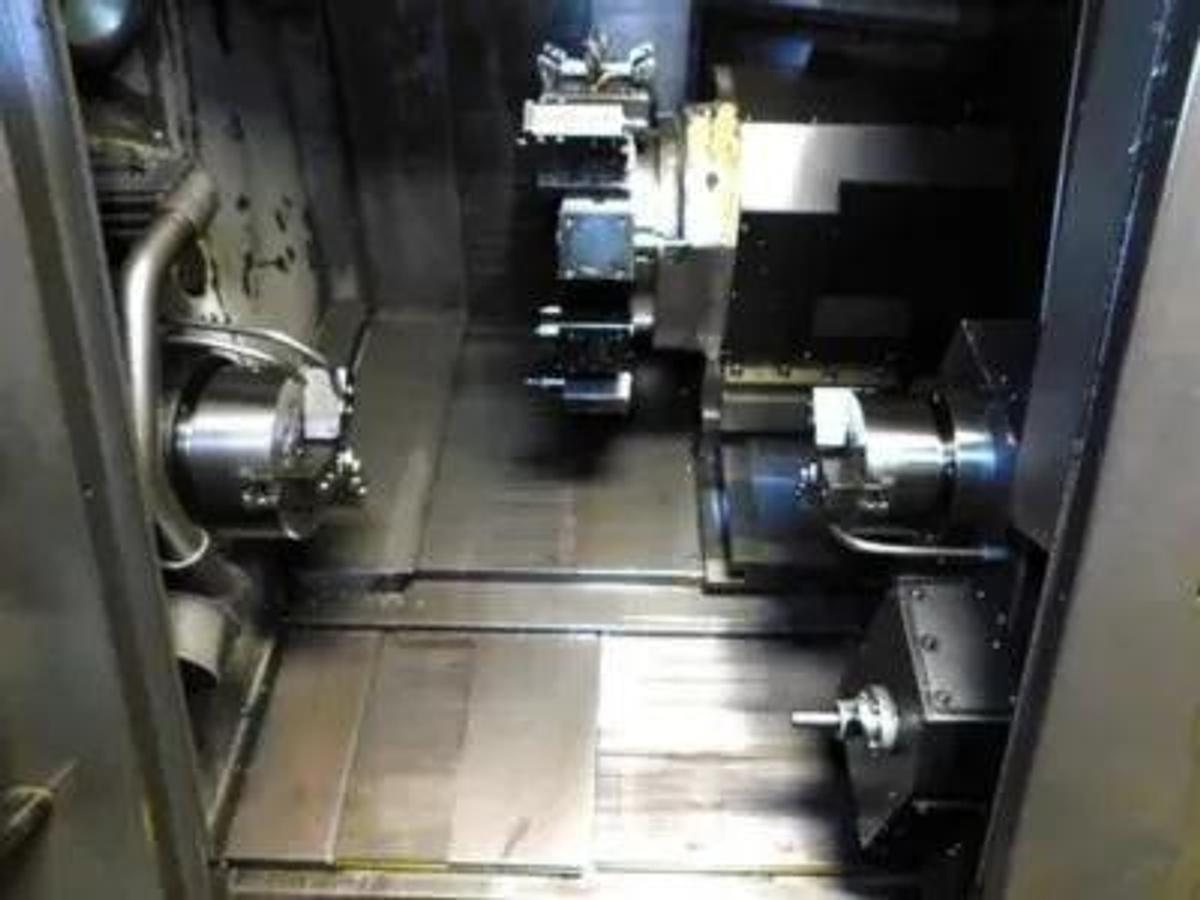

2012 DOOSA PUMA 2100MS Live Tool CNC Lathe, 8" Chuck on Main; 6" Chuck on Subspindle

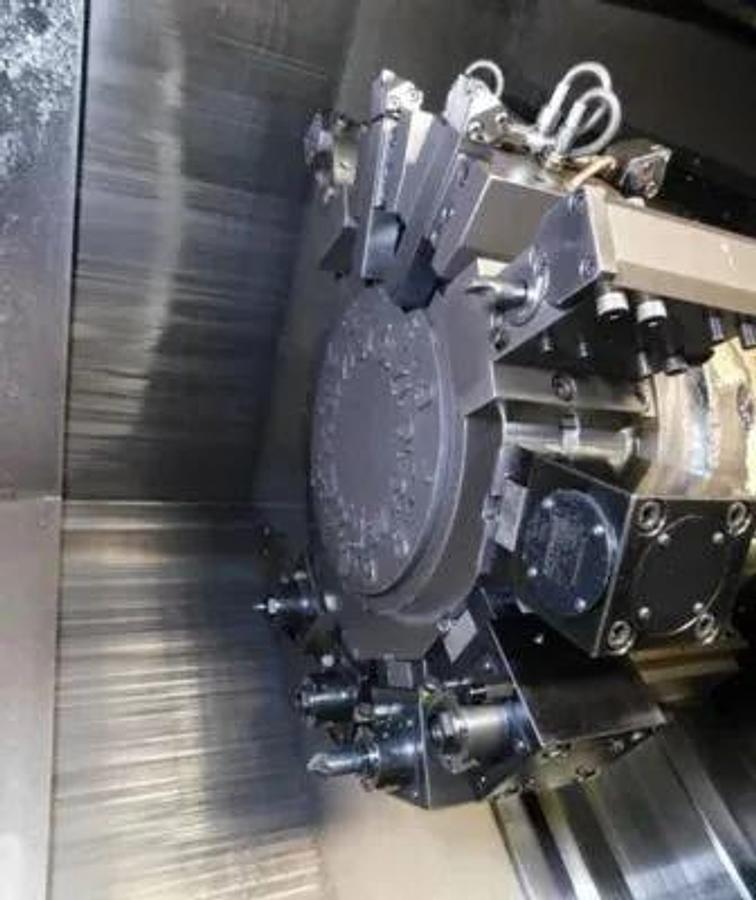

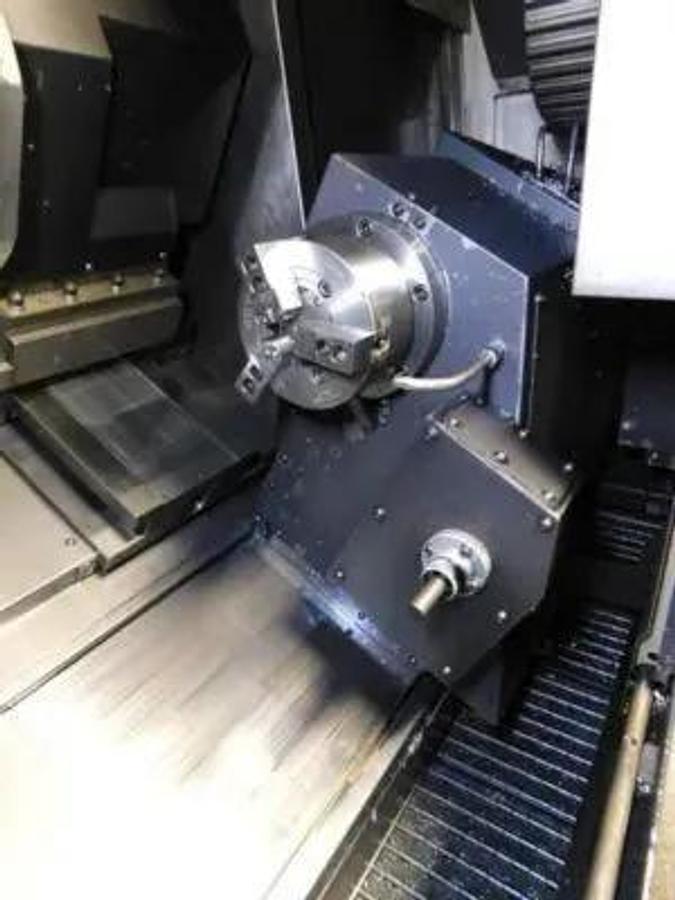

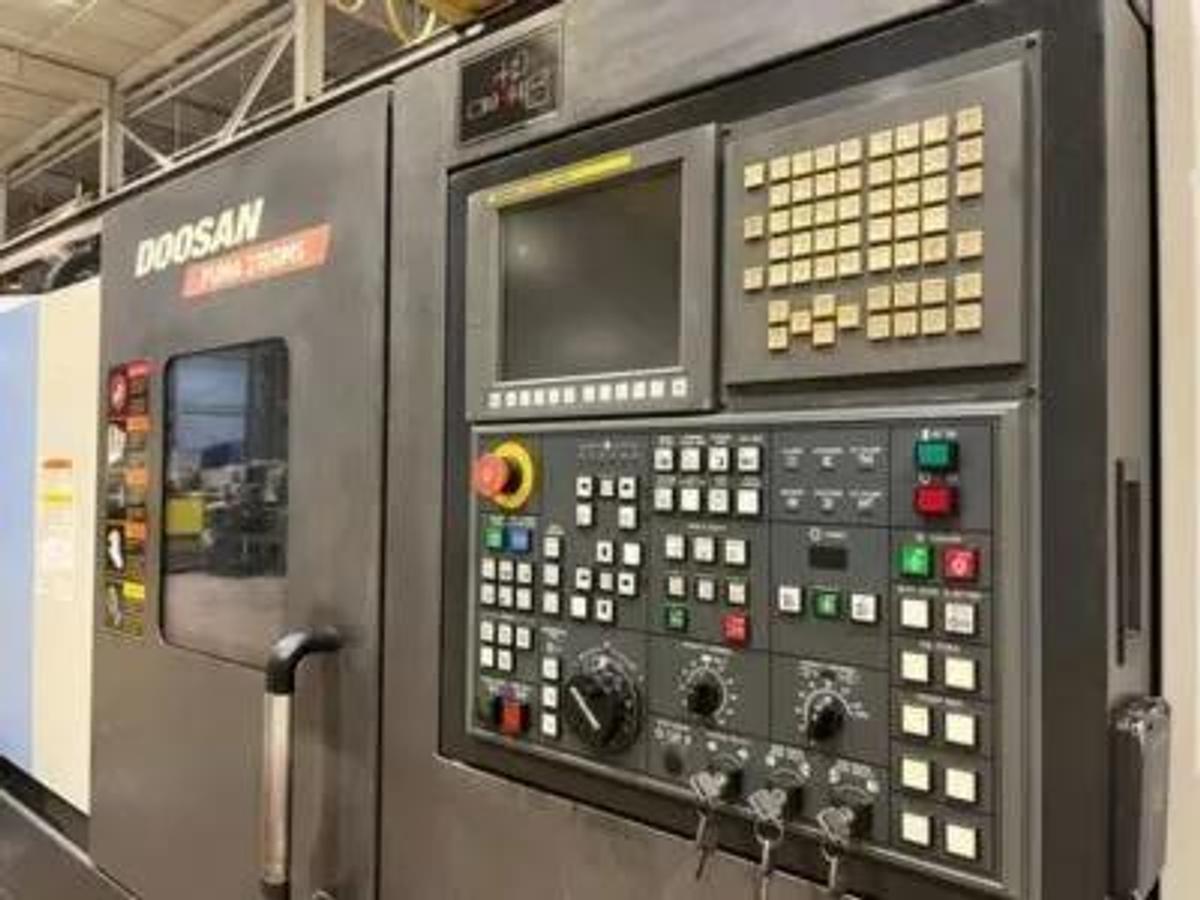

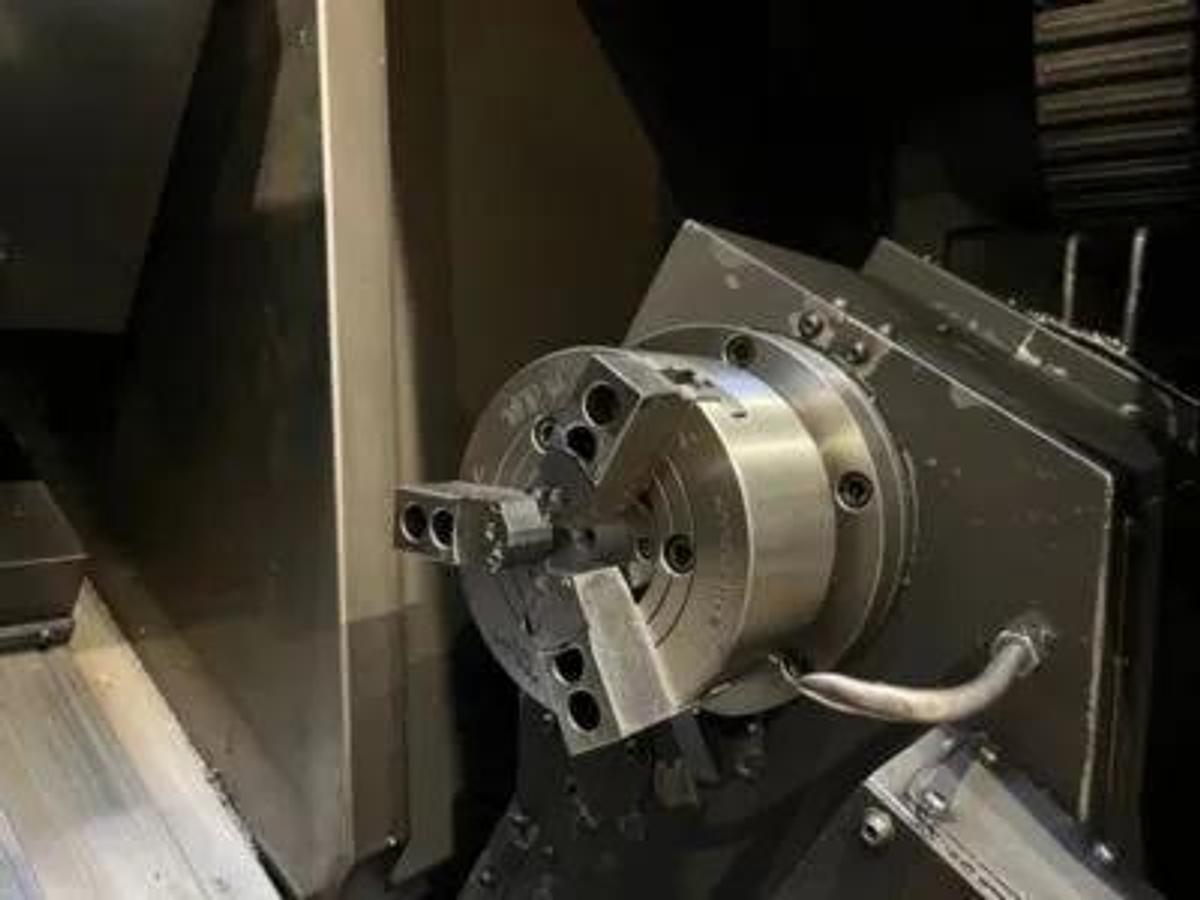

2012 DOOSA PUMA 2100MS Live Tool CNC Lathe, 8" Chuck on Main; 6" Chuck on Subspindle A Doosan Lynx 2100MS is a compact, high-performance CNC turning center designed for precise and fast machining, featuring a robust construction with a wide support structure, a powerful spindle, a servo-driven turret, and a large machining area, allowing for a maximum turning diameter of 350mm (13.8 inches) and a maximum turning length of 550mm (21.7 inches); it's considered a reliable choice for manufacturing components requiring high accuracy and productivity, often equipped with a Fanuc control system and various optional features like a sub-spindle or driven tools depending on the specific model within the Lynx 2100 series Fanuc Series I CN Control 3 Jaw Chuck On Main 3 Jaw Chuck on Subspindle C-Axis On Main & Sub Spindles Sub Spindle Live Tooling 12 Position Turret Chip Conveyor Tool Presetter High Pressure Coolant ChipBlaster Available for an additional $3,900 Doosan Puma 2100MS Live Tool CNC Lathe (2012) Chuck Size 8" 3-Jaw Sub Spindle Chuck 6" 3-Jaw Swing over bed mm (inch) 780 (30.7") Swing over front door mm (inch) 680 (26.8") Swing over saddle* mm (inch) 630 (24.8") Recom. Turning diameter mm (inch) 210 (8.3") Max. turning diameter mm (inch) 481 (18.9") 406 (16.0) Max. turning length mm (inch) (21.46") 545 / (30.9") 785 Bar working diameter mm (inch) 65 (2.6") Travels Travel distance X-axis mm (inch) 260 (10.2") Z-axis mm (inch) 590 / 830 (23.2" / 32.7") Y-axis mm (inch) - B-axis mm (inch) - 590 / 830 (23.2" / 32.7") Feedrates Rapid traverse X-axis m/min (ipm) 30 (1181.1" ipm) Z-axis m/min (ipm) 30 (1181.1" ipm) Y-axis m/min (ipm) - B-axis m/min (ipm) - 30 (1181.1" ipm) Spindle Spindle speed (Belt Type) r/min 4,500 rpm Spindle speed (Built-in Type) r/min - Spindle nose ASA A2#6 Spindle bearing diameter (Front) mm (inch) 120 (4.7") Spindle through hole diameter mm (inch) 76 (3.0") Min. spindle indexing angle (C-axis) deg - 0.001 Turret No. of tool stations st 12 12 {24}* OD tool size mm (inch) 25 (1.0") 25 {20}* (1.0 {0.8}) Boring bar diameter mm (inch) 50 (2.0) 40 {32}* (1.6 {1.3}) Indexing time (1st swivel time) s 0.15 sec Rotary tool spindle speed r/min - 5,000 rpm Tail stock Quill diameter mm (inch) 80 (3.1") - Quill bore taper (Live) MT#4 - Compressed air supply mm (inch) 80 (3.1") - Sub-spindle Spindle speed (Belt [Built-in]) r/min - 4,500 rpm Spindle nose - ASA A2-5 Spindle bearing diameter (Front) mm (inch) - 90 (3.5) Spindle through hole diameter mm (inch) - 62 (2.4) Min. spindle indexing angle (C-axis) deg - 0.001 Motors Main spindle motor kW (Hp) 25 HP / 18.5 /15 (33.5 / 24.8 / 20.1) (S6 25% / S6 60% / S1 Cont.) Sub spindle motor kW (Hp) - 7.5 / 5.5 (10 HP/ 7) Rotary tool spindle motor kW (Hp) - 5.5 (7 HP) Coolant pump motor kW (Hp) 0.4 (0) Power source Electric power supply (Rated capacity) kVA 32.78 33.7 45.56 Machine size Machine height mm (inch) 1900 (74.8") Machine dimension length mm (inch) 3310 / 3530 (130.3" / 139.0") width mm (inch) 1863 (73.3") Machine weight kg (lb) 4850 lbs/ 5350
