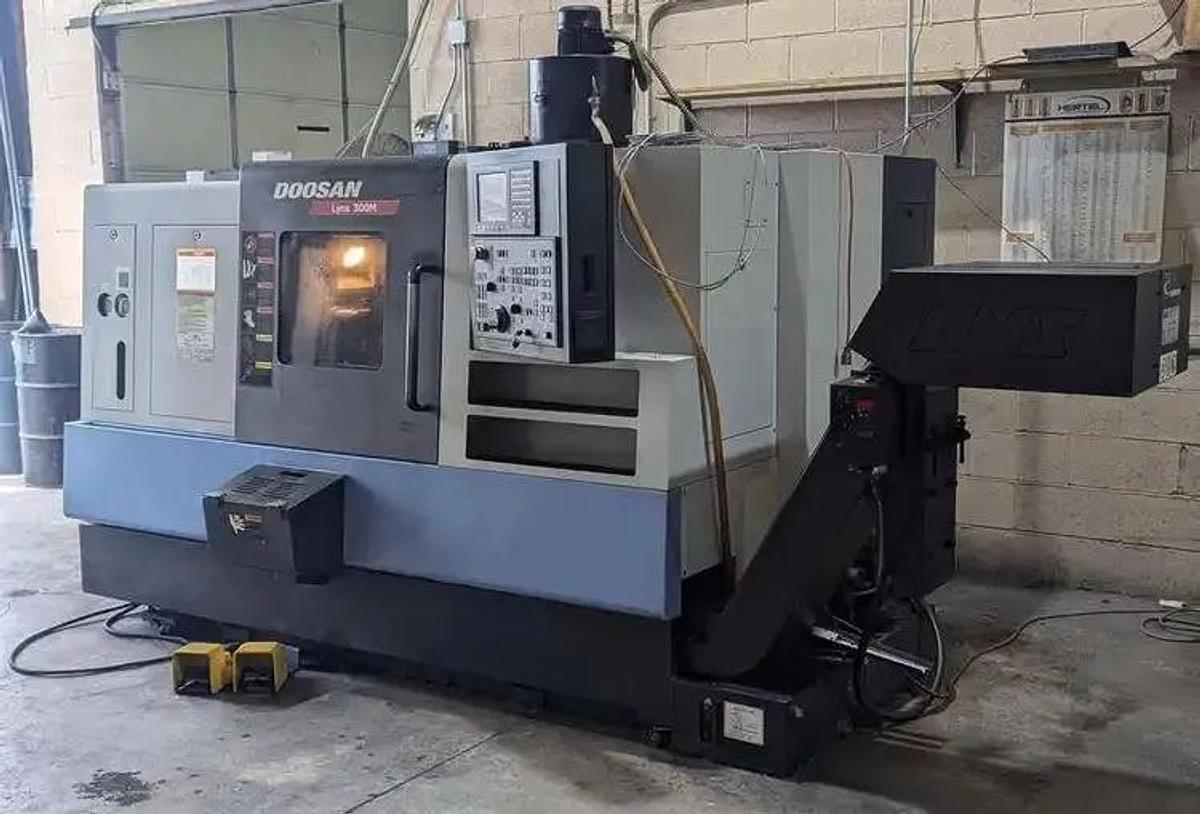

2011 DOOSAN LYNX 300M Live Tool CNC Lathe, 10" Chuck 3" bar capacity, 5HP live tools

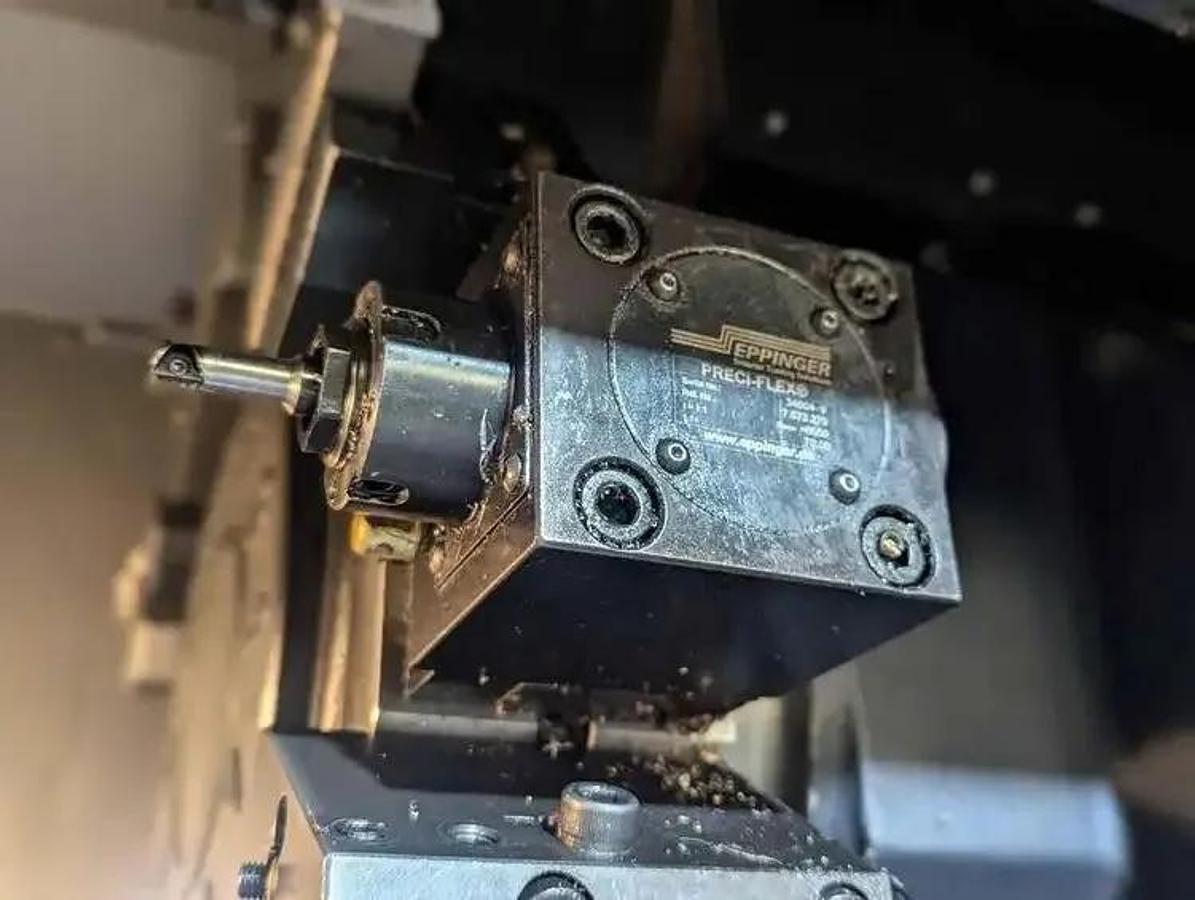

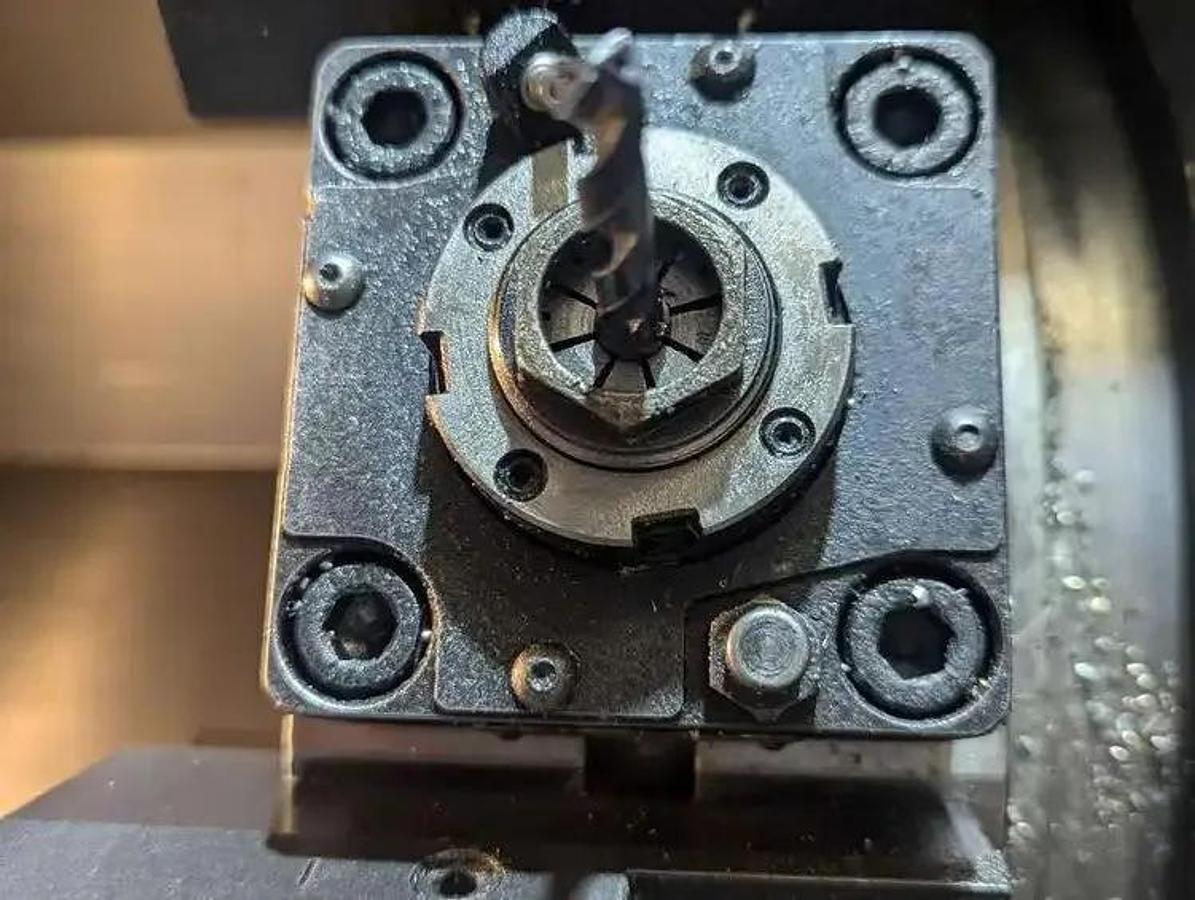

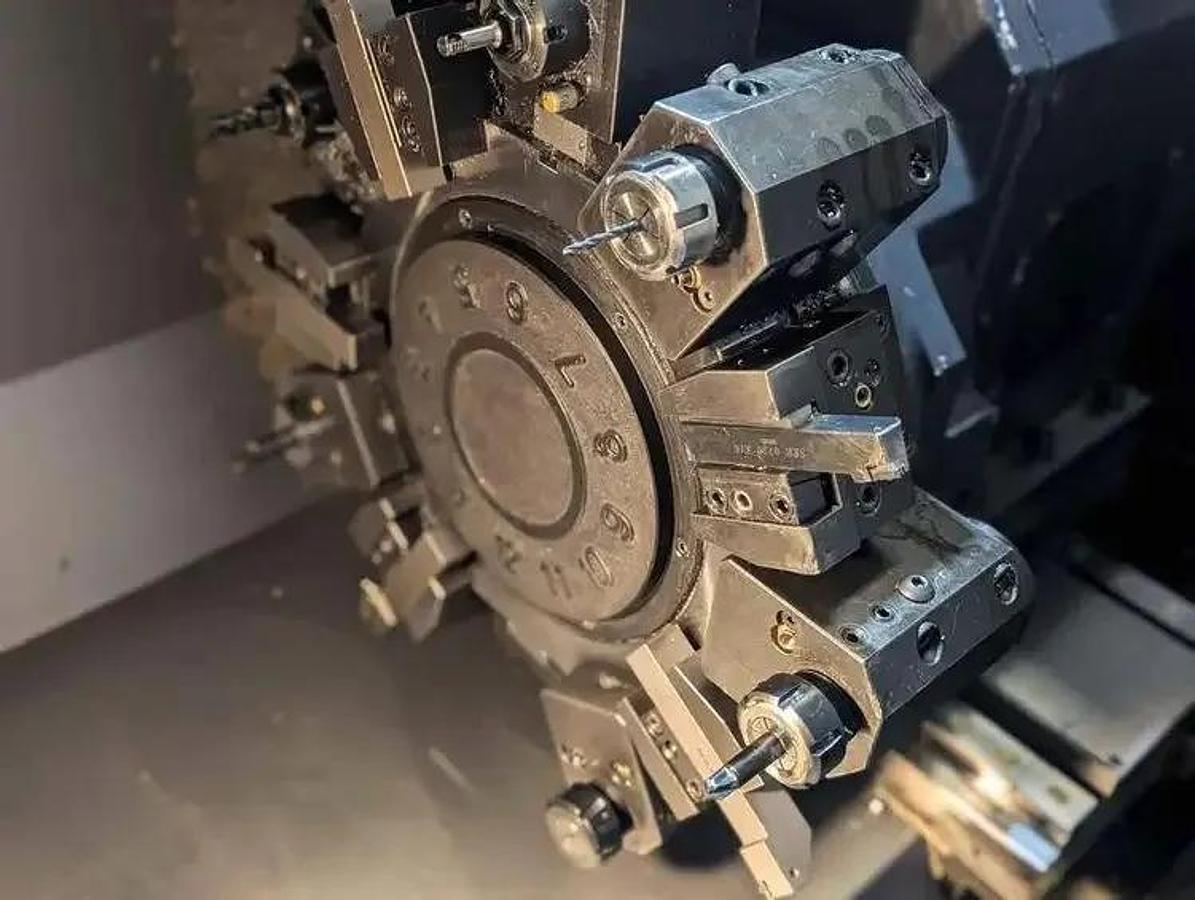

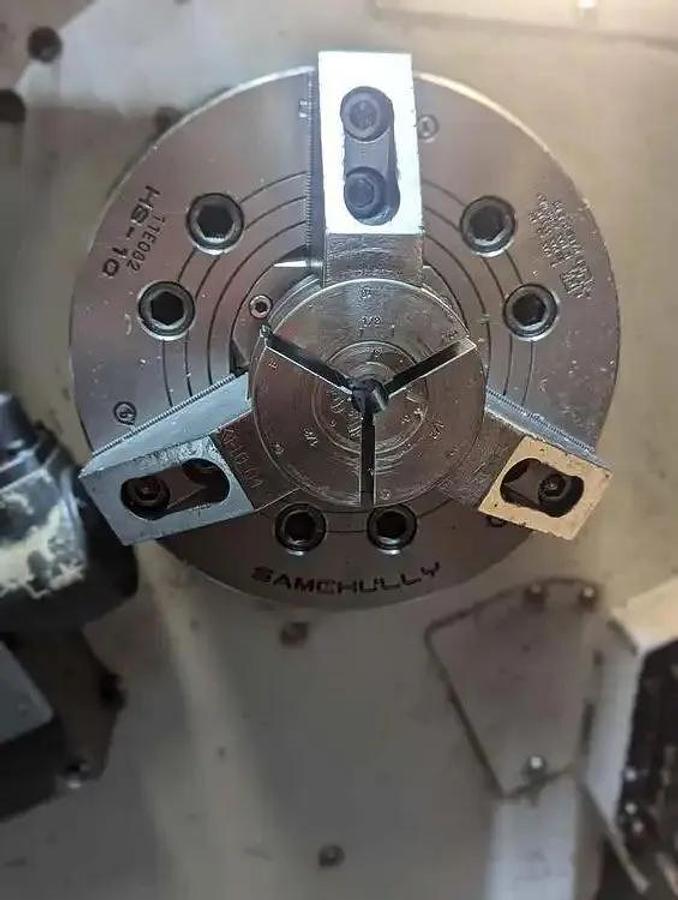

2011 DOOSAN LYNX 300M Live Tool CNC Lathe, 10" Chuck 3" bar capacity, 5HP live tools The Doosan Lynx 300M is a compact, high-speed, and high-precision turning center with a 10-inch chuck and a 76 mm bar capacity: Features: High-rigidity LM roller guides, fast servo-driven turret indexing, and a high-power spindle Capabilities: Machining of round and circular workpieces, as well as complex feature C-Axis Live tooling (2 right angle tools, 3 cross tools) Coolant System Hard Jaws for 3 Jaw Chuck Chip Conveyor Doosan Lynx 300M Live Tool CNC Lathe (2011) Swing over bed mm (inch) 651 (25.6") Swing over saddle mm (inch) 461 (18.1") Recom. Turning diameter mm (inch) 254 (10.0") Max. Turning diameter mm (inch) 450 (17.7") 370 (14.6") Max. Turning length mm (inch) 765 (30.1") 712 (28.0") Chuck size inch 10" Bar working diameter mm (inch) 76 (3.0") Travels Travel distance X-axis mm (inch) 255 (10.0") Z-axis mm (inch) 790 (31.1") Feedrates Rapid Traverse Rate X-axis m/min (ipm) 24 (945") Z-axis m/min (ipm) 30 (1181") Spindle Max. Spindle speed r/min 3,500 Main spindle motor power kW (Hp) 15 / 11 {18.5 / 15} <15min. / cont.> (20 / 15 {25 / 20}) Max. Spindle Torque for Turning N·m (lbf ft) 191 {235.4 / 327.4 / 403.3} ( 141 {174 / 241 / 297} ) Spindle nose ASA A2-8 Spindle bearing diameter (Front) mm (inch) 120 (4.7") Spindle through hole diameter mm (inch) 86 (3.4") Min. spindle Indexing angle(C-axis) deg - 0.001 Turret No. of tool stations ea 12 OD tool size mm (inch) 25 (1.0") Max. boring bar size mm (inch) 40 (1.6") Turret Indexing time(1 station swivel) s 0.15 sec. Max. Rotary tool speed r/min - 5000 rpm Rotary tool motor power kW (Hp) - 5.5 (7.5) Tailstock Tailstock travel mm (inch) 775 (30.5") Quill diameter mm (inch) 80 (3.1") Quill travel mm (inch) 120 (4.7") Quill bore taper MT MT#4 Power source Electric power supply(rated cap,)kVA 30.50 32.62 Machine Dimensions Length mm (inch) 3035 (119.5") Width mm (inch) 1785 (70.3") Height mm (inch) 1715 (67.5") Weight kg (lb) 4000 (8800 lbs) 4050 (8910) CNC NC system DOOSAN-FANUC i
