Description

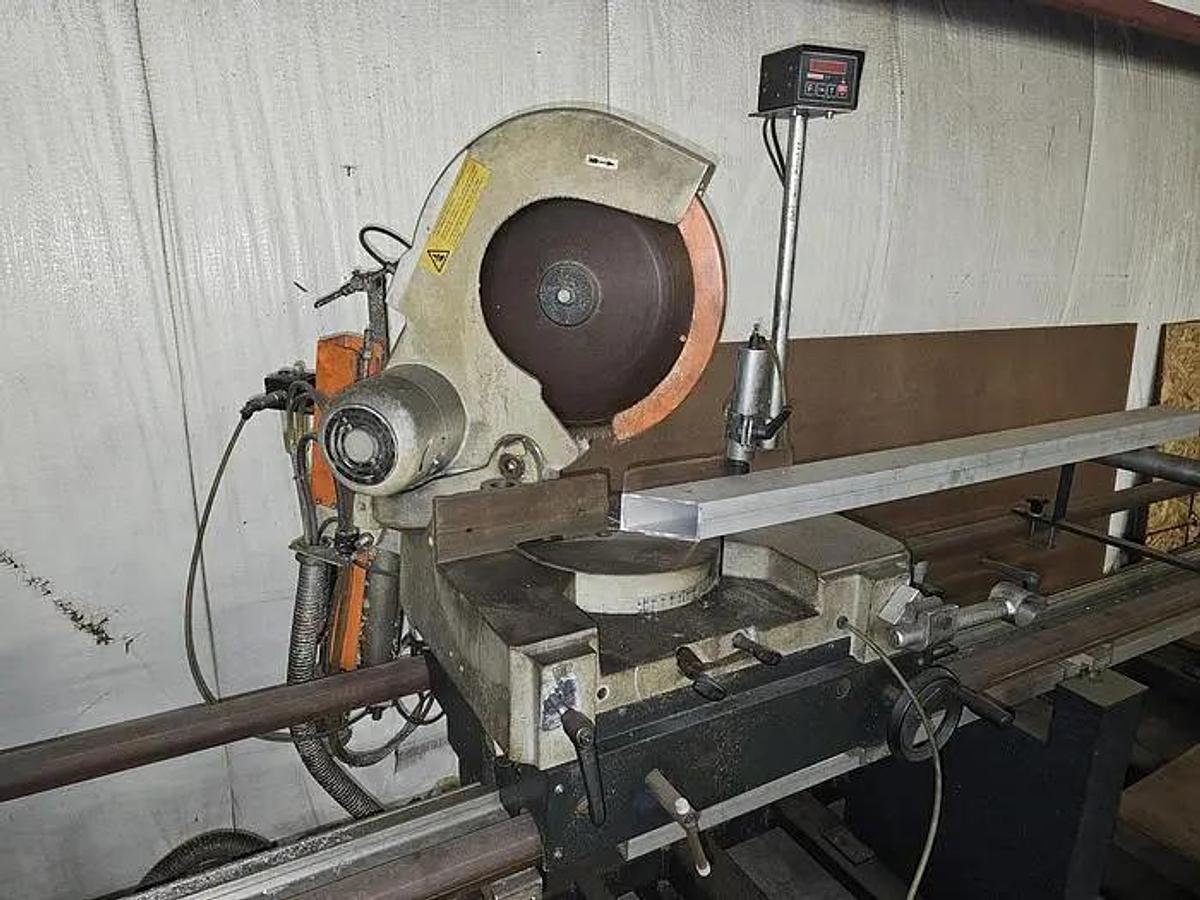

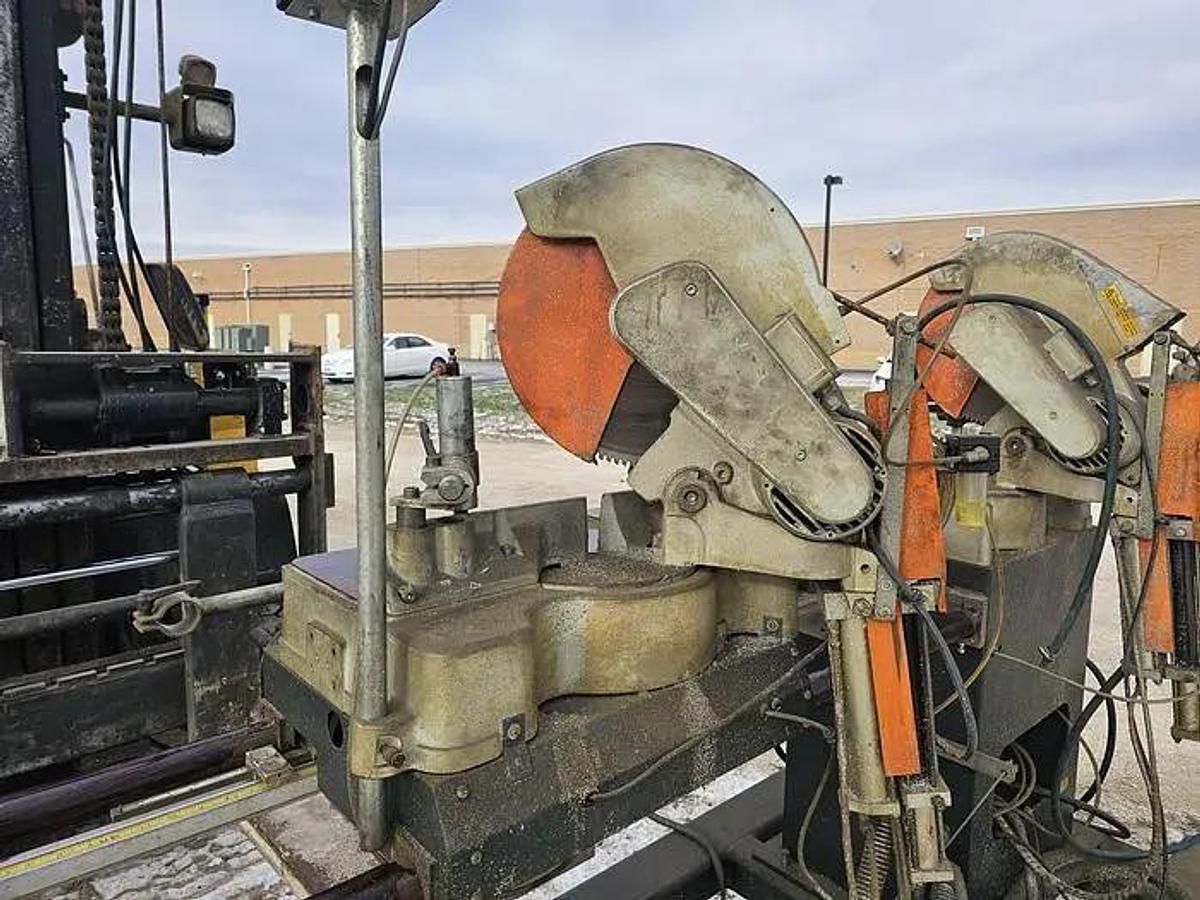

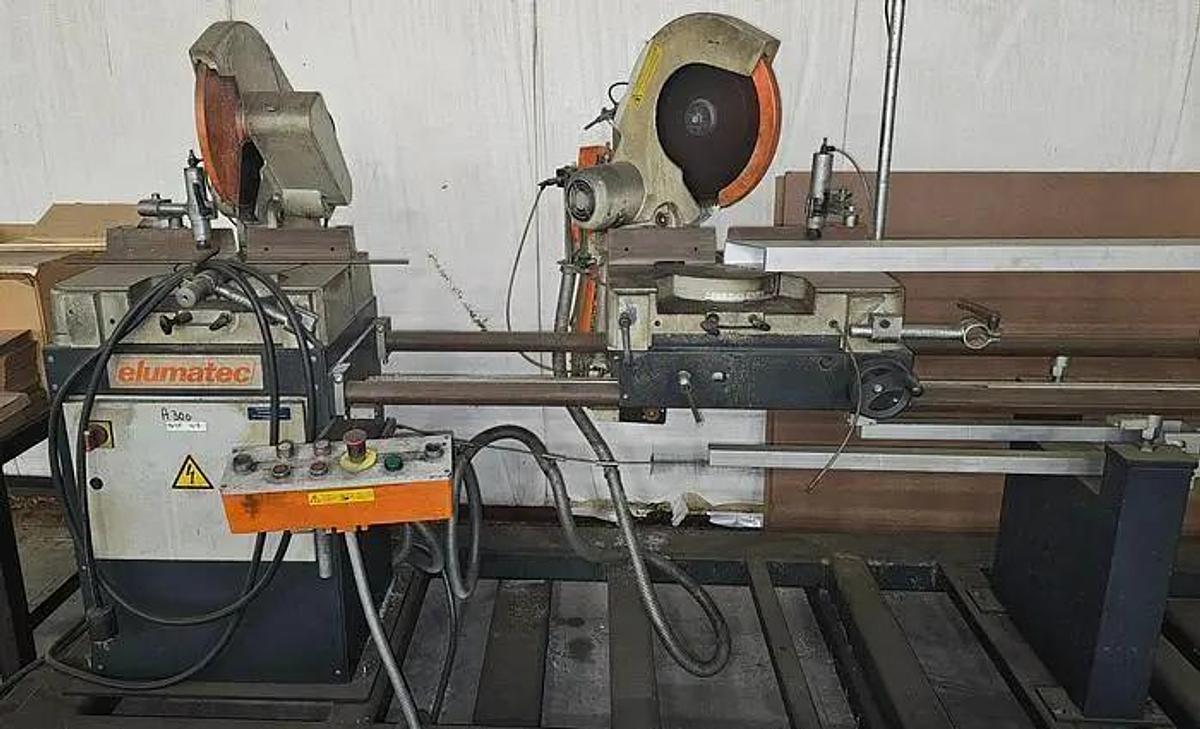

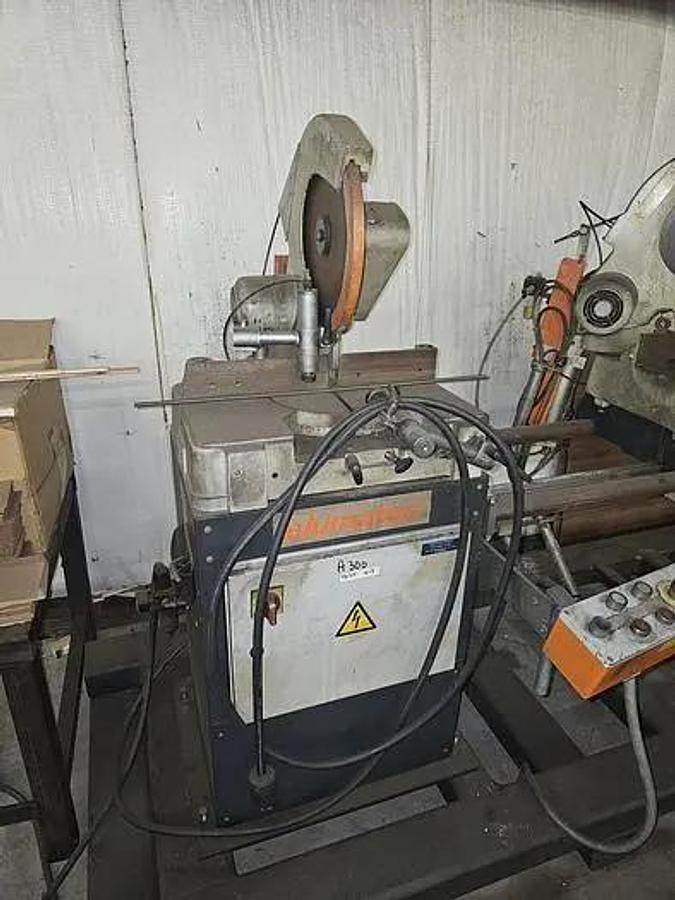

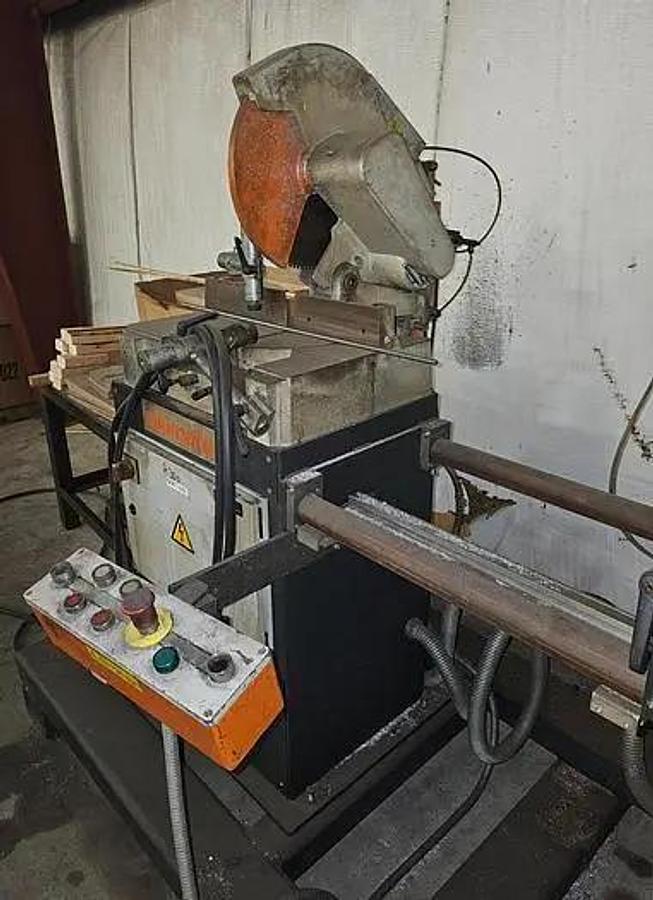

2001 ELUMATEC Model DG/79 Double Mitre Saw, German quality
Double Mitre Saw for Aluminum Extrusion
Manual movement of the second head
380 mm blade
Simple to use
Minimum cutting length at 90° 520 mm
Minimum cutting length pivoted at 45° 520 mm
Positive location points at 15°, 30°, and 45°
Pivoting range from 0° to 45° continuously adjustable
Hydro-pneumatic saw feed Hydro-pneumatic
For cutting range, see cutting diagram
Saw blade diameter 380 mm
Saw blade speed 2,800 rpm
Power supply 230/400 V, 3~, 50 Hz
Power output per motor 3 kW
Compressed air supply 7 bar
Specifications
| Manufacturer | ELUMATEC |
| Model | DG 79 |
| Condition | New |
| Stock Number | 22034 |
| Status | For Sale |
| Power | 3 kW; 4 hp |
| Saw Blade Dia. | 15"; 381 mm |
| Dimensions | Approximately 5.4 x 1.22 x 1.6 m |
| Weight | Approximately 2,000 kg |
| Blade diameter | 380 mm |
| Saw blade speed | 2,800 rpm |
| Power supply | 230/400 V, 3~, 50 Hz |
| Power output per motor | 3 kW |
| Compressed air supply | 7 bar |
| Minimum cutting length at 90° | 520 mm |
| Minimum cutting length pivoted at 45° | 520 mm |
| Positive location points | 15°, 30°, and 45° |
| Cutting length adjustment | Yes |
| Cutting depth adjustment | Yes |

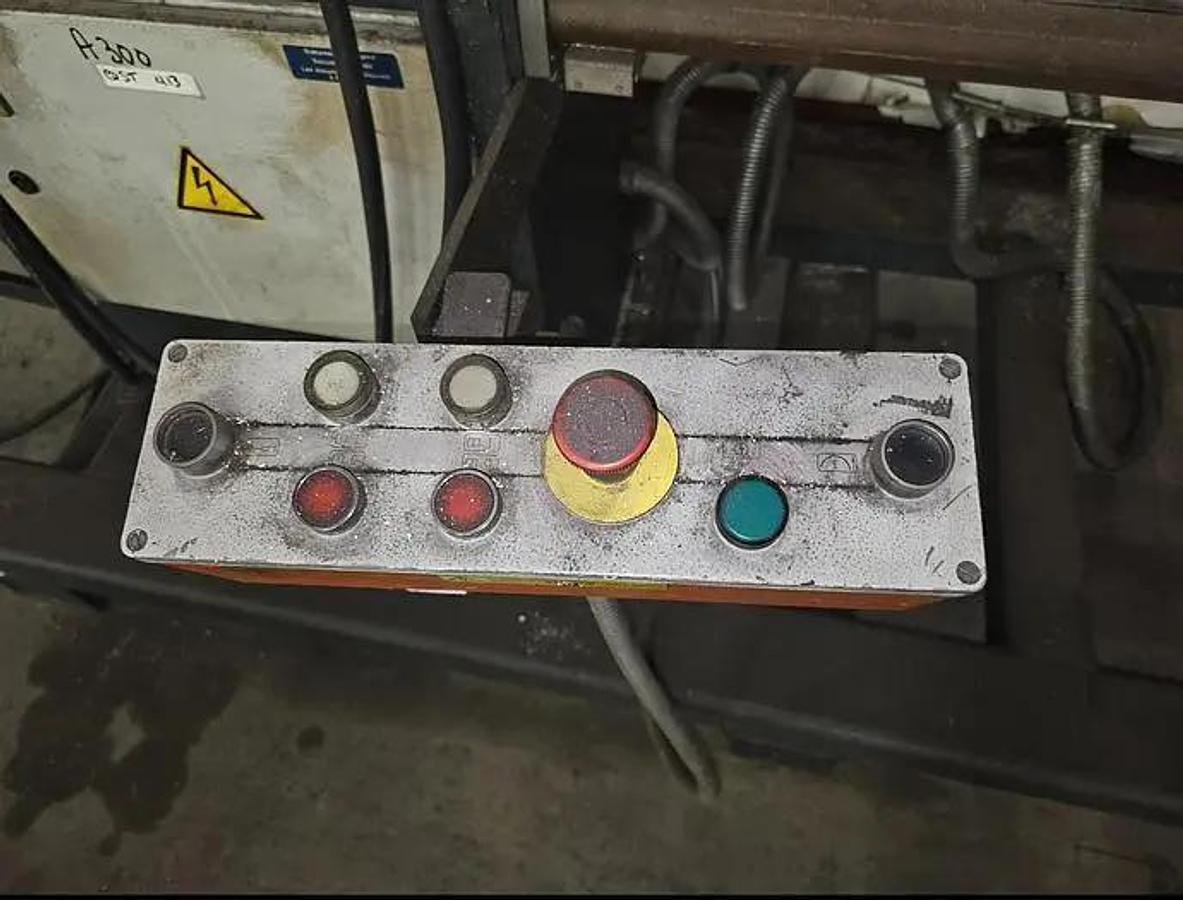

| Two-handed operation | Yes |
| Emergency stop button | Yes |
| Cooling | Via spraying device |
