FERMAT WFT 13 CNC Table Type HBM 5.1" spindle; FANUC 31iB, In stock OHIO. 40 ATC, 1,000 PSI Coolant

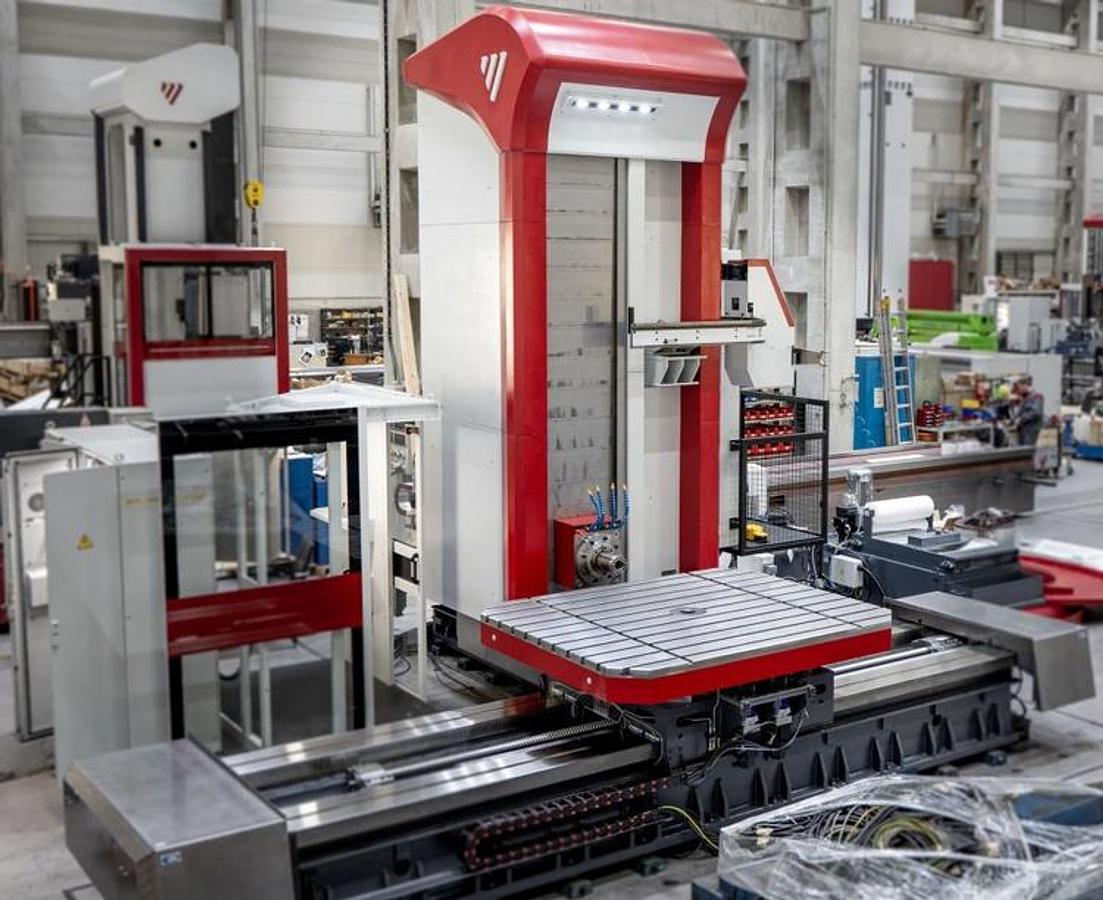

FERMAT WFT 13 CNC Table Type HBM 5.1" spindle; FANUC 31iB. In stock OHIO. 40 ATC, 1,000 PSI Coolant Can be equipped with Linear scales & Reinshaw RMP 60 Probe. The most popular FERMAT table-type horizontal boring mill, for high-performance machining with maximum utilization of accessories and automatic milling heads for efficient machining of workpieces of up to 20 tons. • Spindle diameter 130 mm or 110 mm; spindle travel 800 mm. • Optional ram stroke 700 mm. • Powerful and precise milling, coordinate drilling, boring, and threading. • Extremely versatile series of table-type horizontal boring mills, fully compatible with a wide range of accessories and automatic milling heads. WFT 13 Table Type HBM Spindle Support Sleeve 250 mm Chip Conveyor Belt Type including level switch and return Filtration Pump Auto Lube System for Slide Box Ways Air-Conditioned Electric Cabinet Preparation for Manual Heads Most popular FERMAT table-type horizontal boring mill, for high-performance machining with maximum utilization of accessories and automatic milling heads for efficient machining of workpieces of up to 20 tons | 44093 lbs. • Spindle diameter 130 mm | 5.1 in or 110 mm | 4.3 in; spindle travel 800 mm | 31.5 in. • Optional ram stroke 700 mm | 27.6 in. • Powerful and precise milling, coordinate drilling, boring, and threading. • Extremely versatile series of table-type horizontal boring mills, fully compatible with a wide range of accessories and automatic milling heads. Diameter of Spindle | in 130 | 5.1" Taper of Spindle ISO50 / SK 50 Max. Spindle Speed rpm 3,000 Main Power FANUC CNC (S1/S3) kW | hp 37 / 45; 53 / 62 | 49.6 / 60.3; 71 / 104.4 Max. Torque FANUC CNC (S1/S3) Nm 2362 / 2873; 2713 / 3989 X Cross Travel of Table | in 157.4 / Y Vertical Travel of Headstock in 98.4 Z Longitudinal Travel of Column | in | 59 W Spindle Travel | in 800 | 31.5 V Ram Travel | in x 700 | 27.5 Rapid Feed X, Y in/min 590.5, 472.4 Rapid Feed Z, W, V [n/min 334.6, 393.7, 472.4 Rapid Feed B rpm 2 (optionally 5) Max. Table Load | lb 44092 Table Size in 78.7 x 86.6 * A large number of accessories are available.
