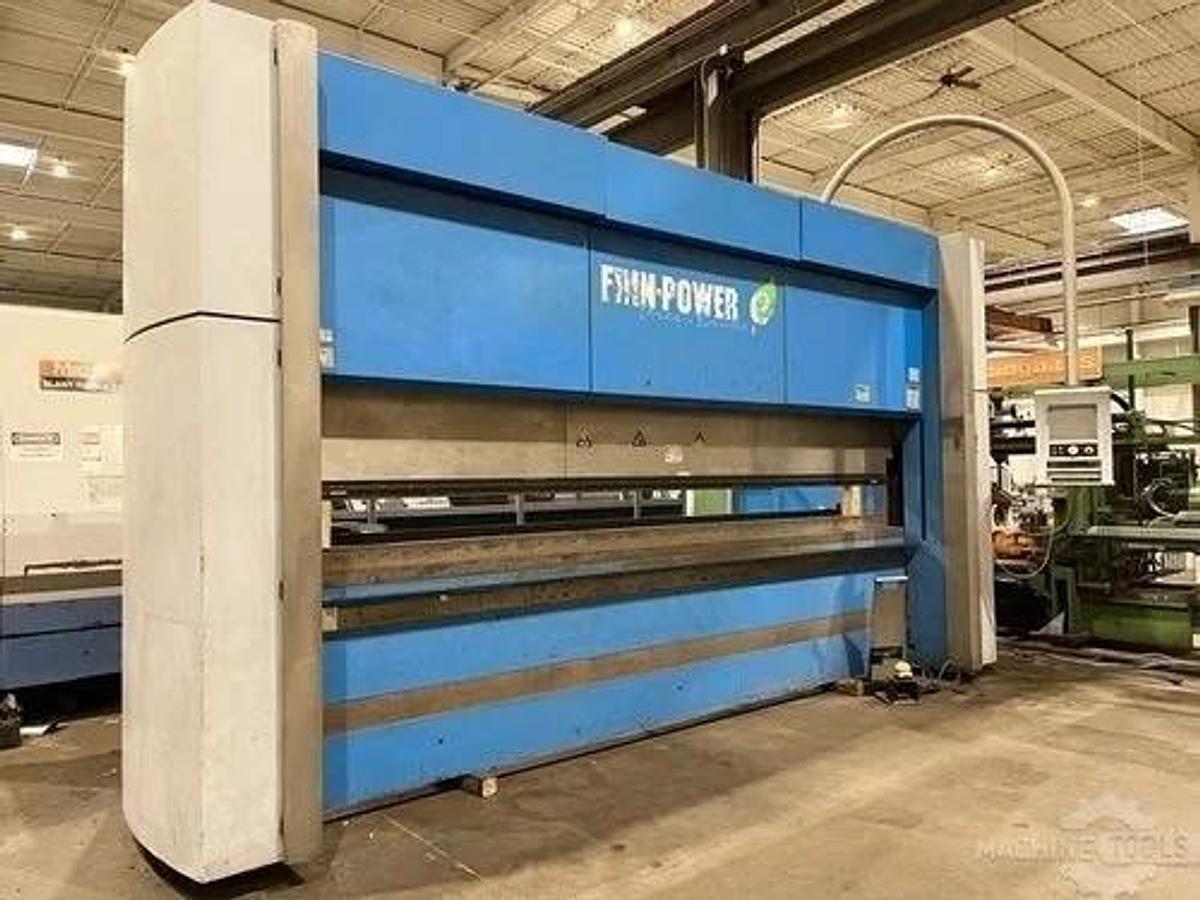

FINN POWER Electric Press Brake Model 200-4100 TS 3 F CNC, 200 Ton x 144" BH, 5 axis BG (X,R,Z1,Z2,X1)

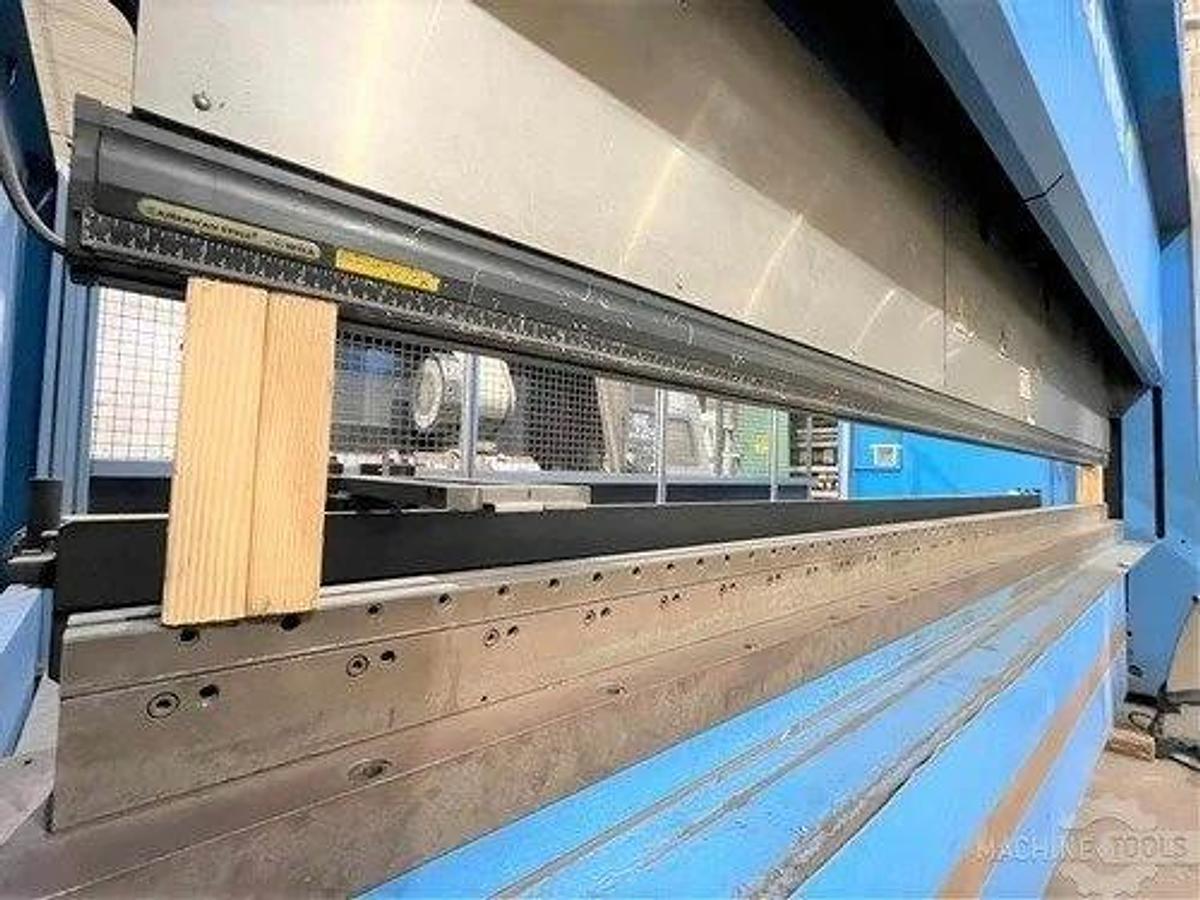

FINN POWER Electric Press Brake Model 200-4100 TS 3 F CNC, 200 Ton x 144" BH, 5 axis BG (X,R,Z1,Z2,X1) Windows Based Controls, TS3 7-axis cnc control, (5) axis back gauge (X,R,Z1,Z2,X1), The TS3 control has 2D and 3D programming capability. 2D and 3D Programming Capability: Control Keyboard The bending order can be graphically programmed at the press brake along with all program preparation. A keyboard is included in the optional TS3 control for easy alpha-numeric input. This is a good combination with DELEM Vbend offline programming software. Upper ram is set up for American style WILA dies. SPECIFICATIONS SIZE 200 Ton x 14' TONNAGE 200 T TYPE ELECTRIC OVERALL LENGTH 161" BETWEEN HOUSINGS 144" STROKE 11.8" # AXIS 4 CONTROL CNC (Finn Power) APPROACH SPEED 77 MM/SEC. BENDING SPEED 11 MM/SEC. DIMENSIONS 81” x 210” x 115” WEIGHT 37,000 lbs.
