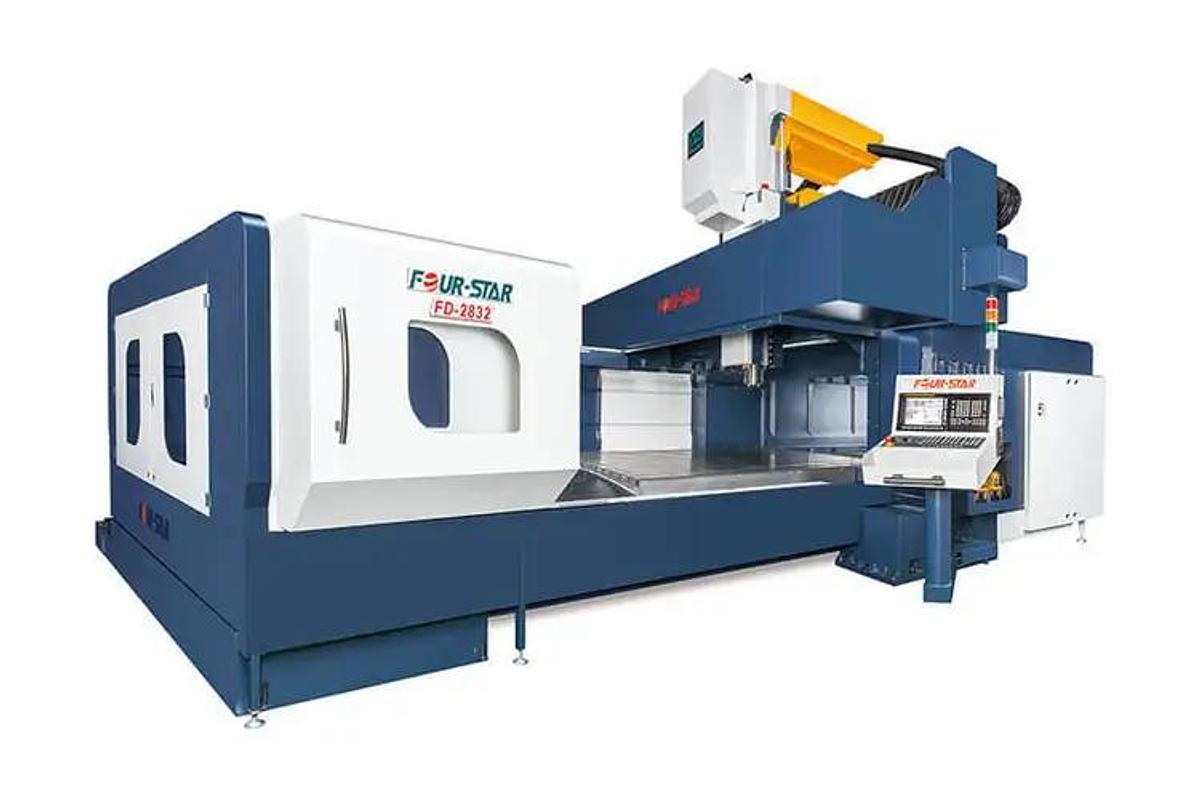

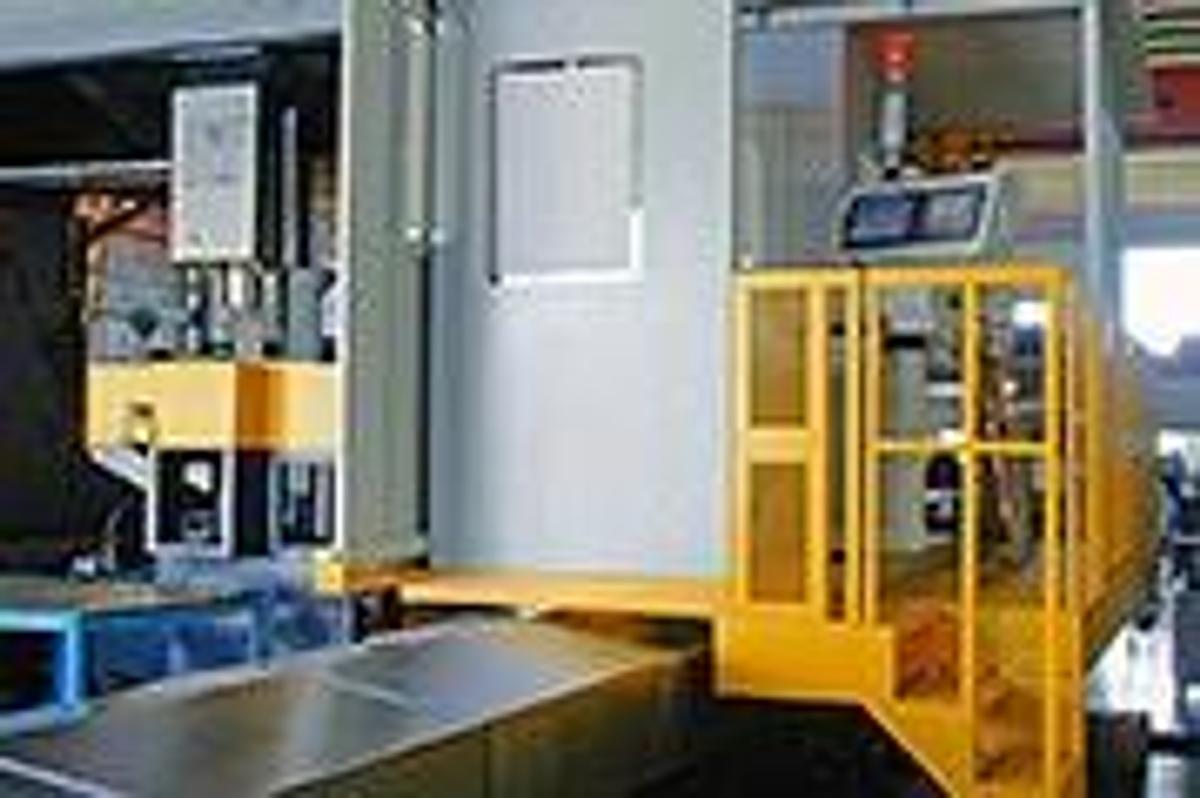

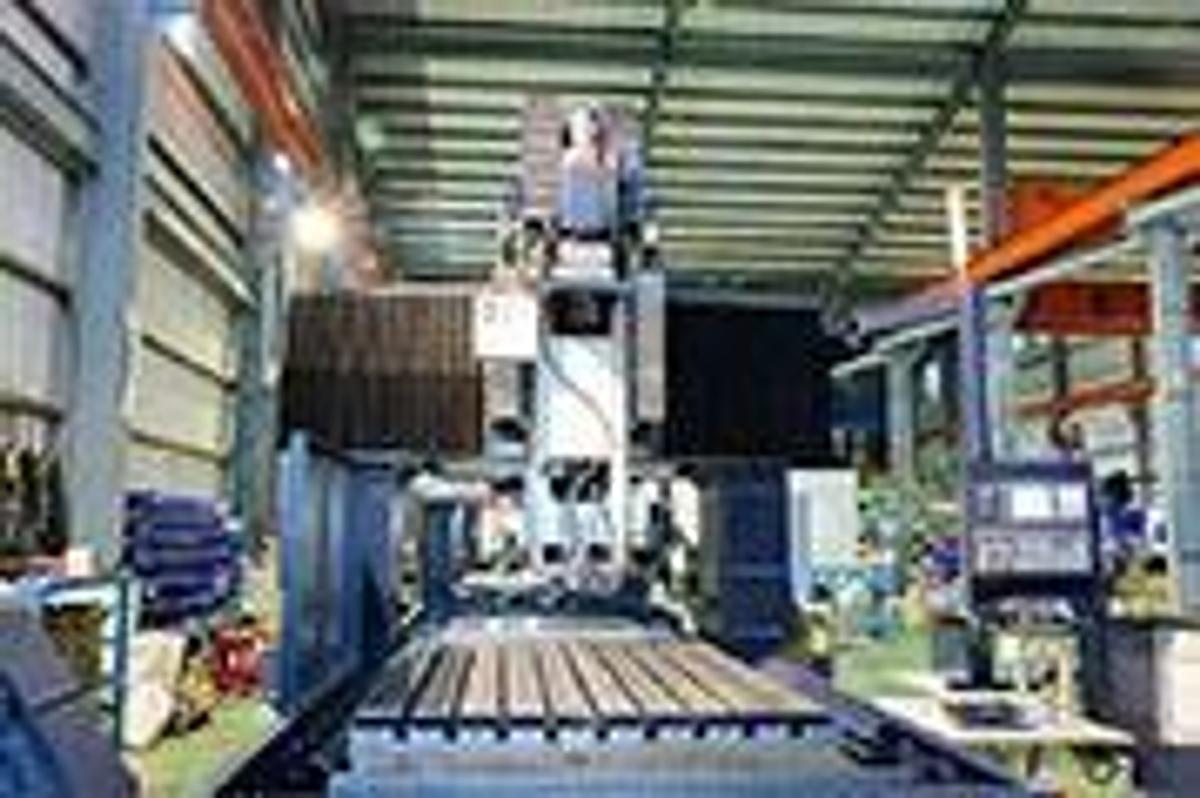

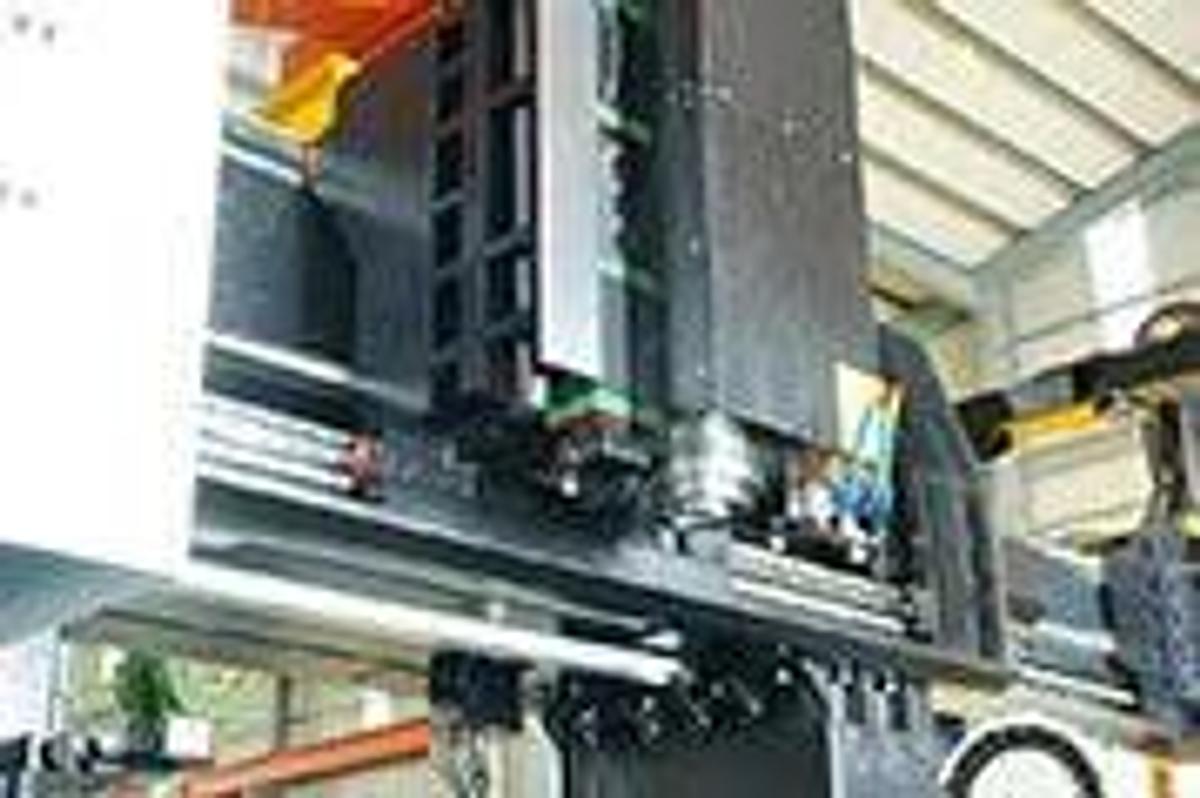

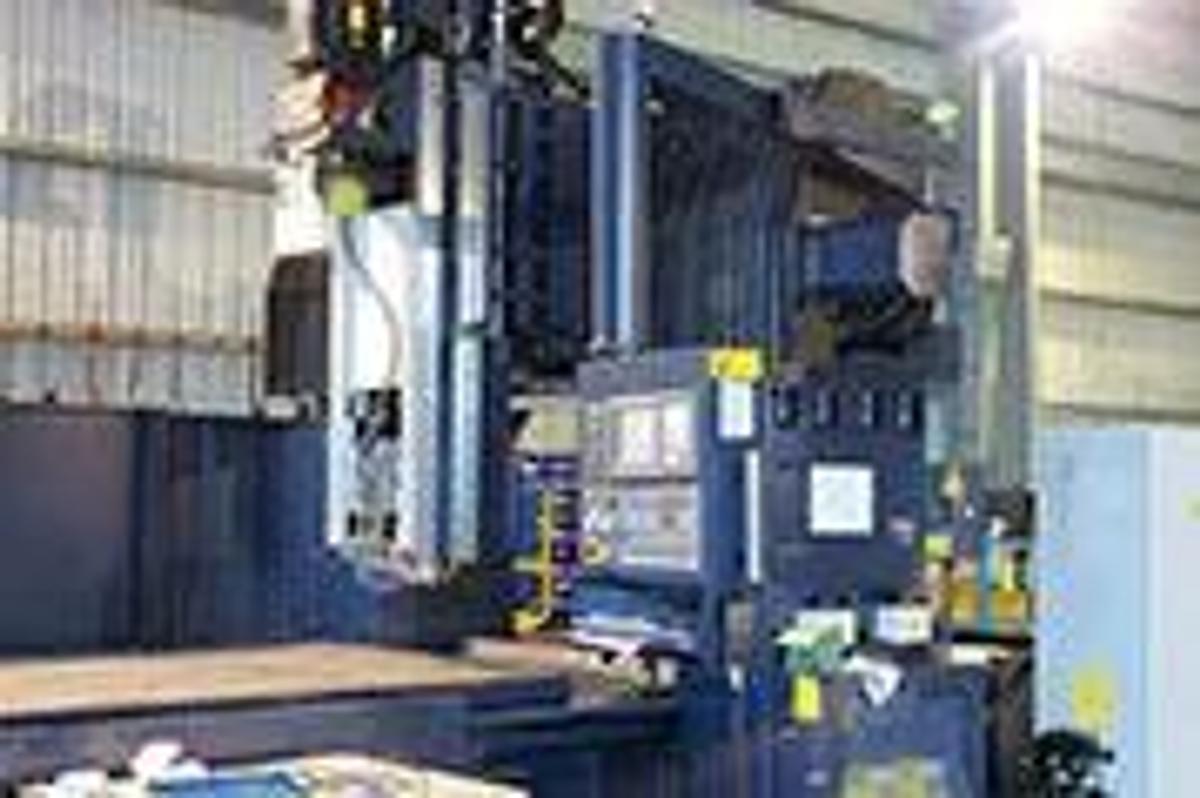

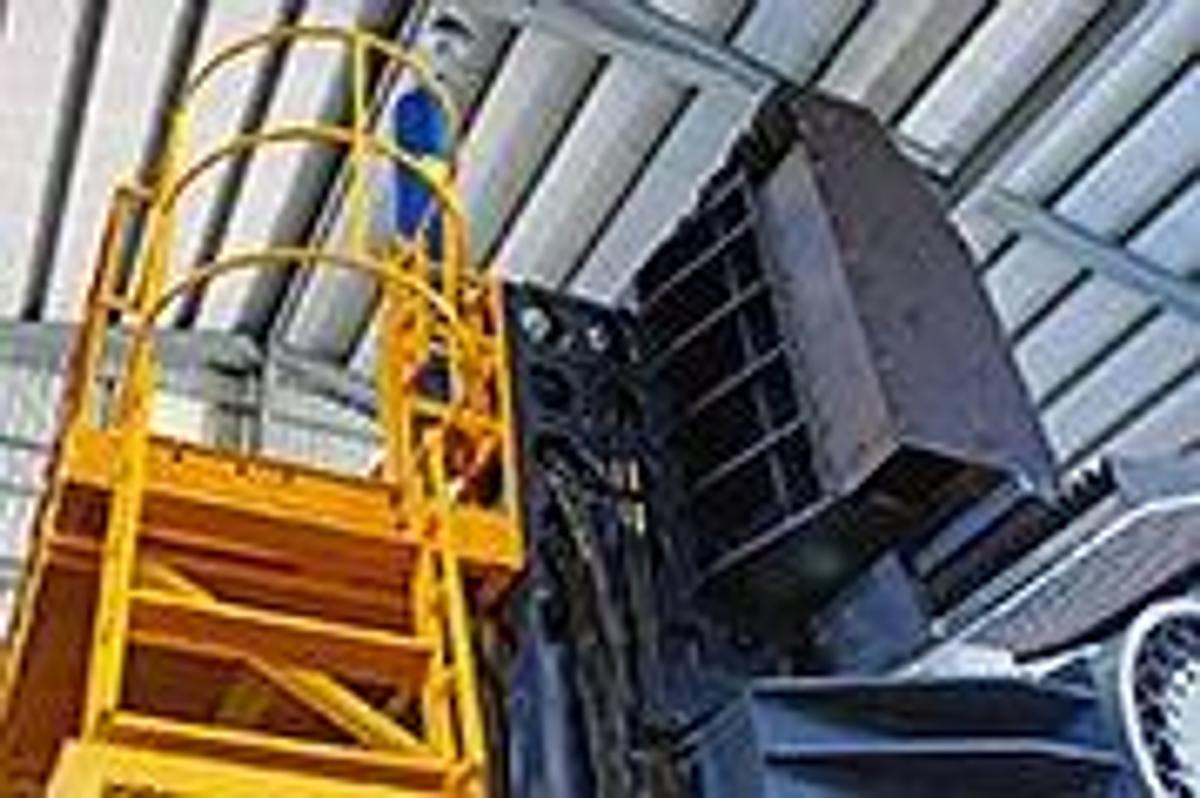

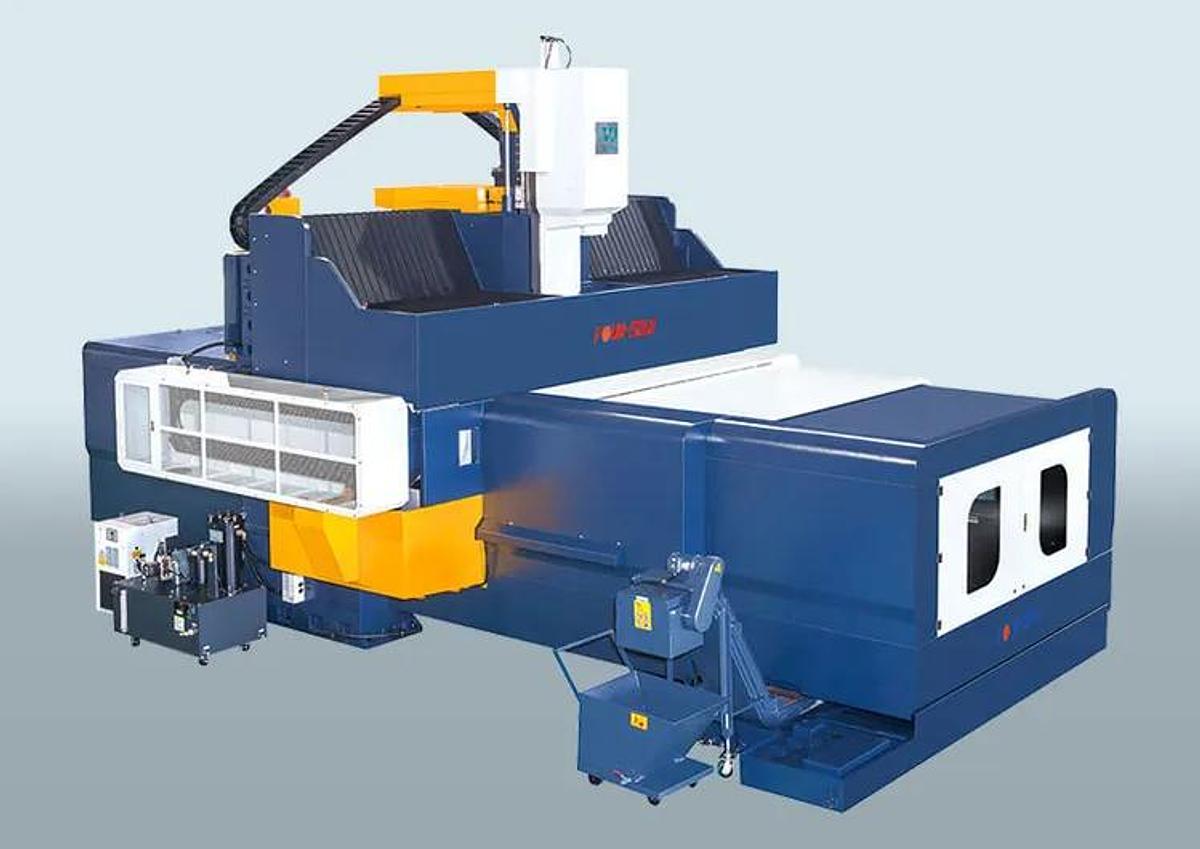

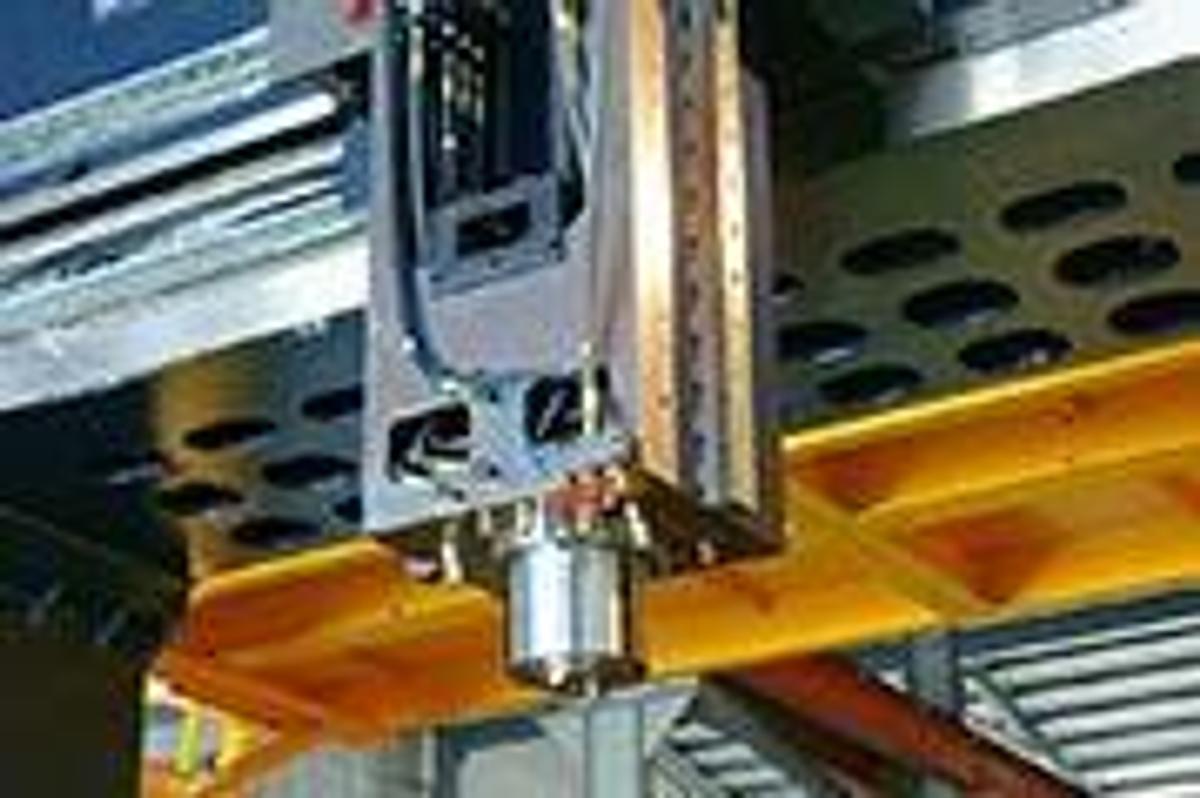

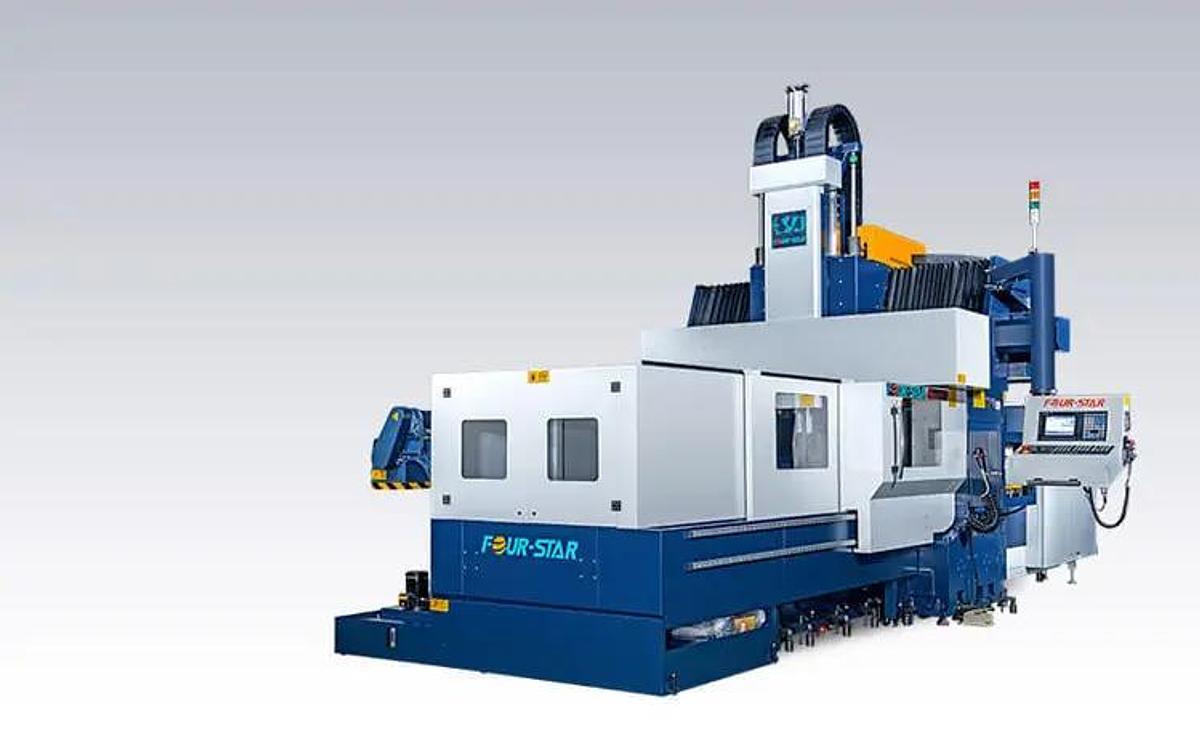

FOURSTAR Fixed Double Column Ganty Machining Center, Model FD-1842

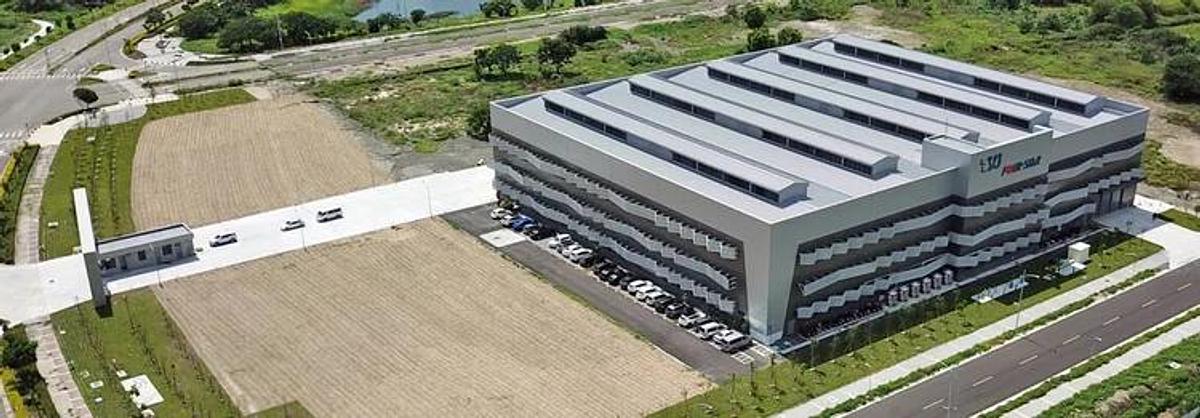

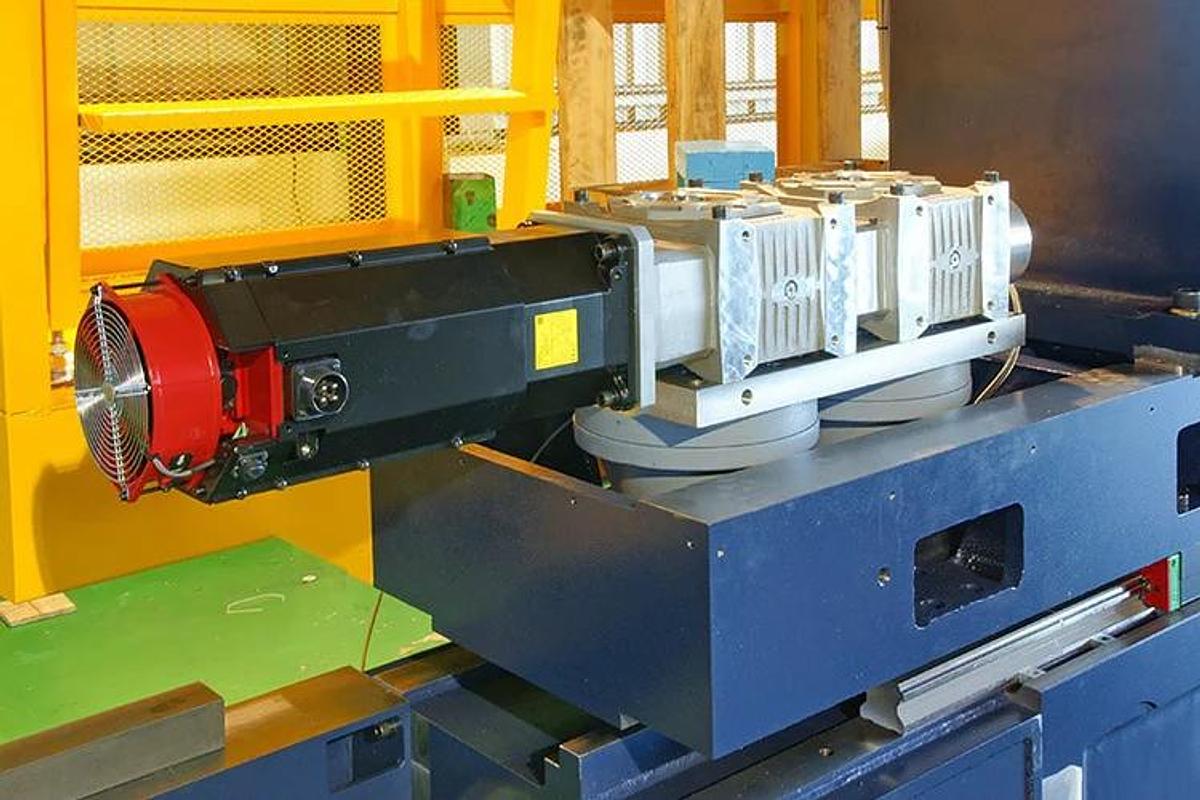

FOURSTAR Fixed Double Column Ganty Machining Center, Model FD-1842 YONG JU (Y.J.) PRECISION TECHNOLOGY CO.,LTD. is located at Taichung, Taiwan that established by several technician and expertise who deeply loves research, development and challenge in this field. Our specialized main products are CNC double column machining center. Our build FOUR-STAR : excellent, confident, intellect, service on enterprise spirit. FOUR-STAR represent excellent, confident, intellect, service. We provide our products and service with variety, humanity & optimization within enterprise life extended by its customers absolutely satisfaction. Cooperate with Japan premium company for developing all type high speed high precision double column machining centers to afford allcustomer over world. Standard accessories : FANUC 0iMF + 10.4"LCD GTP 2G250 H/L gearbox 1. Spindle cooler l 2. Spindle air blast 3. Cutting coolant system 4. Auto lubrication system 5. Program end alarm light 6. Rigid tapping 7. Electrical cabinet heat exchanger 8. USB/RJ-45/Ethernet interface 9. N2 counter balancing system 10. Air/water cleaning equipment 11. Dual screw type chip remover 12. Steel-belt type chip conveyor with cart 13. Operator's manua 14. Working lamp 15. Tools kit 16. ATC auto door 17. Foot switch for tool released 18. X /Y /Z axis with ball screw 19. X /Y /Z axis linear guideway 20. Semi enclosure splash guard 21. X axis telescopic cover+Y axis Javara cover 22. Operator monitor+MPG bolts 23. Base leveling screw & foundation Optional accessories : 1) CTS 20-40 bar for main spindle $5,720.00 2) Semi enclosure splash guard → Full enclosure splash guard $8,970.00 Total Options $14,690.00 Optional Accessories Mitsubishi/Siemens/Heidenhain Direct drive spindle(8000~15000rpm) Buit-in Spindle(15000~24000rpm) Spindle with CTS Gearbox with CTS 90° head(Auto, Semi, Manual) Extend head (Auto, Manual) AC swiveling head (Auto, Manual) AHC system (for auto head) Toggle head stand (for semi/manual head) Five face head (Fixed type) Universal head (Fixed type, Manual) Y travel extend 650mm Transformer X, Y, Z axis linear scale Tool length measurement Auto work piece measurment CNC rotary (index) table Coolant thru tool holder device Full enclosure splash guard Oil skimmer Power 30/37kW + GTP 2G300(4500rpm) Heavy duty RAM 550 x 550(above FD-28) Heavy duty RAM 650 x 650(above FD-42) 1) Warranty : In normal operation, 12 months mechanical parts and 24 months CNC controller after shipment from our factory. Replacing non-artificial damaged parts during warranty period will need to return the damaged parts or provide photo. 2) Acceptive test before shipment at FOUR-STAR factory according to FOUR-STAR standard. Excluding heavy cutting and Turn-key application. FD-1842 Fixed Double Columns Machining Center X /Y /Z travel： 4200/165.35" /1800/70.87" /800 mm Distance between columns : 1800mm(without splash guard) Table size: 4000mm/157.48"×1500mm/59.06" Ram size: 450/17.72"*400mm/15.75" (4 guide way) Spindle： CAT-50, 6000rpm, 22/26kW, gearbox 1:4 Spindle nose to table: 120/4.72"-920mm/36.22" (confirmed by drawing) Controller: Fanuc 0iMF PLUS+10.4"LCD Cutting feedrate: 7 m/min Diameter / tool weight Max: Φ110(full tools); Φ220(Adjacent)/ 18Kg / 380mm Maximum table load： 18 ton/36,000 LBS Machine size L/W/H (approx)： 11.1/4.5/4.5m Machine weight (approx) 33 ton/66,600 LBS
