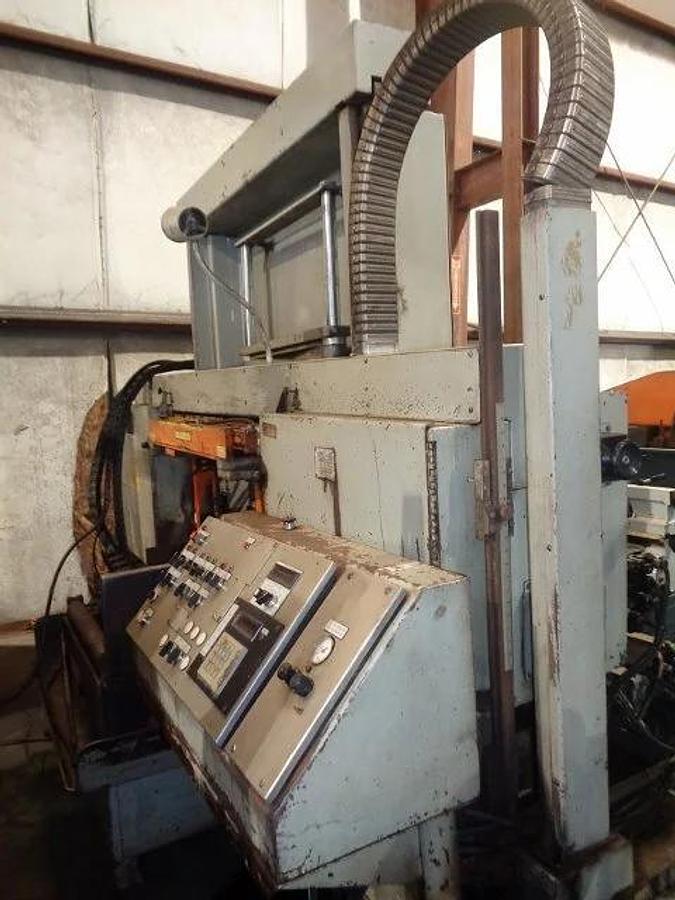

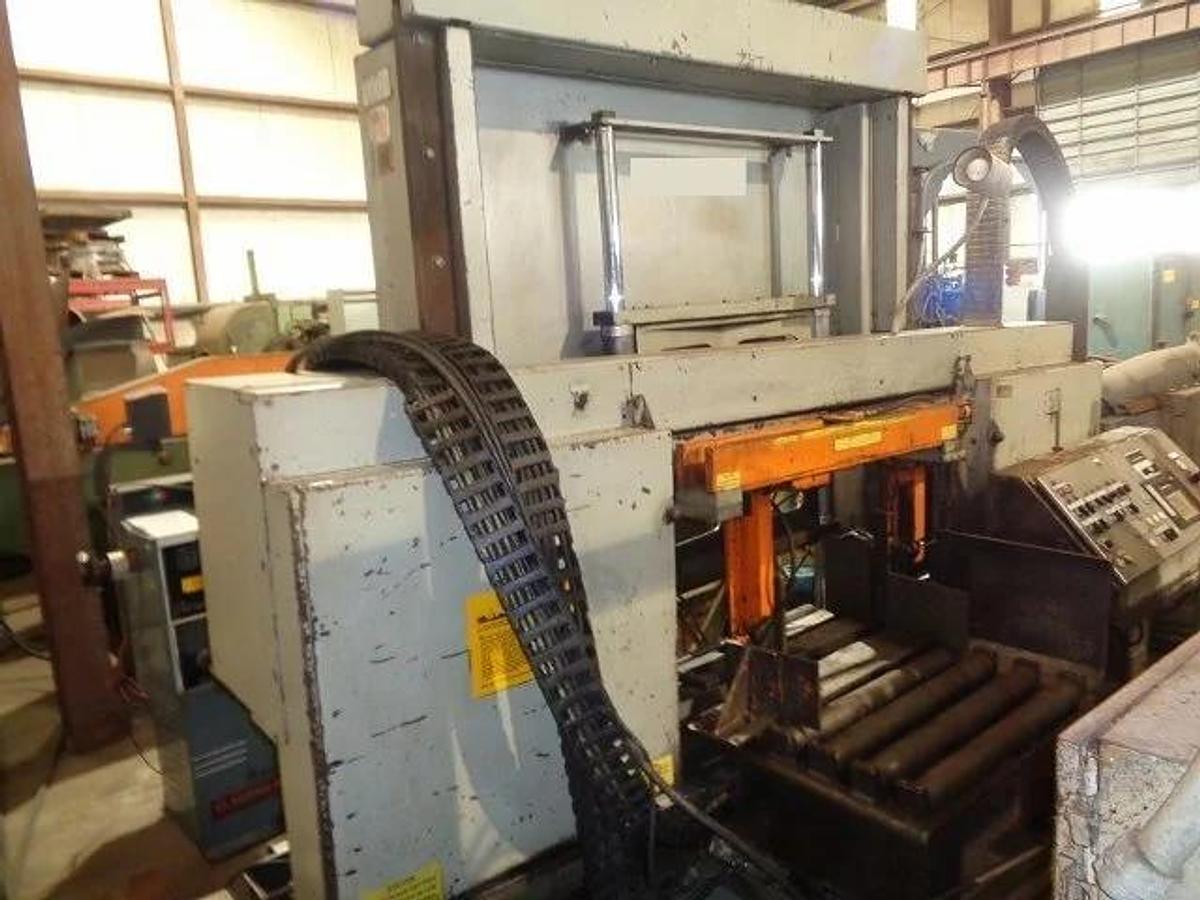

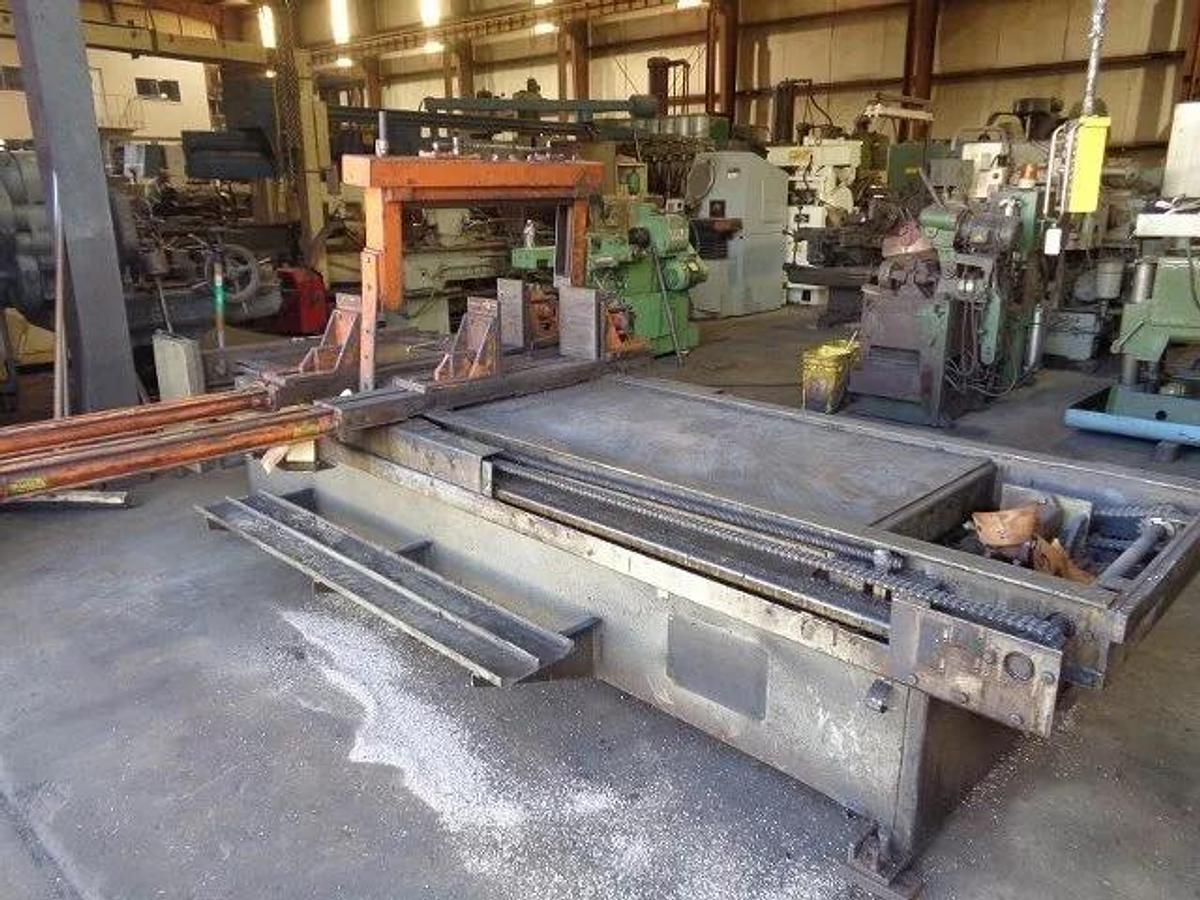

18" x 27" HEM #F130HA-DC DOUBLE COLUMN PROGRAMMABLE AUTO. HORIZONTAL BAND SAW, 1996

18" x 27" HEM #F130HA-DC DOUBLE COLUMN PROGRAMMABLE AUTO. HORIZONTAL BAND SAW, 1996 HE&M Saws are in operation all over the world, where we are known for quality and durability and continue to lead the world in new saw technology. HE&M Saw manufactures more than 70 different models of production band saws for the metalworking industry. Our product line includes vertical, horizontal, plate and double column saws with capacities ranging from 12" x 12" to 60" x 60" machines, larger capacity saws can be built for your needs. Automatic material handling tables and other time-saving features are available as options. EQUIPPED WITH --- 2 HYDRAULIC VISES POWERED MOVEABLE GUIDE ARM OPTIONAL 3RD HYDRAULIC VISE ON FEED TABLE POWERED LENGTH POSITIONER COMPUTER CONTROLLED FEED SYSTEM POWERED BLADE TENSION DOUBLE COLUMN (2) HYDRAULIC BUNDLING VISES CUT WATCHER BLADE MONITOR SYSTEM VARIABLE BLADE SPEED TOP CLAMP FOR BUNDLING DISCHARGE TABLE MULTIPLE INDEX COOLANT SYSTEM OPTIONAL 72" BAR FEED STROKE FULL STROKE VISES HYDRAULIC UNIT CHIP AUGER CANTED HEAD, 2 DEGREE TILT CAPACITY --- ( ROUND ) -------------------- 18" DIAMETER CAPACITY --- ( RECTANGULAR ) -------------- 18" X 27" VISE SHUTTLE STROKE ----------------------- 0 TO 72" BLADE SIZE -------------------------------- 1.5" X .050" THICK X 22'2" LONG BLADE SPEEDS ------------------------------ 80 TO 400 FPM MAIN DRIVE MOTOR -------------------------- 10 HP AC HYDRAULIC MOTOR 2 HP A.C. APPROXIMATE MACHINE WEIGHT ---------------- 8,500 LBS
