Description

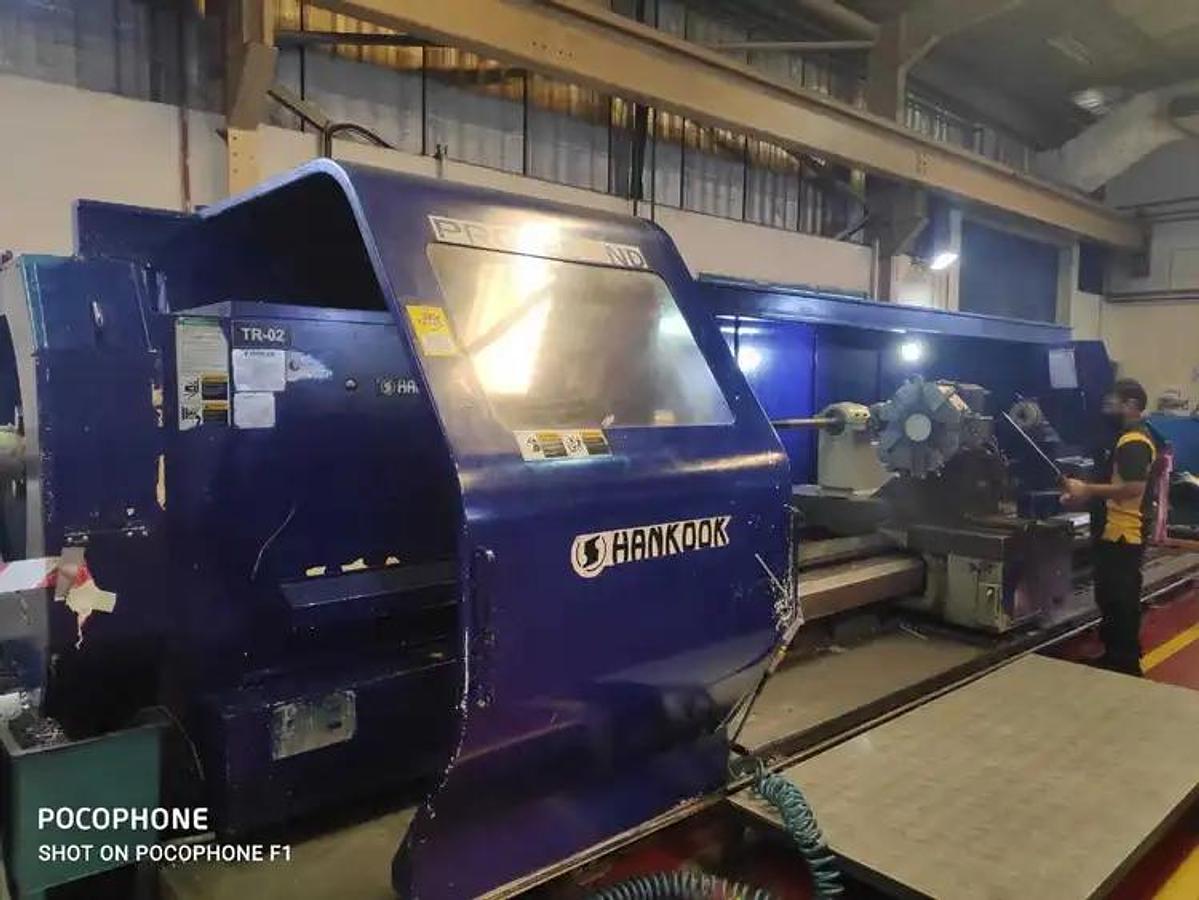

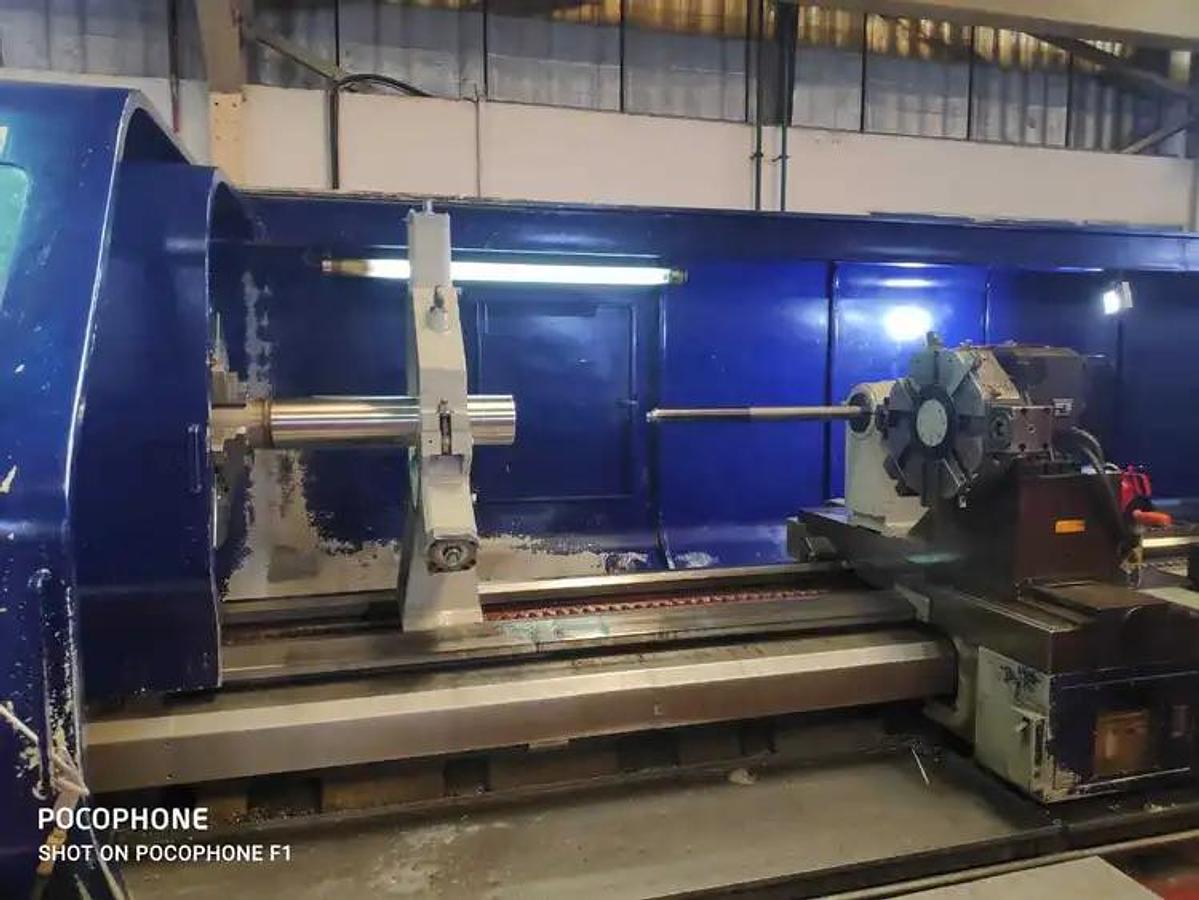

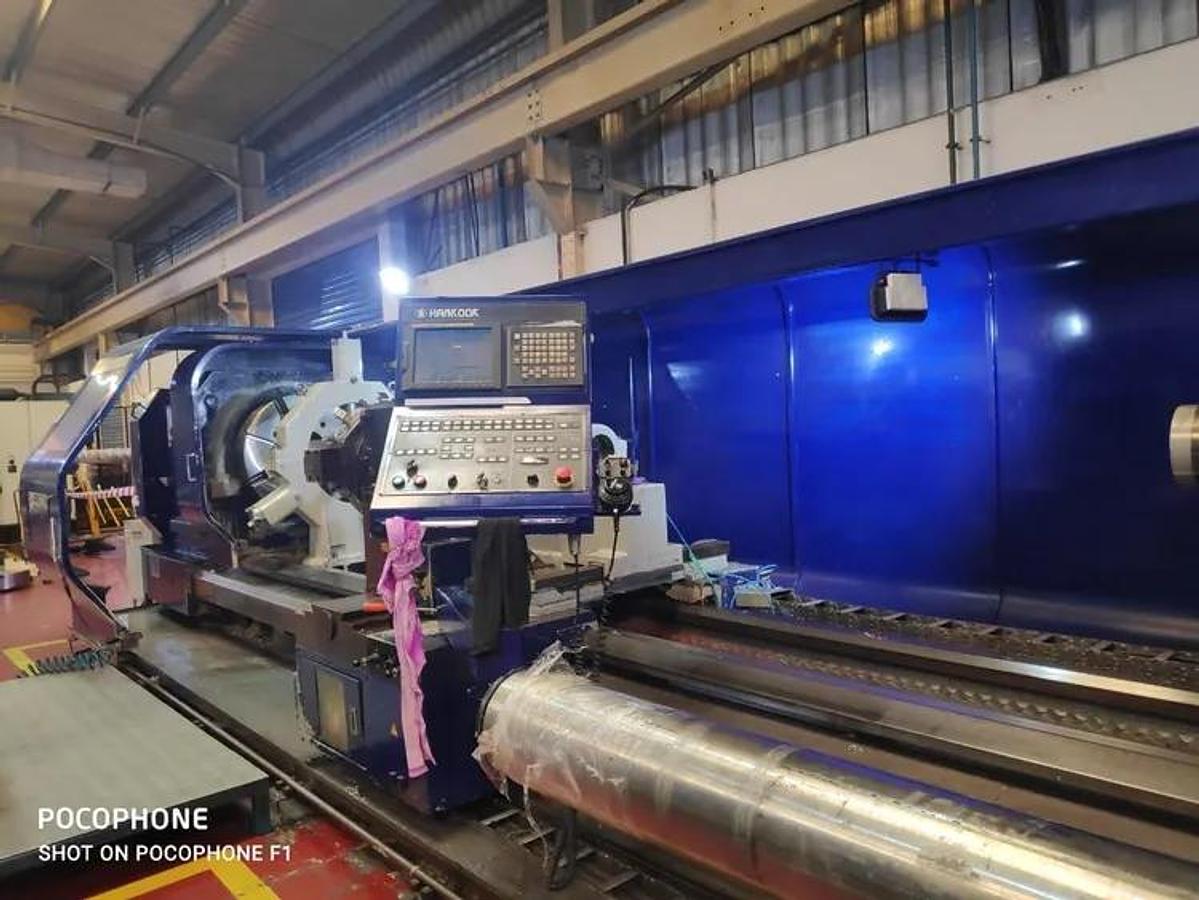

2009 HANKOOK Oil Country Lathe Model Protec 13ND
Steady rest ø (mm) ■
Coolant attachment ■
8 position turret Toolpost
Year of Manufacture 2009

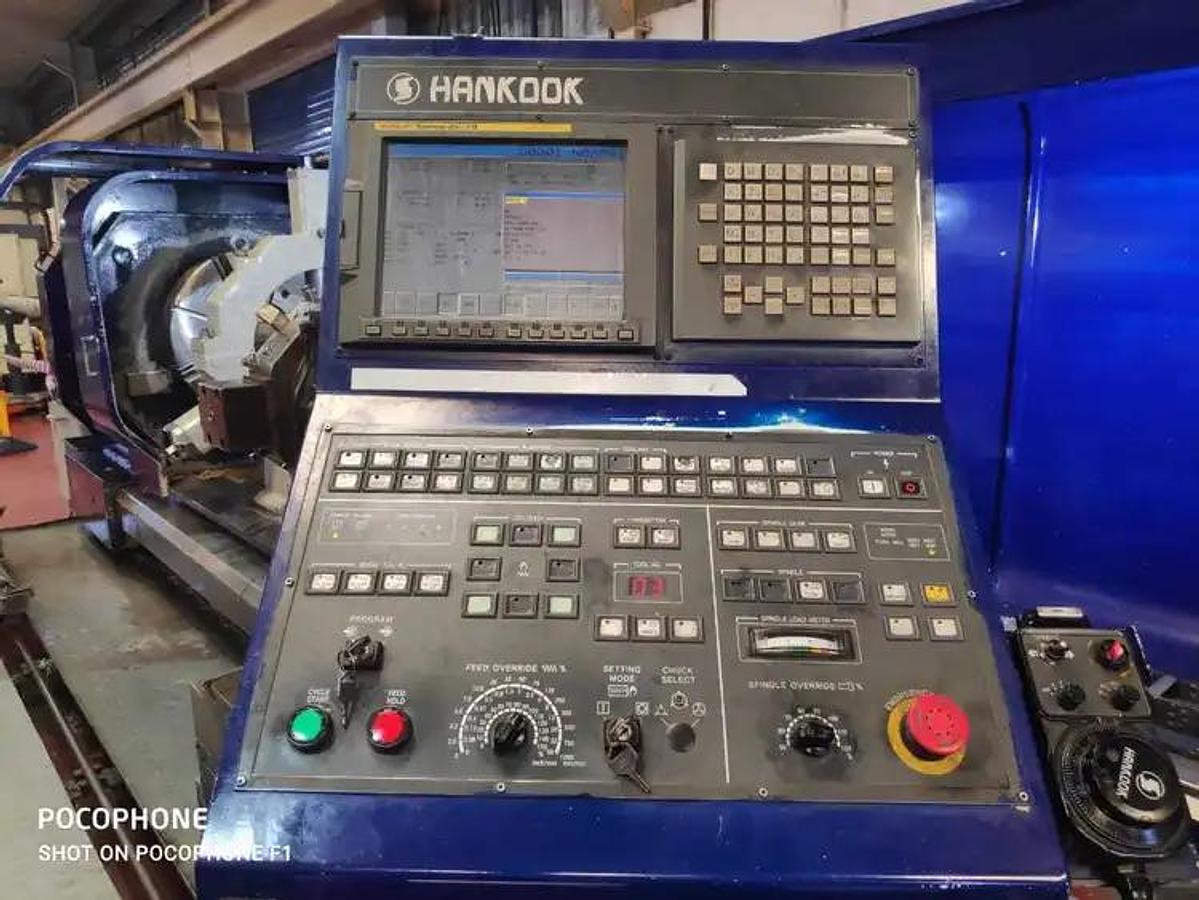

Control Fanuc 21iTB
Centre distance (mm) 5000
Max swing over bed (mm) 1300
Max swing over cross slide (mm) 940
Spindle bore (mm) 320
R.P.M. 1 - 630
kW 30/37
Volts 380V
Cycles 50
Steady rest ø (mm) ■
Coolant attachment ■
8 position turret Toolpost
Specifications
| Manufacturer | HANKOOK |
| Model | PROTEC-13N/5000 |
| Year | 2009 |
| Condition | New |
| Stock Number | 22182 |
| Status | For Sale |
| Swing | 51.2"; 1,300.5 mm |
| Machining Length | 197"; 5,003.8 mm |
| # Axis | 2; 2 |
| Bar Capacity | 12.6"; 320.04 mm |
| Power | 45 kW; 60.3 hp |
| Max RPM | 630 RPM; 630 RPM |
| Tailstock | Yes; Yes |
| Live Tooling | No; No |
| Sub Spindle | No; No |
| Control | CNC (FANUC 21i-TB); CNC (FANUC 21i-TB) |
