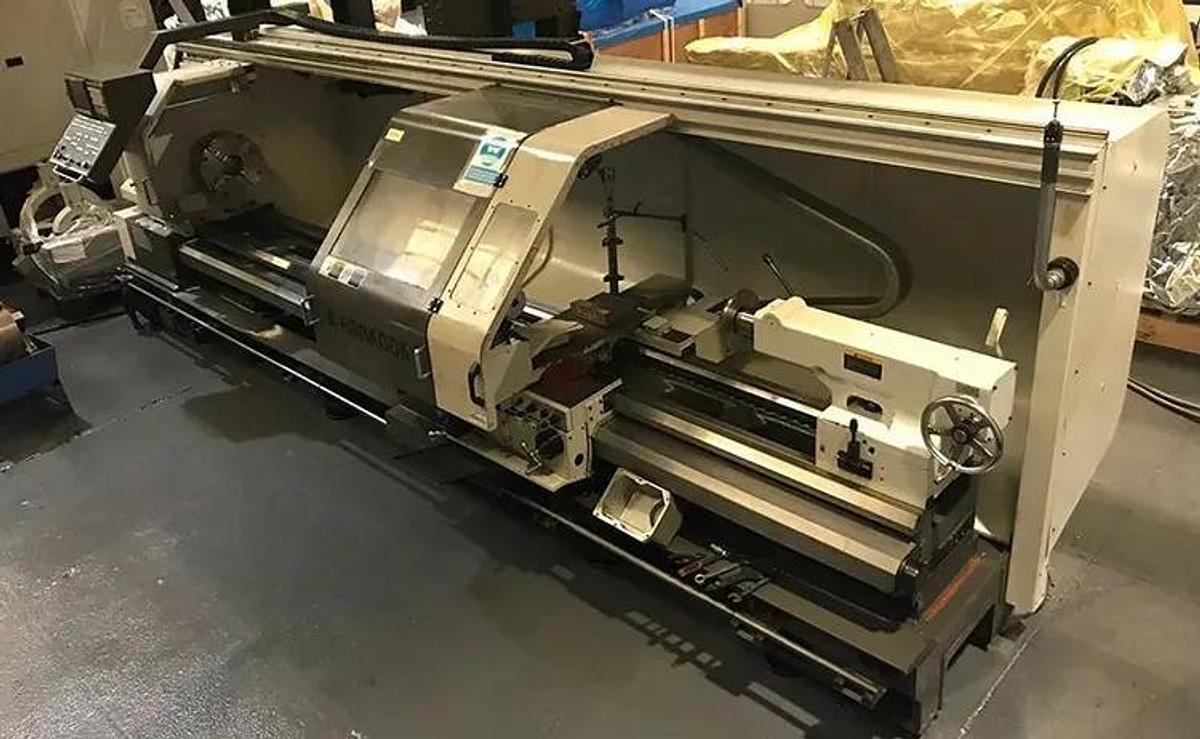

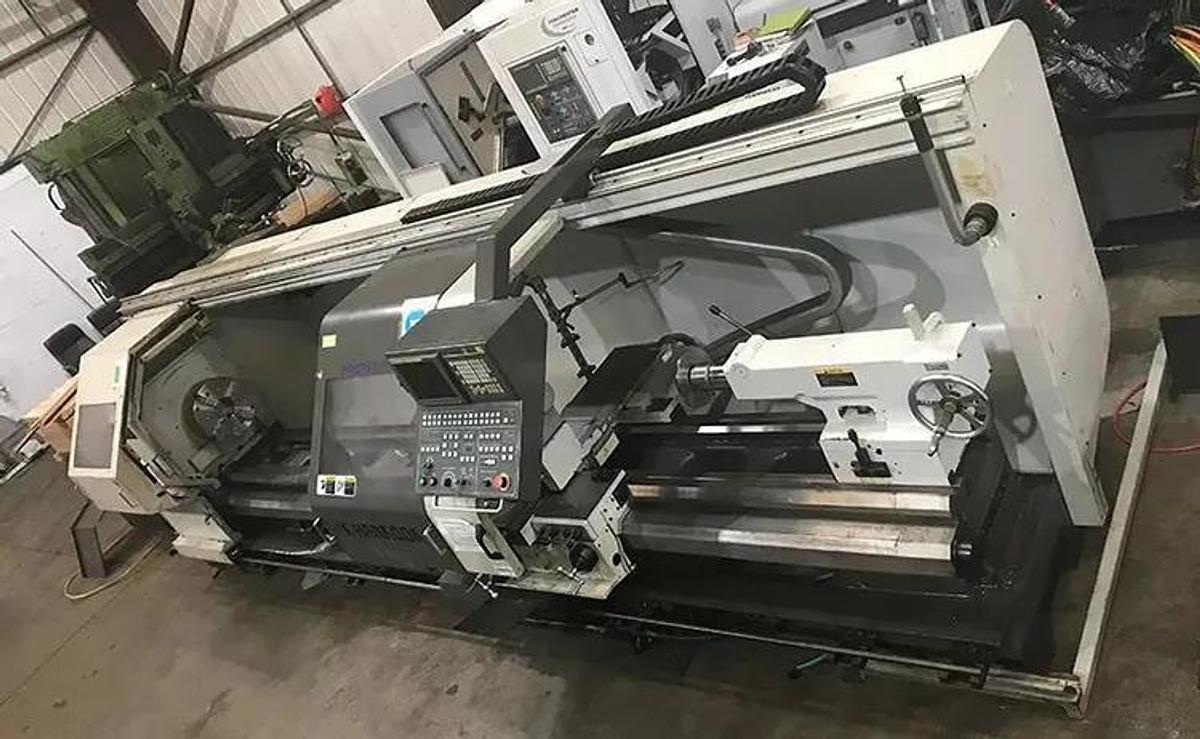

HANKOOK 7NB x 4000 CNC Lathe with FANUC 21T Control

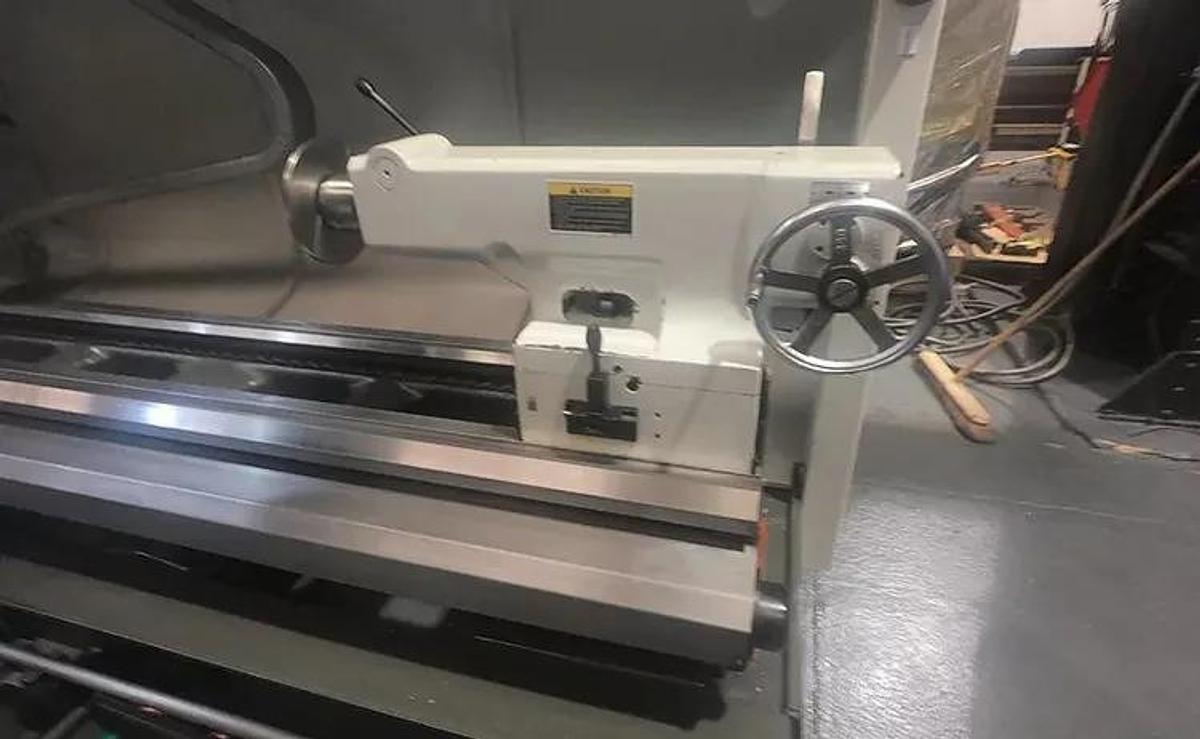

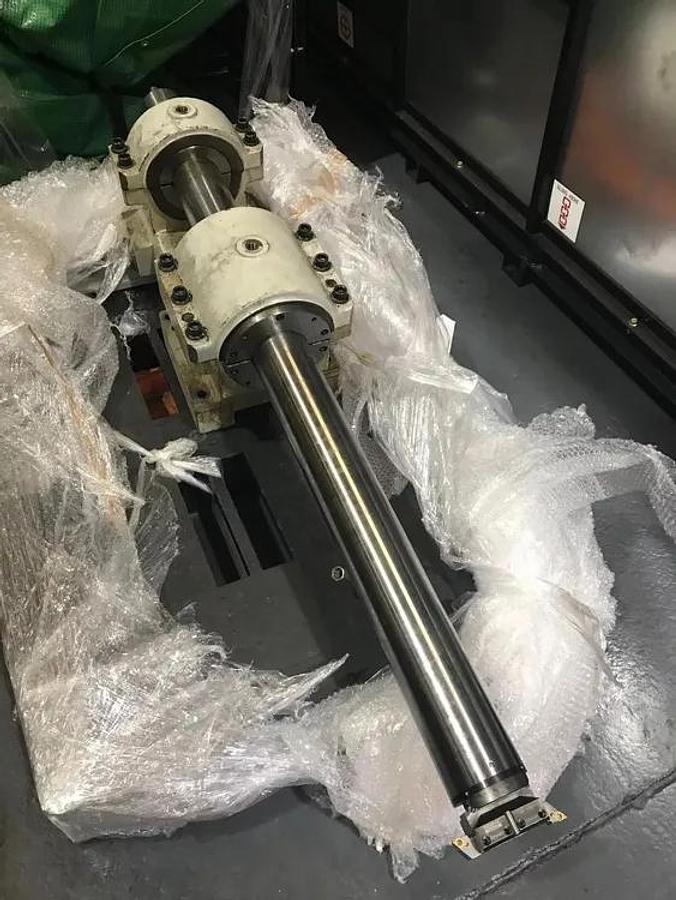

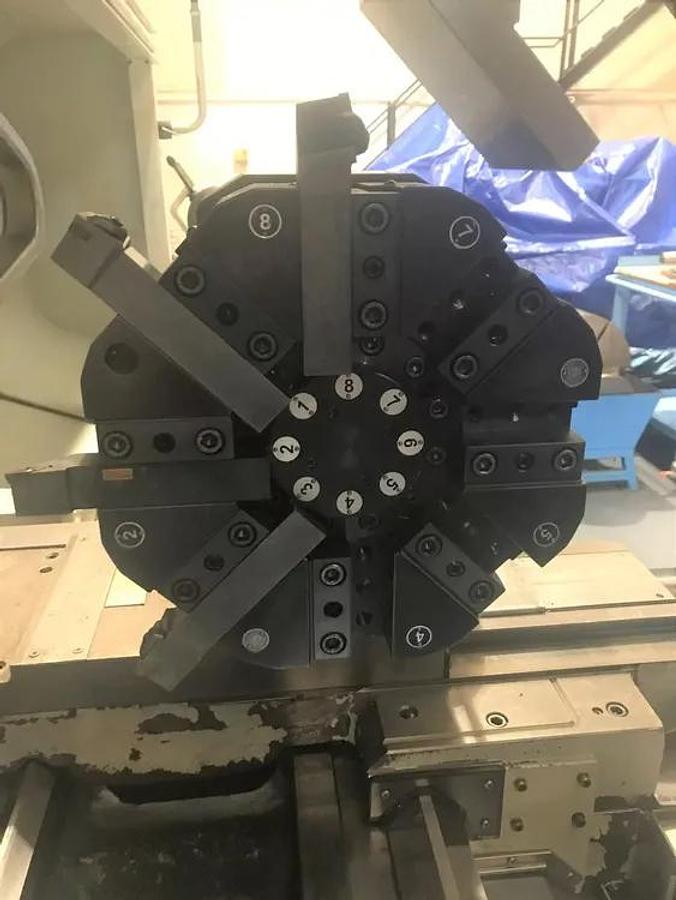

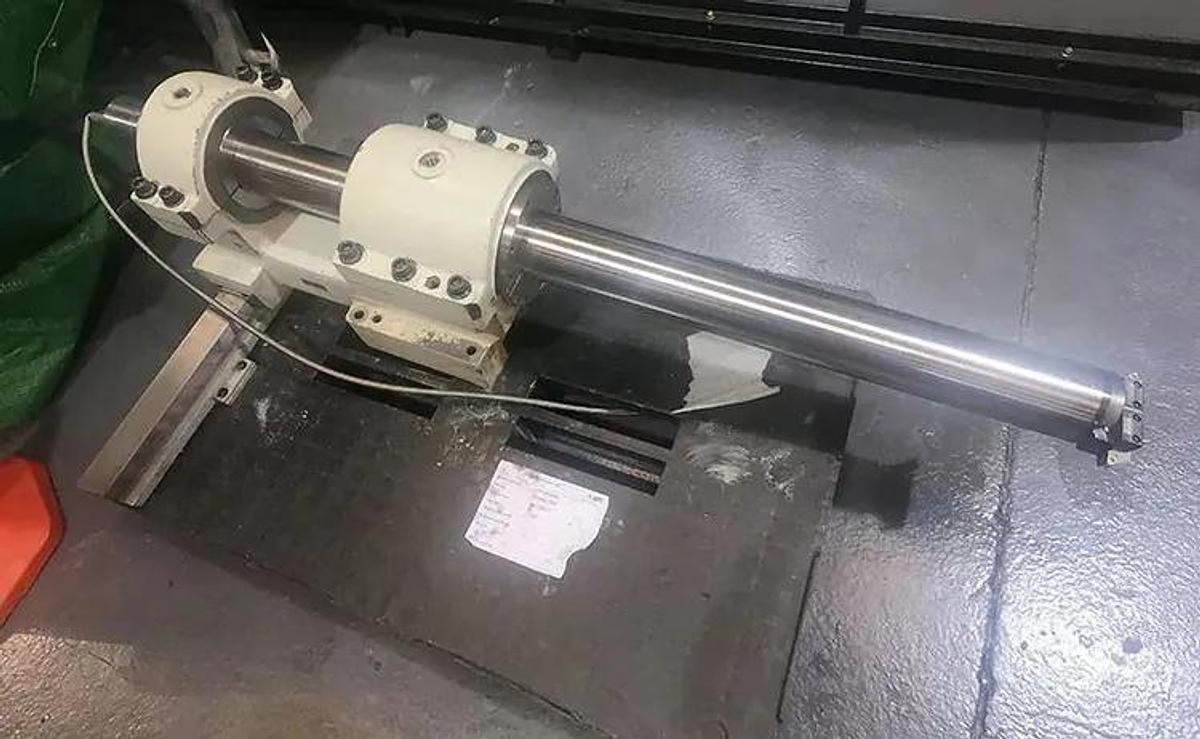

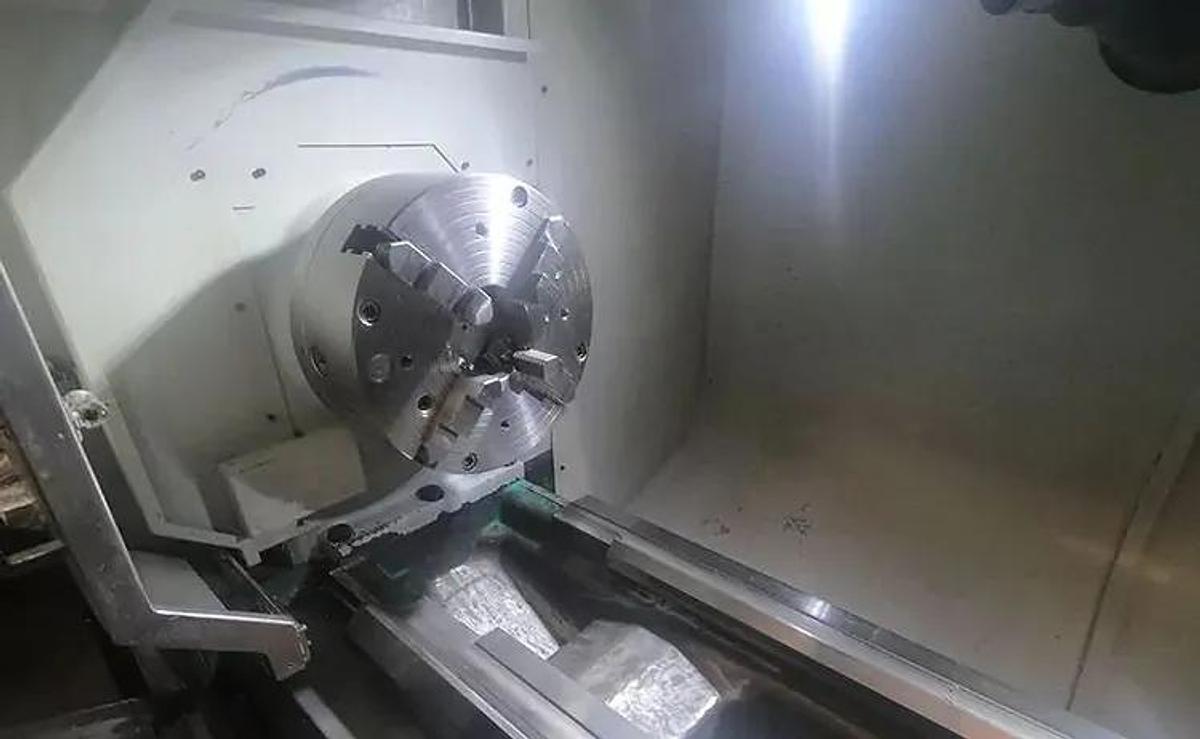

HANKOOK 7NB x 4000 CNC Lathe with FANUC 21T Contro l• Heavy One-Piece Cast-Iron Bed Construction. • Heavy Duty Hardened & Ground Solid Slideways. • 2 Step Gear Change. • Heavy Duty Tailstock. • Short LNS Swarf Conveyor. • V8 Automatic Turret. • Fanuc 21it CNC Control with Manual Guide-I & Colour Screen. • Removable tool Setting Arm ACCESSORIES & EQUIPMENT • Modified Guarding For Long Boring Bar • 20” 4-Jaw Manual Chuck • Steady Rest 50 ~ 250 MM • Steady Rest 250 ~ 450 MM • Algra Automatic 8 Station Turret • Boring Bar Attachment 100 MM Diameter • 60 MM Diameter Boring Bar Toolholder (1 Off) • Inch Metric Conversion • Custom Macro B • Additional Block Skip • G Code System B/C • Programmable Data Input • Actual Spindle Speed Output • Tool Offsets 32 Pairs • Extended Part Program Edit • Manual Guide I • External I/O Device Control • External Data Input • High Skip PLEASE NOTE: The information contained herein is provided in good faith based upon the information available to us however due to unforeseen errors and/or omissions cannot be binding as to accuracy. MACHINE CAPACITIES Swing Over the Bed Ø 750 MM Swing Over the Carriage Ø 480 MM Maximum Turning Diameter Ø 750 MM Distance Between Centres 4,000 MM Load Capacity Between Centres 3,000 KGS SPINDLE Spindle Bore Ø 176 MM Spindle Nose A2-11” Spindle Speed 3 ~ 1,000 RPM Spindle Speed Range MANUAL 2 STEP Spindle Centre Taper MT#6 CARRIAGE Type of Tool Post Auto V8 Turret Tool Size 32 MM² X-Axis Travel (Cross) 425 MM Z-Axis Travel (Longitudinal) 3,935 MM X-Axis Rapid Traverse 3 M / MIN Z-Axis Rapid Traverse 6 M / MIN TAILSTOCK Tailstock Quill Diameter Ø 112 MM Tailstock Spindle Taper MT#6 Maximum Quill Travel 200 MM BED Bed Width 500 MM Bed Length 5,505 MM MOTORS Spindle Motor increased power option (30 Min / Cont.) AC 15.0 / 18.5 KW X-Axis Servo Motor (Power) 1.2 KW X-Axis Servo Motor (Torque) 8.0 NM Z-Axis Servo Motor (Power) 3.0 KW Z-Axis Servo Motor (Torque) 22.0 NM SIZE & WEIGHT Length (Excluding Conveyor) 5,805 MM Width 1,705 MM Height 1,985 MM Weight 5,520 KGS
