Description

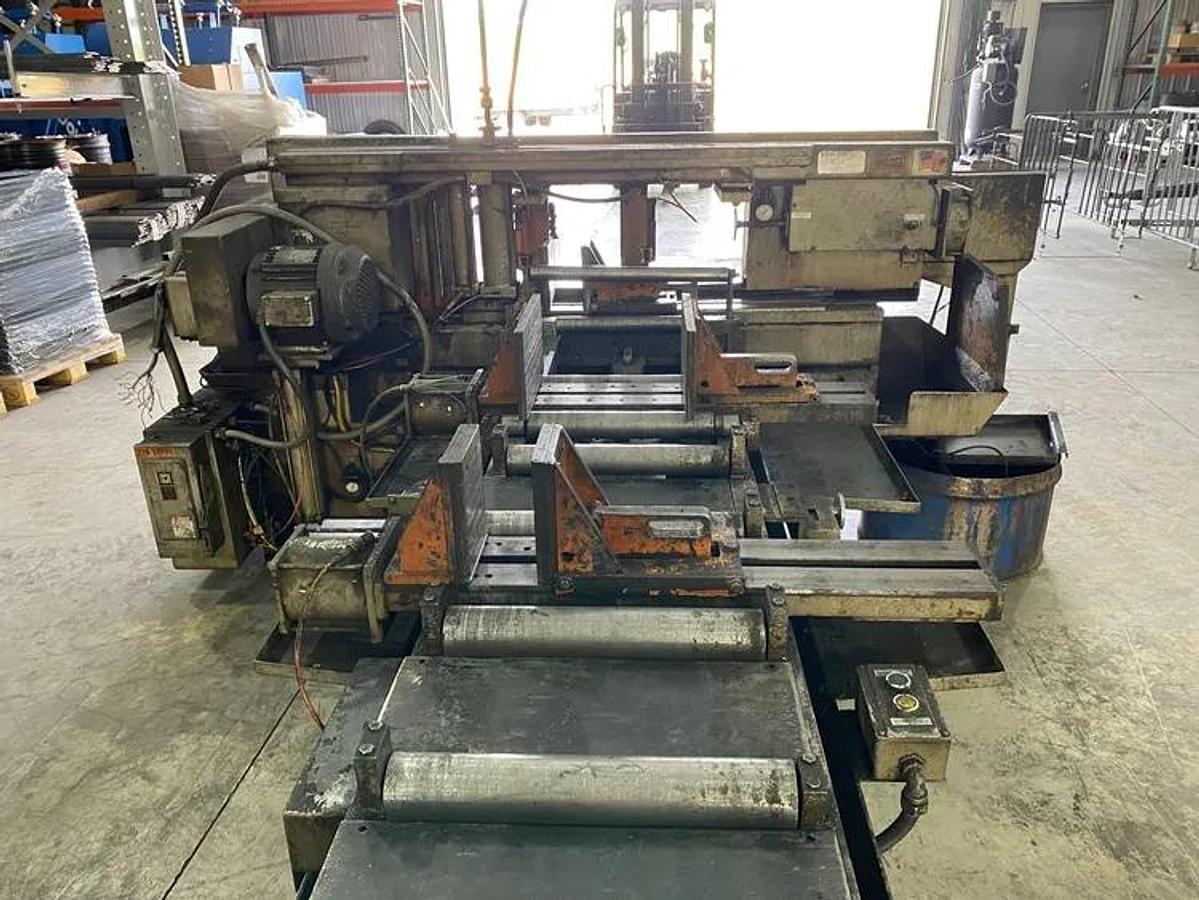

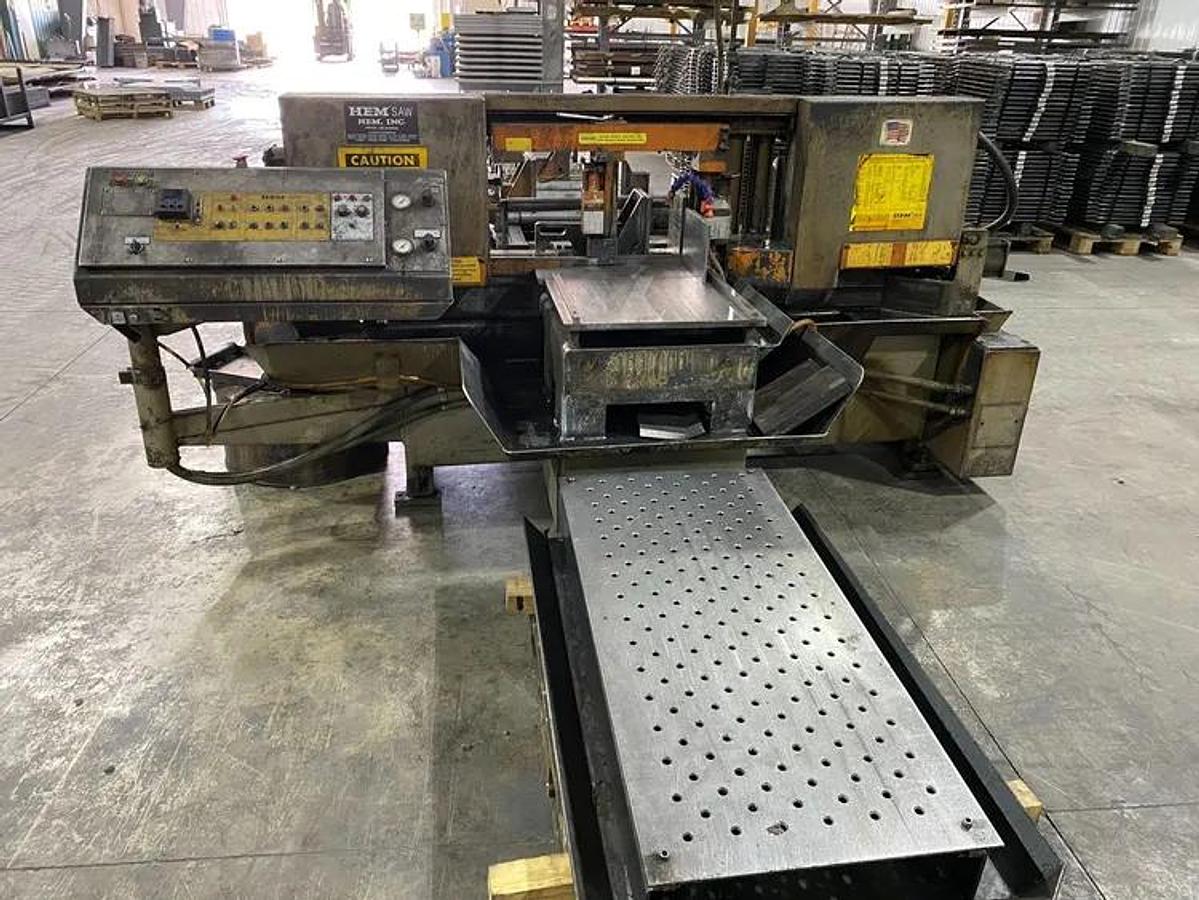

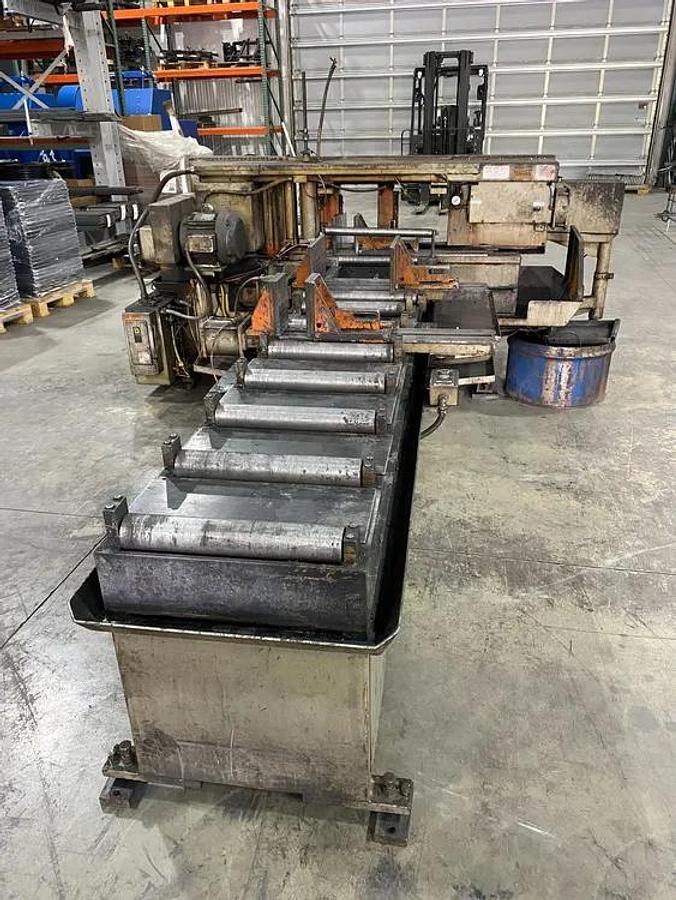

HEM H120A AUTOMATIC HORIZONTAL BAND SAW, 14" Round, 16" Flat, 1/1/4" Blade
Specifications: Experience precision cutting with the Hem H120A Bandsaw, a robust addition to any metal fabrication shop. With a three-phase electric power source and variable speed pulley drive, this bandsaw is designed for both manual and automatic control, offering versatility and efficiency in a variety of cutting tasks. It boasts a maximum cutting capacity of 14 inches in round stock and 16 inches in width, making it suitable for a wide range of materials.Equipped with a reliable 220/440 voltage system and constructed with precision, the Hem saw model year 1995 is a testament to durability and performance. Whether you’re cutting through steel, aluminum, or other metals, this bandsaw is engineered to deliver clean, accurate cuts consistently.
Capacity square 16" X 20"
Capacity rounds 16"
Blade speed (variable) 60 To 400 Sfpm
Blade dimensions 1.25" W X 15.8" L X .042" Thick
Feed rate 0 To 20 In/Min
Cutting force 0 To 900 Lbs
Stock feed 24" 10 Indexes
Motor 7-1/2 HP
Power 7.5HP 220v/440v AC 3 phase
Specifications
| Manufacturer | HEM |
| Model | H120A |
| Year | 1995 |
| Condition | New |
| Stock Number | 22195 |
| Status | For Sale |
| Rect-Cap (H) | 14"; 355.6 mm |
| Rect-Cap (W) | 16"; 406.4 mm |
| Rounds-Cap | 14"; 355.6 mm |
| Square-Cap | 14"; 355.6 mm |
| Power | 7.5 hp; 5.6 kW |
| Type (Auto, Manual, Semi) | Auto; Auto |
| Blade Width | 1.25"; 31.75 mm |
| Blade Thickness | 0.042"; 1.0668 mm |
| Blade Length | 15'; 4,572 mm |
| Dimensions | 115"L x 70"W x 59"H; 115"L x 70"W x 59"H |
| Weight | 2,750 lbs; 2,750 lbs |
