Description

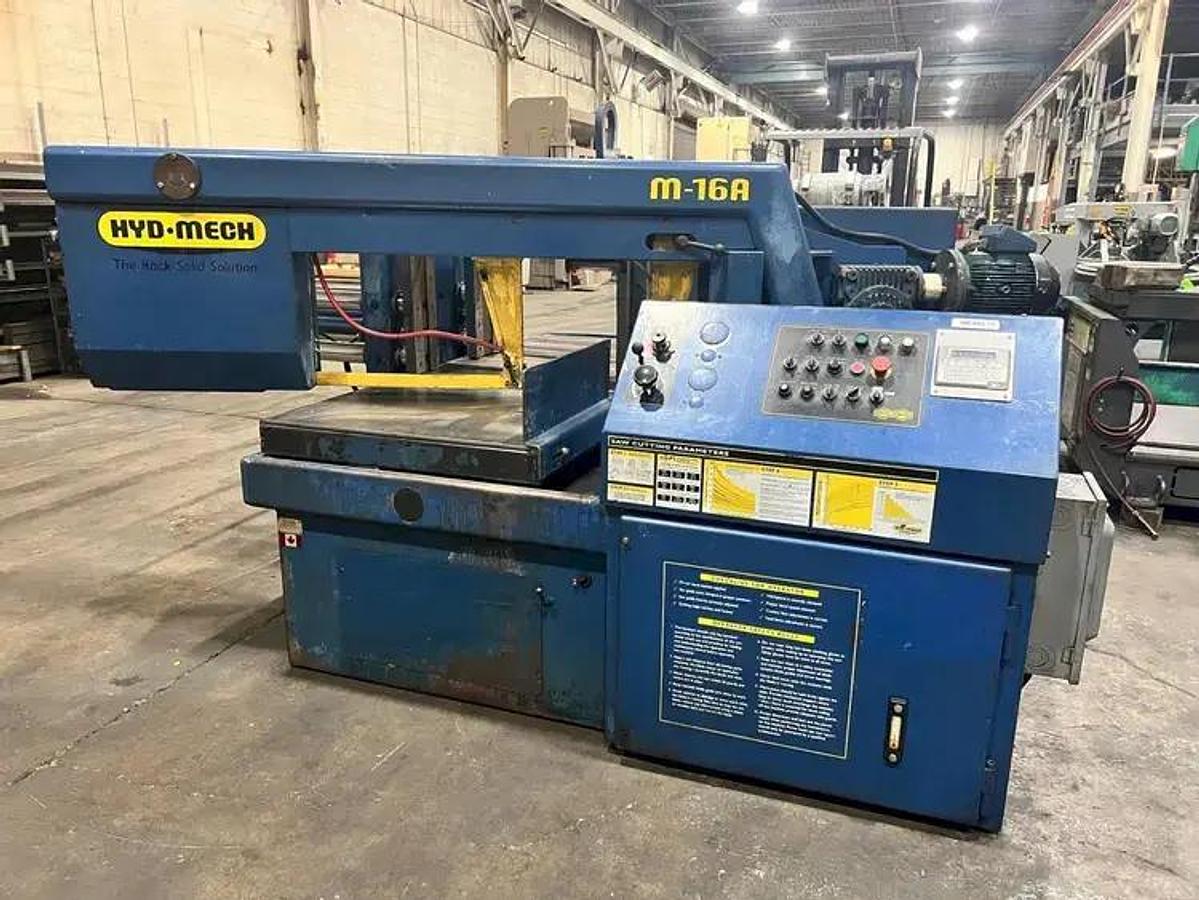

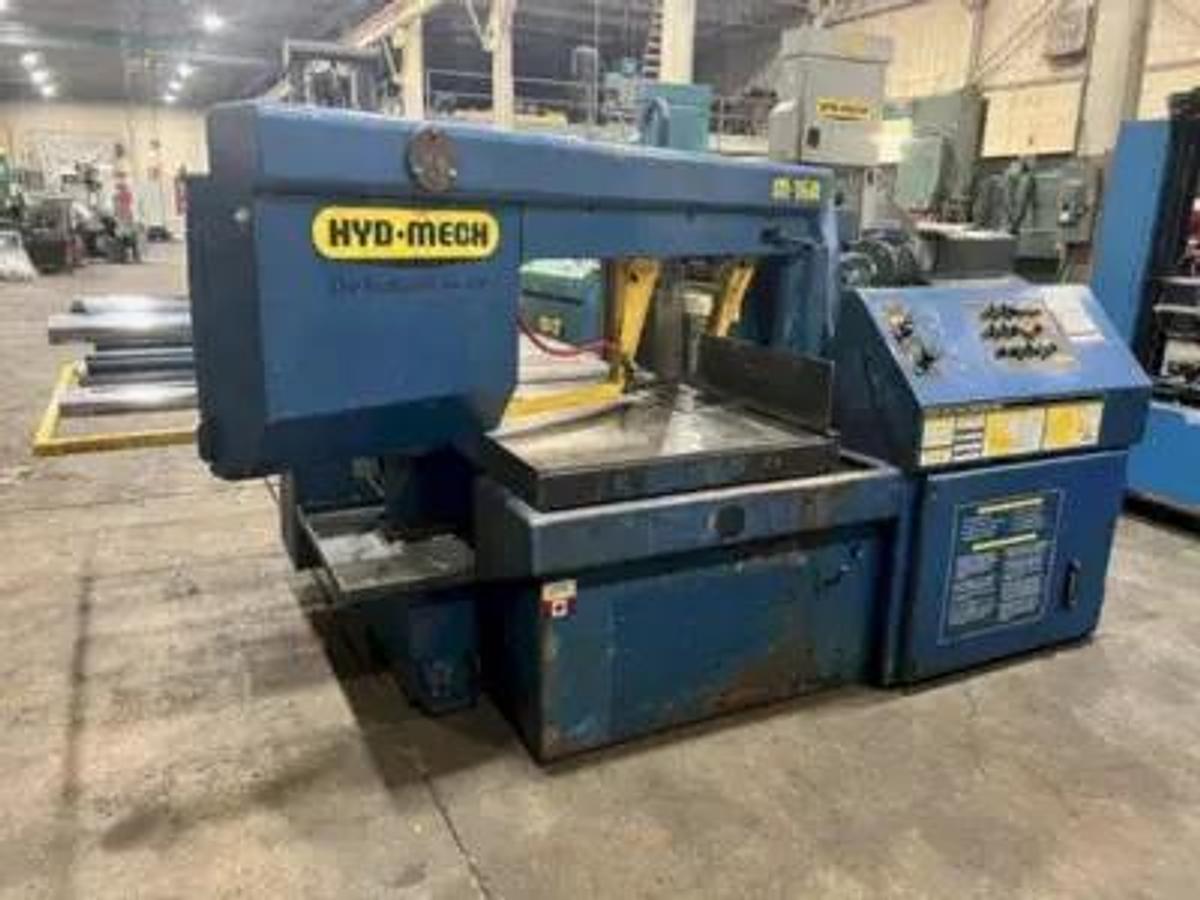

USED HYD-MECH 16" X 25" AUTOMATIC HORIZONTAL MITERING BANDSAW MODEL M-16A, Year: 2000
HYD-MECH M-16A Miter Saw from 2000 in used condition offers precision with 16" x 25" capacity at 90 degrees, 220V, and 5 H.P. motor. Features hydraulic controls, PLC storage, and advanced blade technology for optimal performance.
Equipped With

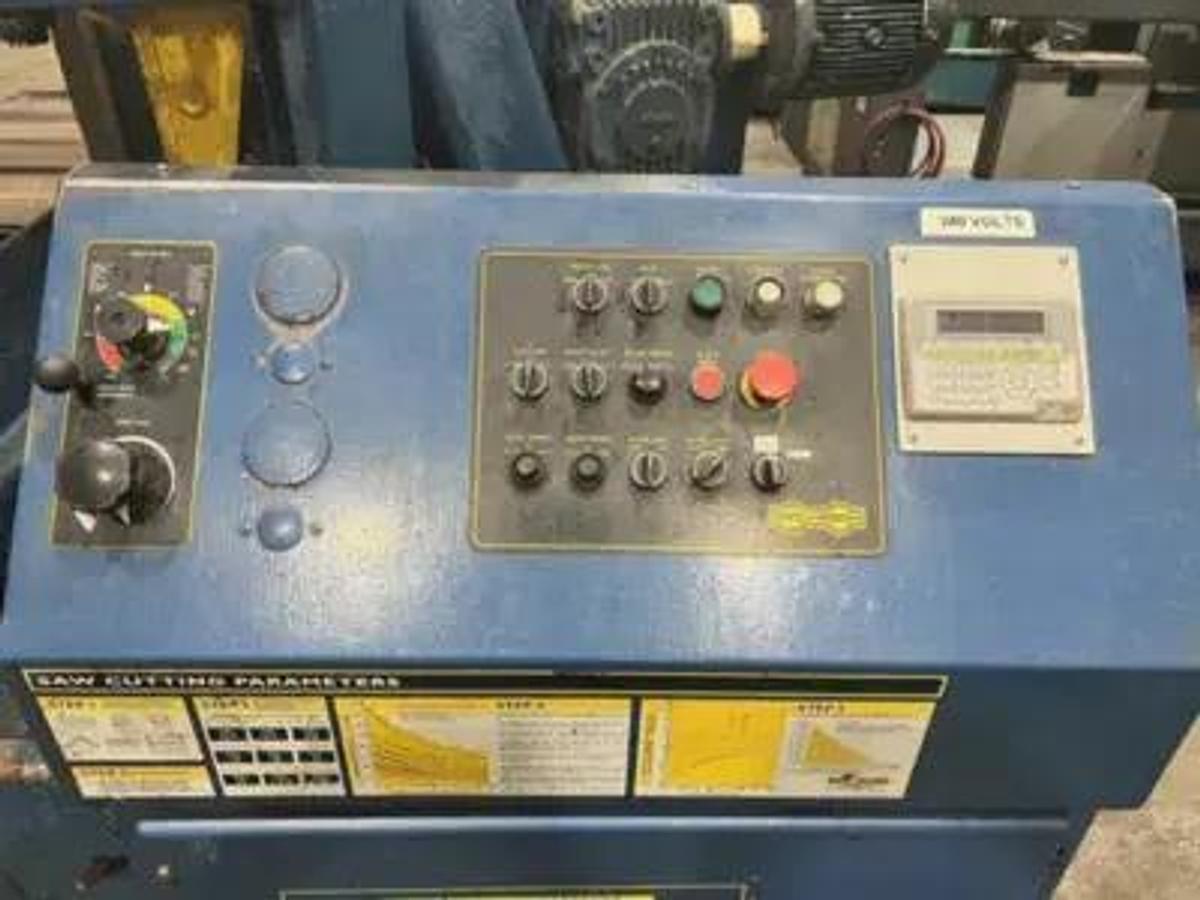

PLC control with 99 job storage with 5 jobs in que
Positive hydraulic downfeed
Hydraulic head miter with scale
Out of stock switch
Hydraulic chip auger
Work light
Flood coolant
We put our Bandsaws through a 20 Point Inspection and Repair Process assuring immediate performance when they hit your floor.
Specifications
| Manufacturer | HYD-MECH |
| Model | M-16A |
| Year | 2000 |
| Condition | New |
| Stock Number | 22236 |
| Status | For Sale |
| Rect-Cap (H) | 16"; 406.4 mm |
| Rect-Cap (W) | 25"; 635 mm |
| Dimensions | 130" x 90" x 66" |
| Weight | 7,400 Lbs. |
| Capacity @ 90 degrees | 16" T x 25" W |
| Capacity @ 45 degrees | 16" T x 14" W |
| Capacity @ 60 degrees | 16" T x 9" W |
| Blade size | 1-1/4" x 18'6" x .042" |
| Blade speed | 75 - 400 FPM (infinitely variable) |
| Blade tension | Hydraulic |
| Blade guides | Carbide |
| Blade wheel diameter | 19" |
| Blade motor | 5 H.P. |
| Shuttle stoke | 0-33" (capable of multi-strokes) |
| Table height | 32" |
| Maximum workload | 8,000 Lbs. |
| Hydraulic motor | 3 H.P. |
| Vise control | Hydraulic full stroking |
| Voltage | 220 volt 3 phase |
