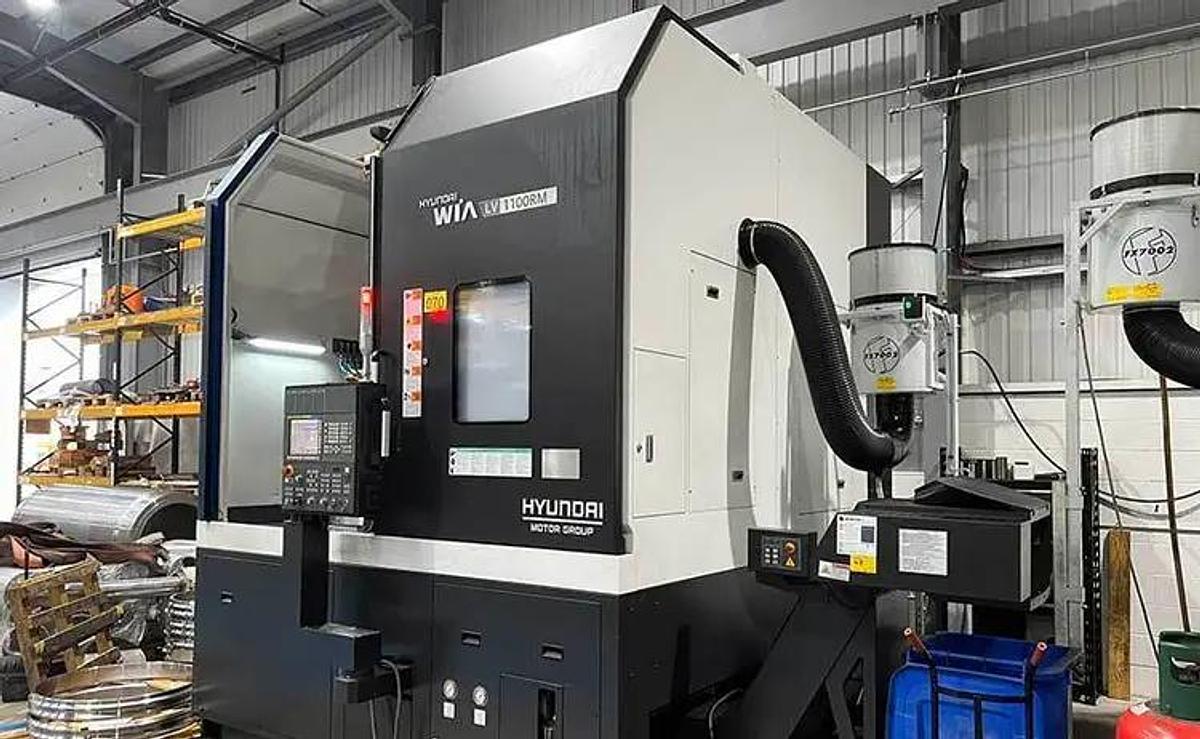

HYUNDAI WIA LV1100RM Vertical Lathe with Cast Iron Bed

HYUNDAI WIA LV1100RM Vertical Lathe with Cast Iron Bed HIGH PERFORMANCE 32″ [40″] CHUCK 3 AXIS COMPACT VERTICAL TURNING CENTRE WITH C-AXIS, DRIVEN TOOLS, HARDENED AND GROUND BOX GUIDEWAYS & BMT85 TURRET with LEFT SIDE CONFIGURATION One Piece Heavy Duty Cast Iron Bed Construction for High Accuracy & Rigidity 800 [630] Rpm High Power Main Spindle 3,000 Rpm Driven Tooling Speed Heavy Duty Cutting with Excellent Performance Rigid Turret on Right Side 24 x 24 M/min Rapid Traverse Left Hand or Right Hand Configuration (LM RM) MACHINE CAPACITIES Swing Diameter Over Bed 1,355 MM Swing Diameter Over Carriage 1,250 MM Max. Turning Diameter 1,160 MM Max. Turning Length (Height) 1,000 MM SPINDLE Std. Chuck Diameter 32" - 813 MM Spindle Bore Diameter 110 MM Spindle Power 45.0 / 55.0 / 60.0 KW Torque (Max/Cont.) 6,490 / 5,310 NM Spindle Type BELT Spindle Nose Diameter 15" - 380 FLAT MM C-Axis Indexing 0.001 DEG FEED Travel X 620 MM Travel Z 1000 MM Rapid Traverse Rates - X / Z 24 / 24 M/MIN Slide Type HARDENED & GROUND BOX GUIDEWAYS TURRET Number of Turret Stations 12 Tool Size - OD 32 MM² Tool Size - ID Diameter 80 MM Indexing Time 0.6 SEC / STEP LIVE TOOL Motor (Max/Cont) 11.0 / 7.5 KW Milling Tool Speed 3,000 RPM Torque (Max/Cont) 70 / 47.8 NM Collet Size (ER50) Diameter 34 MM Type BMT 85P TANK CAPACITY Coolant Tank 420 L Lubricating Tank 4 L Electric Power Supply 52 KVA Voltage 415 V / 50 HZ / 3PH MACHINE Floor Space (L x W) 2,922 X 4,325 MM Height 3,728 MM Weight 22,000 KG
