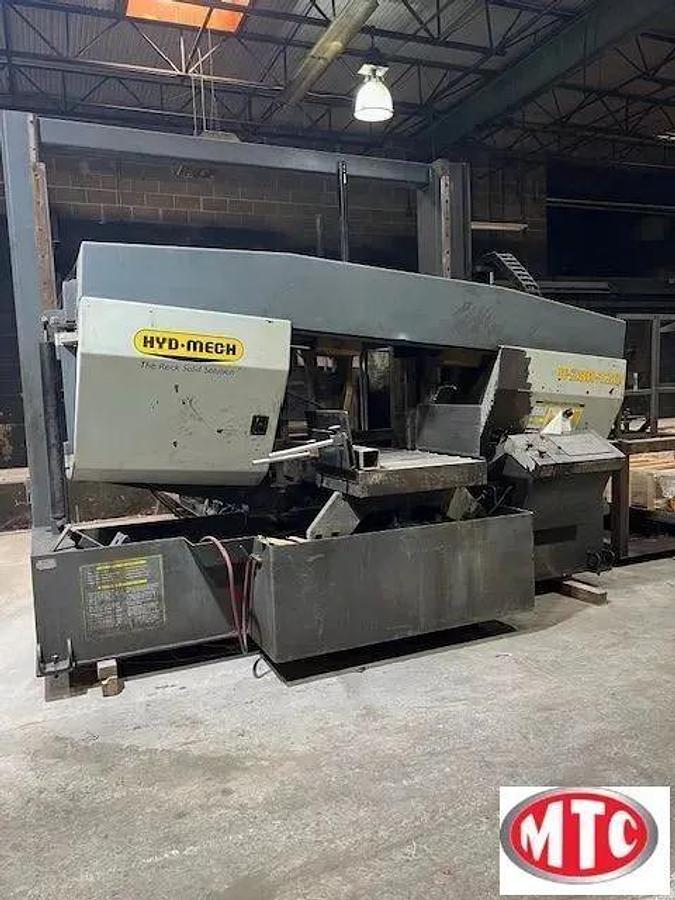

HYD-MECH H-28A Automatic horizontal band saw, 28" x 28" Capacity, 2' Wide Saw Blade

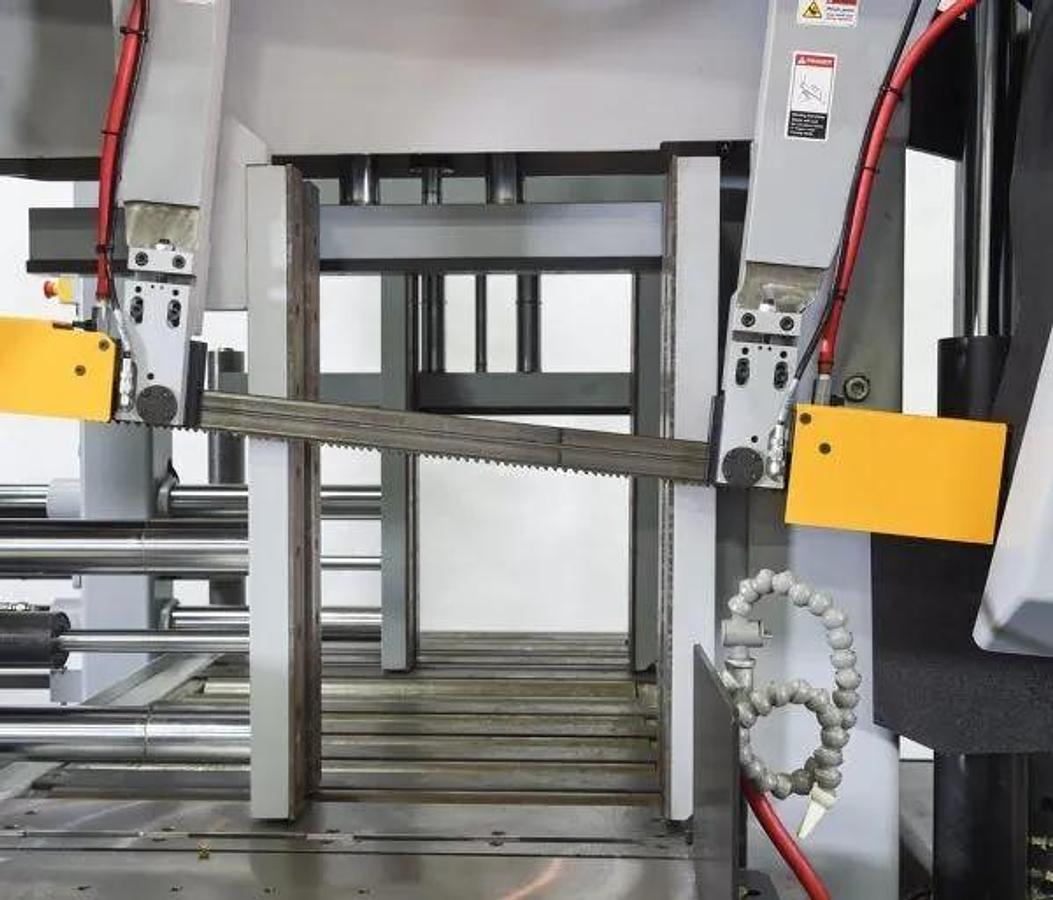

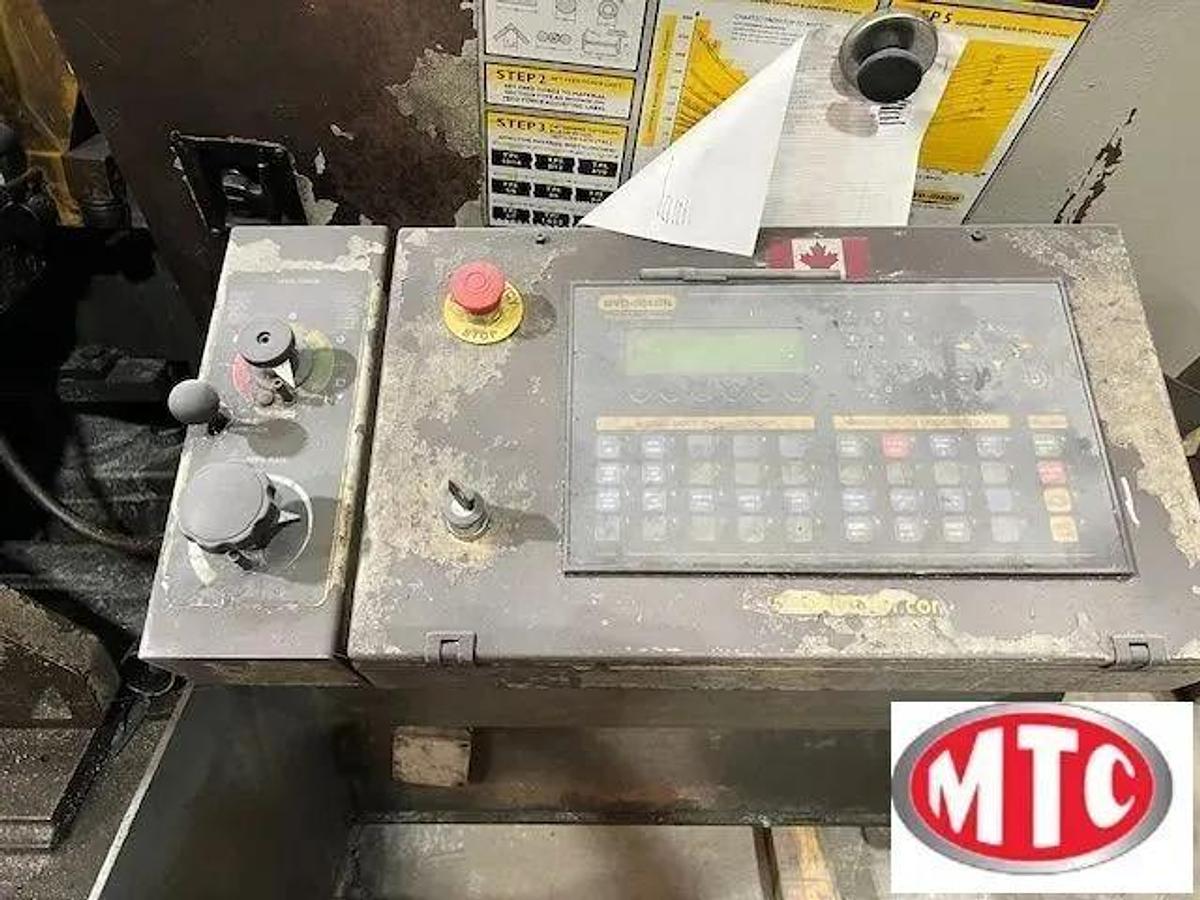

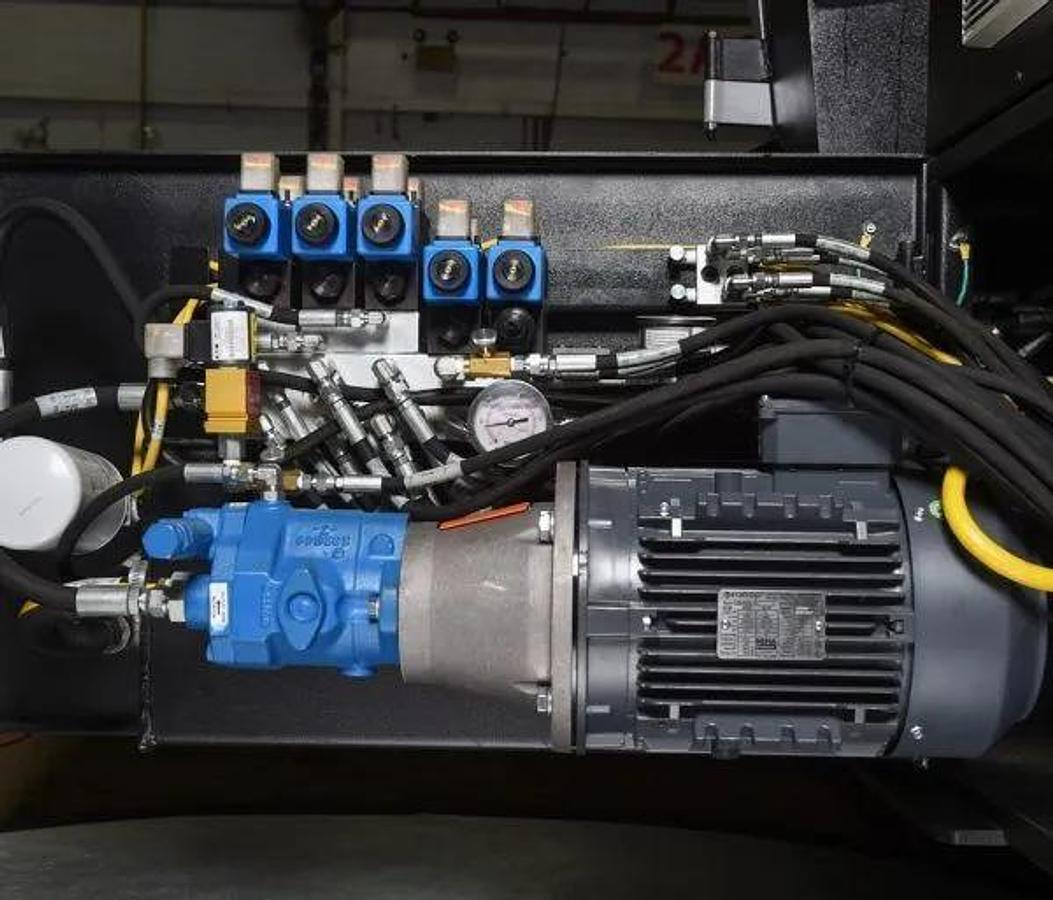

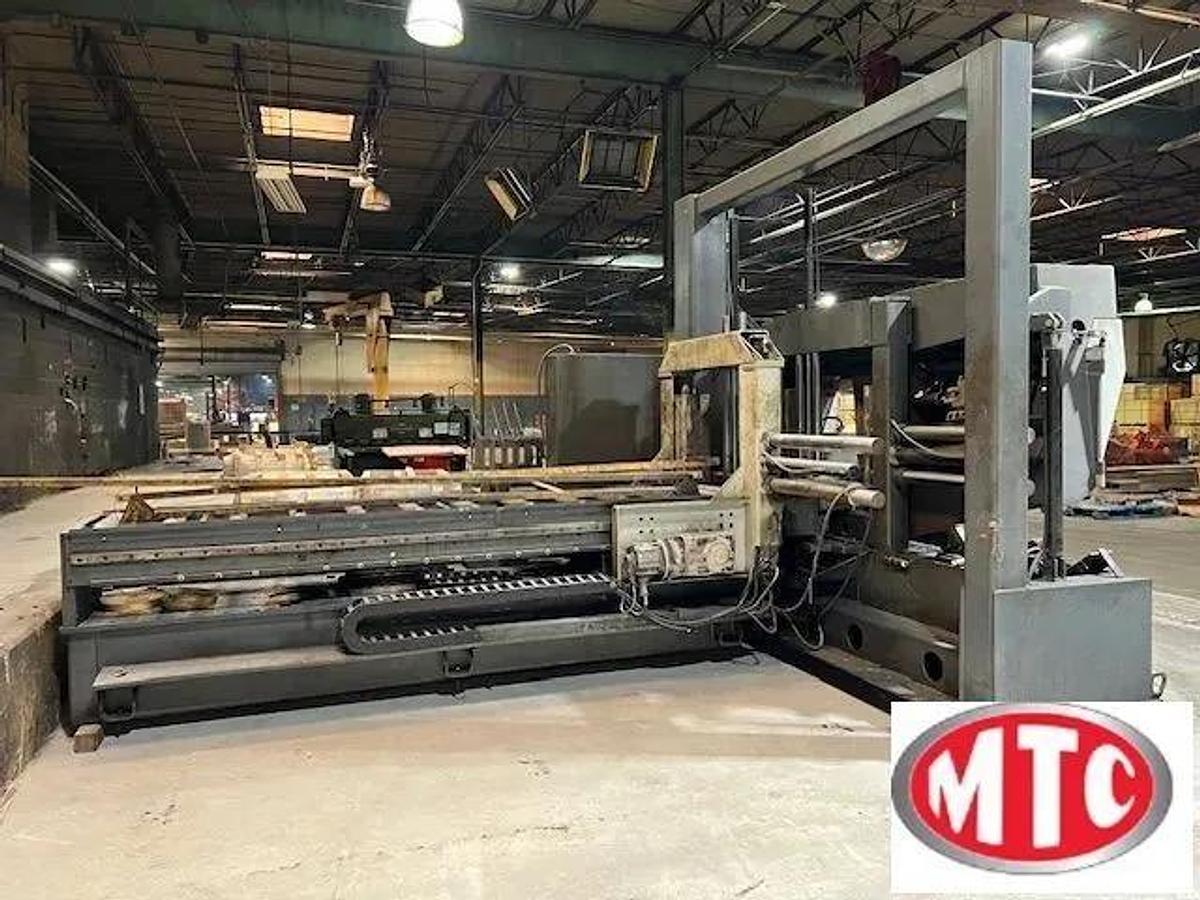

HYD-MECH H-28A Automatic horizontal band saw, 28" x 28" Capacity, 2' Wide Saw Blade Dual Column, Canted head, Heavy duty, automatic horizontal band saw providing accurate 90 metal cutting for heavy-duty applications, Bundling Top Clamps, Hyd-Mech Programmable control, Coolant system The H-28A is an automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications. The H-28A is fast, with its high speed shuttle feed indexing up to 32″ in a single movement. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement. Hyd-Mechs direct down feed system provides easy adjustment of both head feed rate and cutting pressure. Featuring a 28″ x 28″ capacity, 10 HP motor, and 2″ blade, the H-28A is a reliable choice for all your heavy-duty horizontal metal cutting applications. In 1978 Stan Jasinski established Hyd-Mech Engineering Ltd. in Woodstock, Ontario, to provide engineering consulting services related to hydraulic and forestry equipment. In 1980 he began making a mitering cold saw that he had designed to fill a gap he had perceived in the machinery market. One piece design – no alignment necessary Split front vise allows for short remnant length. Can be replaced, by request with retractable datum vise at no charge. Shuttle features automatic multi-indexing up to 32” in a single stroke with automatic kerf compensation. Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times. Hydraulic positive down feed Blade chamber separates material from cut part 10 HP VFD. True direct blade drive – no belts/pulleys Full capacity, full stroking hydraulic vises High resolution feed rate valve allows for constant feed rate when cutting special alloys Cast iron band wheels Automatic PLC control programmable up to 99 jobs with 5 in queue Replaceable blade brush Robust steel base Automatic chip removal auger Easy access electrical panel and hydraulics Blade breakage switch Hydraulic band tensioning with digital readout 5 HP hydraulic pump provides system pressure Hydraulic carbide guide tensioning Hardened, replaceable wear plates Safety door interlocks Flood coolant with wash down hose Work light Out of stock switch Variable vise pressure Capacity Rectangular (h x w) Round Square 90° 28” x 28” 28” 28” 90° – Canted Head 24” x 28” 24” 24” Blade Size 2” x 25’ Hydraulic Tank Capacity 9.5 Gallons Blade Drive 10 HP Coolant Tank Capacity 40 Gallons Machine Voltage 480 (*208, 240, or 575) v Machine Weight 18,000 lbs. Blade Speed 40-300 SFM Table Height 31” (37” w/canted head) Automatic Multi-indexing 0-32” Dimensions (w x l x h) 161” x 92” x 120”
