2018 Never Used HYUNDAI WIA Model KBN 135C Heavy Duty Boring Machine

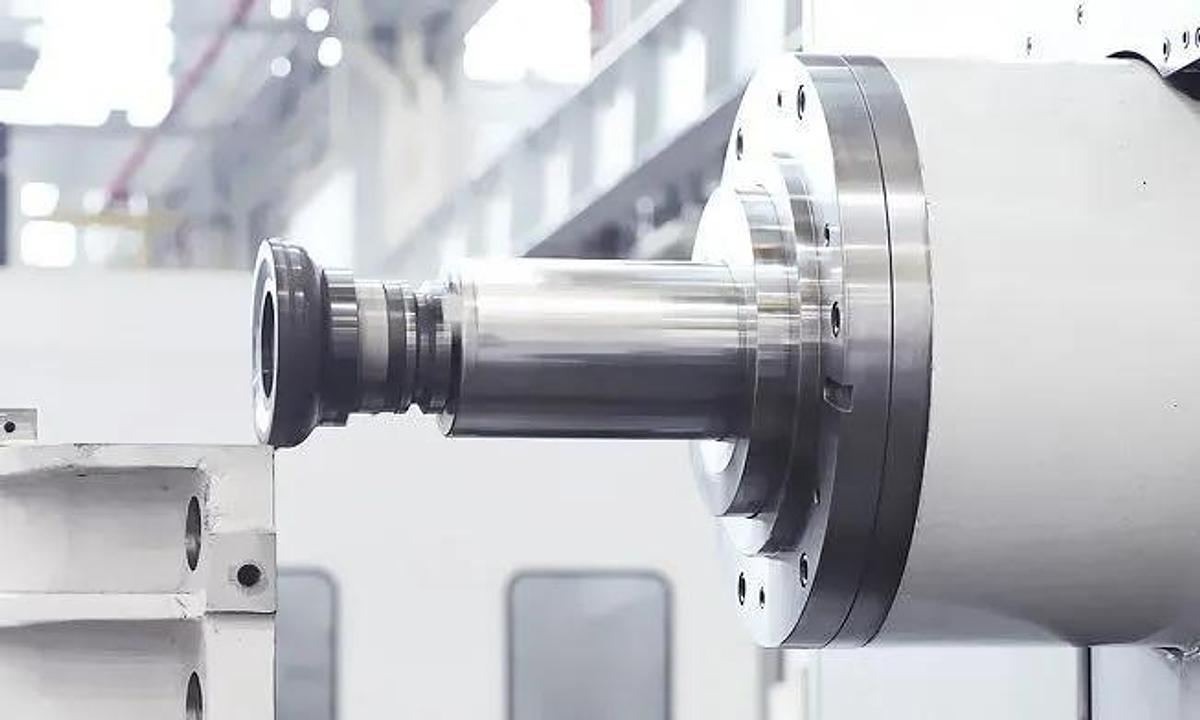

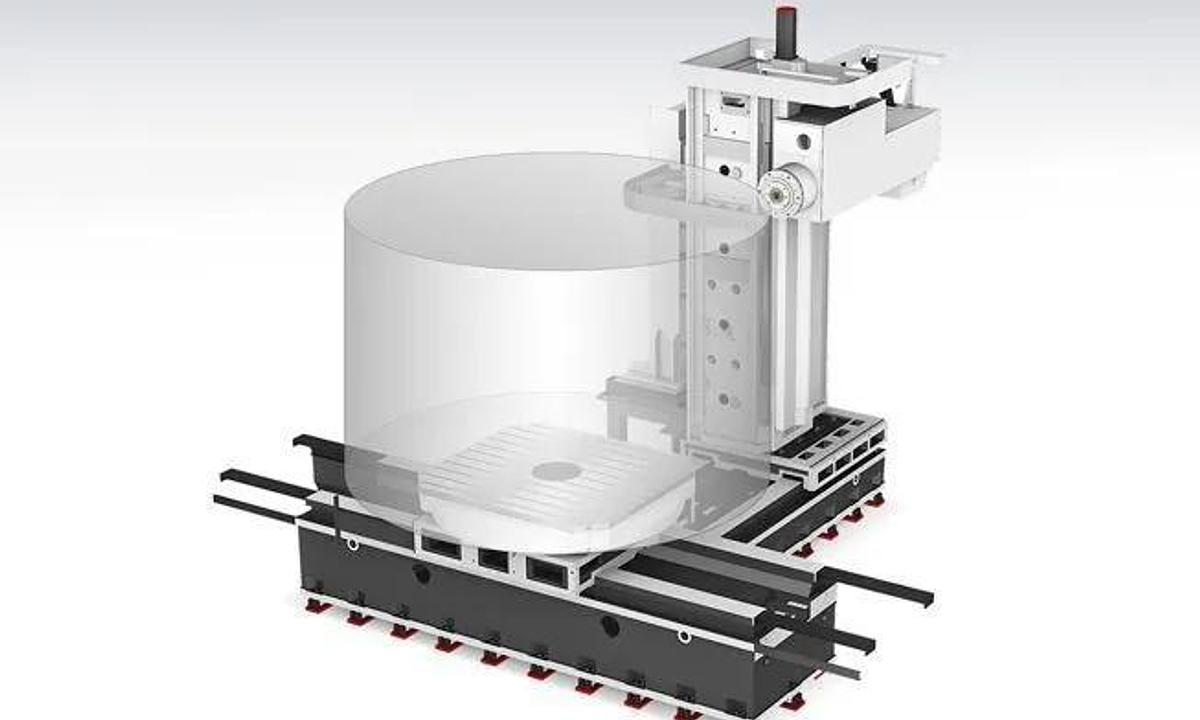

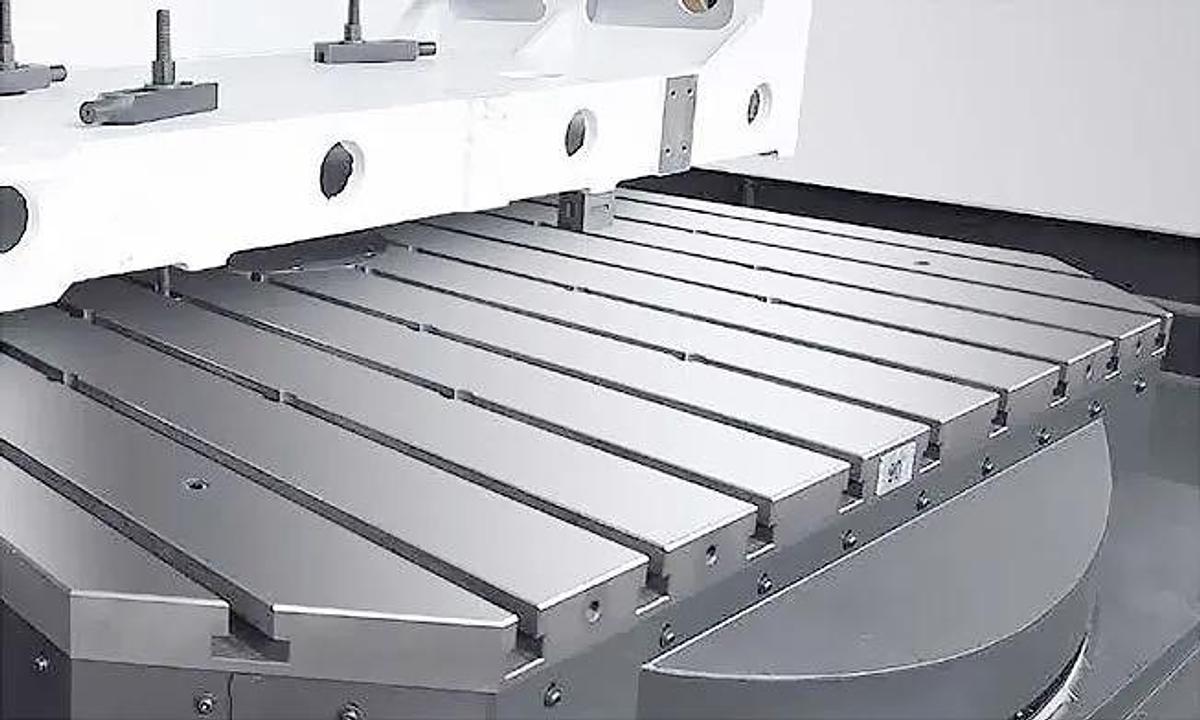

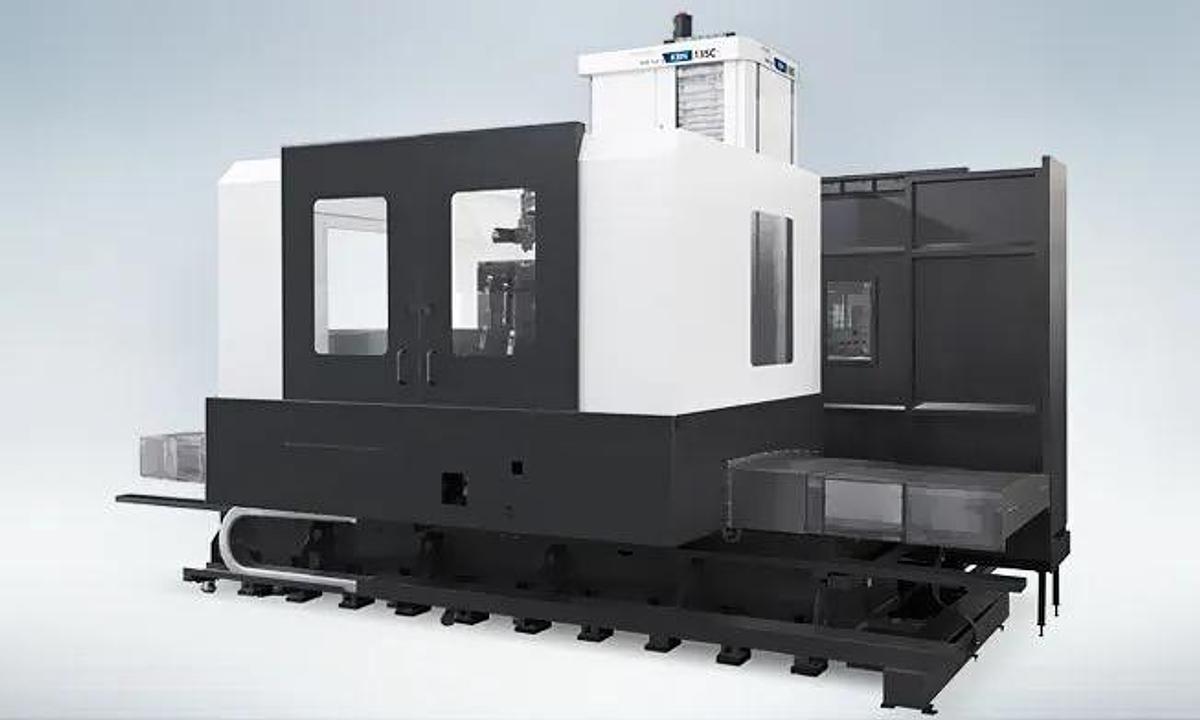

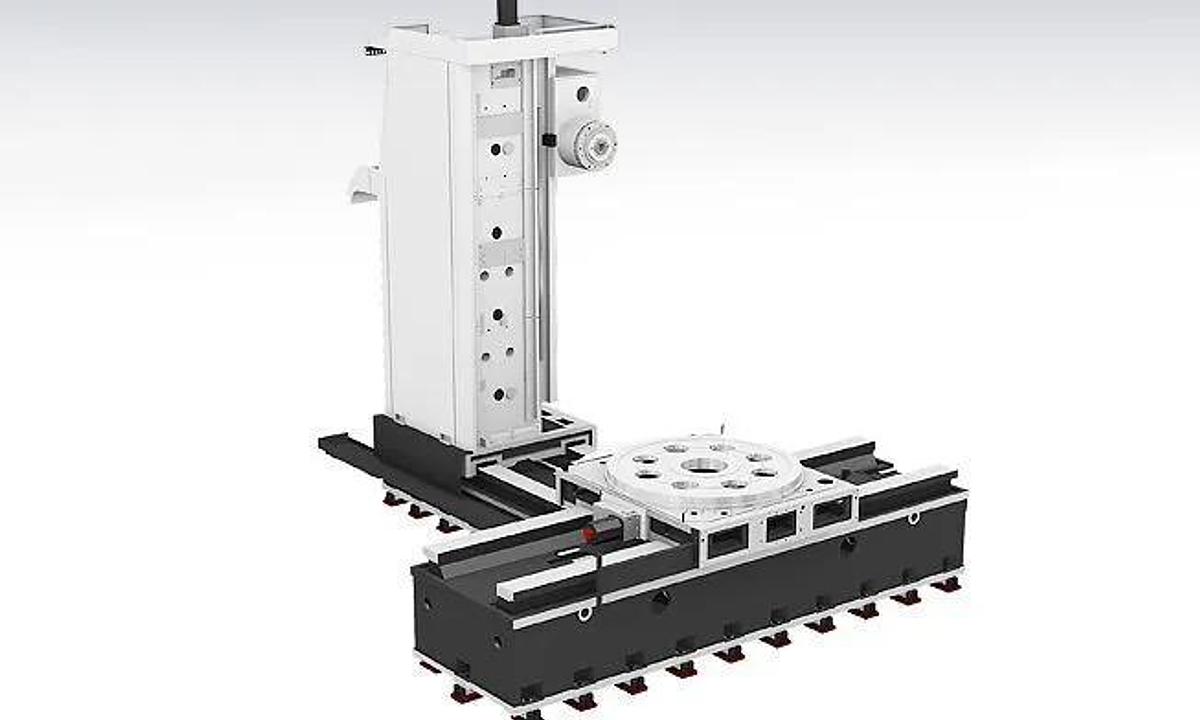

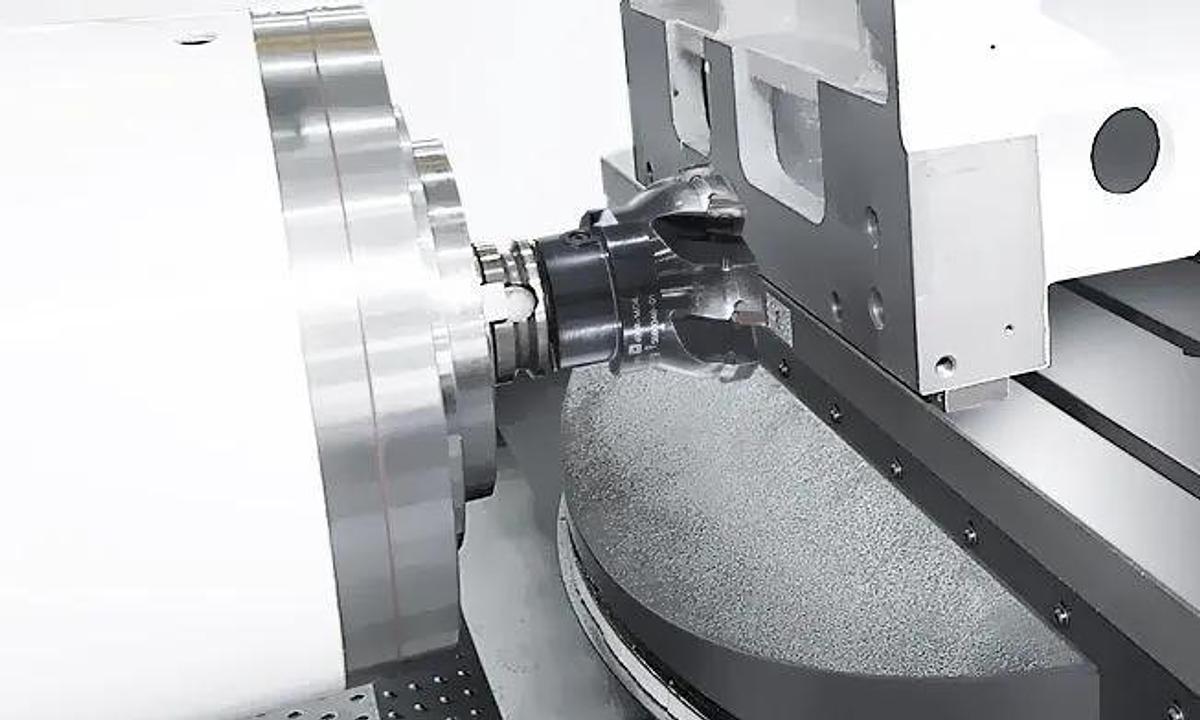

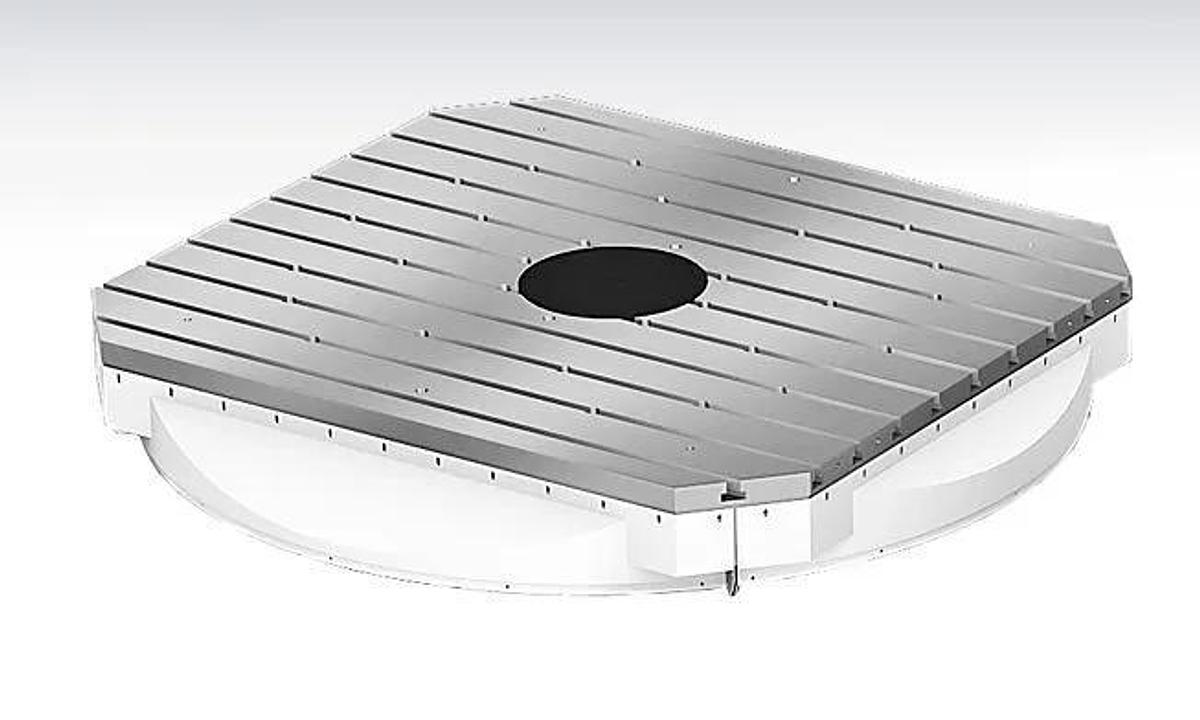

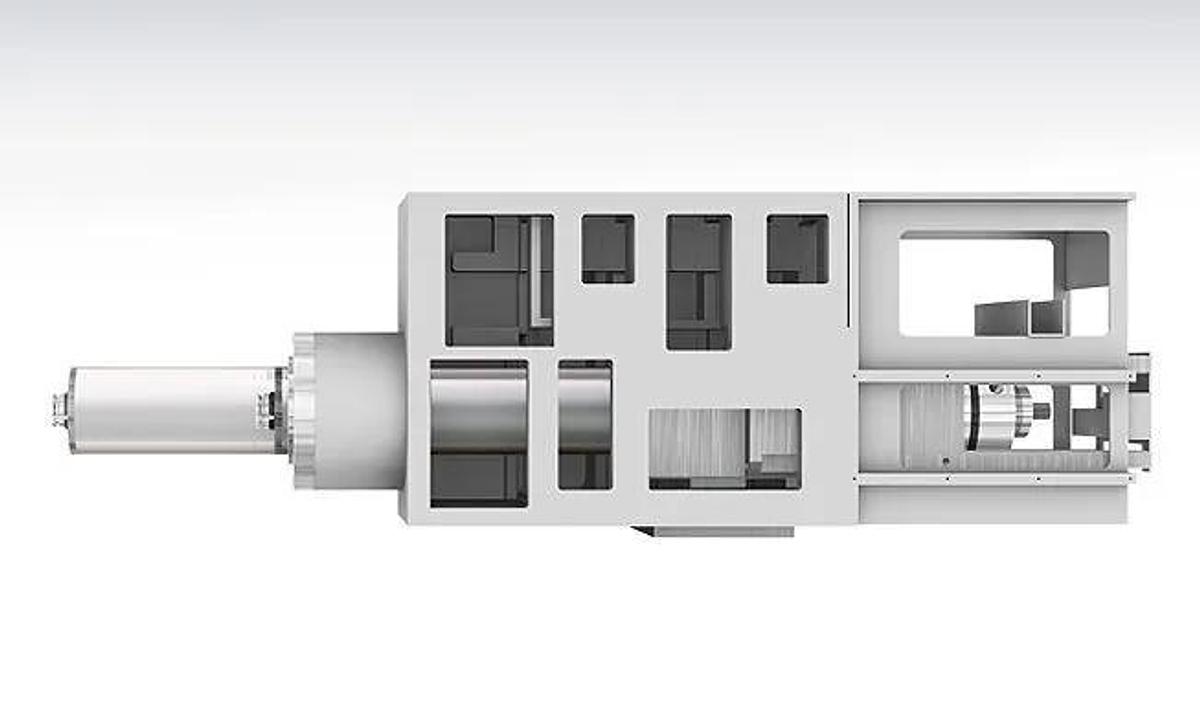

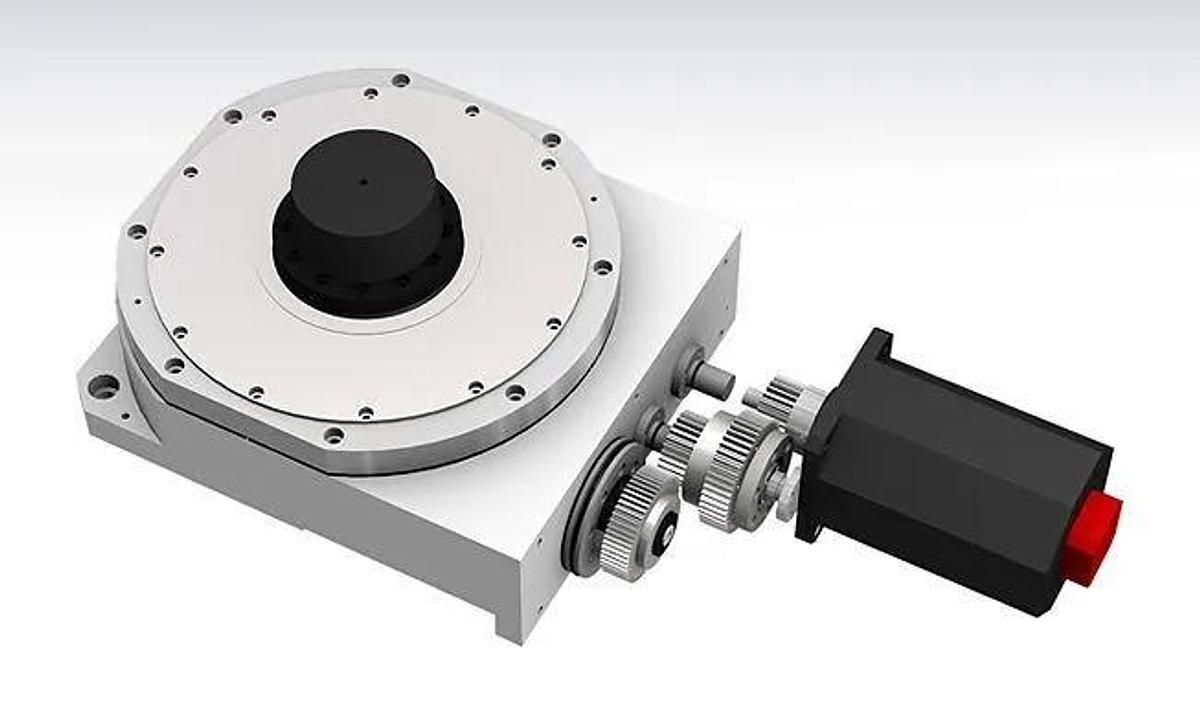

2018 Never Used HYUNDAI WIA Model KBN 135C Heavy Duty Boring Machine Machine The KBN 135C is a horizontal boring machine with a shuttle type APC. It has a clamping plate for heavy duty cutting and a rotary table that can be rotated for loading and unloading machined parts. Hyundai WIA is a South Korean automotive parts manufacturer and a member of the Hyundai Motor Group. Founded in 1976, Hyundai Wia is a specialist manufacturer of high-technology CNC metalworking machine tools located in Changwon / Gyeongsangham-do in South Korea. An incredibly forward-thinking and innovative brand, Hyundai machines are highly regarded globally. The company currently employs over 2,000 people and supplies its products to over 60 countries worldwide. MACHINE CONSTRUCTION & FEATURES  ONE PIECE HEAVY DUTY CAST IRON BED CONSTRUCTION FOR HIGH ACCURACY & RIGIDITY.  INFEEDING COLUMN, CROSS BED DESIGN FOR INCREASED ACCURACY & LOAD CARRYING CHARACTERISTICS.  LINEAR AXIS & ROTARY B AXIS MEASUREMENT SCALES FOR HIGH PRECISION MACHINING. 2 | Page  HEAVY DUTY 3 SPEED HIGH TORQUE MAIN SPINDLE.  HEAVY DUTY HARDENED & GROUND BOX GUIDEWAYS FOR INCREASED STABILITY & RIGIDITY.  PRE-TENSIONED DOUBLE ANCHORED BALLSCREWS.  W-AXIS TRAVEL 700 MM WITH 135 MM HIGH TORQUE SPINDLE. 27.5" Specifications Description Unit KBN135C Working Surface 2,000 x 1,800 MM 78'7" x 70.87" Maximum Table Load 15,000 KGS Minimum Indexing Angle 0.001° Max. Load Capacity lbf 33,069 lbs Spindle Driving Method - GEAR(3STEP) Spindle Quill Diameter 5.1" Spindle Taper - BT50 Spindle RPM r/min 2,500 Spindle Power HP 29.5/24.8 Spindle Torque lbf.ft 2,295.2/1,930.2 Travel(X/Y/Z) inch 118.1″/78.7″/63″ Travel(A/C) deg 700(W-axis) 27.5" Distance from Column to Spindle Centre 0 ~ 2,000 MM Distance from Table Surface to Spndle Centre 800 ~ 2,400 MM Rapid Feed Rate(X/Y/Z) m/min 10/10/10 Rapid Feed Rate(A/C) r/min 8(W-axis) Slide Type - HARDENED & GROUND BOXWAYS No. of Tools EA 40 Tool Change Time (Chip To Chip) sec 33.2 Tool Storage Capacity 40 Maximum Tool Weight 20 KGS Maximum Tool Size Ø 125 X 600 MM Maximum Tool Size (no adjacent tool) Ø 250 X 600 MM Tool Selection Method FIXED ADDRESS Coolant Tank 400 L Lubricating Tank 8.5 L Hydraulic Tank 200 L Floor Space (L x W) 6,800 x 7,510 MM 267.7" x 295.7" Height 5,369 MM 211.4" Weight 46,500 KGS 102,300 lbs
