Description

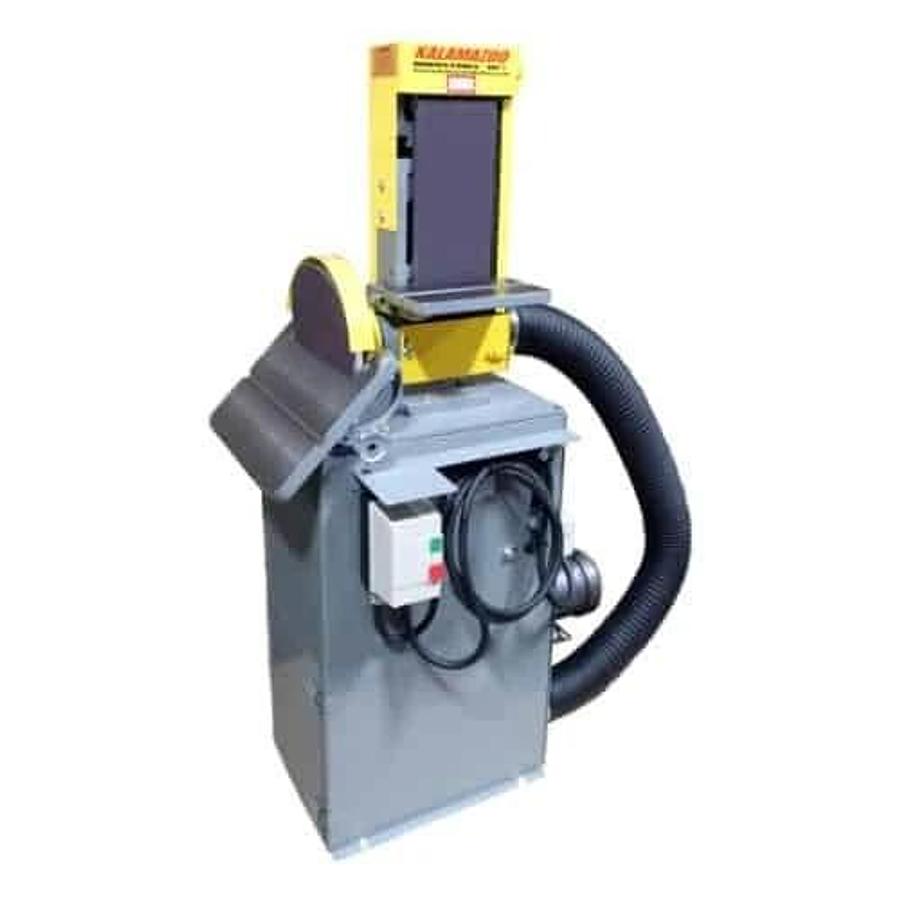

KALAMAZOO iNDUSTRIES Model S612V 6" Combination Sander with Collector
The S612V is a universal belt and disc sander that works with all sanding belt and disc configurations so you can get your required finish. This combination sander comes with a multi-point sanding head, powerful motor, platen, vacuum base, and adjustable work tables to help you set your angles.
Beveling
Deburring
Squaring-up ends
Round flat corners
Polishing
Rust removal
Material clean up
Roughing
Flatwork
OPTIONS
294-006FP fireproof filter.
294-006 replacement filter.
MG-10 mitre gauge.
3HP 1PH 220 OR 3HP 3PH 220 and or 440 volt TEFC motor.
An on/off push magnetic button switch.
Steel base with built-in 100 CFM dust collector with a replaceable filter
Quick change belt, pre-tensioned one lever belt change
Belt Sander multi-position horizontal/vertical
Steel reversible and replaceable 6-1/2″ x 14″ platen
Belt sander cast iron work table- 6″ x 10″ with 5/8th slot
Disc sander cast iron work table- 7.75″ x 16.5 inch with 5/8th slot
Dual v-belt driven
Specifications
| Manufacturer | KALAMAZOO INDUSTRIES |
| Model | S612V |
| Year | 2023 |
| Condition | New |
| Stock Number | 21902 |
| Status | For Sale |
| Country | United States |
| Width of Belt | 6"; 152.4 mm |
| Main Motor | 1PH FLA 115V 24 amps / 230V 12 amps. |
| Vacuum motor | 1PH 230V (only) 3.5 amps |
| Belt size | 6 x 48 inches |
| Belt SFPM | 2800 |
| Disc diameter | 12 inch disc sander disc, 5/8″ arbor |
| Sanding disc speed | 2500 SFPM |
| Disc worktable dimensions | L12″ x W14″ x H 60″ |
| Machine shipping weight | 425 lbs. |
| Machine shipping dimensions | L 45″ x W 33″ x H 65″ |
