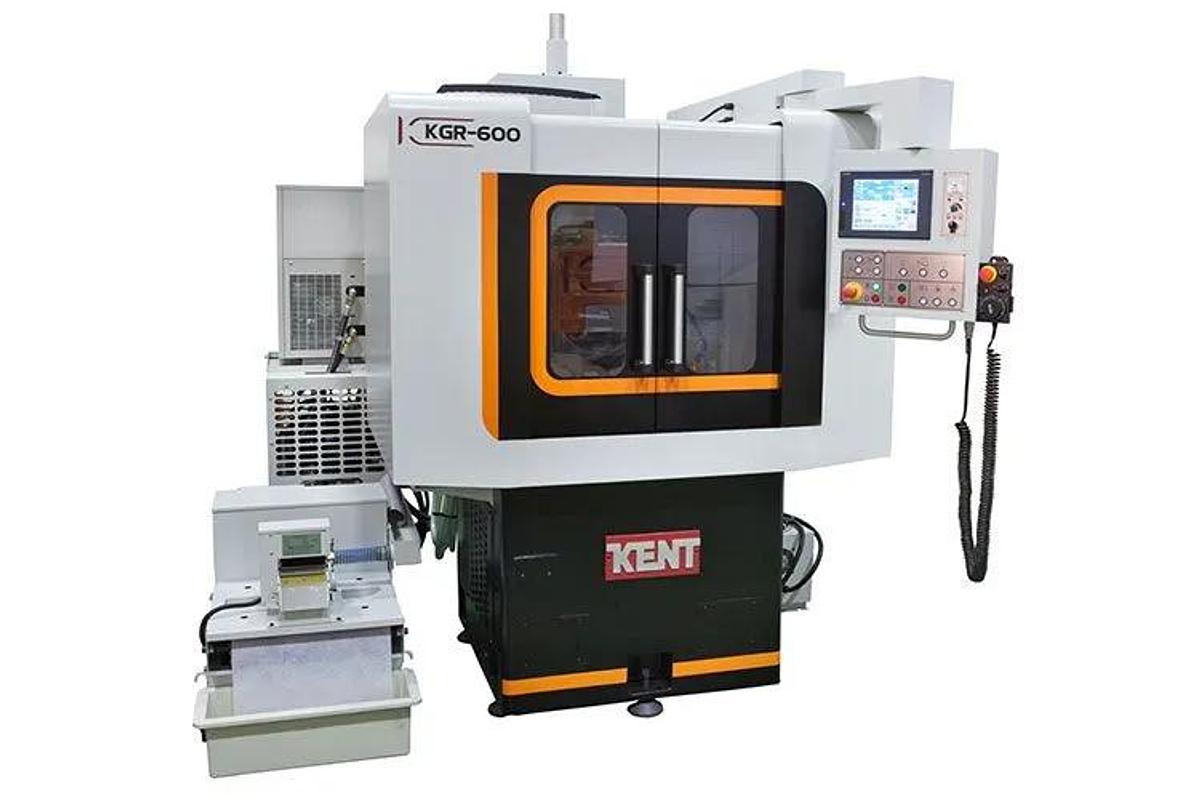

KENT International USA Programmable Rotary Surface Grinder KGR-600R, 2 Axes Programmable

KENT International USA Programmable Rotary Surface Grinder KGR-600, 2 Axes Programmable FEATURES & CAPABILITY Cross Roller Bearing Table 2-axis Precision Roller Linear Guides 2-axis Precision Ballscrew and Servo Motor Driven Mitsubishi Color Touch Screen and Tech Interface Variable Spindle and Table RPM Tapered Surface Grinding Auto Dress and Auto Compensation Auto Wheel Balancer *Optional Packaged With: Electro-Magnetic Chuck (Diameter 39.4”) W/ Console Built-In Variable Power Chuck Control; Magnetic Separator & Paper Filter Coolant System; Automatic Cycle with Rough & Fine Feeding & Spark-Out time; Retract Setting; Encoder & Manual Pulse Generator; Spindle Motor Frequency Inverter; Table Mounted Wheel Dresser. * Advanced Mitsubishi PLC Control & Touch-Screen Technology * STANDARD EQUIPMENT Wheel Balancing Base x 1pc Wheel Balancing Arbor x 1pc Grinding Wheel x 1pc Wheel Flange x 1pc Table Dresser x 1pc Tool Box & Tools x 1se Specification Unit KGR-500 Capacity Table diameter INCH 19.6 Max cross travel INCH 15.7 Distance spindle center to table INCH 23.6 Max table load LBS 1322 Table Table speed INCH 10-100 Crossfeed MPG x1, x10 1 gra. INCH 0.00005/0.0005 Crossfeed MPG x1, x10 1 rev. INCH 0.005/0.05 Crossfeed auto increment INCH 0.0005-1 Wheel Spindle speed RPM 0-1,800 Wheel dimension (Dia. x W x Bore) INCH 16 X 3.1 X 5 Elevation Elevation in-feed MPG x1, x10 1 gra. INCH 0.00005/0.0005 Elevation in-feed MPG x1, x10 1 rev. INCH 0.005/0.05 Auto downfeed increment INCH 0.00005-2.5 Motors Spindle motor HP 10 Weight & Dimension Floor space INCH 90.5 X 126 x 104.3 Net weight LBS 11,023 Gross weight LBS 12,126
