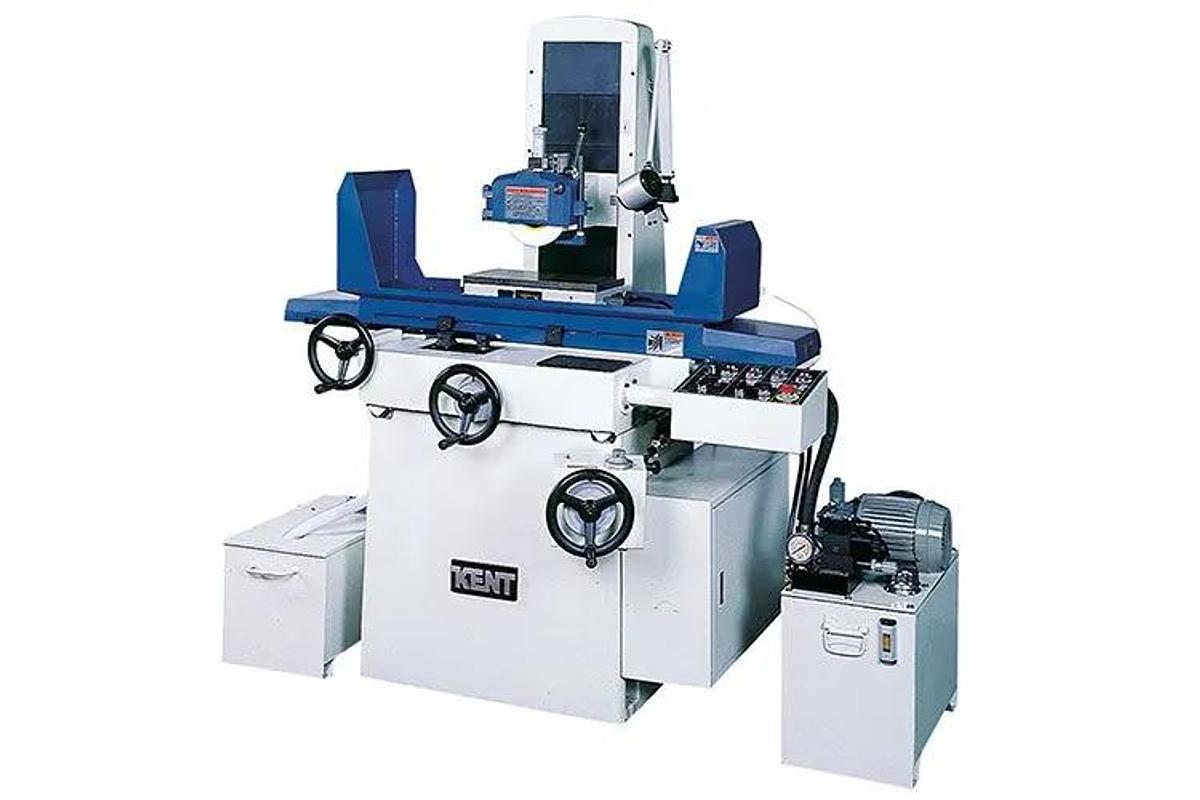

KENT International USA 3 Axes Automatic 8" x 18" Surface Grinder Model KGS-250AHD

$25,900

Description

KENT International USA 3 Axes Automatic 8" x 18" Surface Grinder Model KGS-250AHD KENT Industrial Co., Ltd. was built in 1966 with President Mr. C.S. Lu in Taiwan. Today, our company covers over 12,000 square meters and includes 200 staff members. Our main products are: surface grinders, CNC surface grinders, creep feed grinders, double column surface grinders, vertical machining centers, and double column machining centers. KENT Industrial Co., Ltd. sells machine tools worldwide to countries such as Brazil, Canada, England, France, Germany, Italy, India, Japan, Poland, Spain, USA and so on. KENT America office was opened in California, United States in 1979. Now, KENT International USA, Inc. is serving our customers in North and South America with excellent products and service. D-2 Hardened & Ground Ball Bearing Table Ways Hydraulic Driven, Ball Bearing Table Ways (X Axis) Double-V Turcite Cross Ways (Z Axis 8” X 18” Electic Magnetic Chuck w/Chuck Control Class-7 Paired & Pre-loaded Bearing Spindle Cast Iron Base Halogen Work Light “KENT” 2 Axis Digital Read-Out System Vernier Down-feed Graduation Dial Magnetic Separator or Paper Filter Coolant System (Specify with Purchase Order) Over Head Parallel Dresser Solid State Controlled Cross- Feed Auto Incremental Down-feed Full Length Rear Splash Guard Auto Incremental Down-feed Wheel Balancing Base & Arbor Grinding Wheel Table Dresser Wheel Flange Tools & Tool Box KGS-250AHD Capacity Grinding Wheel Vertical Movement

Specifications

ManufacturerKENT
ModelKGS-250AHD
Year2025
ConditionNew
StatusFor Sale
CountryUnited States
Table-W9.75"; 247.65 mm
Table-L19.75"; 501.65 mm
Spindle (Horz/Vert)Horz; Horz
Power2 hp; 1.5 kW
Grinding Wheel Width12"; 304.8 mm
Grinding Wheel Dia.7"; 177.8 mm
Dimensions81" x 56"; 81" x 56"
Weight2,860 lbs; 2,860 lbs
Overall table working area8" x 18"
Longitudinal table travel21.25"
Cross-feed table travel10.5"
Distance spindle center to table18.6"
Wheel dimension (Dia. x W x Bore)8" x 3/4" x 1 1/4"
Spindle speed3,480 RPM
Vertical on MPG / Handwheel 1 gra0.0005"
Vertical on MPG / Handwheel 1 rev0.1"
Auto down-feed increment0.0001-0.001"
