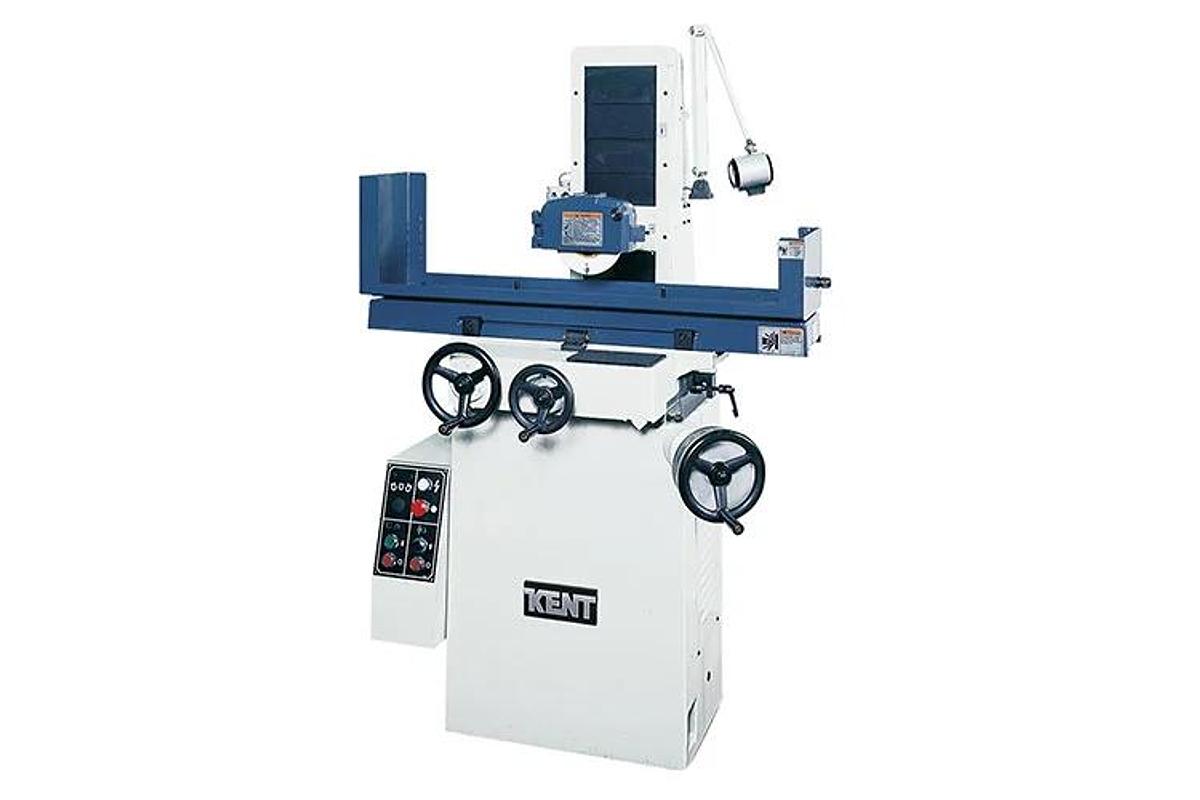

MODEL KGS-616S

MODEL KGS-616S FEATURES & CAPABILITY Longitudinal on ball bearing table ways Downfeed on hardened and ground slideway Crossfeed on Turcite-B coated and scrapped slideway Downfeed Microfeed Mechanism Crossfeed Microfeed Mechanism Spindle motor frequency inverter *Optional Overhead manual wheel dresser *Optional Variable spindle speed *Optional Surface grinding *Manual Plunge grinding *Manual Single slot grinding (between shoulders) *Manual Profile wheel dressing *Manual (Optional) MODEL KGS-616S OPTIONS 6”x14” Permanent Magnetic Chuck Dust Collector & Coolant System Magnetic Separator & Coolant System Extra Wheel Flange 2-axes Digital Read-Out System DRO Installation & Display Arm & Tray, Mounting Bracket(Two Axes) MODEL KGS-616S MAIN SPECIFICATIONS Specification Unit KGS-616S Capacity Overall table working area Longitudinal table travel Crossfeed table travel Distance spindle center to table INCH INCH INCH INCH 6 x 16 16.9 7.9 17.3 Grinding Wheel Wheel dimension (Dia. x W x Bore) Spindle speed INCH r.p.m 8 x 3/4 x 1 1/4 3480 Vertical Movement Vertical on MPG / Handwheel 1 gra Vertical on MPG / Handwheel 1 rev INCH INCH 0.00005 0.1 Motor Spindle motor HP 2 Dimension & Weight Machine height Floor space Net weight Gross weight INCH INCH LB LB 68 64 x 48 1380 1650
