KENT Int'l Model KGS-615AHD Surface Grinder / 3 Axes / Column Traveling 24" x 60"
$10,250,000
Description

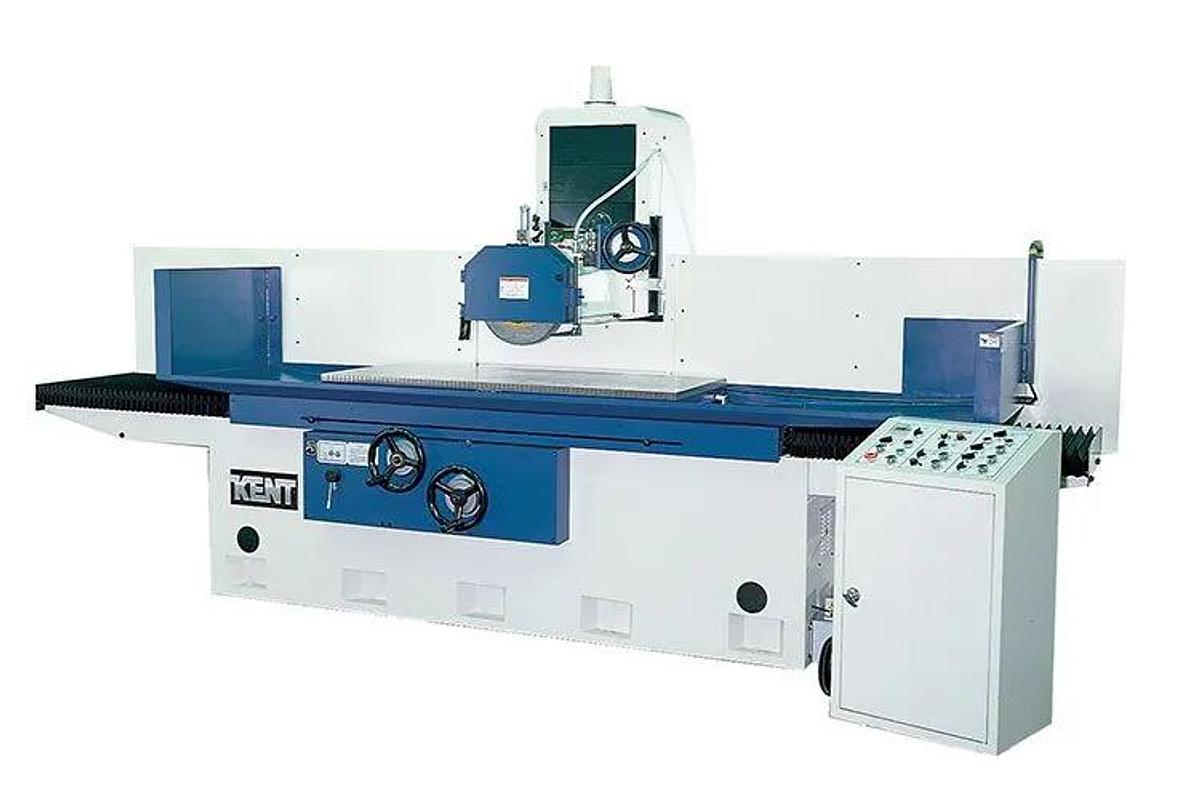

KENT Int'l Model KGS-615AHD Surface Grinder / 3 Axes / Column Traveling 24" x 60"
Introducing the all-new 2024 KENT KGS-615AHD Reciprocating Surface Grinder!
W/ V & Flat “TURCITE” Ways; Hydraulic Table;
SSCU Controlled Cross-feed; Auto Incremental Down-feed;
Column Travelling Cross-feed; Console Setting Cross-feed Travel;
Re-Circulating Lubricating System; Table Proximity Switches;
Full Length Rear Splash Guard.
Packaged With: 24”x60” Electro-Magnetic Chuck With Console Built In Variable Power Chuck Control; Magnetic Separator & Paper Filter System (M2); Hydraulic Parallel Dresser.
STANDARD EQUIPMENT
Wheel Balancing Base x 1pc Wheel Balancing Arbor x 1pc
Grinding Wheel x 1pc Wheel Flange x 1pc
Table Dresser x 1pc Tool Box & Tools x 1set
OPTIONAL EQUIPMENT
Magnetic Separator & Paper Filter Coolant System (M4/31 Gal.)(extra) .$2,450.00
MAIN SPECIFICATIONS
Specifications
| Manufacturer | KENT |
| Model | KGS-615AHD |
| Year | 2025 |
| Condition | New |
| Status | For Sale |
| Country | United States |
| Table-W | 24"; 609.6 mm |
| Table-L | 60"; 1,524 mm |
| Spindle (Horz/Vert) | Horz; Horz |
| Power | 10 hp; 7.5 kW |
| Grinding Wheel Width | 2"; 50.8 mm |
| Grinding Wheel Dia. | 14"; 355.6 mm |
| Dimensions | 186" x 89" x 98"; 186" x 89" x 98" |
| Weight | 17,400 lbs; 17,400 lbs |
| Extra Wheel Flange | $305.00 |
| “Kent” Single Axis DRO System | $1,730.00 |
| “Kent” Two Axes DRO System | $2,620.00 |
| Hydraulic Oil Cooler | $8,200.00 |
| Table Splash Guard(Rear) | $135.00 |
| Max. Travel (Longitudinal x Cross) | 68”x26-7/16" |
| Max. Distance Spindle Center To Table | 23-5/8" |
| Down-feed Increment | ( in 6 steps ) 0.0002"-0.0016" |
| Grinding Wheel ( OD. X T. x ID. ) | 14"x2"x5" |
| Grinding Wheel Speed | 1,740rpm |
| Spindle Motor | 10HP (220/440/60/3) 10HP |
| Hydraulic Motor | 5HP (220/440/60/3) 5HP |
| Machine Net Weight | 17,400 LBS |
| Packing Dimension | 186”x89”x98” |
