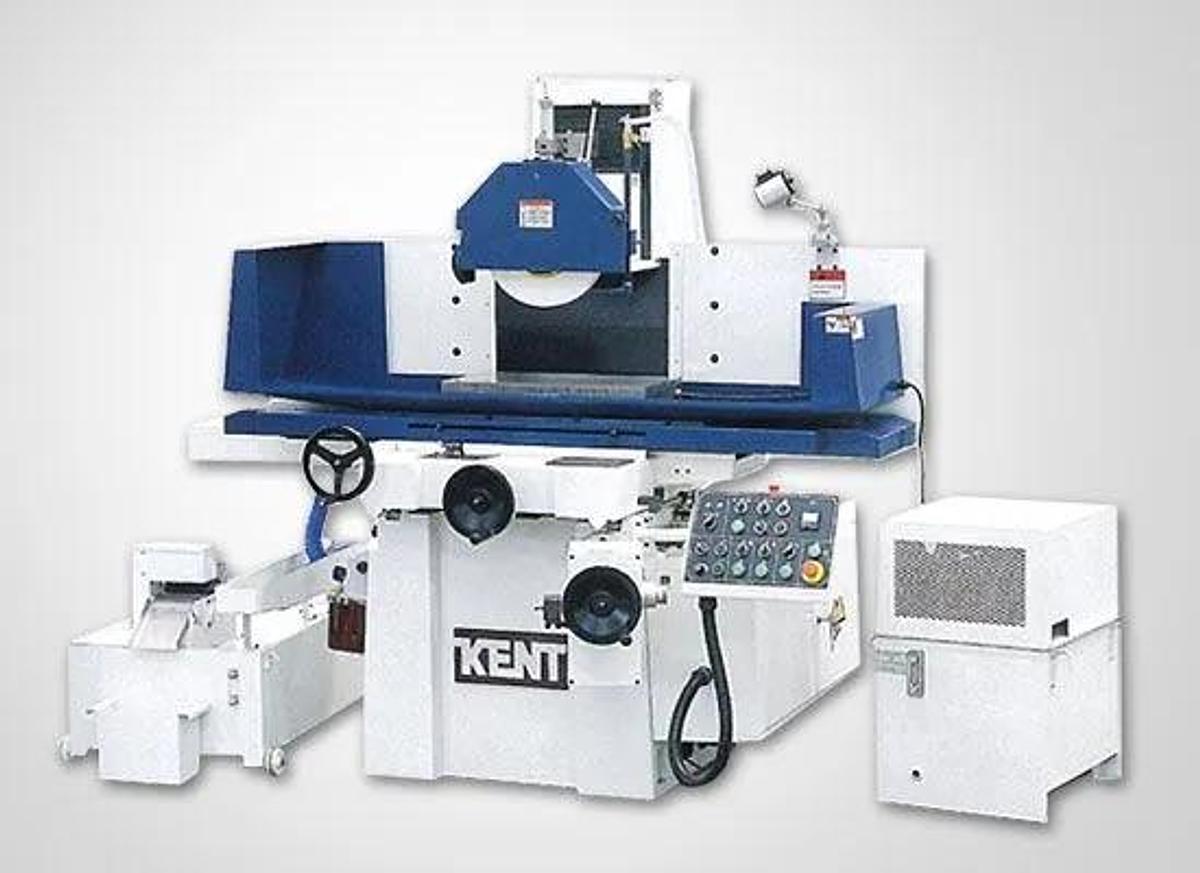

KENT International USA 3 Axes Automatic Precision Surface Grinder KGS-63AHD

KENT International USA 3 Axes Automatic Precision Surface Grinder KGS-63AHD V & Flat Turcite Table Ways; Hydraulic Table; Solid State Control Cross-feed; Double-V Turcite Cross Ways; Auto Lubricating Pump; Auto Incremental Down-feed; Fully Automatic Cycle Control with Spark-Out & Auto Stop. 1. Well designed cast iron structure provides excellent dampening. 2. The ball bearing slide ways ensure smooth and easy operation.* 3. Hand-scraped Turcite ways guarantee long lasting performance.** 4. Automatic lubrication pump for guide ways and leadscrews.(1020AHD, 63AHD, 84AHD). 5. Automatic down-feed gearbox for accurate down-feed increments (AHD models). 6. Low voltage safety control panel with a separate electric cabinet. 7. Cartridge type spindle with high precision, preloaded angular contact ball bearings. 8. Separate hydraulic tank prevents heat and vibration from being transferred to the machine (AHD models). 12”x24” Electric Magnetic Chuck With “Kent” Chuck Control; Full Length Rear Splash Guard; Two Front Table Splash Guard; Over Head Parallel Dresser; Magnetic Separator & Coolant System; Halogen Light. Standard Equipment Wheel Balancing Base x 1pc Wheel Balancing Arbor x 1pc Grinding Wheel x 1pc Wheel Flange x 1pc Table Dresser x 1pc Tool Box & Tools x 1set Max. Travel (Longitudinal x Cross):…………………… 27-15/16"x13-3/8" Max. Distance Spindle Center To Table:……………… 24" Automatic Down-feed Increment:……………………… .00025” to .00125” in 5 steps Grinding Wheel ( OD x T x ID ):………………………… 14"x1-1/2"x5" Grinding Wheel Speed:………………………………… 1740rpm Spindle Motor:………………………………………… 7.5HP (220/440/60/3) Hydraulic Motor:……………………………………… 2HP (220/440/60/3)
