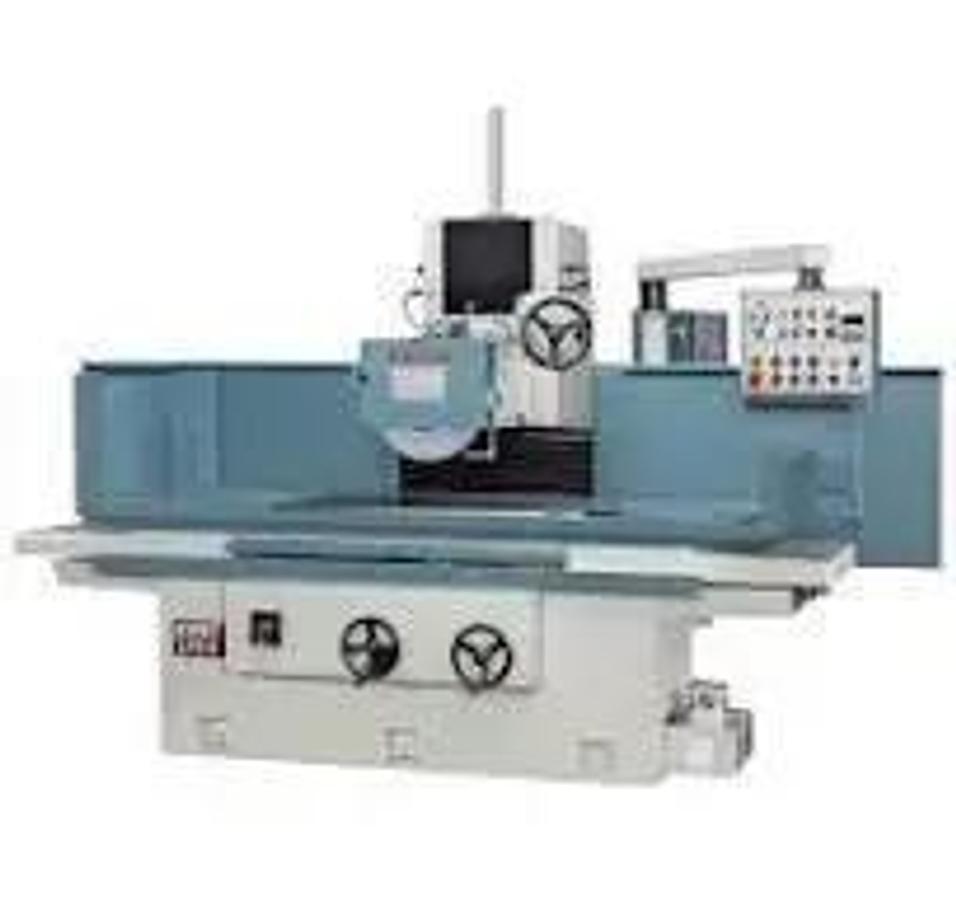

KENT USA Model SGS-S 2460AHD

KENT USA Model SGS-S 2460AHD 24″ x60″ working capacity 3 axis automatic movement with incremental downfeed, electronic auto-crossfeed, and hydraulic powered table movement Precision hand scraped turcite V ways and flat table ways and double V column ways for smooth and long lasting precision High column design with 23" spindle center totable for extra clearance under the wheel and rapid elevation motor for quick/easy positioning Centralized automatic lubrication system provides lubrication to all points & rapid elevation Safety 24V control circut power FOB Tustin, CA Warranty: One year from completion of installation; or 15 months from date of shipment 1. 24" x 60" electric magnetic chuck and control with automatic demagnetizer 2. Paper filter and magnetic separator coolant coolant system Grinding Wheel 3. Overhead parallel dresser 4. Grinding Wheel 5. Wheel Balancing Base & Arbor 6. Diamond Table Dresser Base and tip 7. Leveling bolts & Pads 8. Toolbox with standard tools Optional Accessories Acu-Rite 203 DRO (2 axis, 26" x 20", 0.0001`" $4,350.00 Digital Readout System Installation $850.00 Static Wheel Balancing Base $780.00 Extra Wheel Flange $370.00 On-Site start up installation & training 2 days $6,000.00 (with 2 weeks advanced notice) Specification SGS-S 2480AHD Working Capacity 23.6" x 78.75" Table Travel 65" Saddle Travel 25.6" T-Slot 3 x 9/16” Spindle Motor 10 HP Spindle Speed 1750 RPM Grinding Wheel 16” x 2” x 5” Vertical Graduation 0.0001" Vertical Revolution 0.020" Auto Downfeed Increment 0.0002" 10 Steps Spindle to Table 23 Net Weight 13,200 LBS Gross Weight 15,400 LBS
