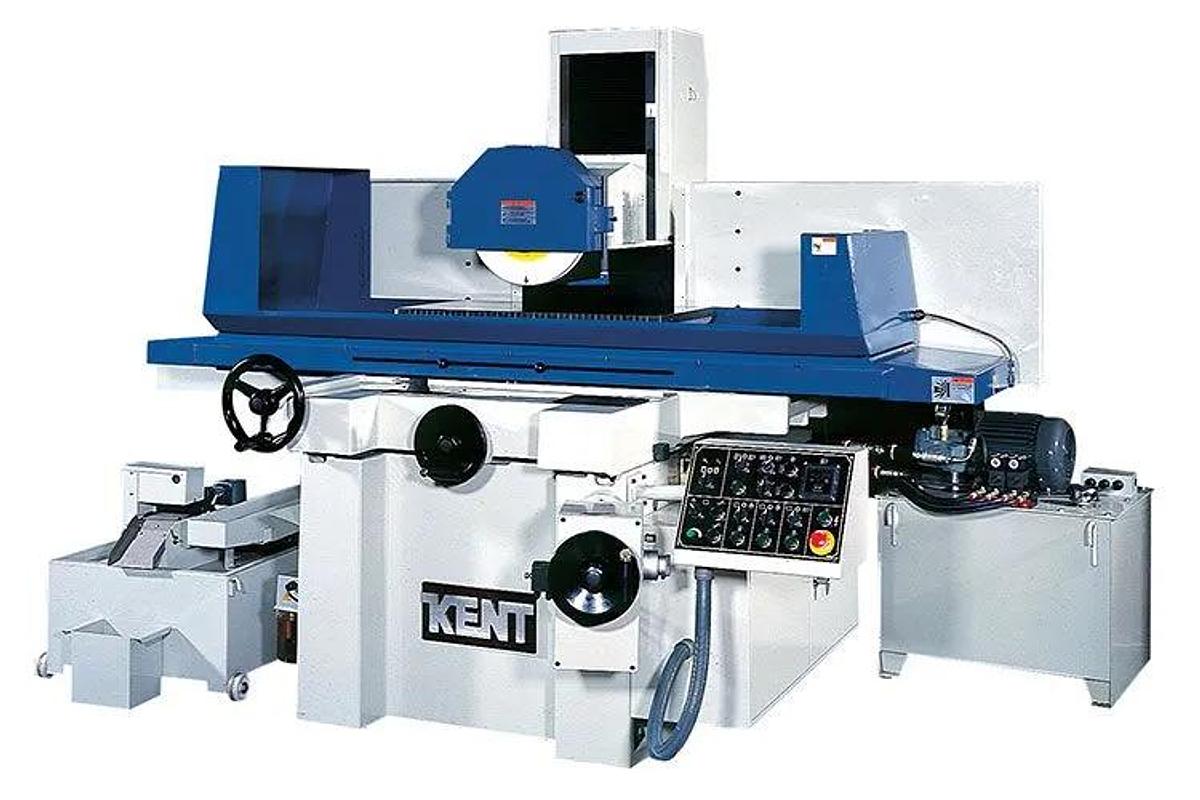

KENT International USA Saddle Type Surface Grinder KGS-84AHD 16" x 32"

KENT International USA Saddle Type Surface Grinder KGS-84AHD 16" x 32" Features & Capability Longitudinal on V-flat scraped guideways Saddle traveling crossfeed Motorized rapid elevation Spindle motor frequency inverter *Optional Hydraulic oil chiller *Optional Full enclosure *Optional Overhead hydraulic wheel dresser Variable spindle speed *Optional Surface grinding Plunge grinding Options at Additional Cost Magnetic Separator & Paper Filter Coolant System (M2) Digital Read Out System DRO Installation & Display Arm & Tray, Mounting Bracket Fine Pole Electromagnetic Chuck Extra Wheel Flange Table Splash Guard (Rear) Full Enclosure Guarding Spindle Motor Frequency Inverter for Variable RPM Hydraulic Oil Chiller Worktable are 31.5" x 15.75" Longitudinal table travel 36.25" Cross feed table travel 17.72" Distance from spindle center to table 23.62" Table load including magnetic chuck 27.56" T-slot .55" x 3 N Longitudinal table feed 5-25 m/min Power cross feed 1000/1200 mm/min (50 Hz/60 Hz) Auto cross feed per stroke 0.25-20 mm Spindle motor 7.5HP Coolant motor 190 W
