KNUTH ABS 330 L, Cutting capacity 0° (flat) (length x width) 14 in x 13 in, 4HP

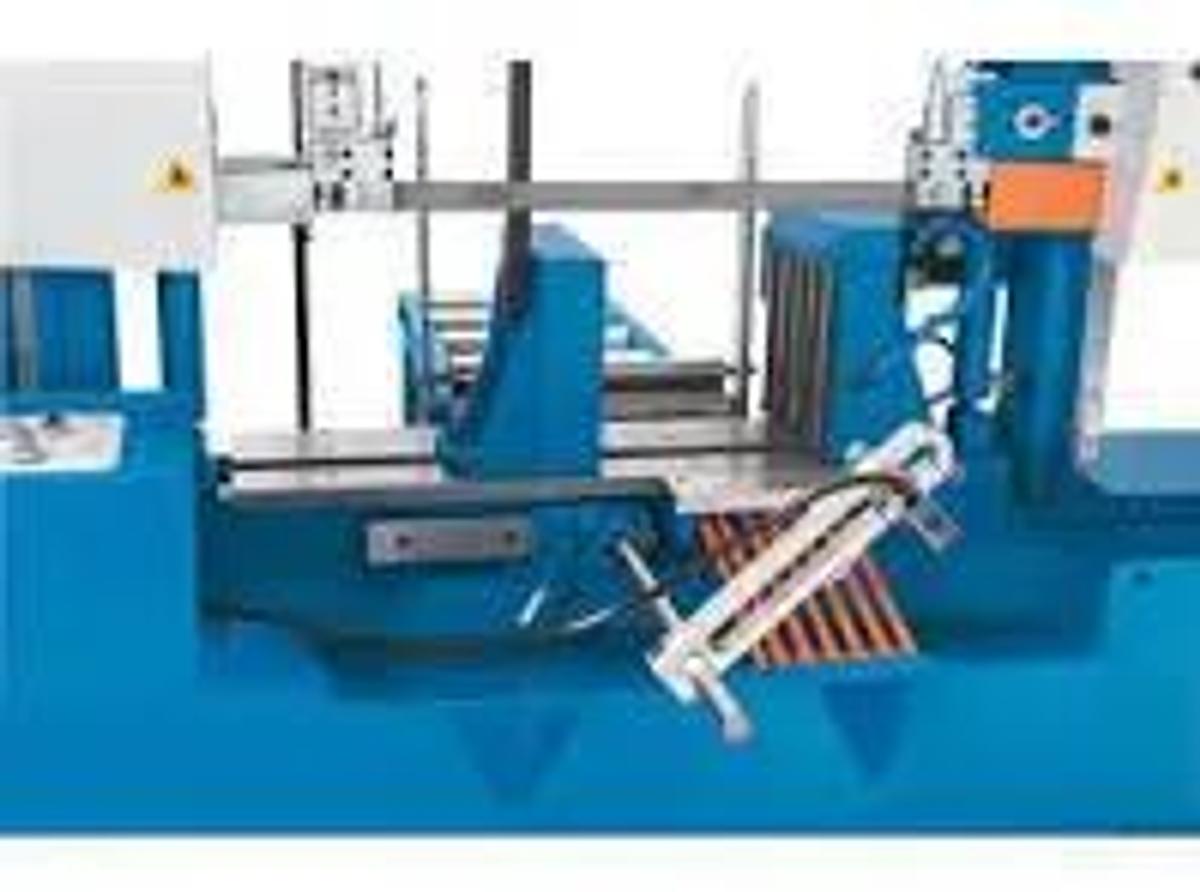

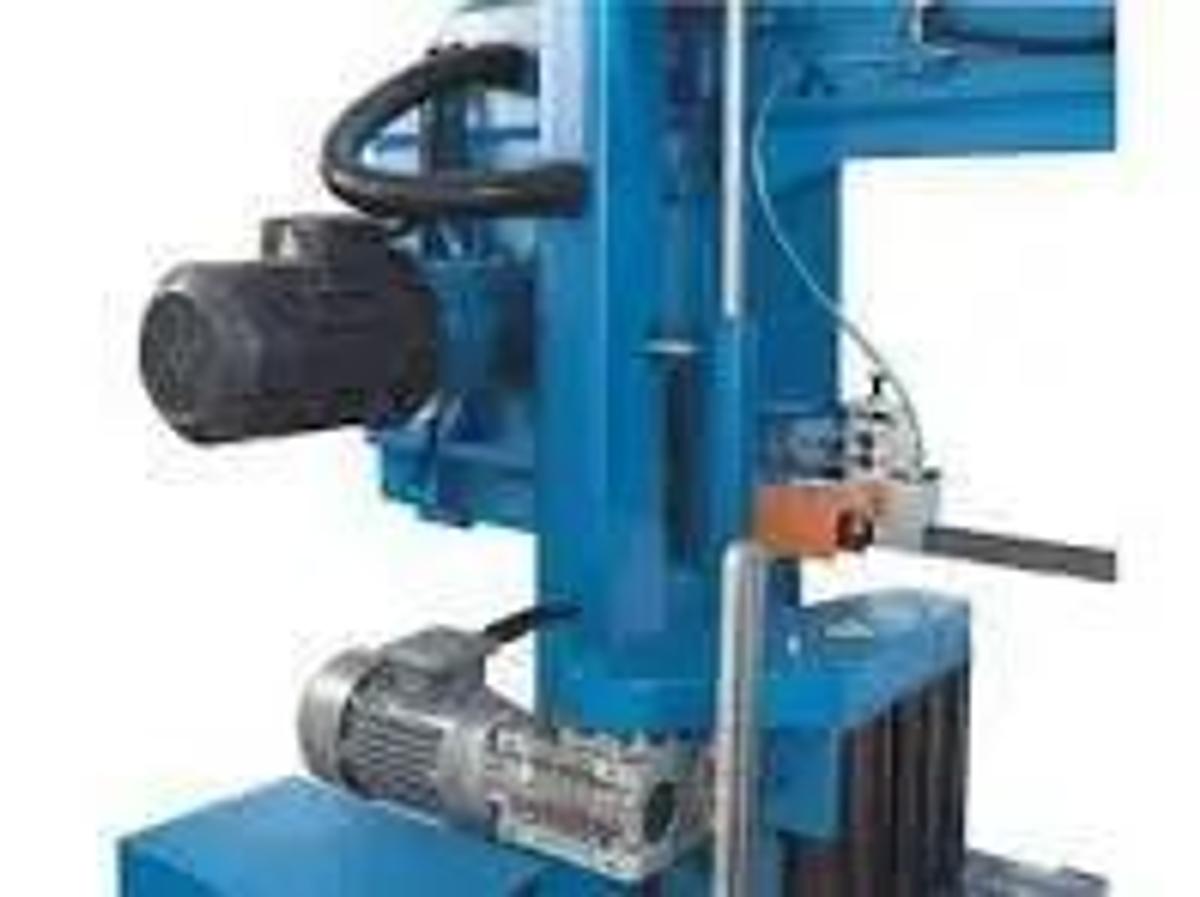

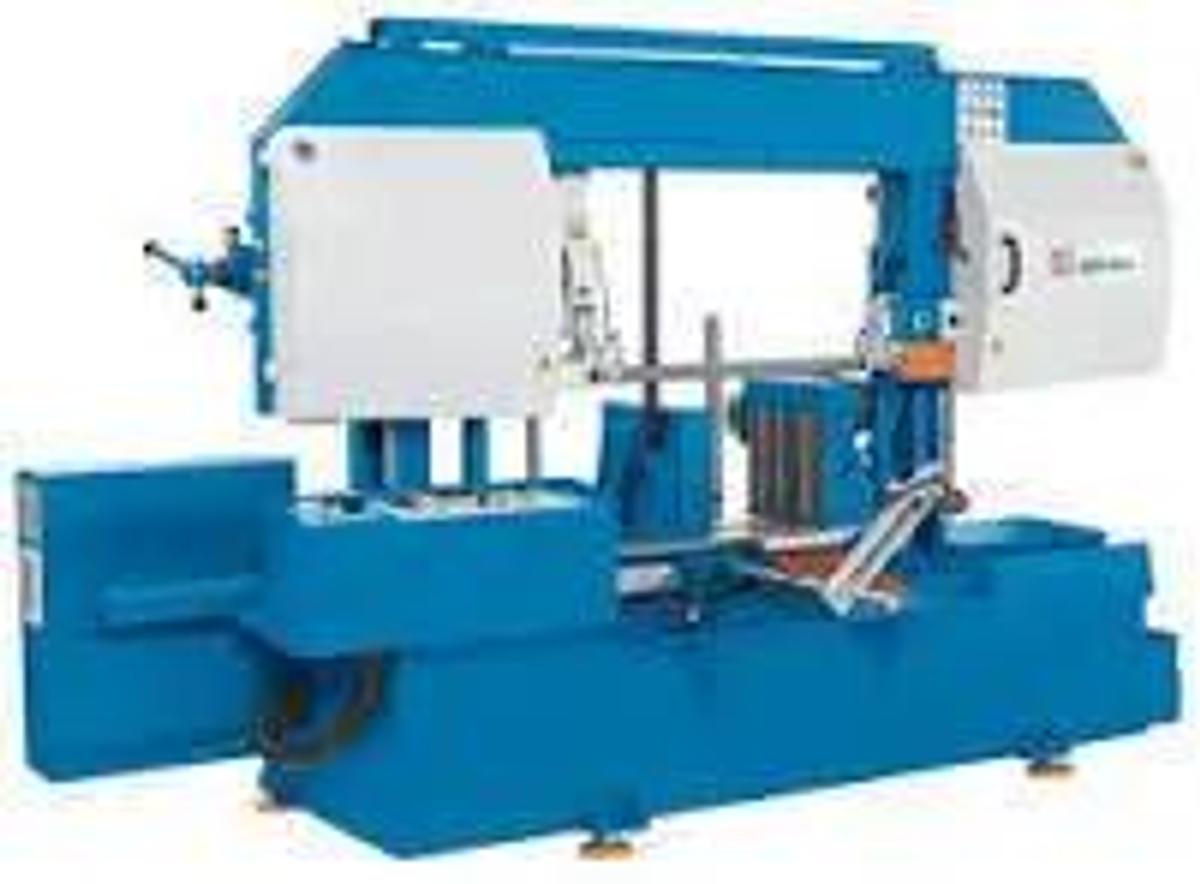

KNUTH ABS 330 L, Cutting capacity 0° (flat) (length x width) 14 in x 13 in, 4 HP The models of the ABS-L series are fully automatic horizontal band saws for precisely straight sawing of large and heavy workpieces. A rigid dual column frame forms the heart of the extremely stable construction. Using the central control panel, you can regulate the saw frame feed, steplessly adjust the saw blade speed and machine the workpiece hydraulically. The robust automatic material feed does not need any electronics or programming and still offers high repeat and dimensional accuracy. Dual column design for superior stability Material feed system with workpiece guide rollers Hydraulic workpiece clamping Optical detection of the workpiece height Feed roller table 4 ft Warranty: Standard (12) months new machine warranty, one shift operation (2,000 hrs). Machines below $30,000, covers parts only. 1-Saw-blade Parts counter Band break control Coolant system Hydraulic clamping Mechanical saw blade tensioning with hydraulic pressure gauge Feed roller table 47" Linear stop Operator instructions OPTIONAL EQUIPMENT Packaging and handling. - Strong base, machine wrap and skeleton crate if shipped by dry van. (not recommended for large machines) - Strong base and machine wrap if shipped by preferred method of flatbed. $375.00 3 meter roller table for ABS 330 L, SKU : 253849 Chip conveyor for ABS 330 L, SKU : 253852 Laser pointer, SKU : 253753 PRODUCT DETAILS Torsionally rigid machine frame made of a robust steel construction with high-quality linear guides Proven material feed system with hardened workpiece guide rollers and hydraulic workpiece clamping Shorter machining times are made possible by an advanced hydraulic saw frame feed design, including a new pressure control system to master any sawing tasks - infinitely variable setting of feed speed and cutting pressure All required settings are accessible and clearly labeled at the second control valve for easy adjustments Optical registration of the workpiece height allows empty runs in rapid feed mode for an optimum change-over to work feed and limiting of the vertical saw frame travel - everything is automated to reduce operator work load CUTTING CAPACITIES Cutting capacity 0° (flat) (length x width) 14 in x 13 in Cutting capacity 0° (round) 13 in Cutting capacity 0° (square) 13 in Cutting speed infinitely variable 65 fpm - 327 fpm Stop length 20 in Accuracy of the feeding 0.02 in DRIVE CAPACITY Motor rating main drive 4 Hp Motor rating hydraulic pump 0.7 Hp Motor rating feed 0.3 Hp MEASURES AND WEIGHTS Overall dimensions (length x width x height) 109 in x 36 in x 67 in Weight 3080 lbs Blade dimensions 163.78 in x 1.34 in x 0.04 in
